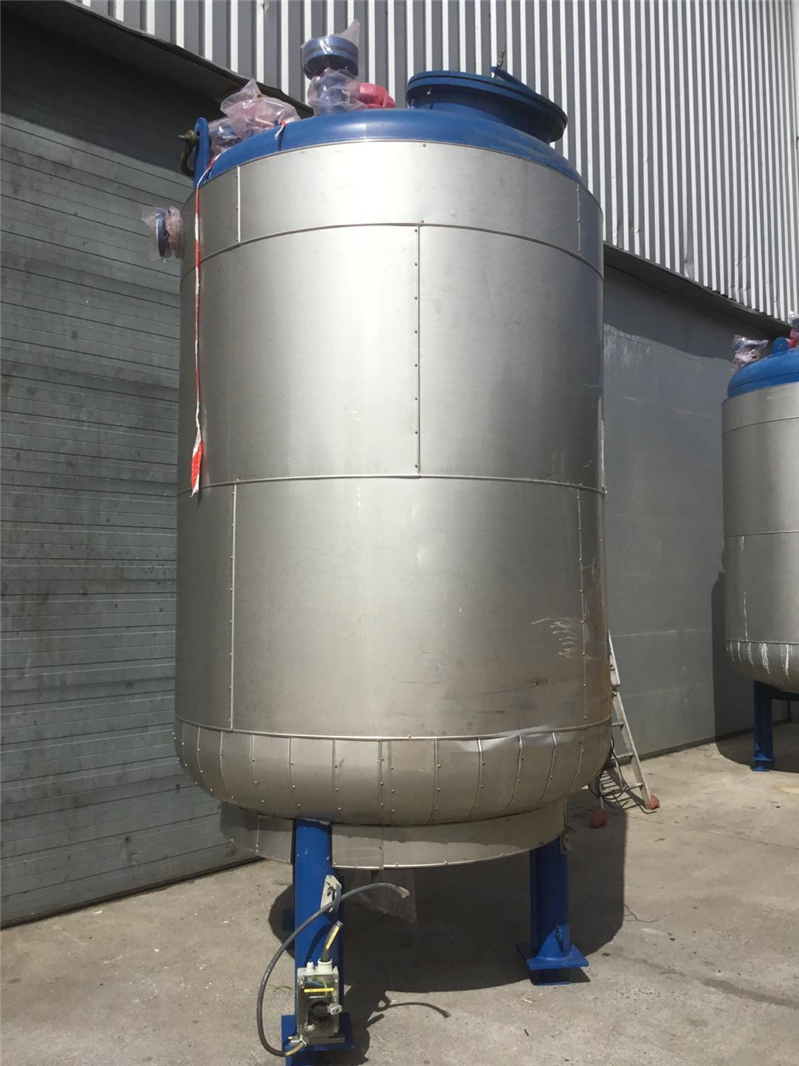

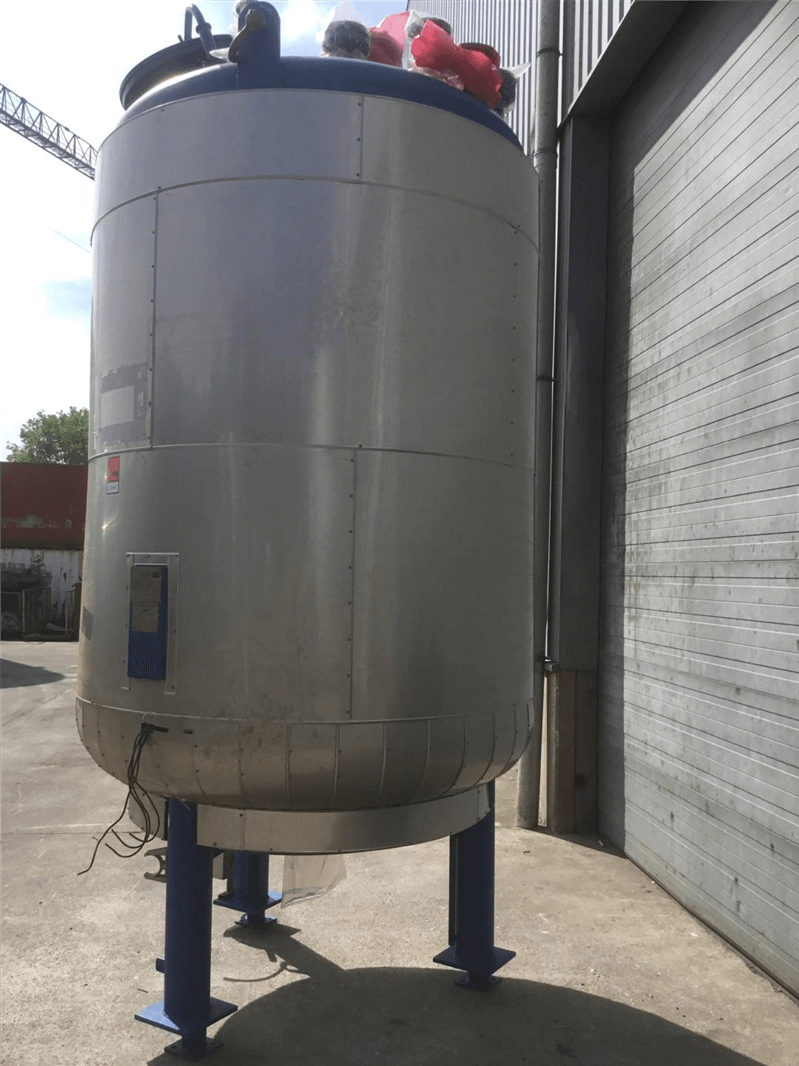

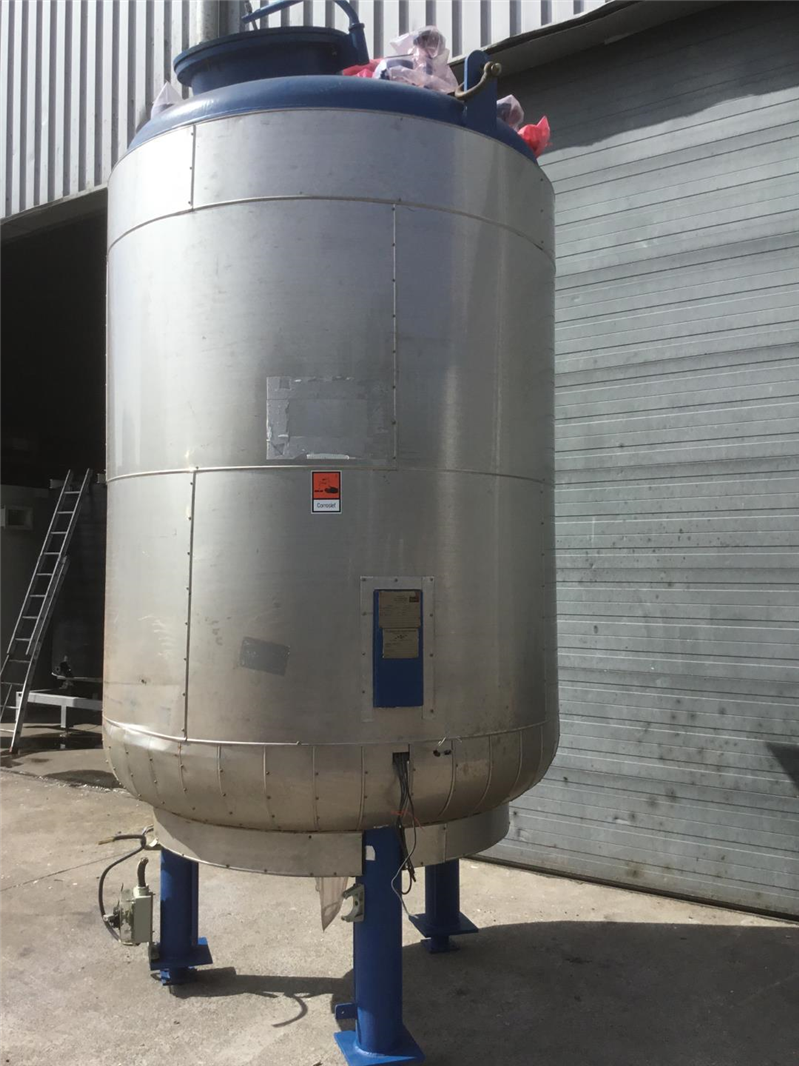

Used pressure tank
- Material: PTFE
- Condition: Used
- Volume (in litres): 7750 L
- In stock: 1
| General | |
|---|---|
| Item number | 05.39.FU.03 |
| Material | PTFE |
| Number | 1 |
| Capacity (Liters) | 7750 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 1,75 |
| Test pressure tank (Barg) | 2,62 |

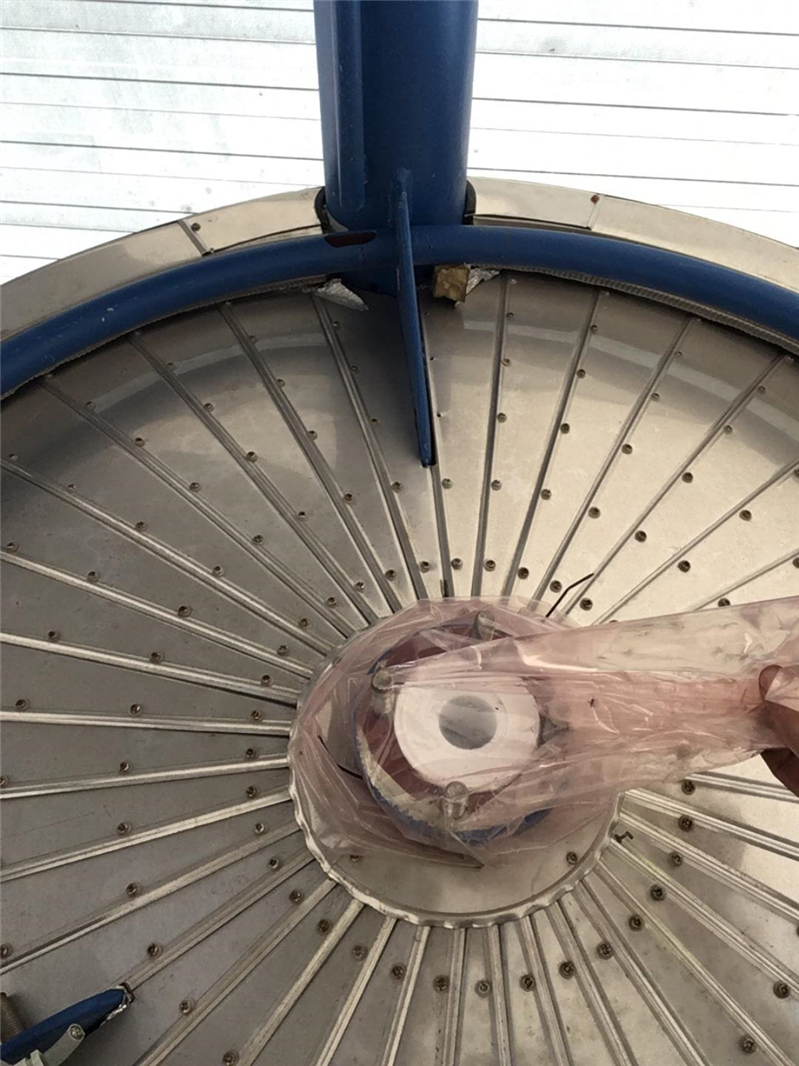

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |

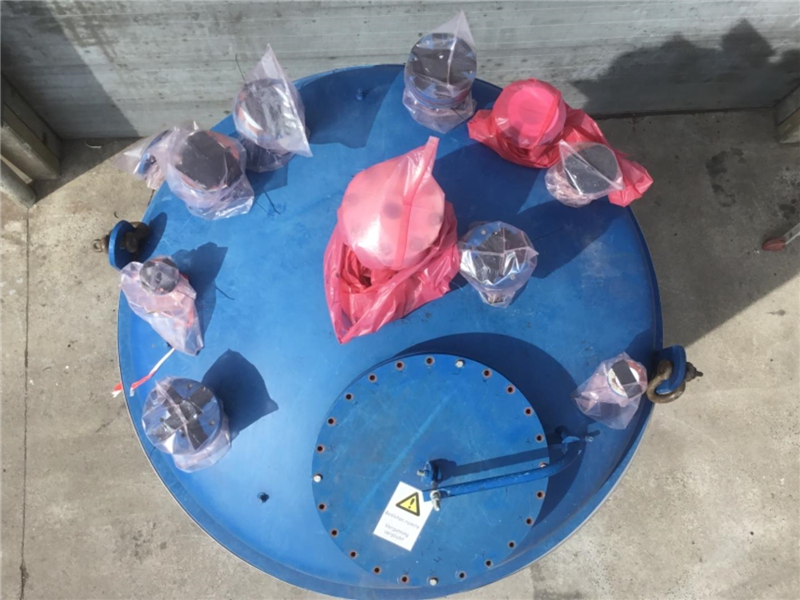

| Position of manhole (s) | Top |
| Dimensions of manholes | 600 |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 1400 |
| Condition | Used |

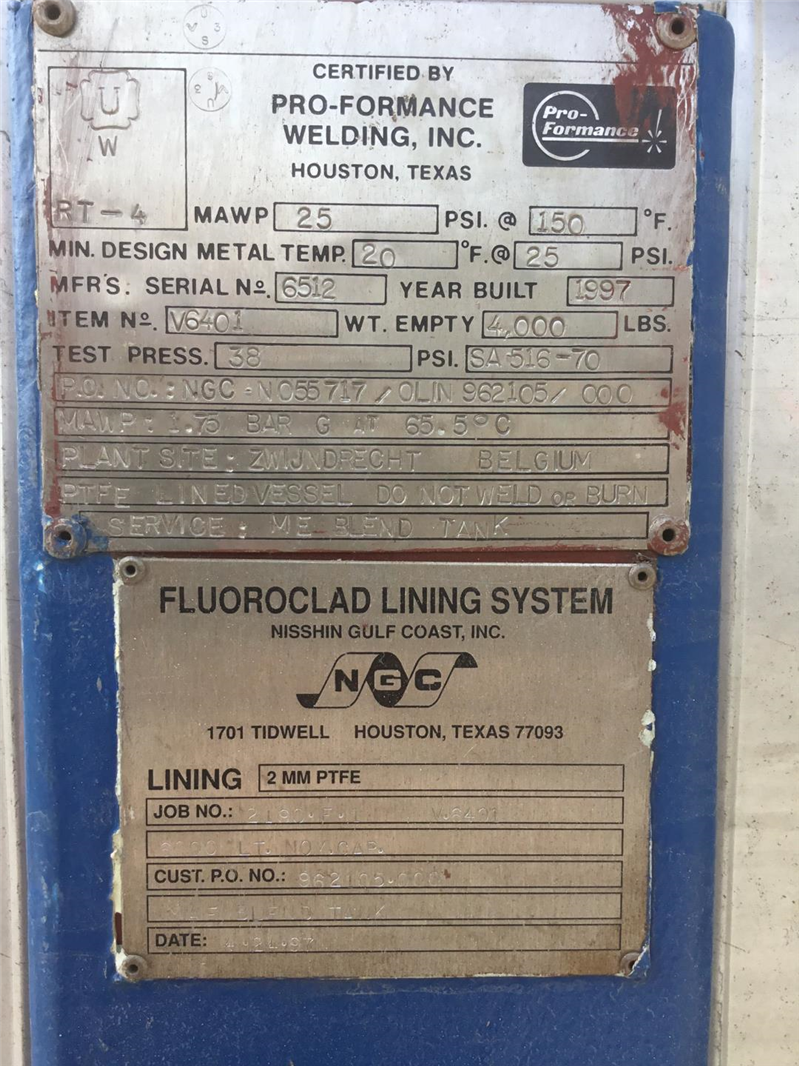

| Type plate manufacturer | Yes |
| Manufacturer | Pro-Formance Welding |
| Year Built | 1997 |
| Design Code | 6512 |
| Construction data available | Yes |
| Working temperature (° C) | 65 |
| Appendix 1 | t0539FU03_2190ff-1.pdf |
| Appendix 2 | t0539FU03_2190ff-2.pdf |
| Appendix 3 | t0539FU03_2190ff-3.pdf |
| Appendix 4 | 0539FU_Fluoroclad.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 6,35 |
| Dimensions | |
|---|---|
| Bottom thickness (mm) | 6,35 |
| Cylindrical length (mm) | 2413 |
| Height bottom (mm) | 300 |
| Outside diameter tank (mm) | 1829 |
| Total height (mm) | 4200 |
| Diameter tank (mm) | 1829 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 60 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |

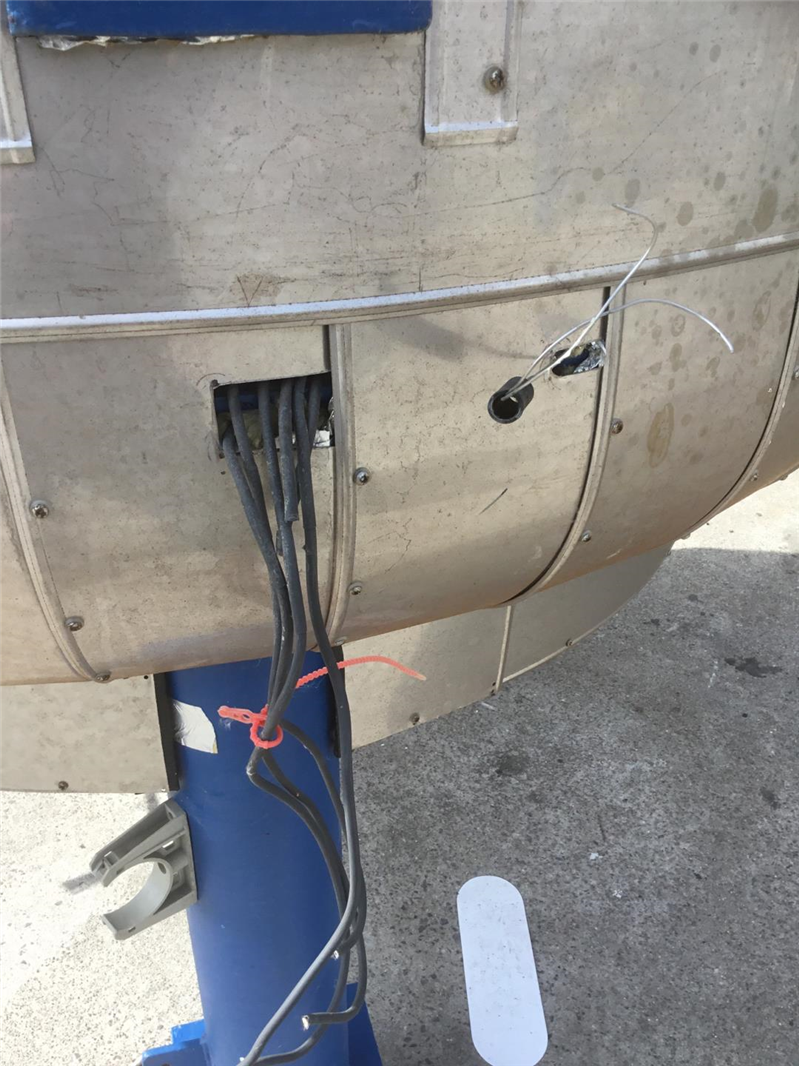

| Heating 1: Type | electrical tracing |
| Remarks | |
|---|---|

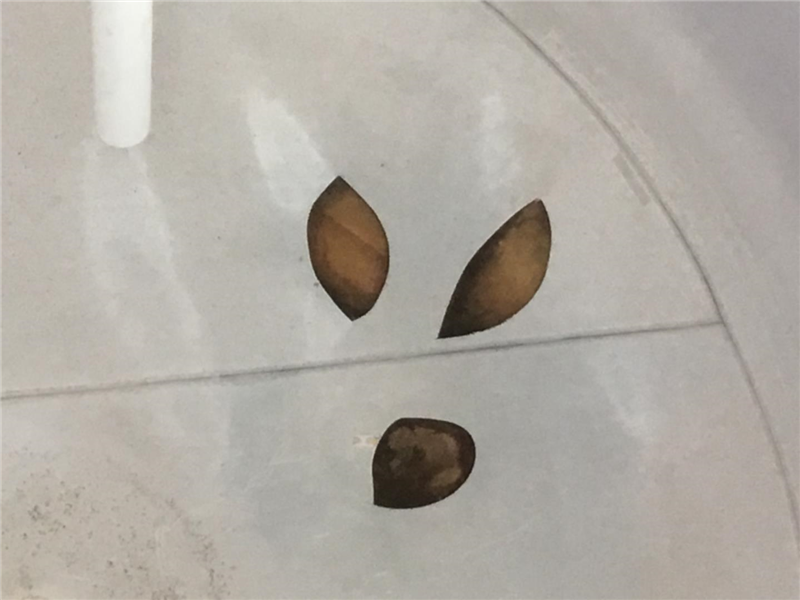

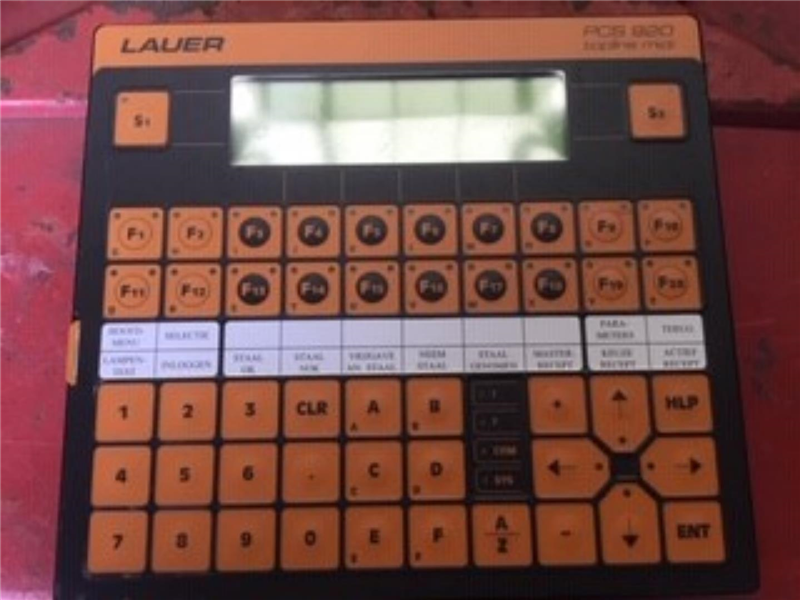

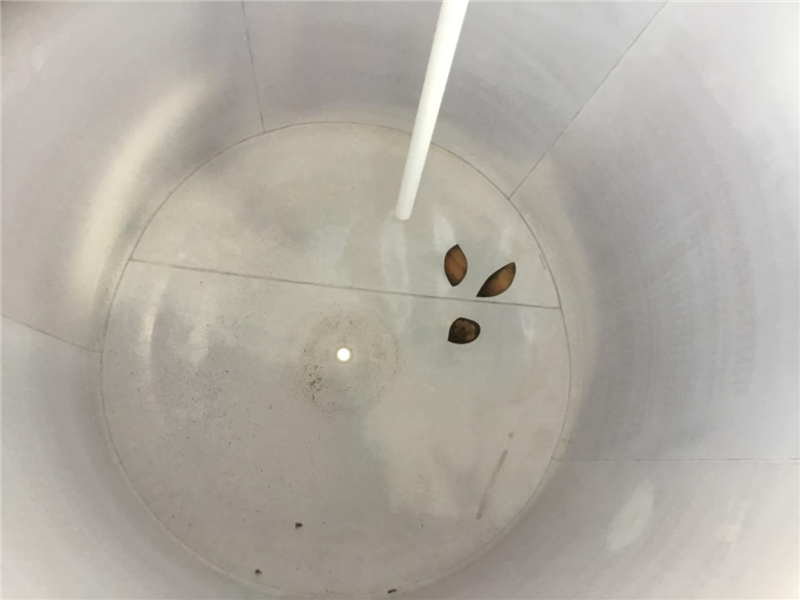

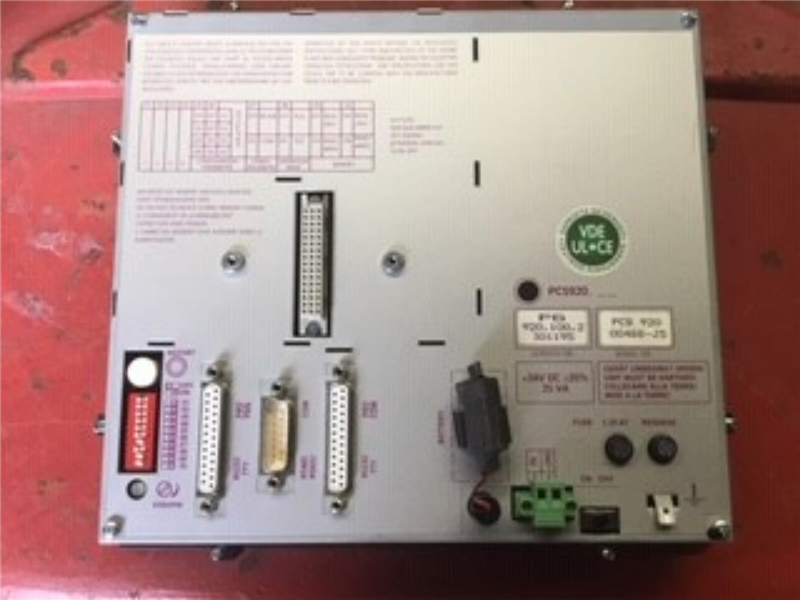

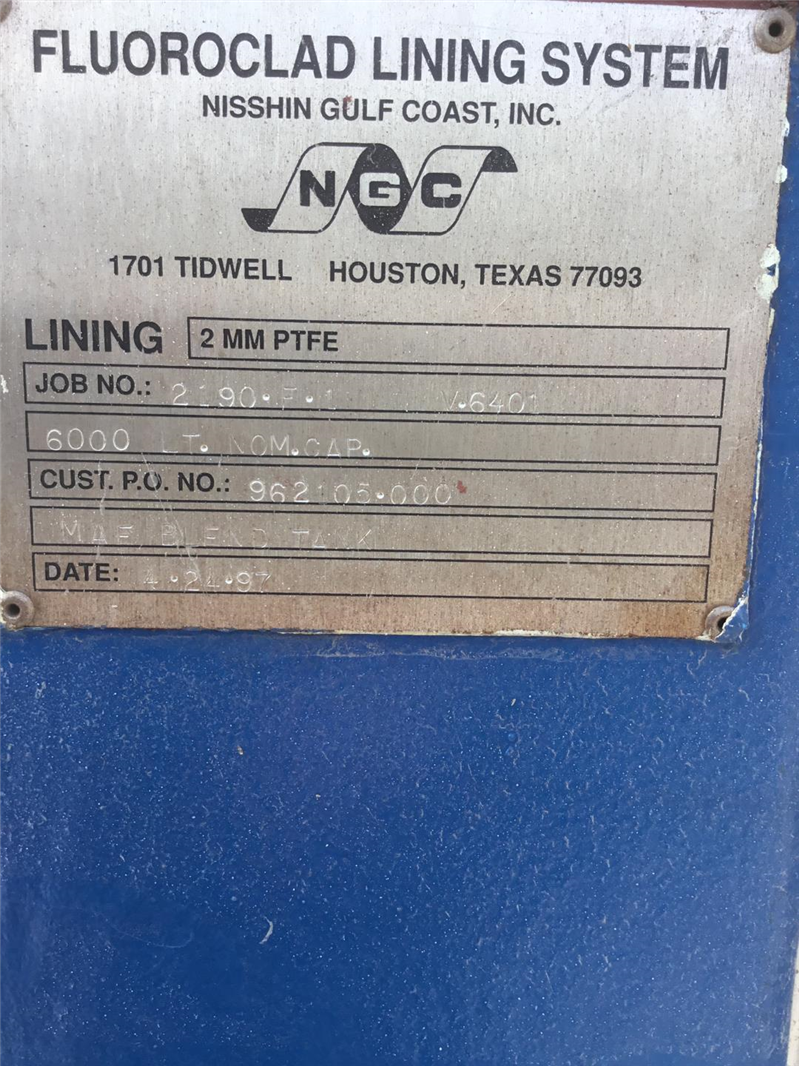

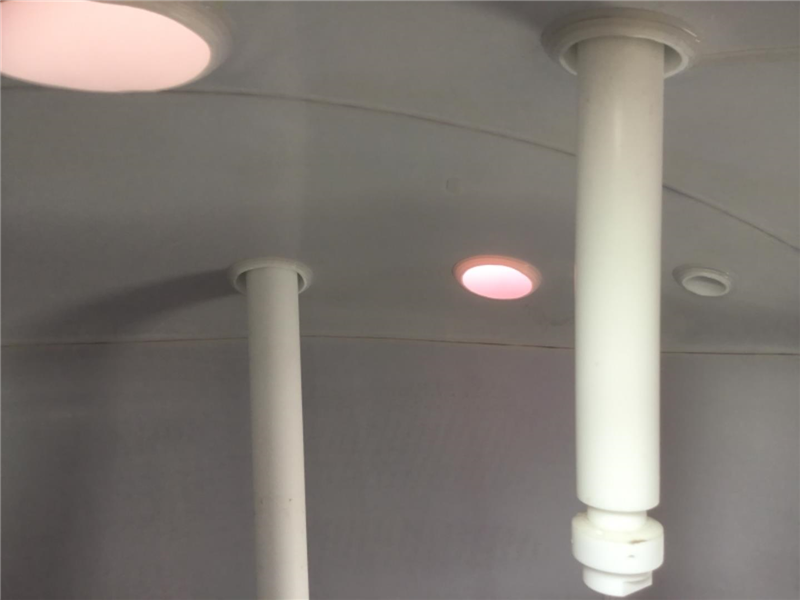

| Description (EN) | serial n° 6512 •Fluoroclad lining system 2 mm PTFE • Readout available, total 3 pieces |
