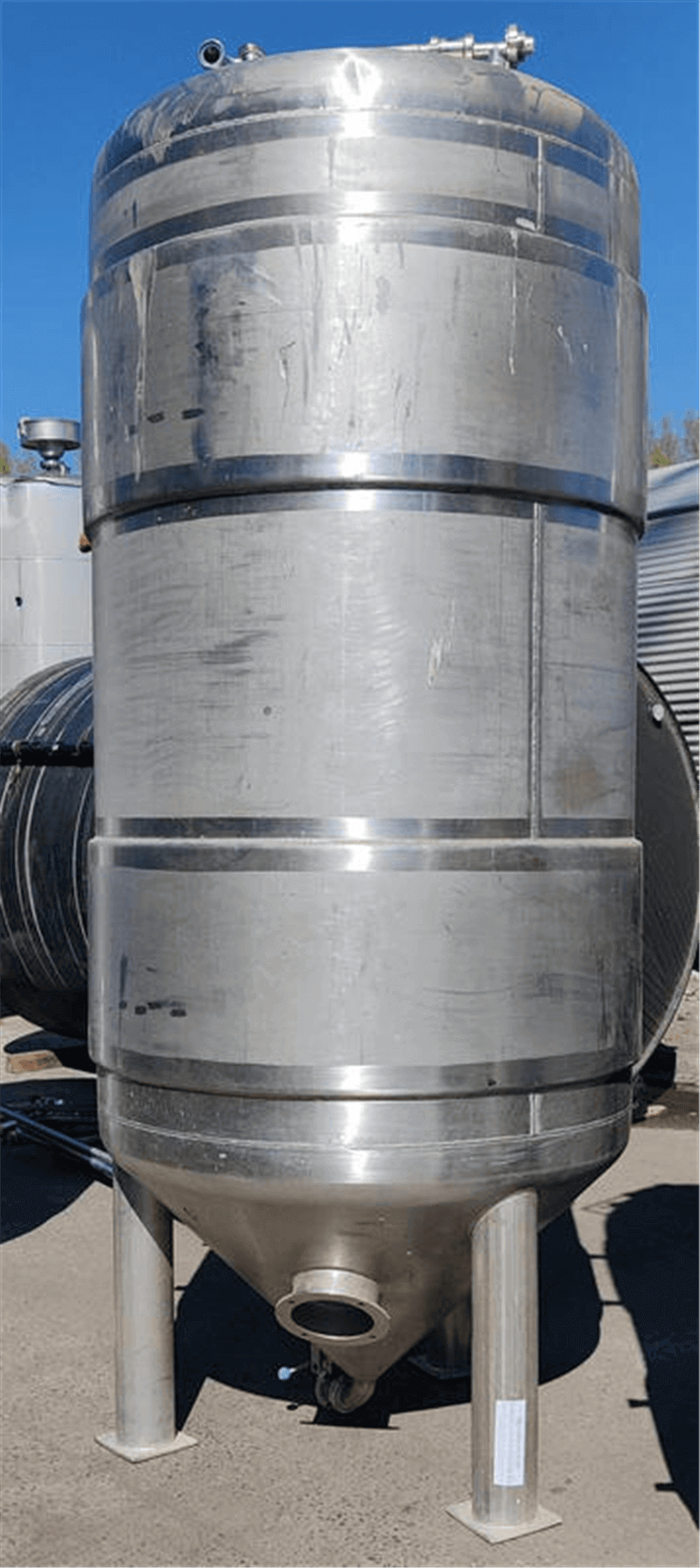

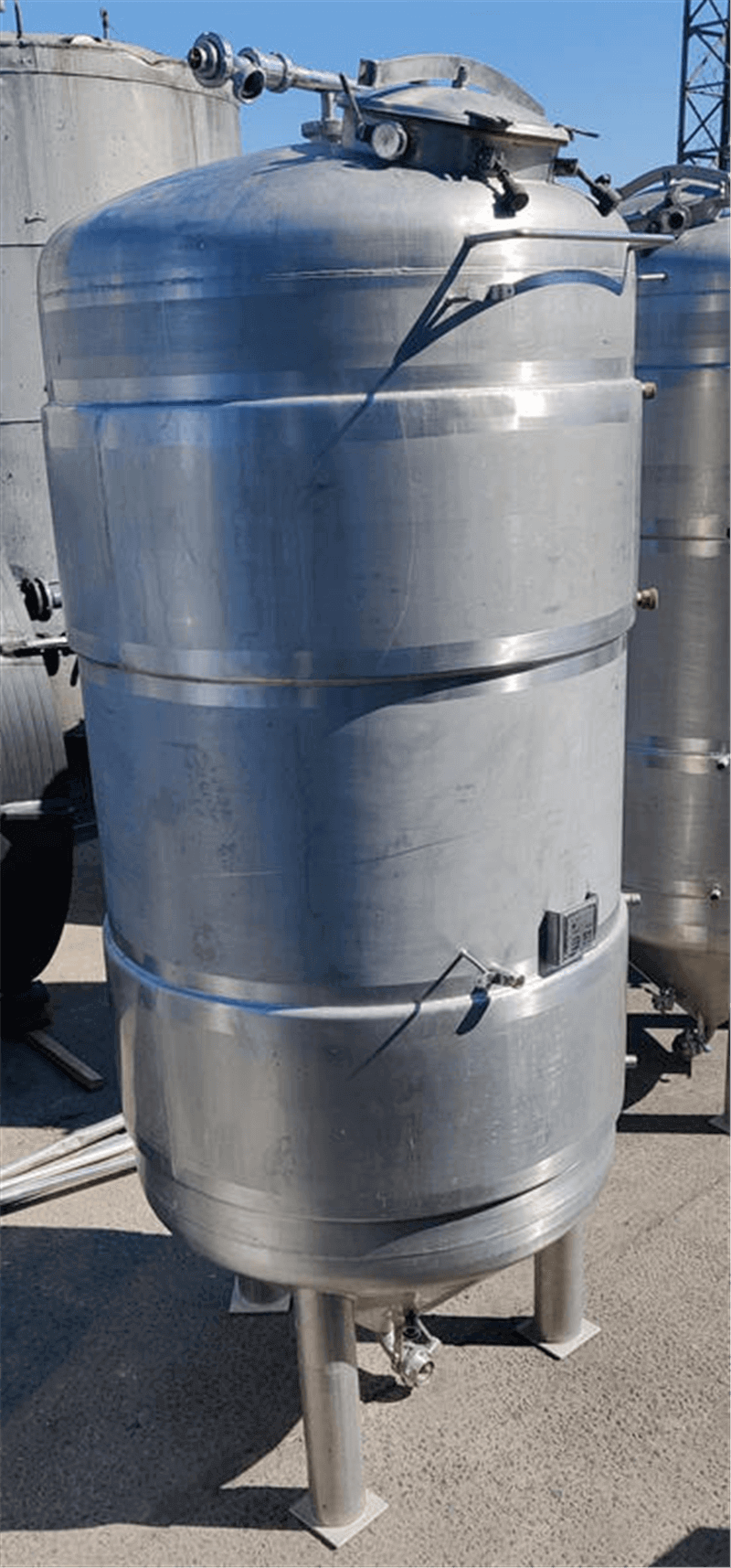

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 2950 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.RA.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 2950 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

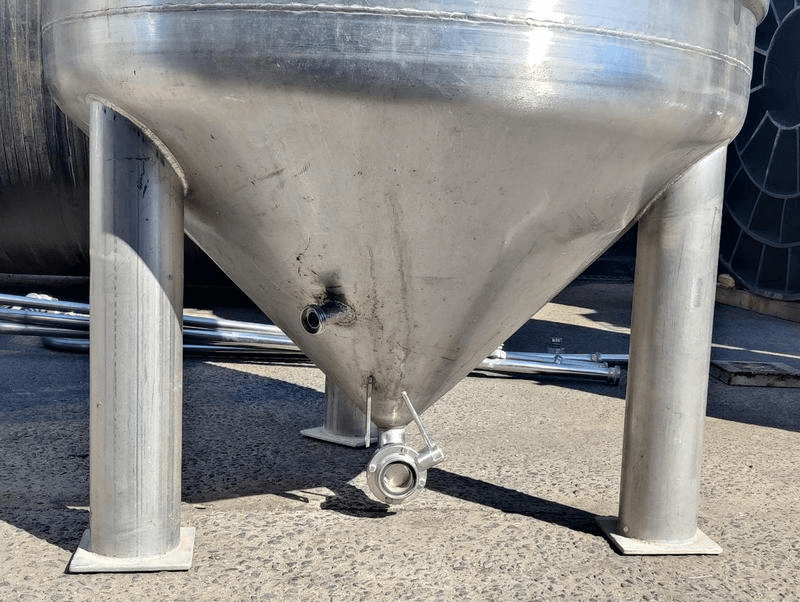

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 415mm |
| Tank with total drain? | Yes |

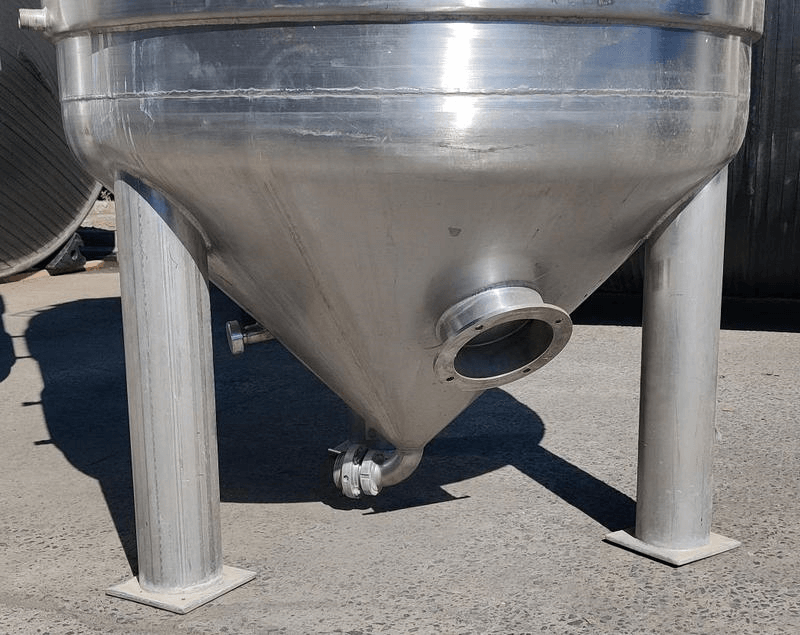

| Type of outlet (s) | man. vlinderklep |
| Diameter of outlet (mm) | 50mm voedingskoppeling |
| locality | B-7711 Belgium |
| Last application | Food |

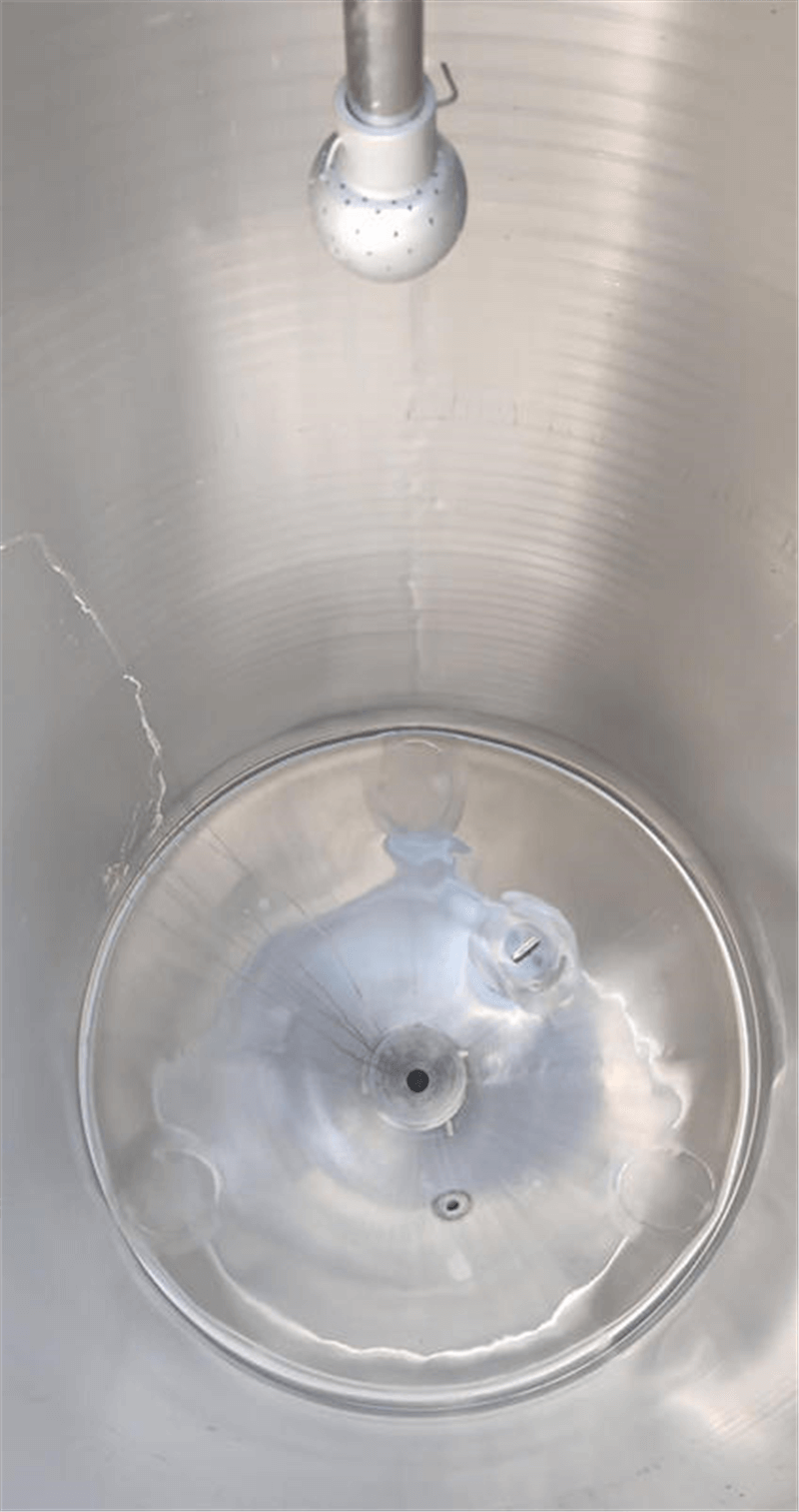

| Provision tank cleaning | CIP ball |
| Weight (kg) | 800 |
| Condition | Used |

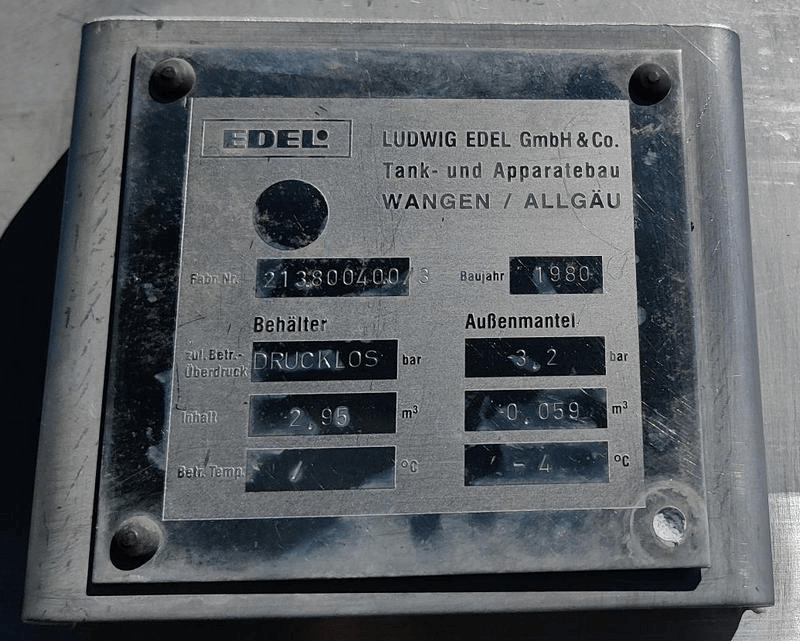

| Type plate manufacturer | Yes |
| Manufacturer | Ludwig Edel |
| Year Built | 1980 |
| Top side | |
|---|---|

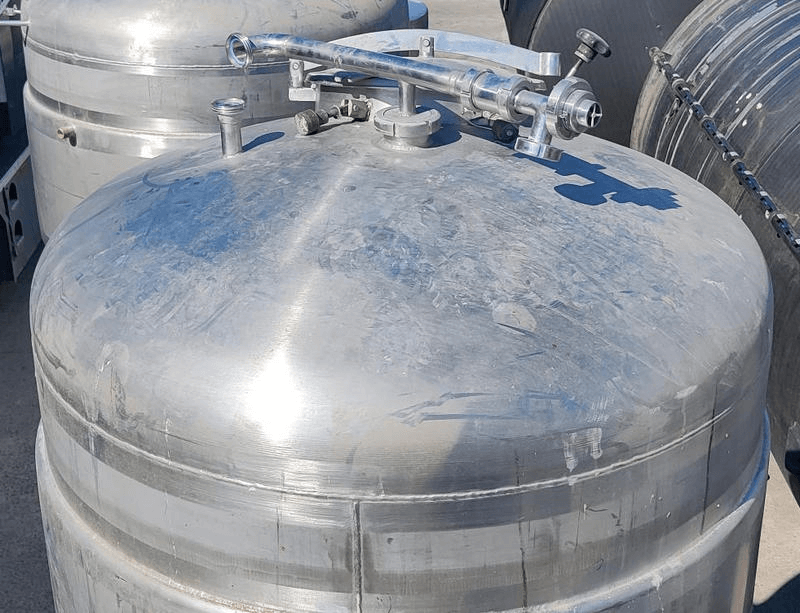

| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3,2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5,3 |
| Bottom thickness (mm) | 3,2 |
| Periphery (mm) | 4070 |
| Cylindrical length (mm) | 2000 |
| Slope bottom (°) | 29 |
| Height bottom (mm) | 700 |
| Outside diameter tank (mm) | 1295 |
| Total height (mm) | 3250 |
| Length (mm) | 1495 |
| Diameter tank (mm) | 1245 |
| Width (mm) | 1295 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Remarks | |
|---|---|
| Description (EN) | 2 heating fields on jacket --- working temp AMB/-4°C --- working pressure ATM --- working pressure jacket 3.2 bar |
