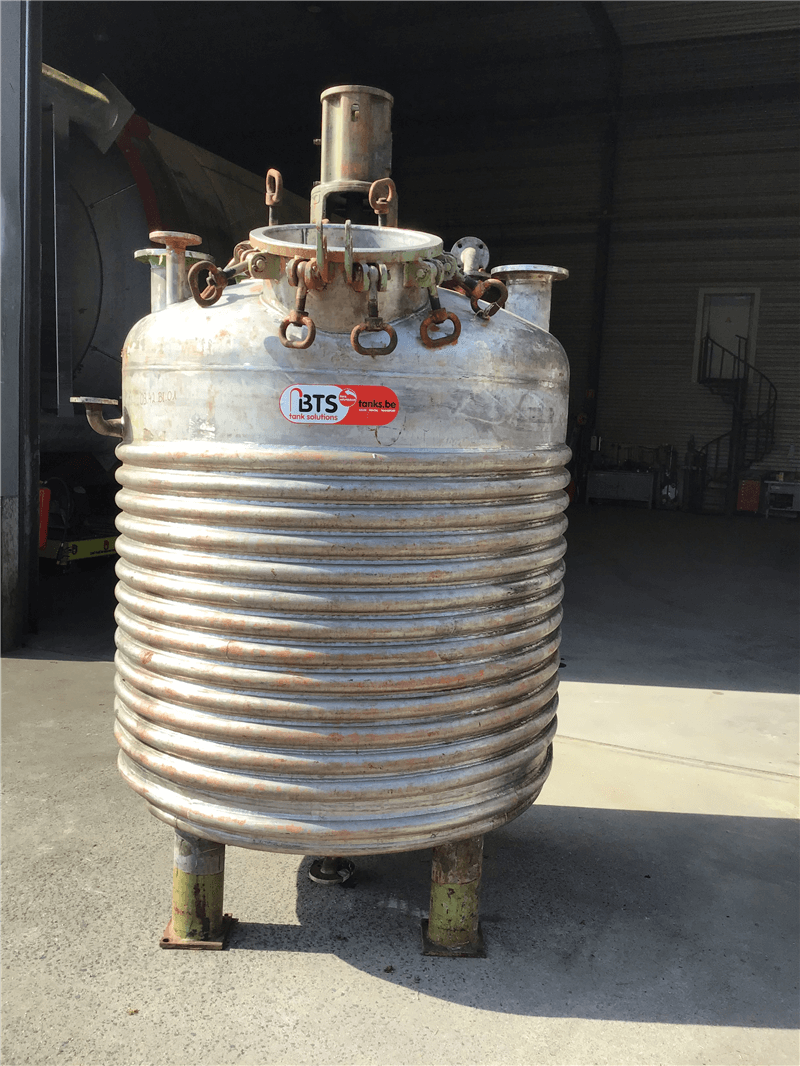

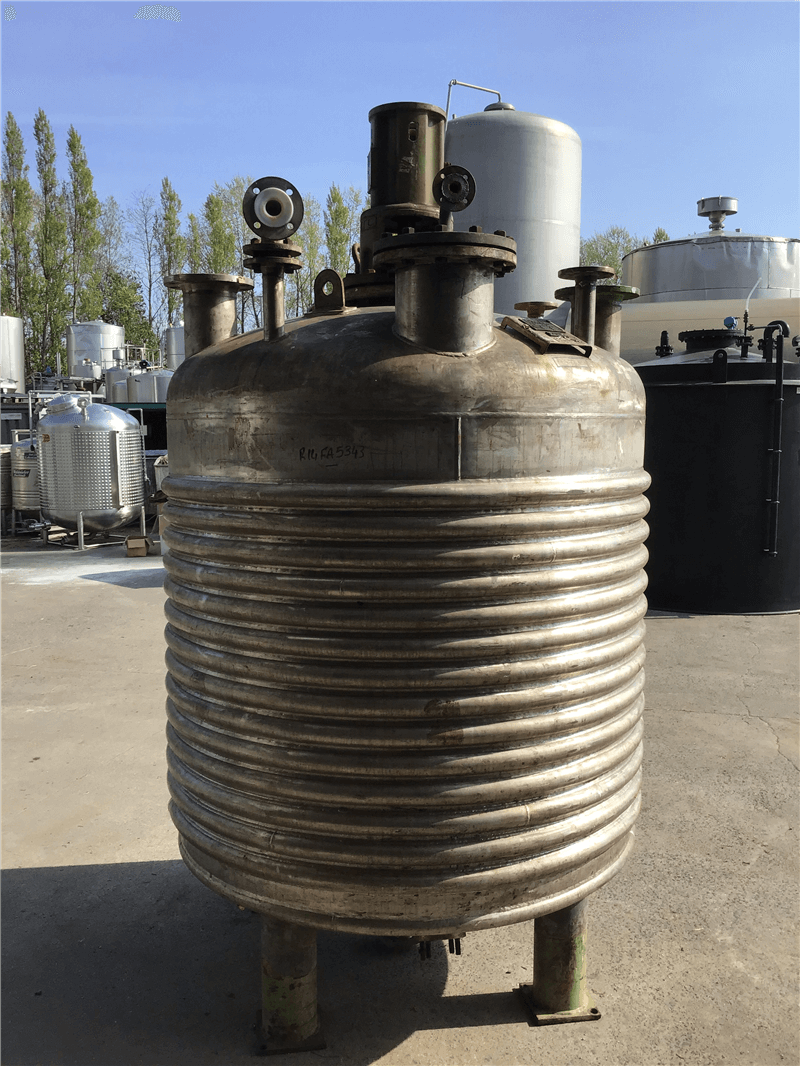

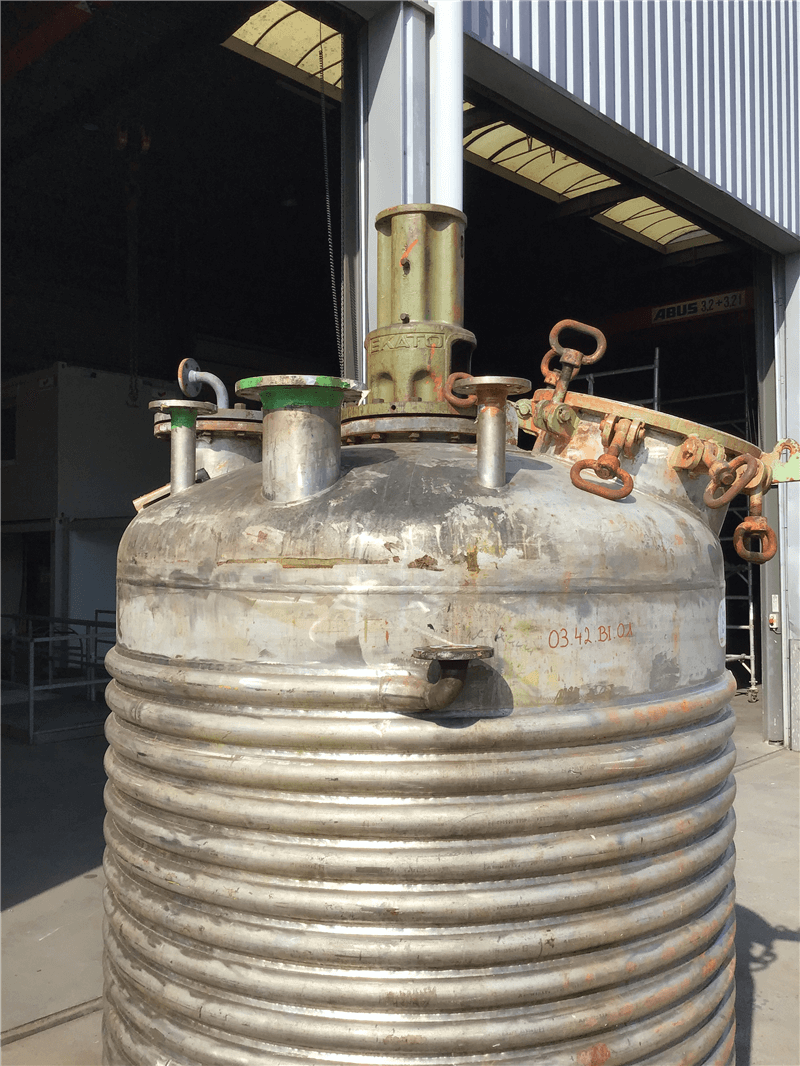

Used reactor tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 3200 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 316 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |

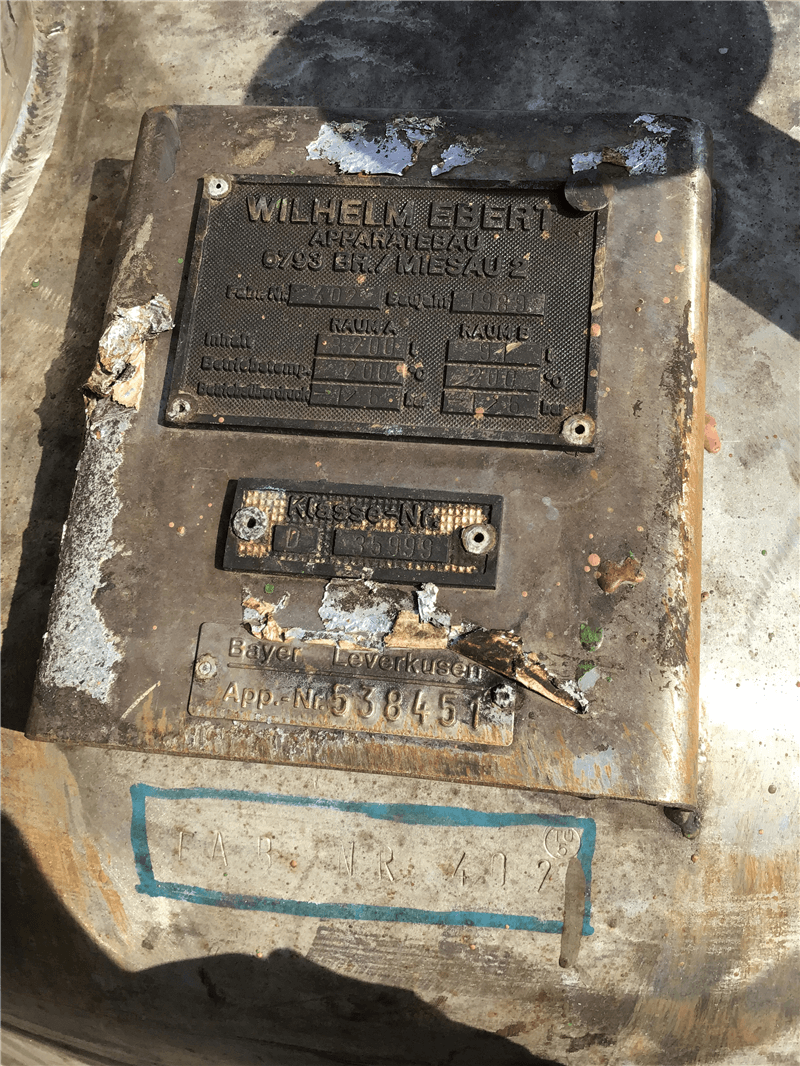

| Manufacturer | Wilhelm Ebert |
| Year Built | 1989 |
| Show Online? | Yes |
| Tank | |
|---|---|
| Finishing weldings inside | Untreated |
| Finishing weldings inside | Untreated |
| Finishing weldings inside | Untreated |
| Finishing weldings inside | Untreated |
| Capacity (Liters) | 3200 |
| Type tank | Reactor tank |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 6 |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 6 |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 6 |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 6 |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |
| Max. Overpressure (example: 1.5 Barg) | 6 |

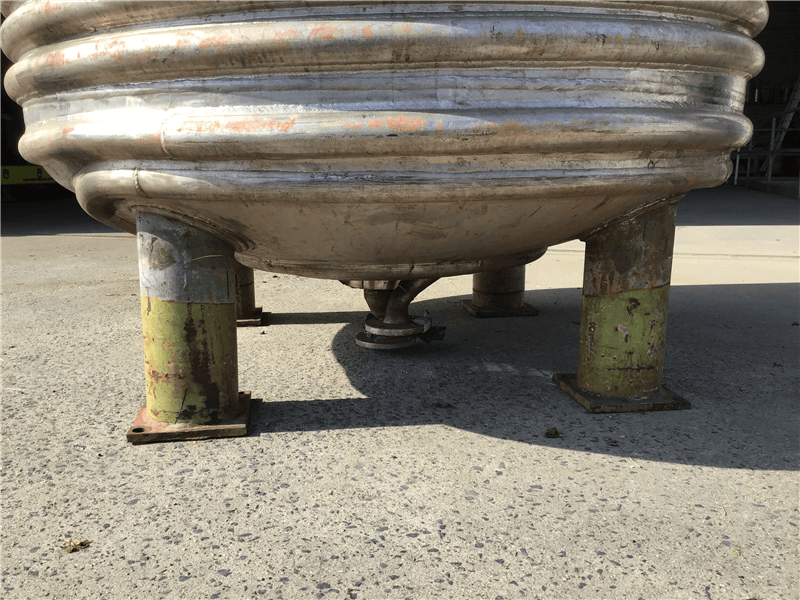

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

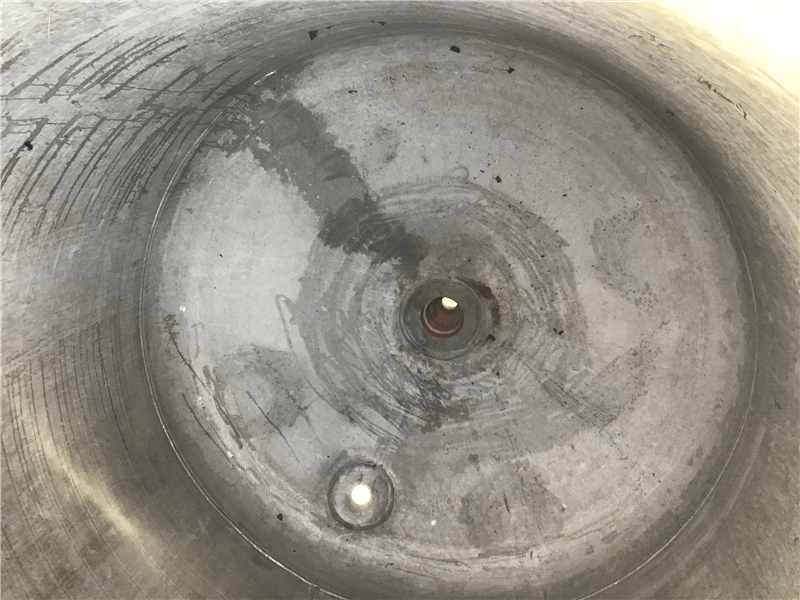

| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |

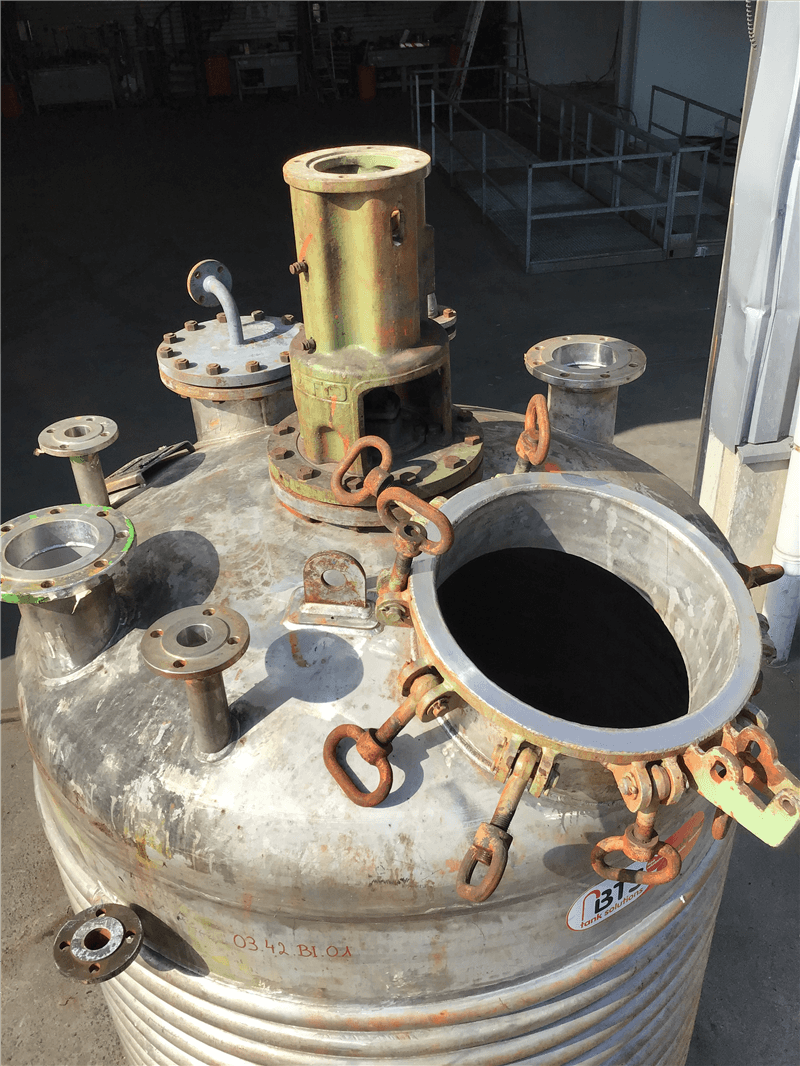

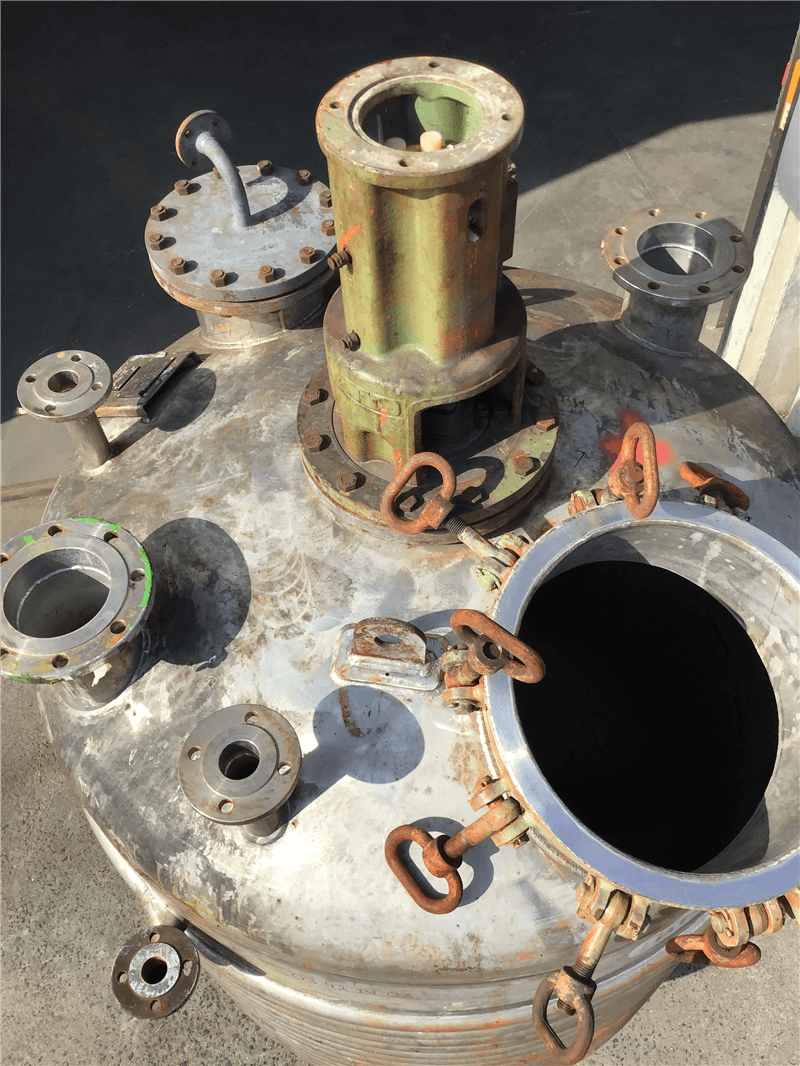

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 490 |
| Tank with total drain? | Yes |
| Type of outlet (s) | vlakke flens |
| Diameter of outlet (mm) | 129 |
| locality | B-7711 Belgium |
| Sector | 3 |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 11.8 |
| Cylinder Thickness (mm) | 5.3 |
| Bottom thickness (mm) | 8 |
| Cylindrical length (mm) | 1500 |
| Outer wall thickness (mm) | 4 |
| Outer wall thickness (mm) | 4 |
| Outside diameter tank (mm) | 1660 |
| Total height (mm) | 2900 |
| Diameter tank (mm) | 1600 |
| Width (mm) | 1660 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished head |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Halfpipe |
| Heating 1: Max. service pressure | 6 |
| Heating 1: Max. test pressure | 6 |
| Heating 1: Max. design pressure °C | 200 |
