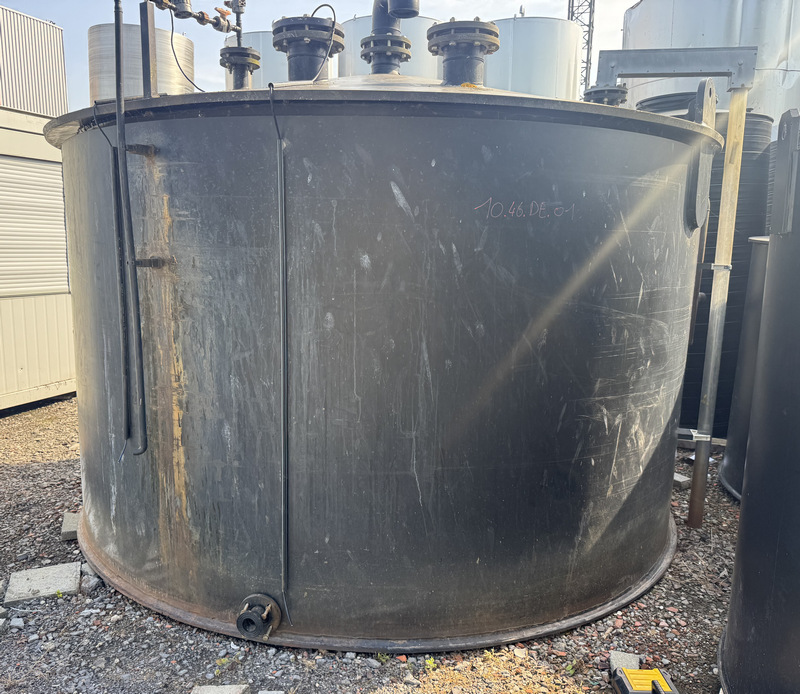

Used storage tank
- Material: HDPE
- Condition: Used
- Volume (in litres): 15000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.46.DE.01 |
| Material | HDPE |
| Number | 1 |
| Capacity (Liters) | 15000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 2 |

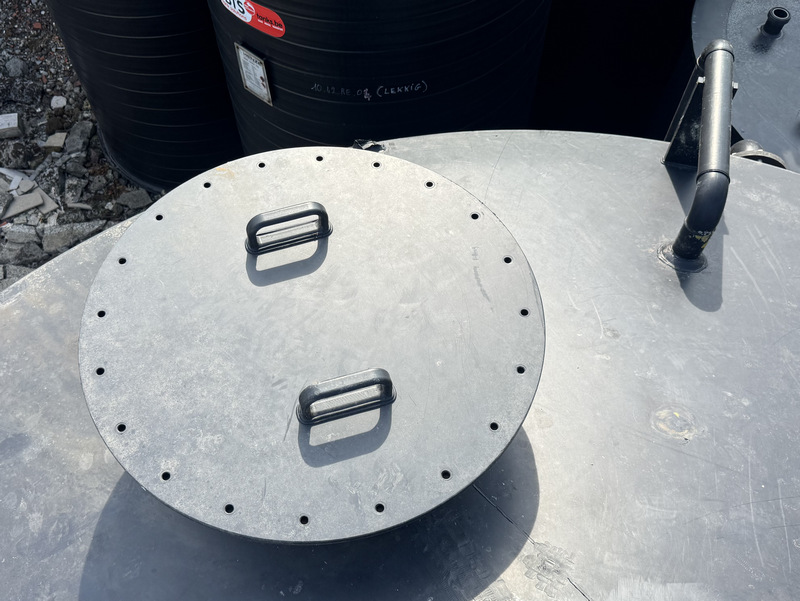

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Dia. 590 |
| Tank with total drain? | No |

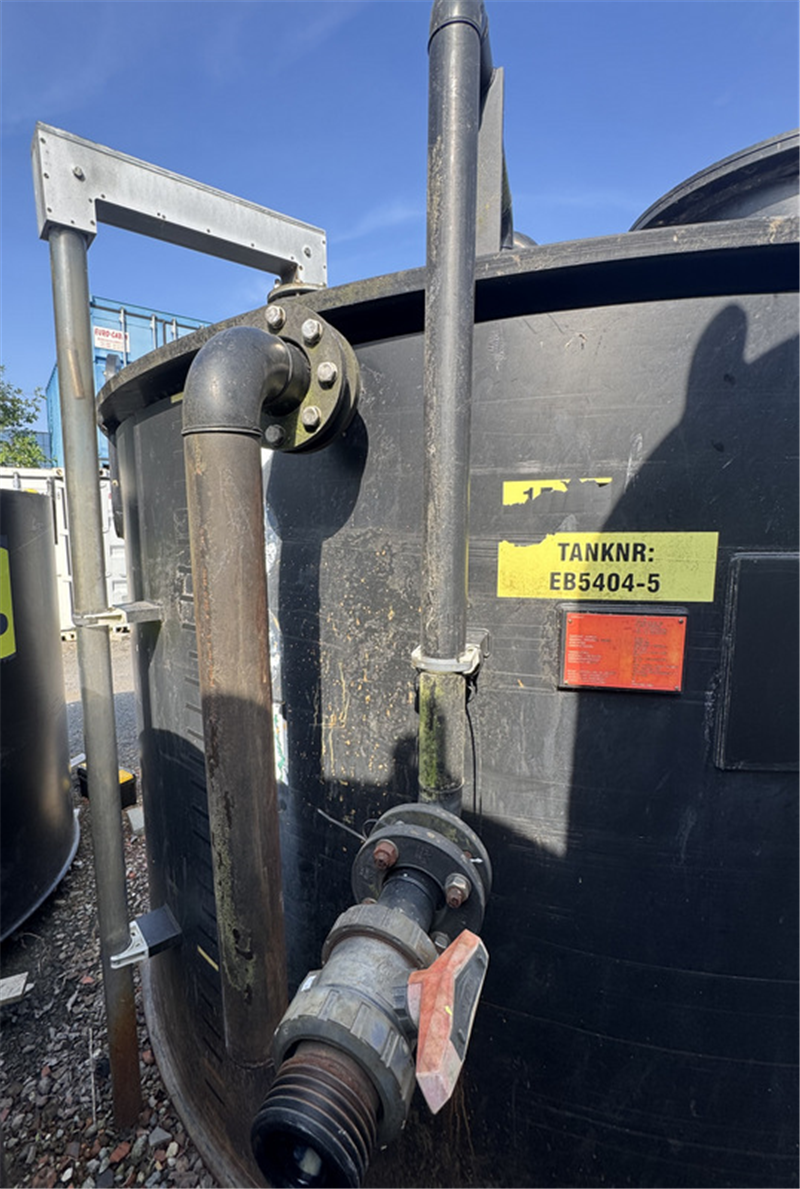

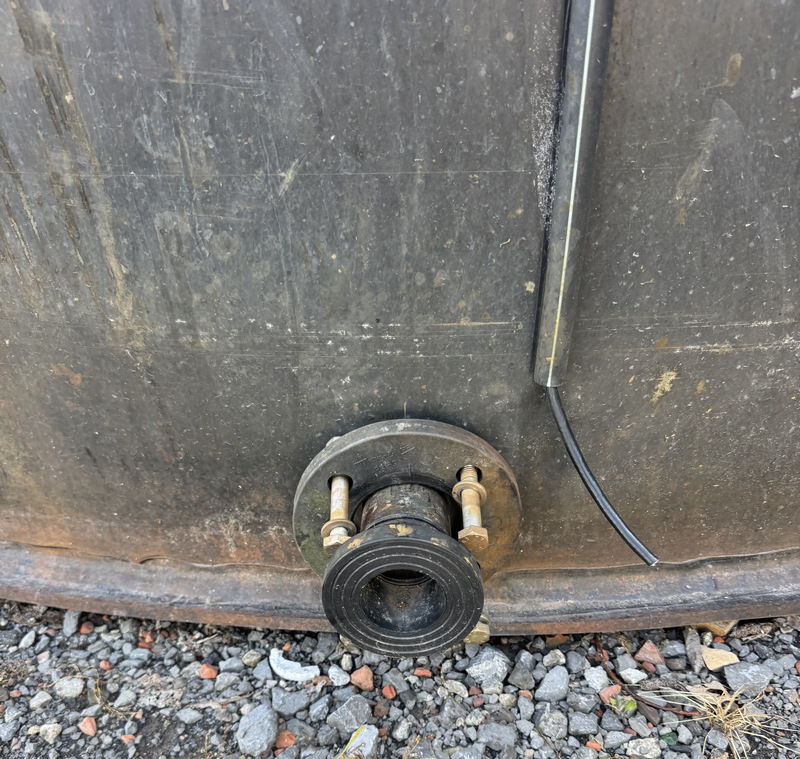

| Type of outlet (s) | bol kraan |
| Diameter of outlet (mm) | DN 50 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 500 |
| Condition | Used |

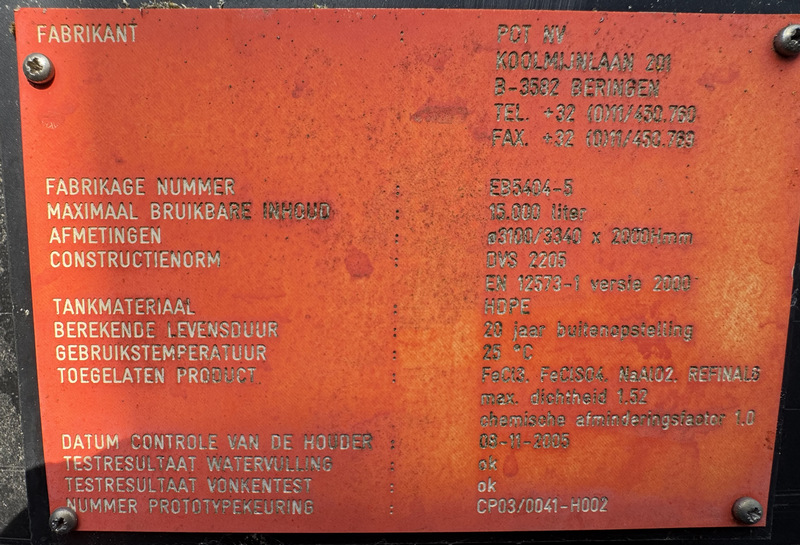

| Type plate manufacturer | Yes |
| Manufacturer | Pot NV |
| Year Built | 2005 |
| Design Code | DVS 2205 EN 12573-1 versie 2000 |
| Construction data available | No |

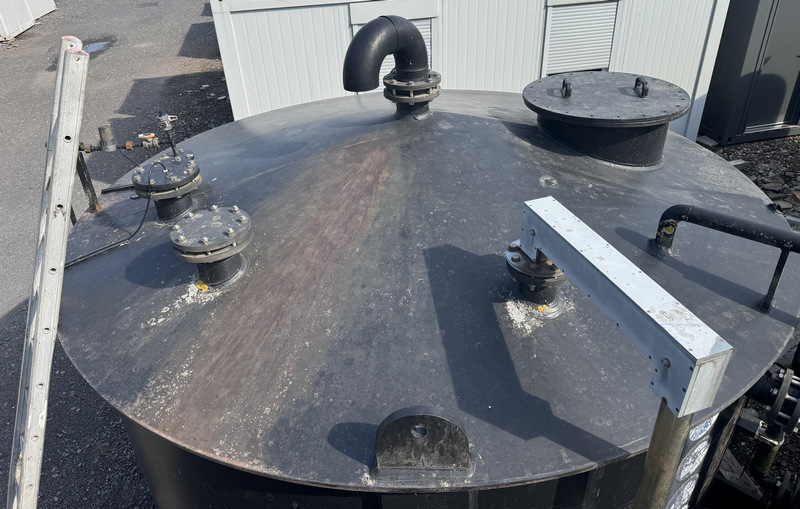

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 30 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 10 |
| Bottom thickness (mm) | 10 |
| Periphery (mm) | 9790 |
| Cylindrical length (mm) | 1995 |
| Outer wall thickness (mm) | 10 |
| Total height (mm) | 2890 |
| Length (mm) | 4100 |
| Diameter tank (mm) | 3100 |
| Width (mm) | 3560 |
| Insulation | |
|---|---|
| Insulation | No |
