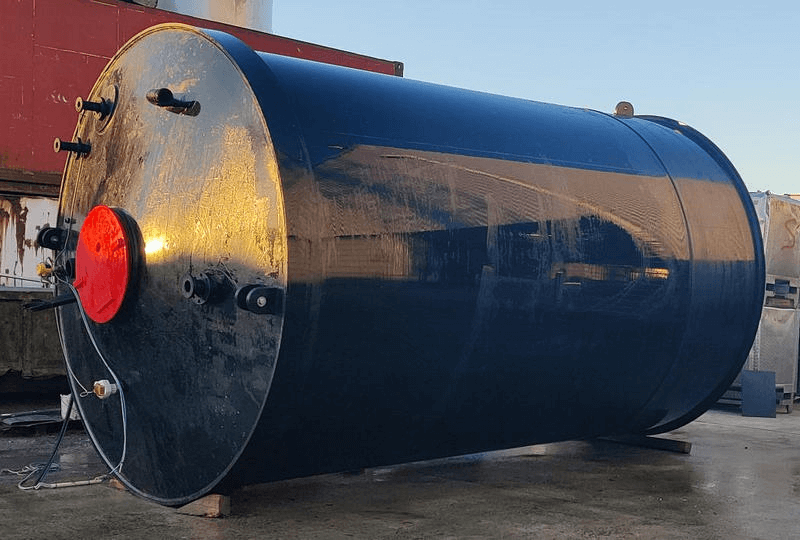

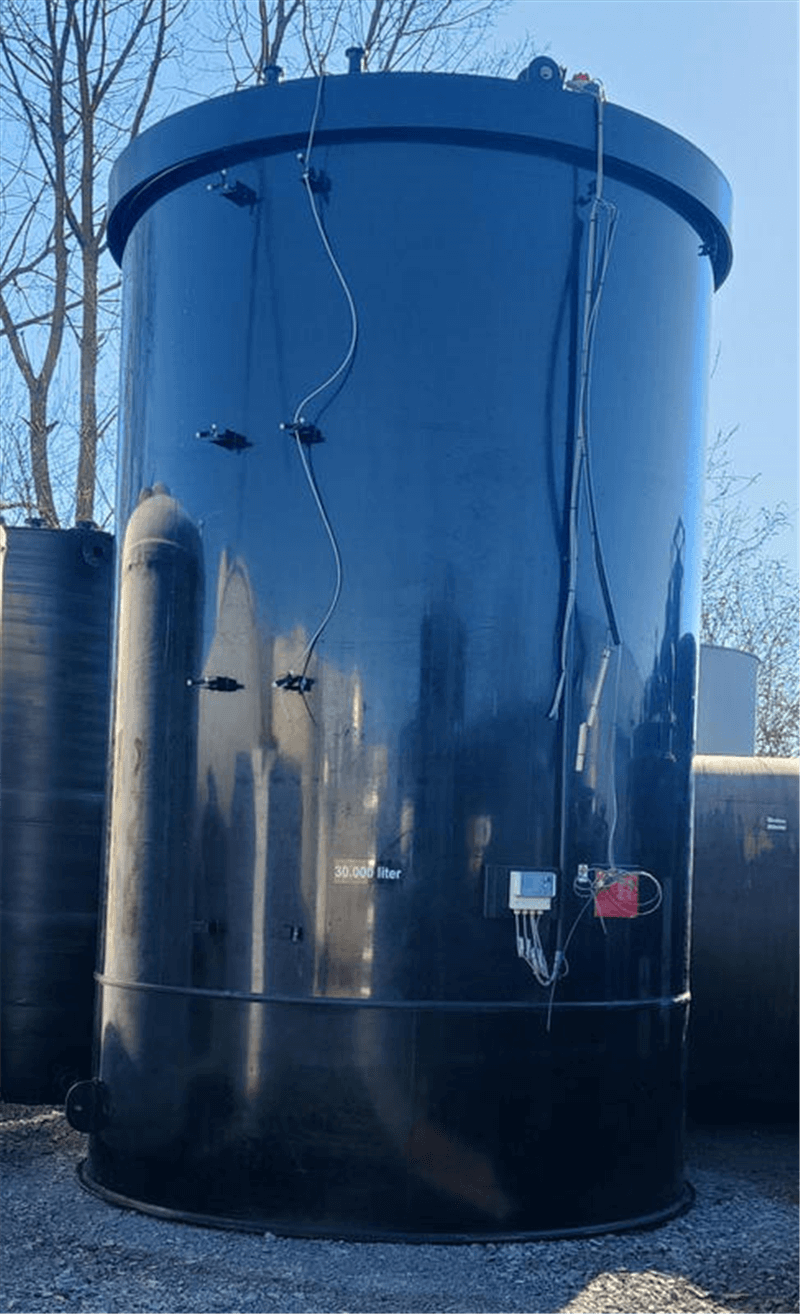

Used storage tank
- Material: HDPE
- Condition: Used
- Volume (in litres): 30000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.45.NU.02 |
| Material | HDPE |
| Number | 1 |
| Capacity (Liters) | 30000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |

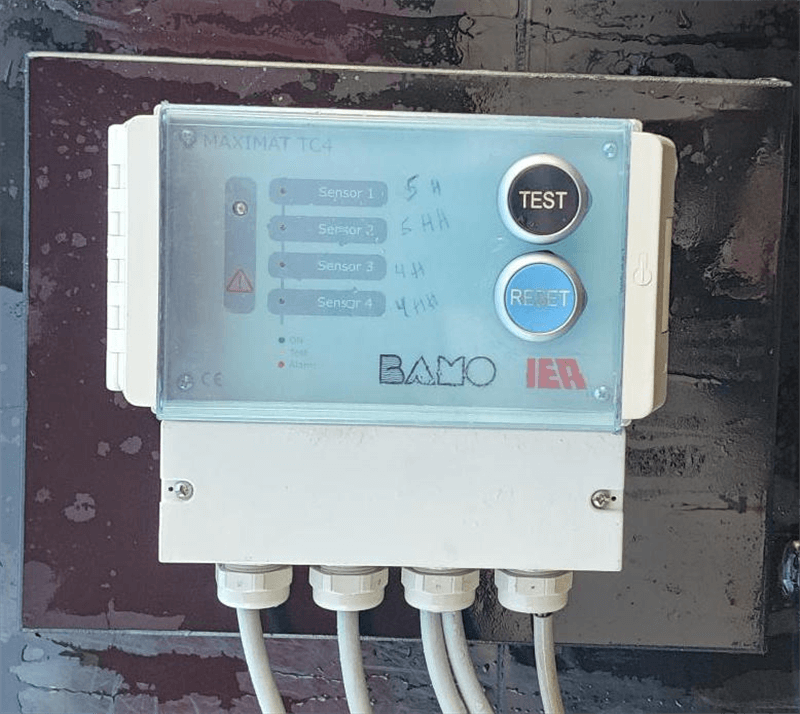

| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 3 |
| Density (kg/dm³) | 1 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | DN700 |
| Tank with total drain? | No |
| locality | B-7711 Belgium |
| Last application | Oil / grease |
| Provision tank cleaning | None |
| Weight (kg) | 2700 |
| Condition | Used |

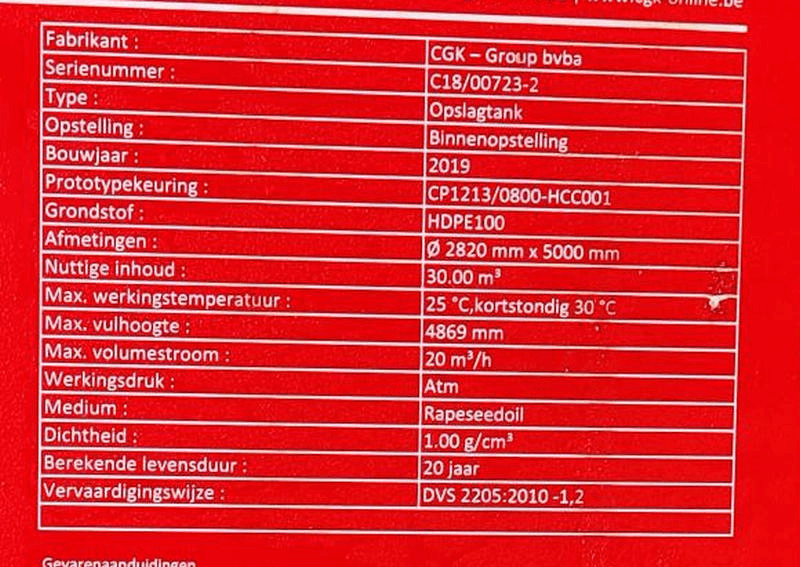

| Type plate manufacturer | Yes |
| Manufacturer | CGK |
| Year Built | 2019 |
| Construction data available | Yes |
| Appendix 1 | C18-00723_2_Conformiteitsattesten.pdf |
| Appendix 2 | 1045NUxx_reinigingsattest18032025070643425771.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 20 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 20 |
| Bottom thickness (mm) | 20 |
| Periphery (mm) | 9700 |
| Cylindrical length (mm) | 5000 |
| Outer wall thickness (mm) | 12 |
| Outside diameter tank (mm) | 3088 |
| Total height (mm) | 5500 |
| Length (mm) | 3375 |
| Diameter tank (mm) | 2820 |
| Width (mm) | 3315 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | tank serial number: C18/00723-2 --- max working temp 25°C --- working pressure ATM |
