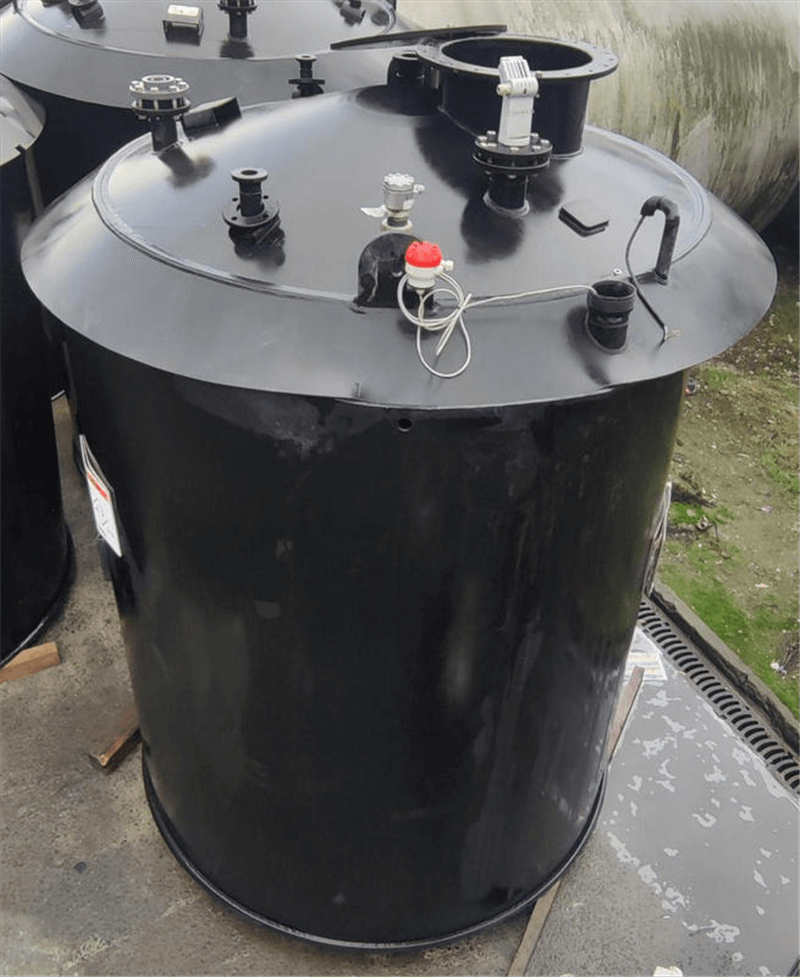

Used storage tank
- Material: HDPE
- Condition: Used
- Volume (in litres): 10000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.45.CO.02 |
| Material | HDPE |
| Number | 1 |
| Capacity (Liters) | 10000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia. 500mm |
| Tank with total drain? | No |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 1200 |
| Condition | Used |

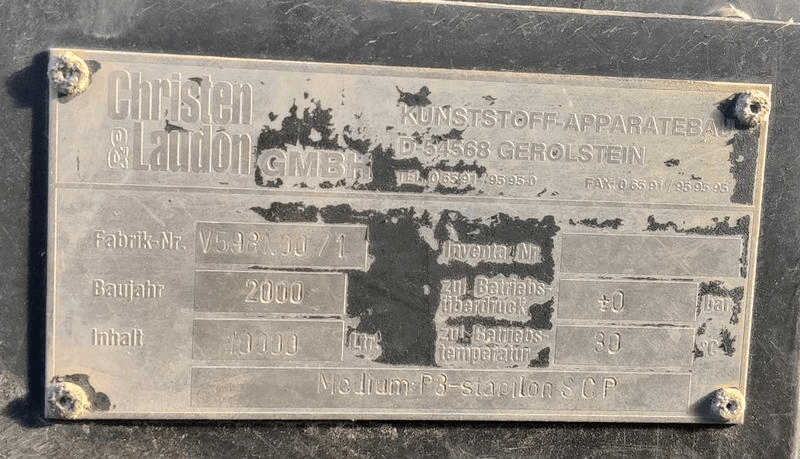

| Type plate manufacturer | Yes |
| Manufacturer | Christen & Laudon |
| Year Built | 2000 |

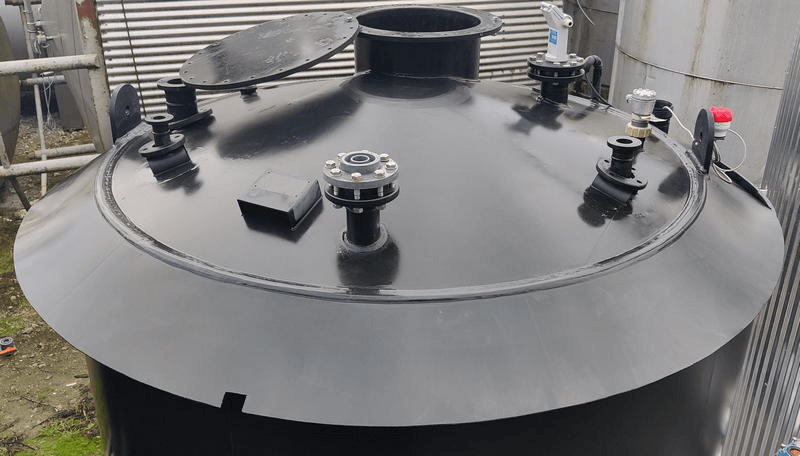

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 8 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 18 |
| Bottom thickness (mm) | 12 |
| Periphery (mm) | 7750 |
| Cylindrical length (mm) | 2850 |
| Outer wall thickness (mm) | 12 |
| Outside diameter tank (mm) | 2470 |
| Total height (mm) | 3500 |
| Length (mm) | 2750 |
| Diameter tank (mm) | 2150 |
| Width (mm) | 2750 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | permissible operating overpressure 0 bar --- operating temperature 30°C |
