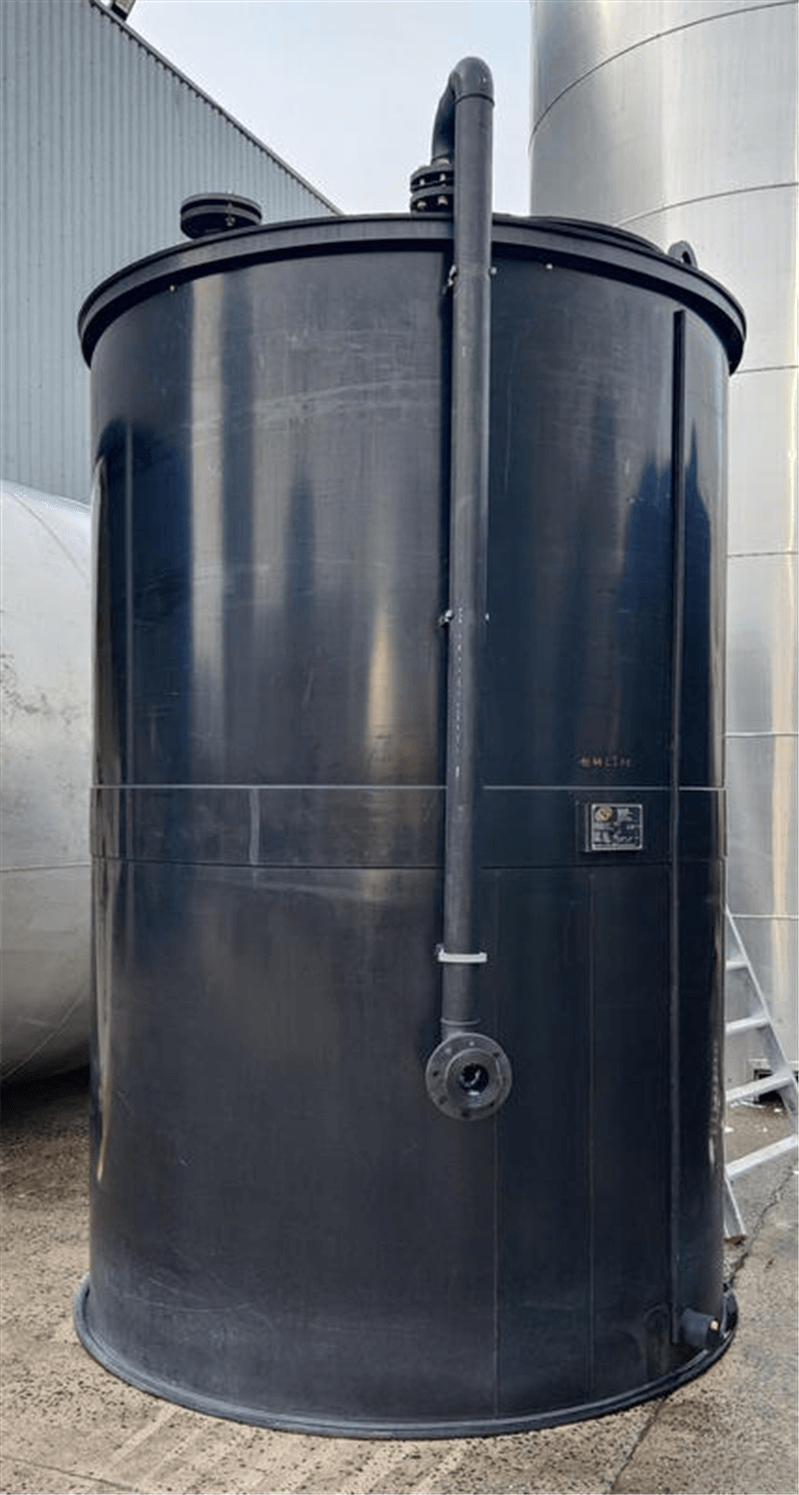

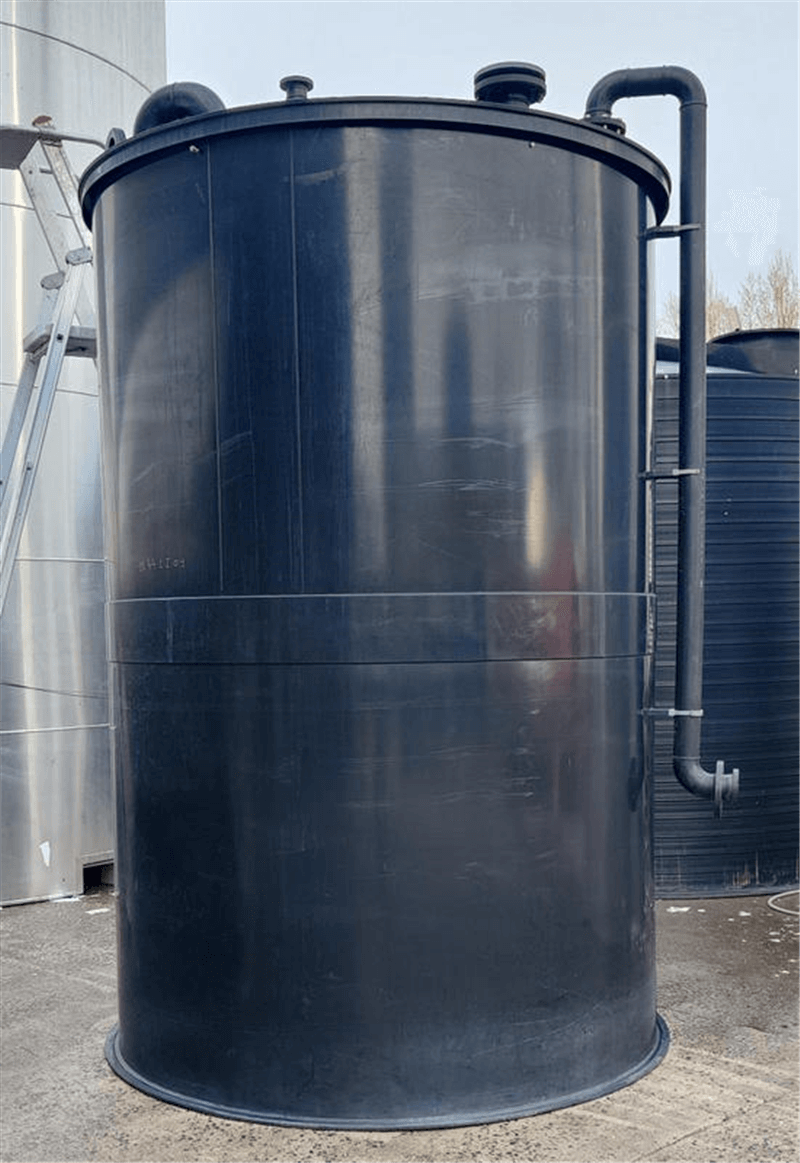

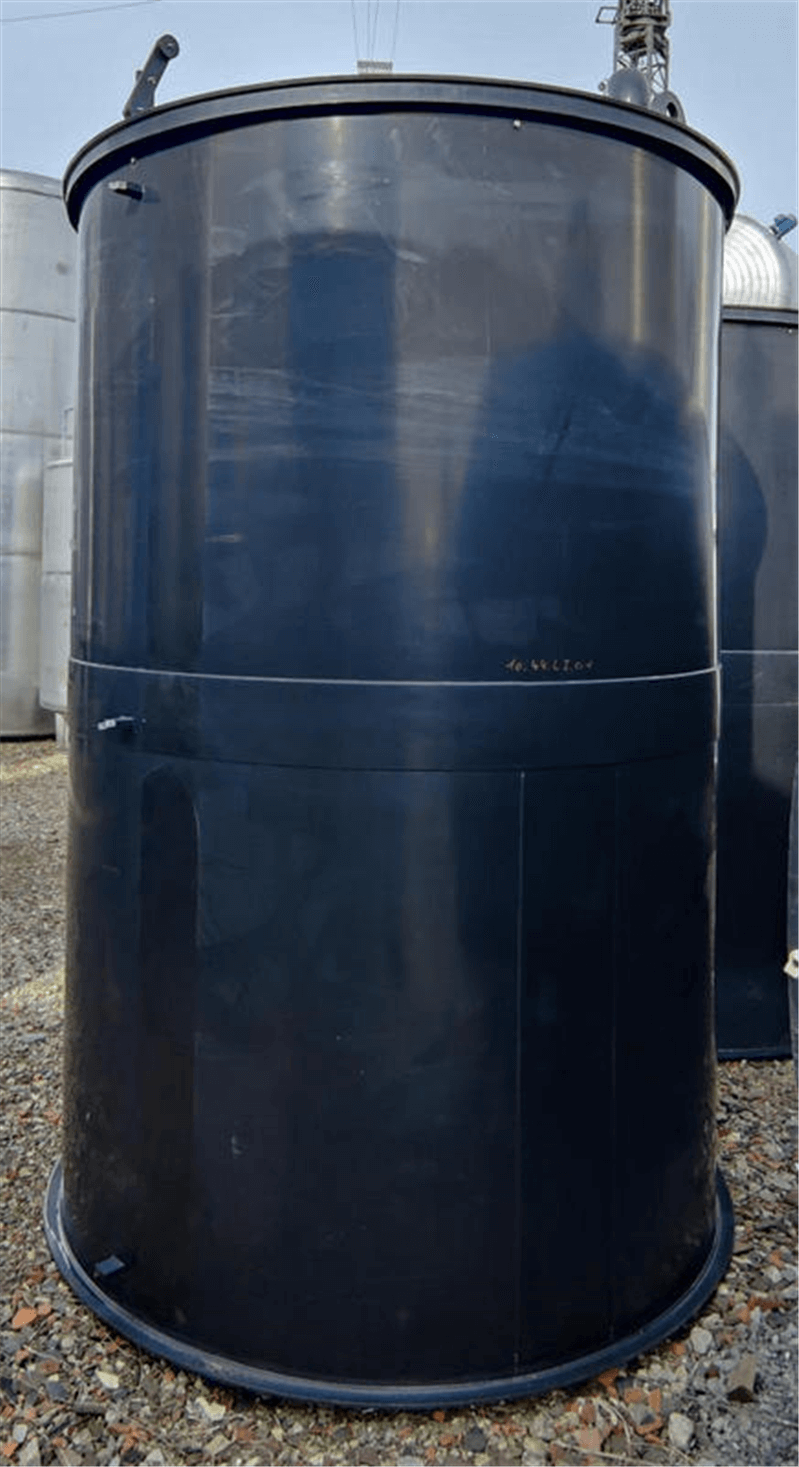

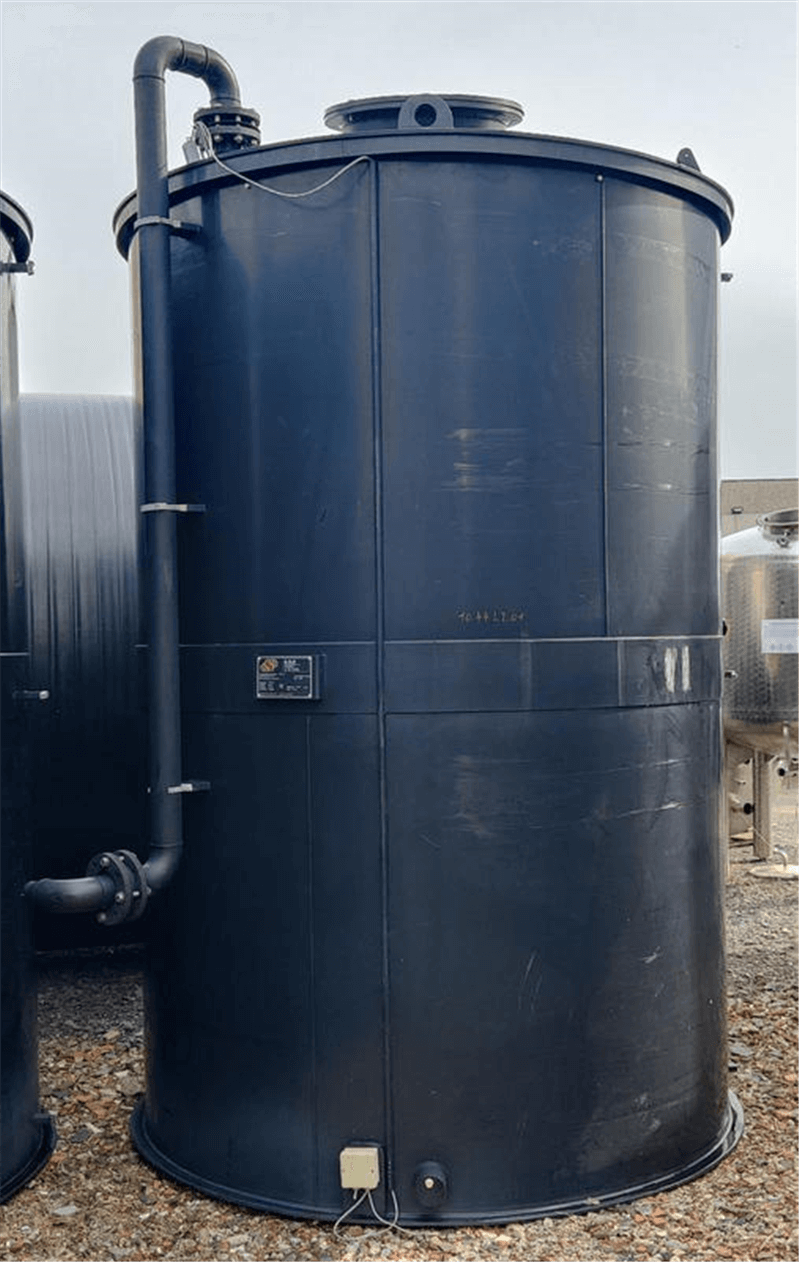

Used storage tank
- Material: HDPE
- Condition: Used
- Volume (in litres): 8000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.44.LI.01 |
| Material | HDPE |
| Number | 1 |
| Capacity (Liters) | 8000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 465mm |
| Tank with total drain? | No |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 700 |
| Condition | Used |

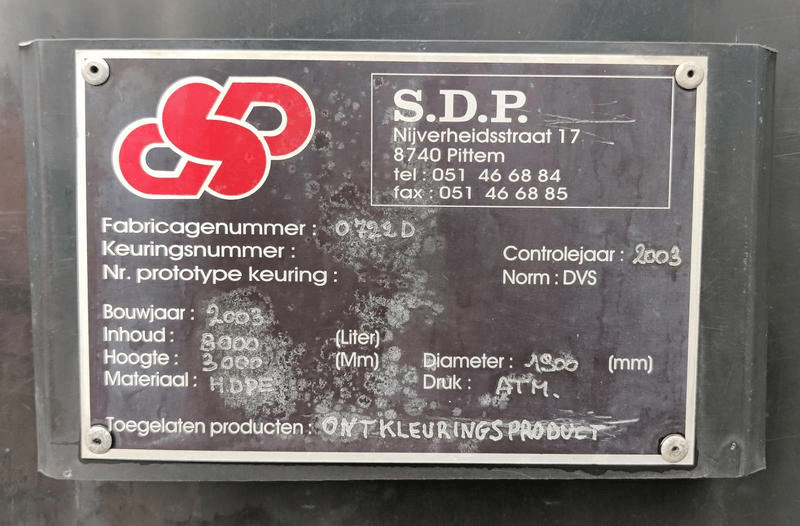

| Type plate manufacturer | Yes |
| Manufacturer | SDP |
| Year Built | 2003 |

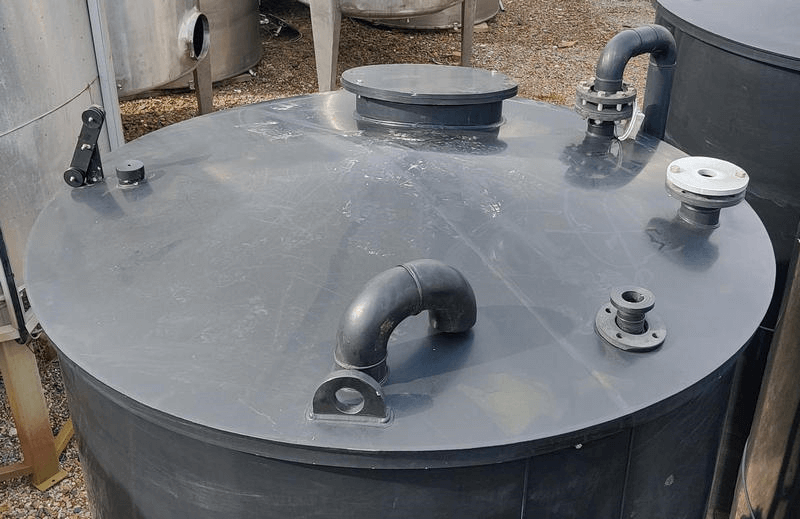

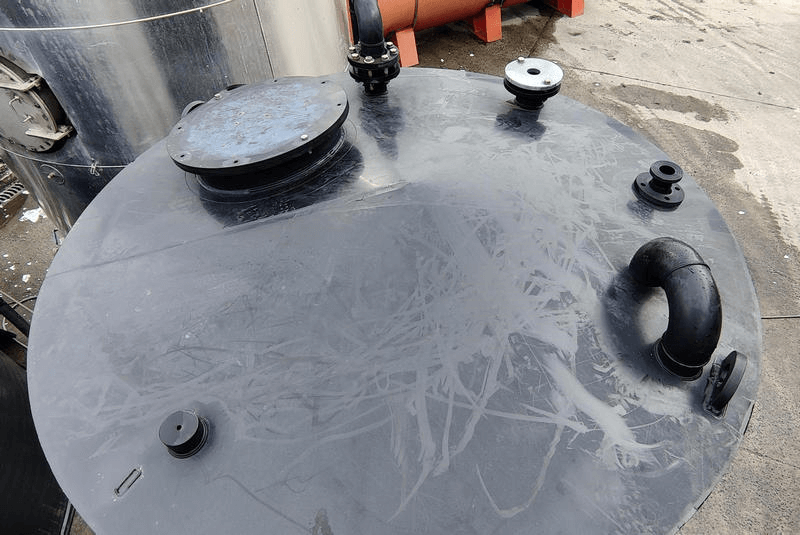

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 12 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 12 |
| Bottom thickness (mm) | 12 |
| Periphery (mm) | 6300 |
| Cylindrical length (mm) | 3000 |
| Outside diameter tank (mm) | 2005 |
| Total height (mm) | 3450 |
| Length (mm) | 2305 |
| Diameter tank (mm) | 1900 |
| Width (mm) | 2105 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | Leakdetection device no longer functional |
