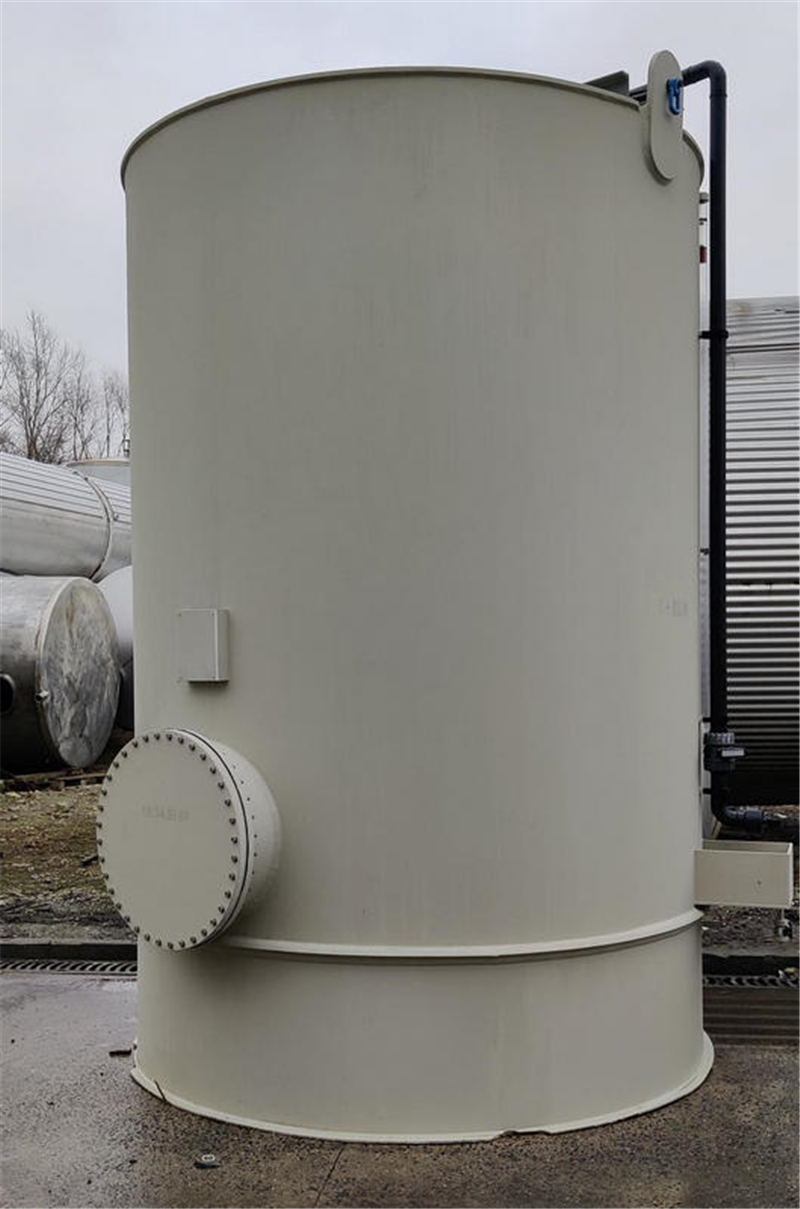

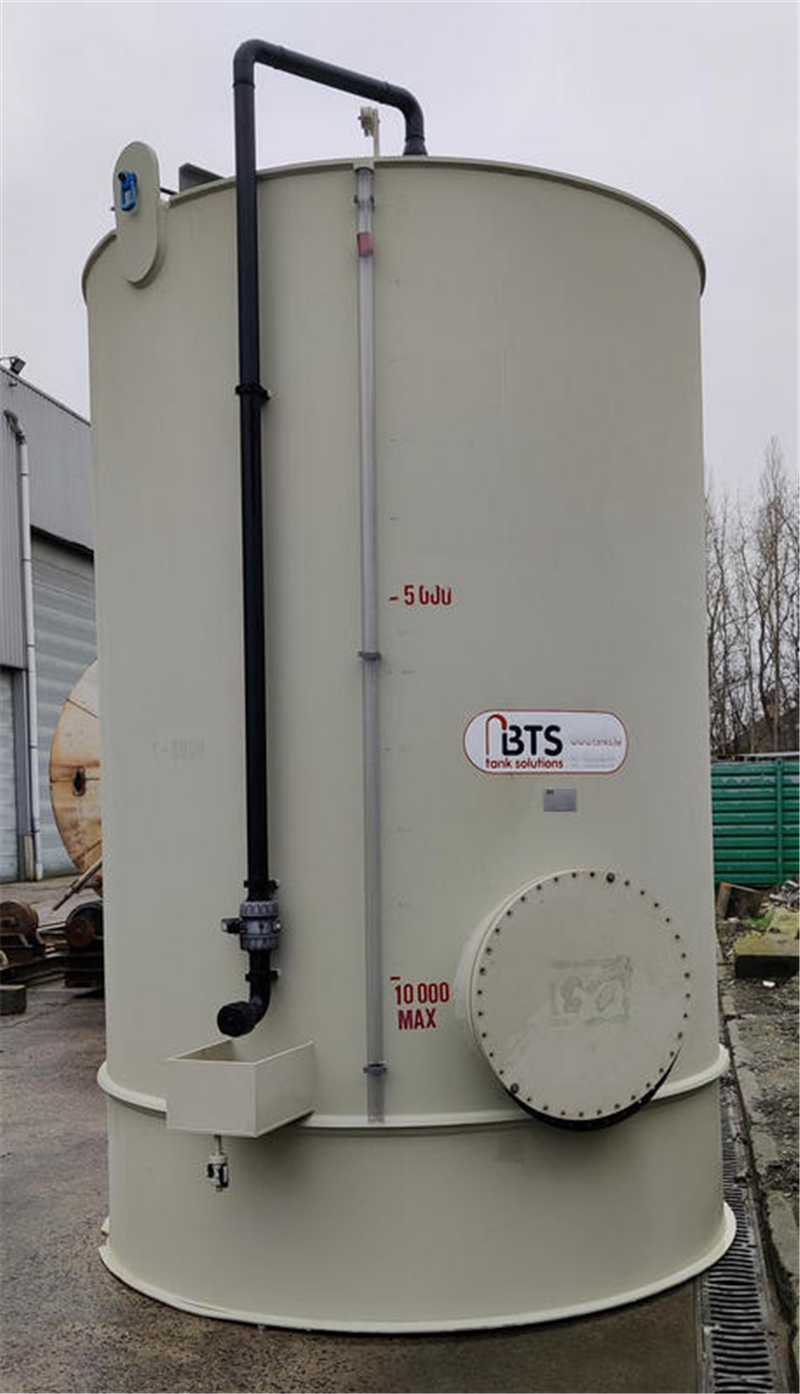

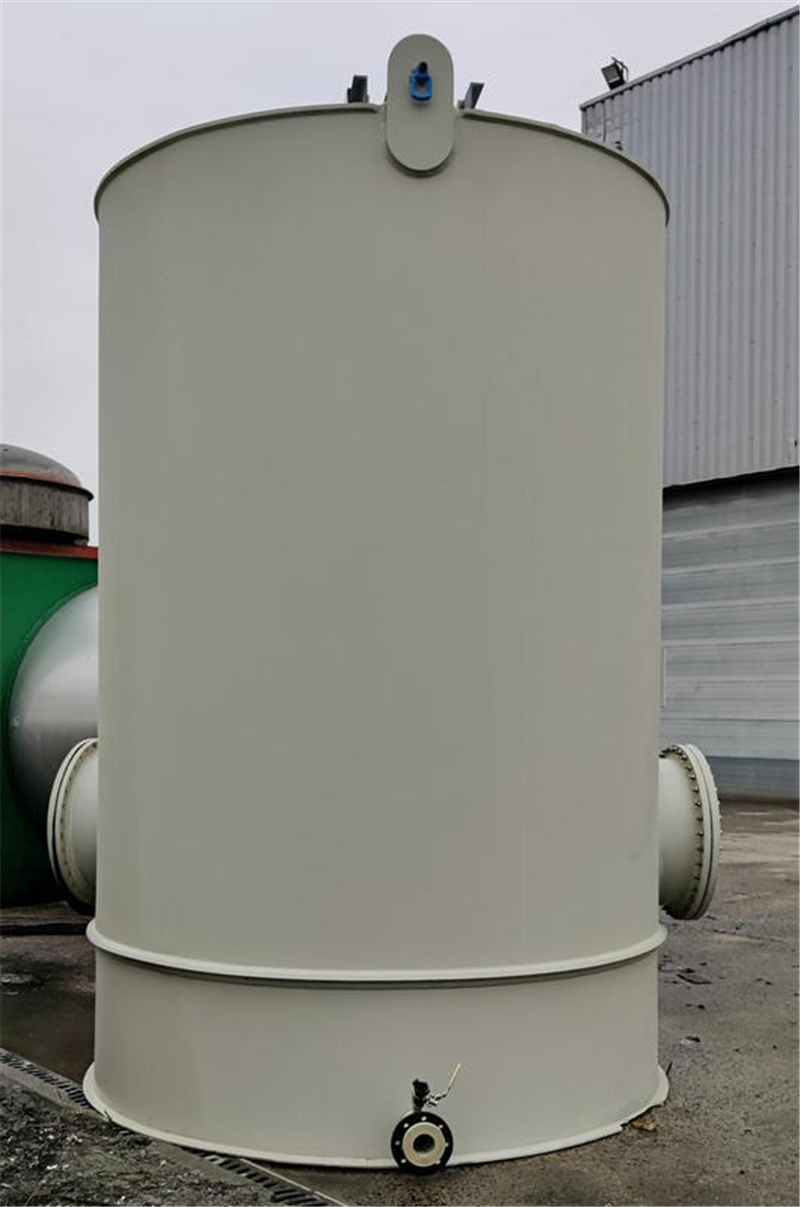

Used storage tank
- Material: Polypropylene
- Condition: Used
- Volume (in litres): 13000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.44.AQ.01 |
| Material | Polypropylene |
| Number | 1 |
| Capacity (Liters) | 13000 |
| Type tank | Storage tank |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 3 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | 2x DN600 / 850 x 400mm |
| Tank with total drain? | Yes |

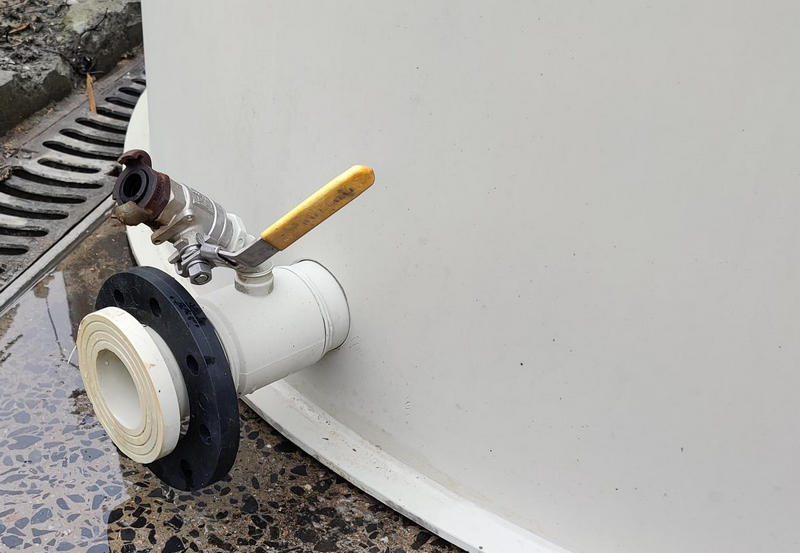

| Type of outlet (s) | DN80 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 1500 |
| Condition | Used |
| Type plate manufacturer | No |
| Manufacturer | G. Weber GmbH |
| Year Built | 2008 |
| Appendix 1 | Reiningingsattest 1043SI01.pdf |
| Drawing 1 | t1034SI01.pdf |

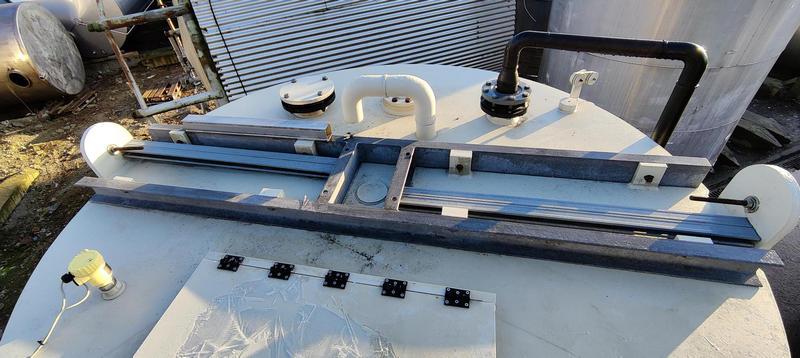

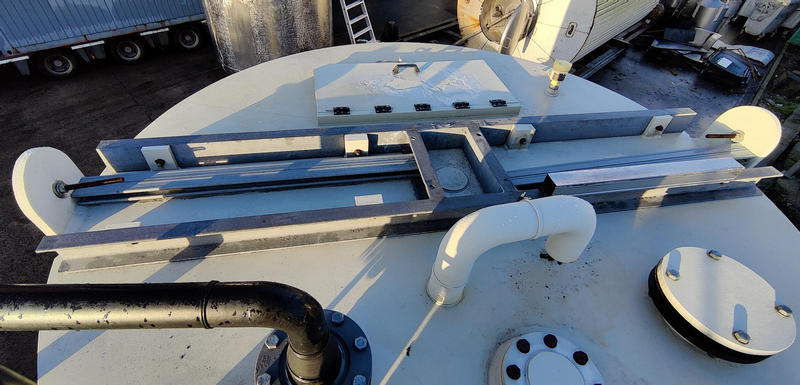

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 18 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 22,5 |
| Bottom thickness (mm) | 20 |
| Periphery (mm) | 7350 |
| Cylindrical length (mm) | 2980 |
| Height bottom (mm) | 548 |
| Total height (mm) | 4050 |
| Length (mm) | 2700 |
| Diameter tank (mm) | 2300 |
| Width (mm) | 2550 |
| Insulation | |
|---|---|
| Insulation | No |
