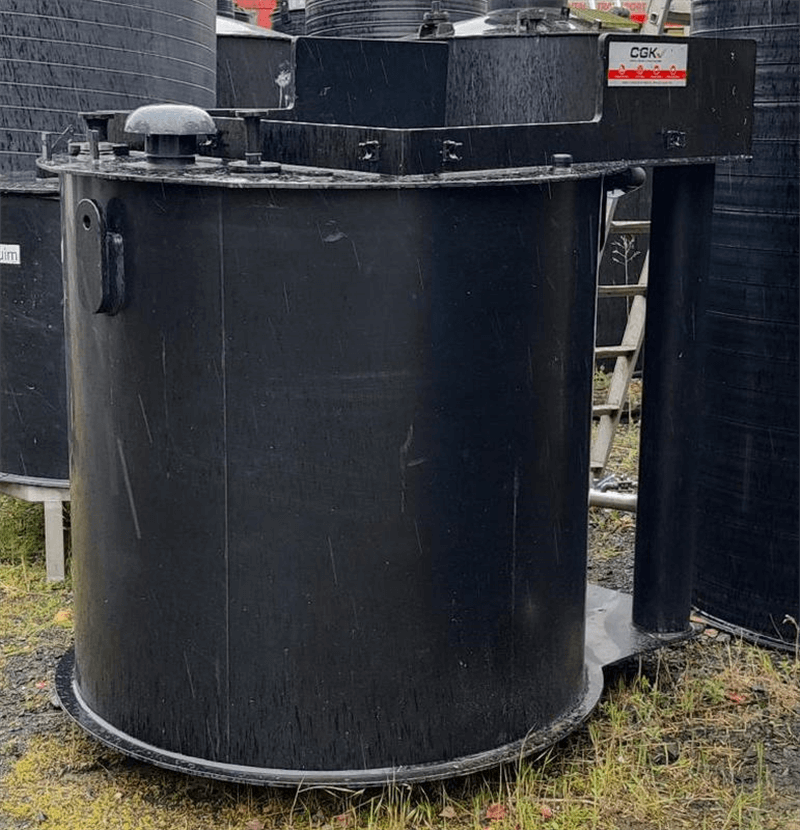

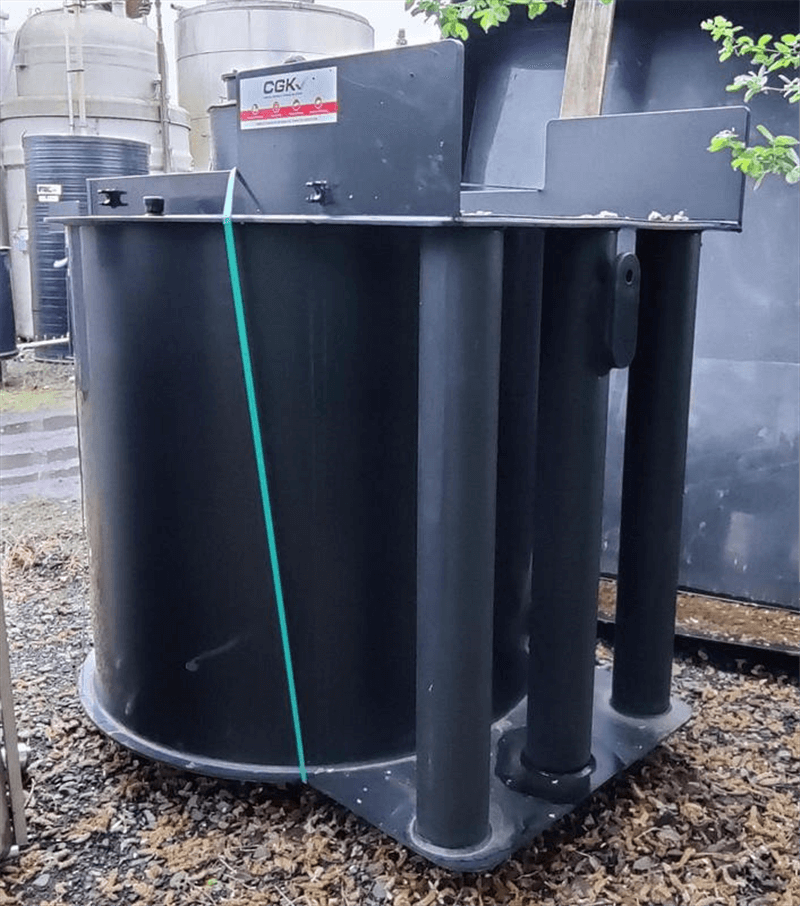

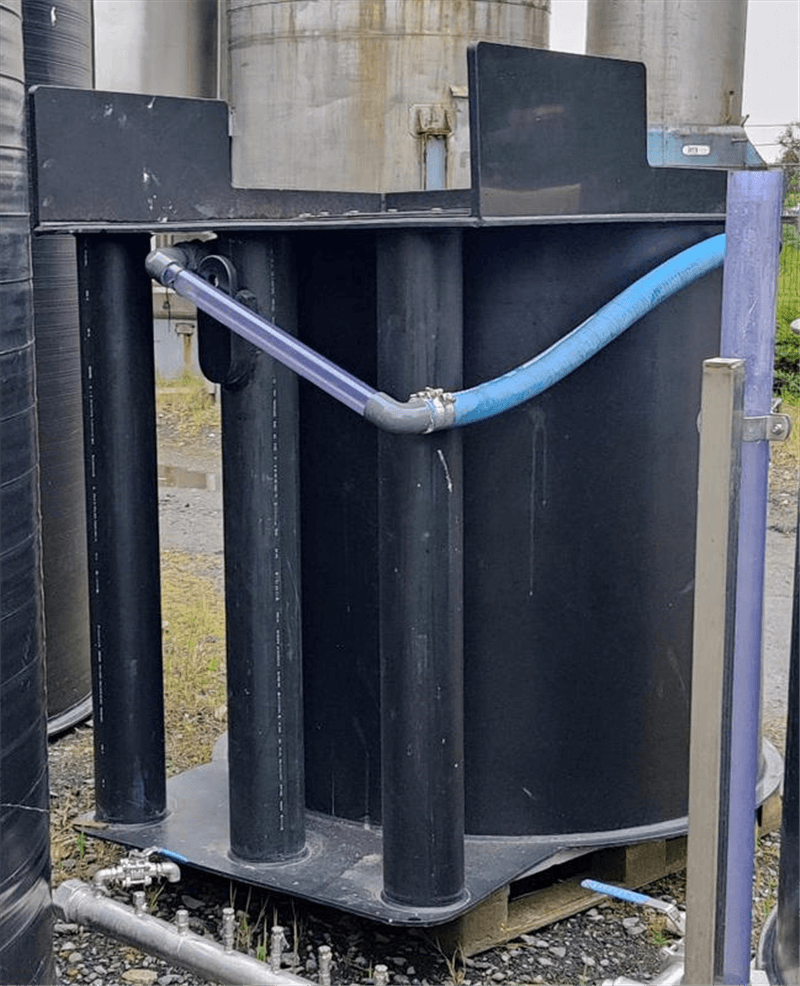

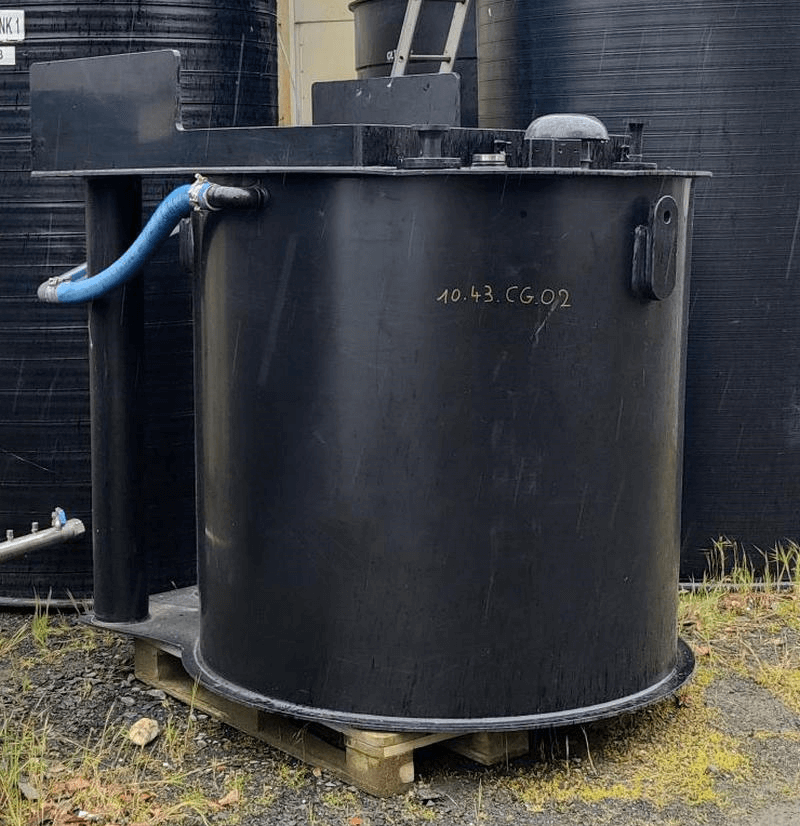

New storage tank
- Material: Synthetic
- Condition: New
- Volume (in litres): 1700 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.43.CG.02 |
| Material | Synthetic |
| Number | 1 |
| Capacity (Liters) | 1700 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 500 |
| Tank with total drain? | No |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 150 |
| Condition | New |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 10 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 10 |
| Bottom thickness (mm) | 10 |
| Periphery (mm) | 4150 |
| Cylindrical length (mm) | 1300 |
| Total height (mm) | 1620 |
| Length (mm) | 1700 |
| Diameter tank (mm) | 1300 |
| Width (mm) | 1480 |
| Insulation | |
|---|---|
| Insulation | No |
