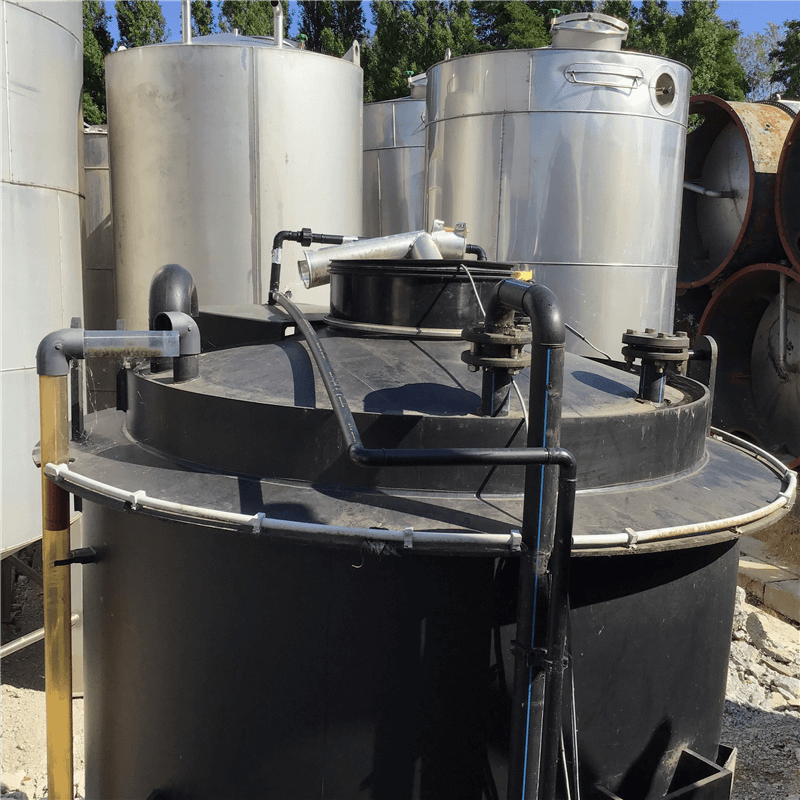

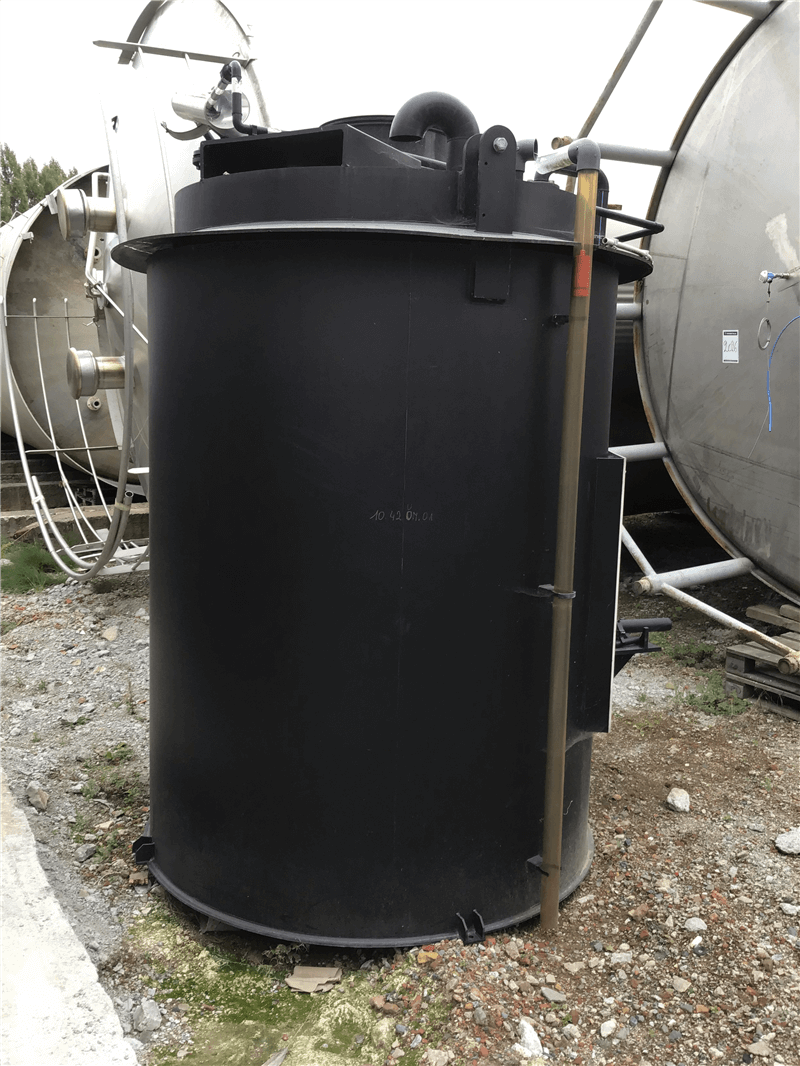

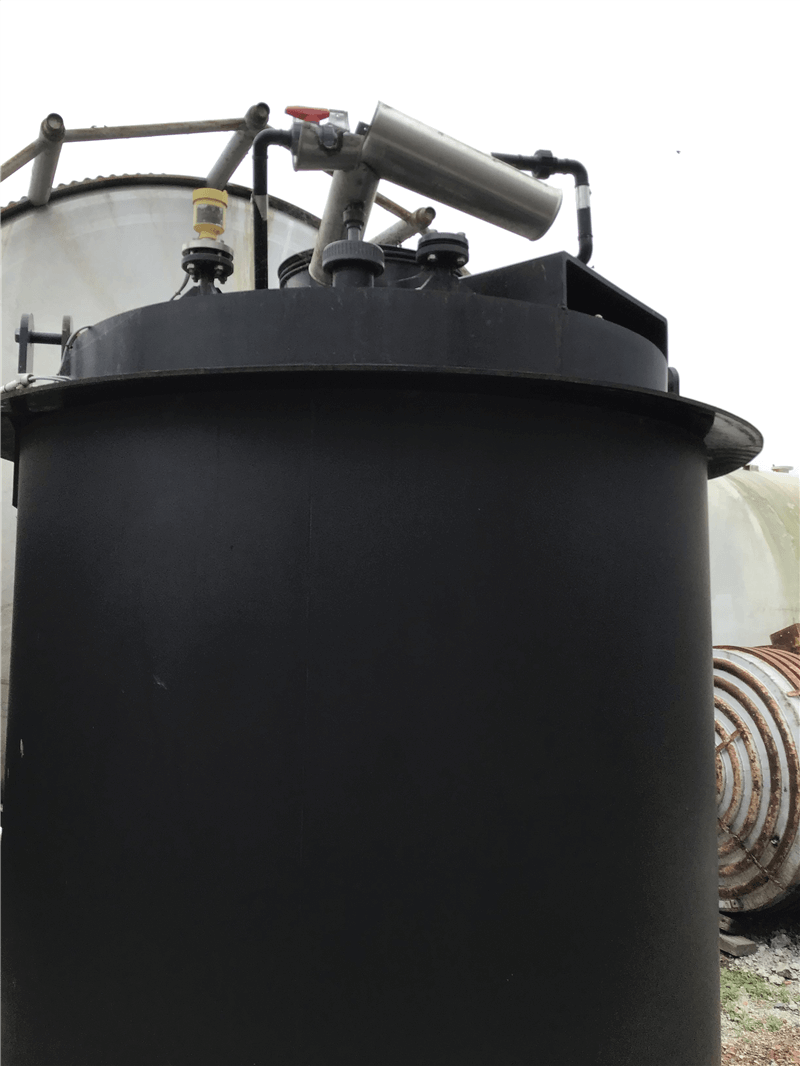

Used storage tank
- Material: HDPE
- Condition: Used
- Volume (in litres): 5000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.42.UN.01 |
| Material | HDPE |
| Number | 1 |
| Capacity (Liters) | 5000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |

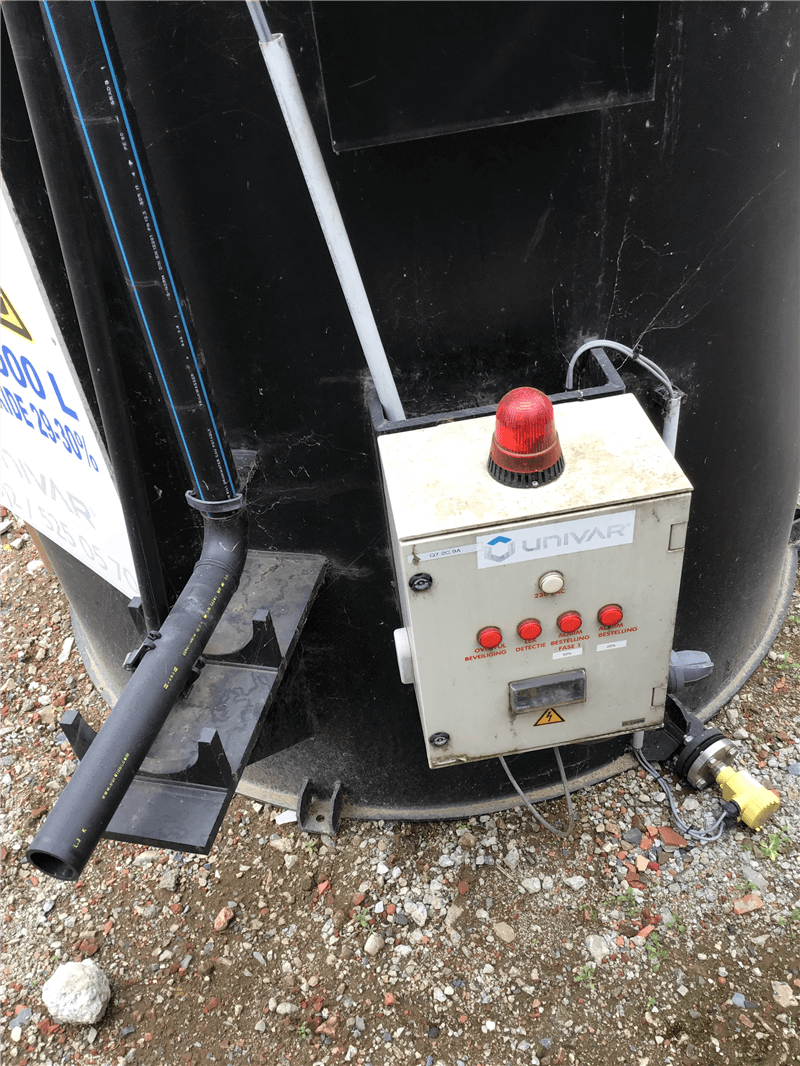

| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 2 |
| Density (kg/dm³) | 1,3 |

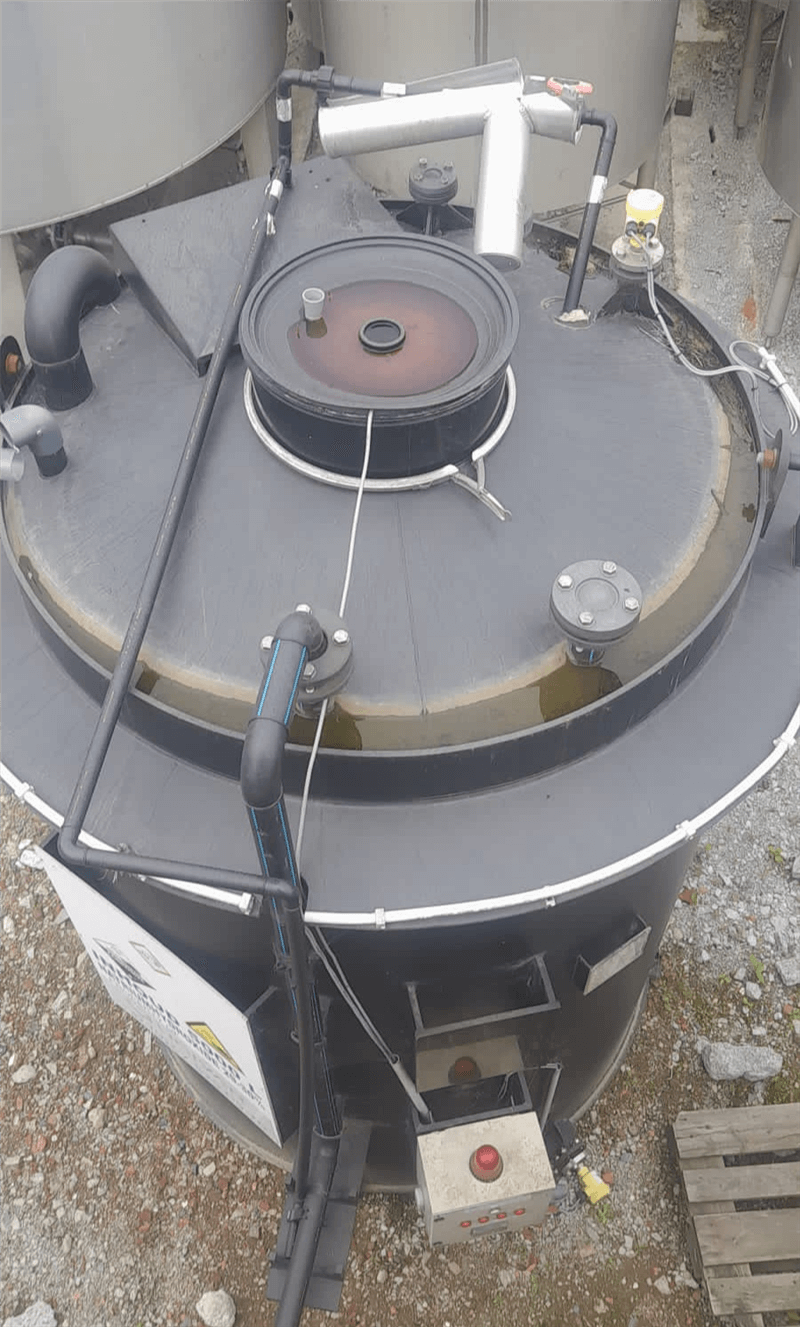

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | DN400 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Condition | Used |

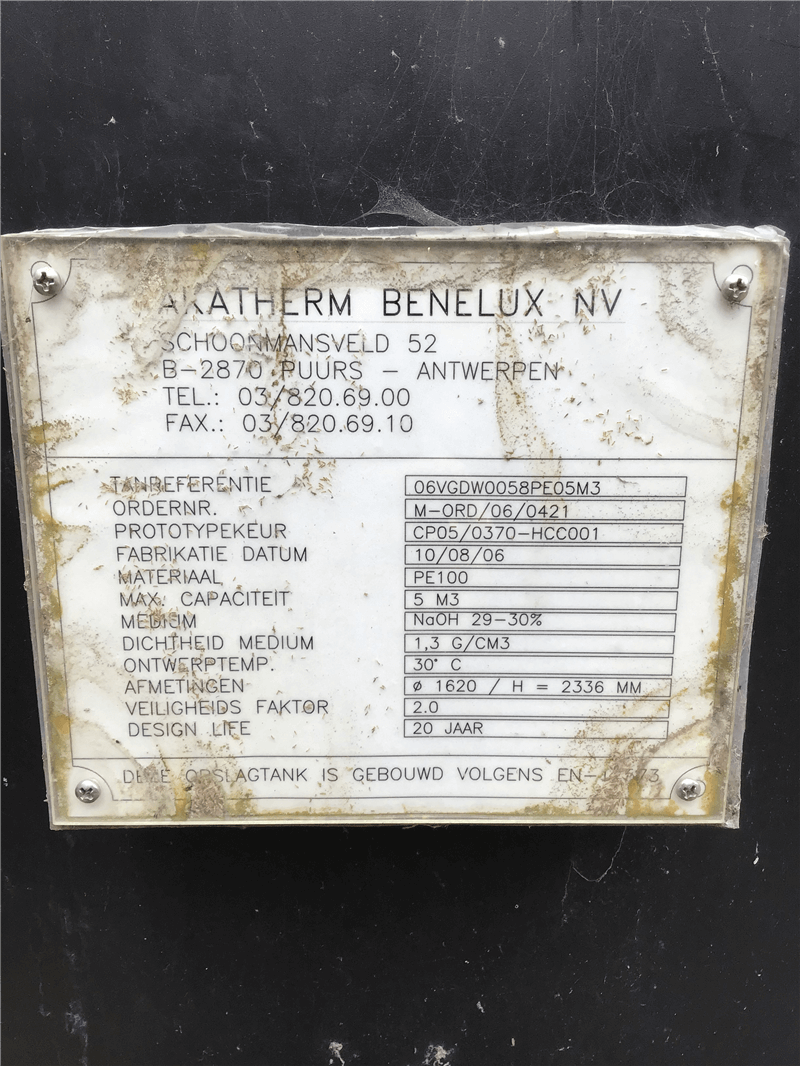

| Type plate manufacturer | Yes |
| Manufacturer | Akatherm |
| Year Built | 2006 |
| Design Code | CP05/0370-HCC001 |
| Construction data available | No |
| Working temperature (° C) | 30 |

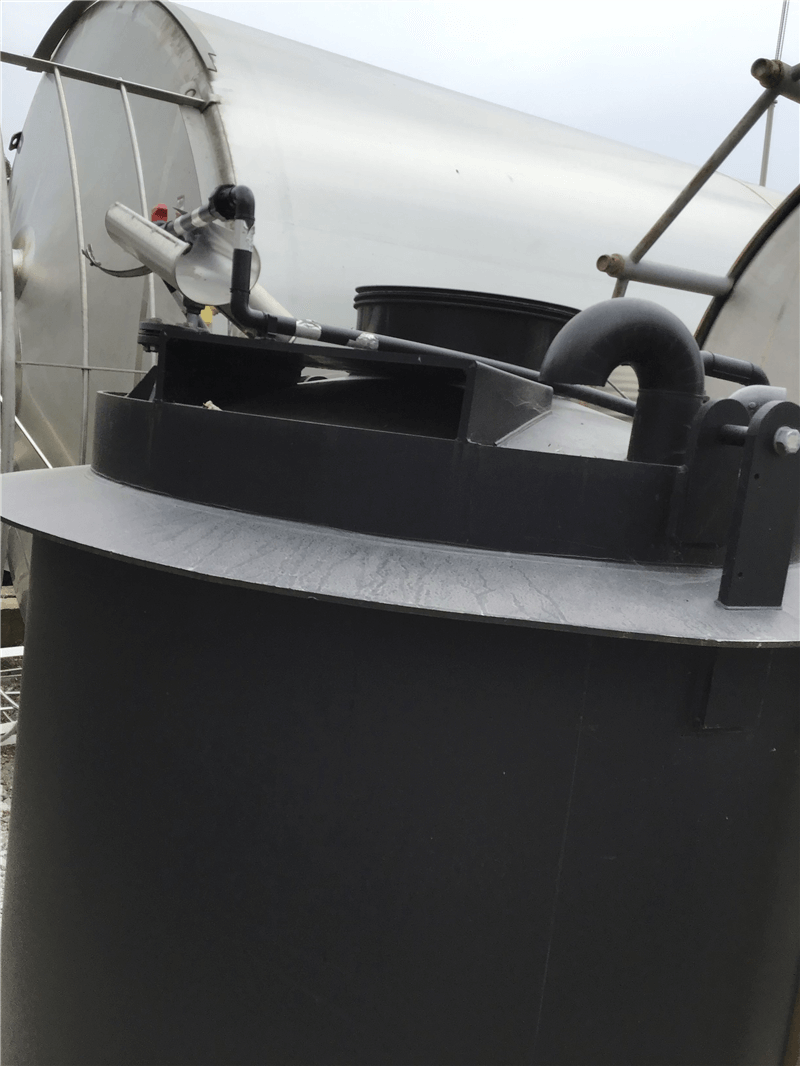

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 12 |
| Bottom thickness (mm) | 12 |
| Outer wall thickness (mm) | 8 |
| Outside diameter tank (mm) | 1844 |
| Total height (mm) | 3020 |
| Length (mm) | 2745 |
| Diameter tank (mm) | 1600 |
| Width (mm) | 2080 |
| Insulation | |
|---|---|
| Insulation | No |
