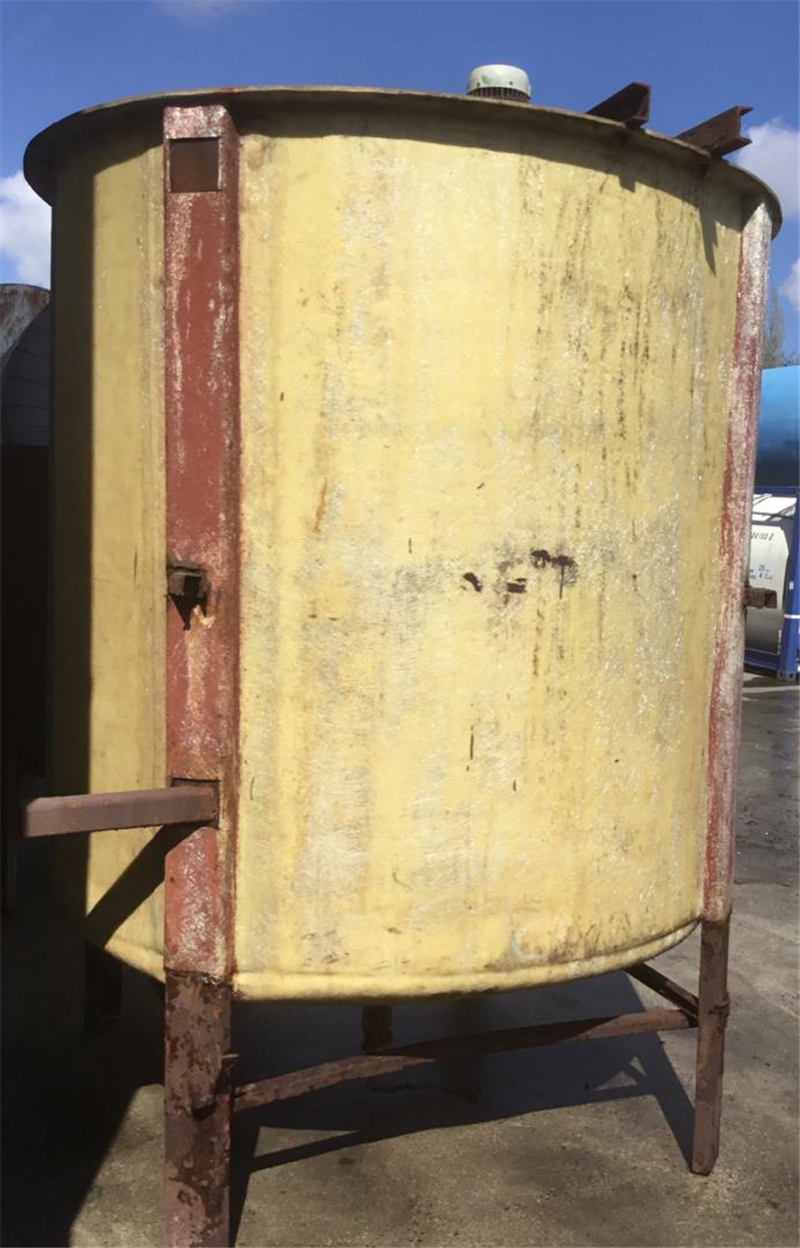

Used storage tank
- Material: Fiberglass
- Condition: Used
- Volume (in litres): 3600 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.39.IE.01 |
| Material | Fiberglass |
| Number | 1 |
| Capacity (Liters) | 3600 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |

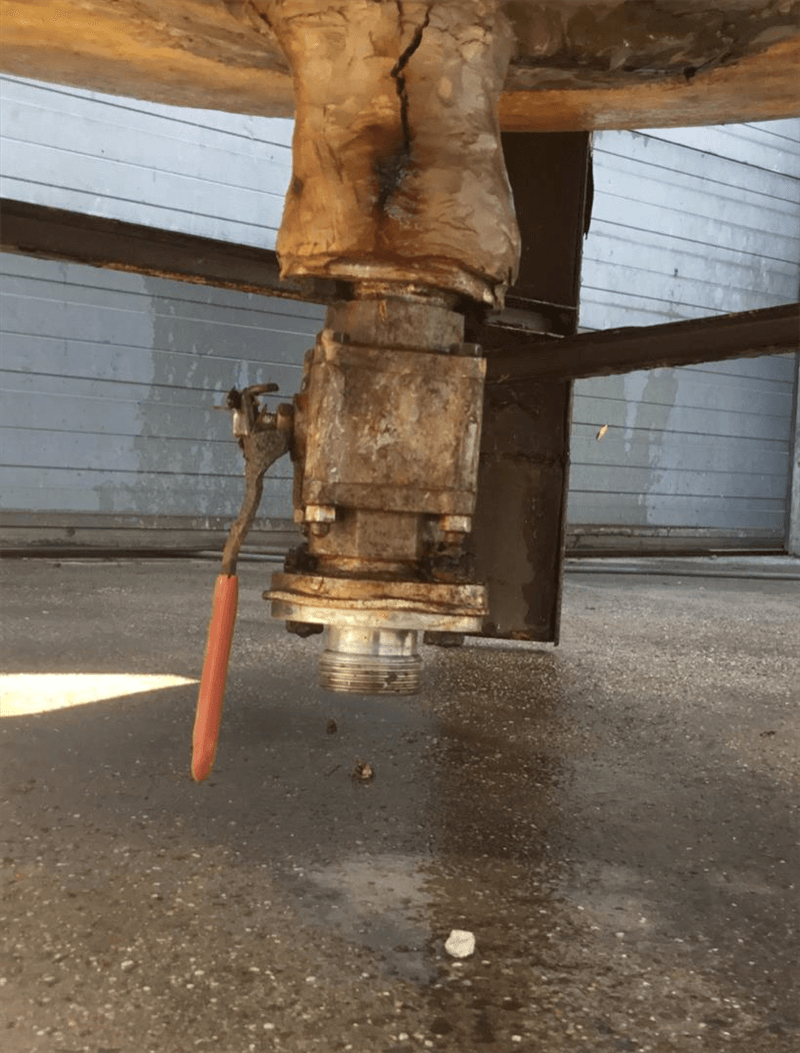

| Type of outlet (s) | Kraan |
| Diameter of outlet (mm) | 60 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 10 |
| Periphery (mm) | 4860 |
| Cylindrical length (mm) | 2000 |
| Height bottom (mm) | 250 |
| Total height (mm) | 3180 |
| Diameter tank (mm) | 1547 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|

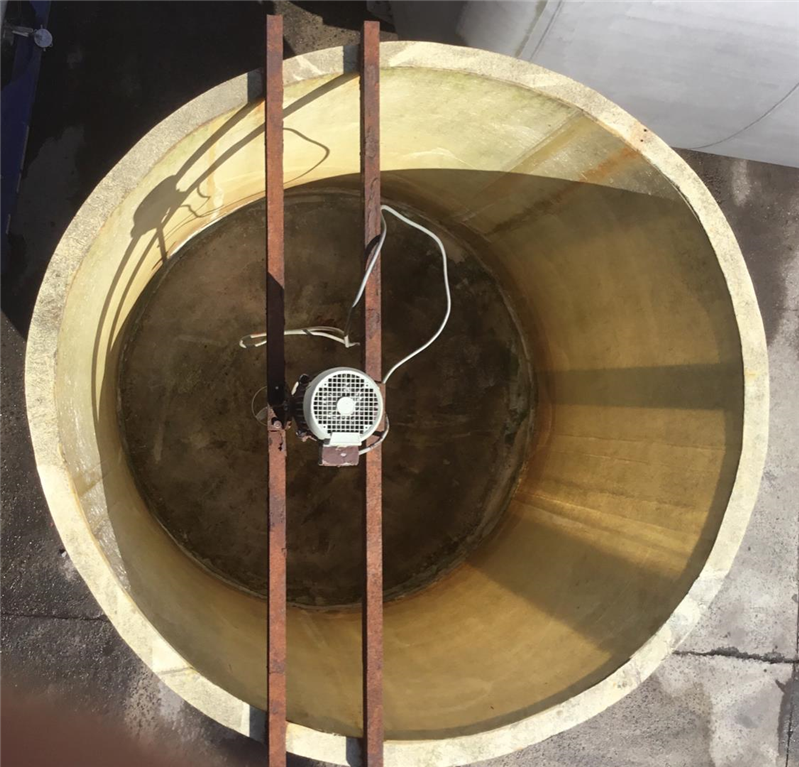

| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1800 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 3 |
| Agitator 1: Drive Type | Direct |
