Used storage tank
- Material: HDPE
- Condition: Used
- Volume (in litres): 34000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.38.UK.01 |
| Material | HDPE |
| Number | 1 |
| Capacity (Liters) | 34000 |
| Type tank | Storage tank |
| Fixation | Galvanized framework |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Single wall |
| Density (kg/dm³) | 1,2 |
| Number of manhole | 1 |
| Position of manhole (s) | Side (bottom) |
| Dimensions of manholes | Ø740mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens DN150 |
| Diameter of outlet (mm) | 150 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 9000 |
| Condition | Used |
| Type plate manufacturer | No |
| Manufacturer | Weholite |
| Year Built | 2015 |
| Construction data available | No |
| Appendix 1 | t1038UK01.jpg |

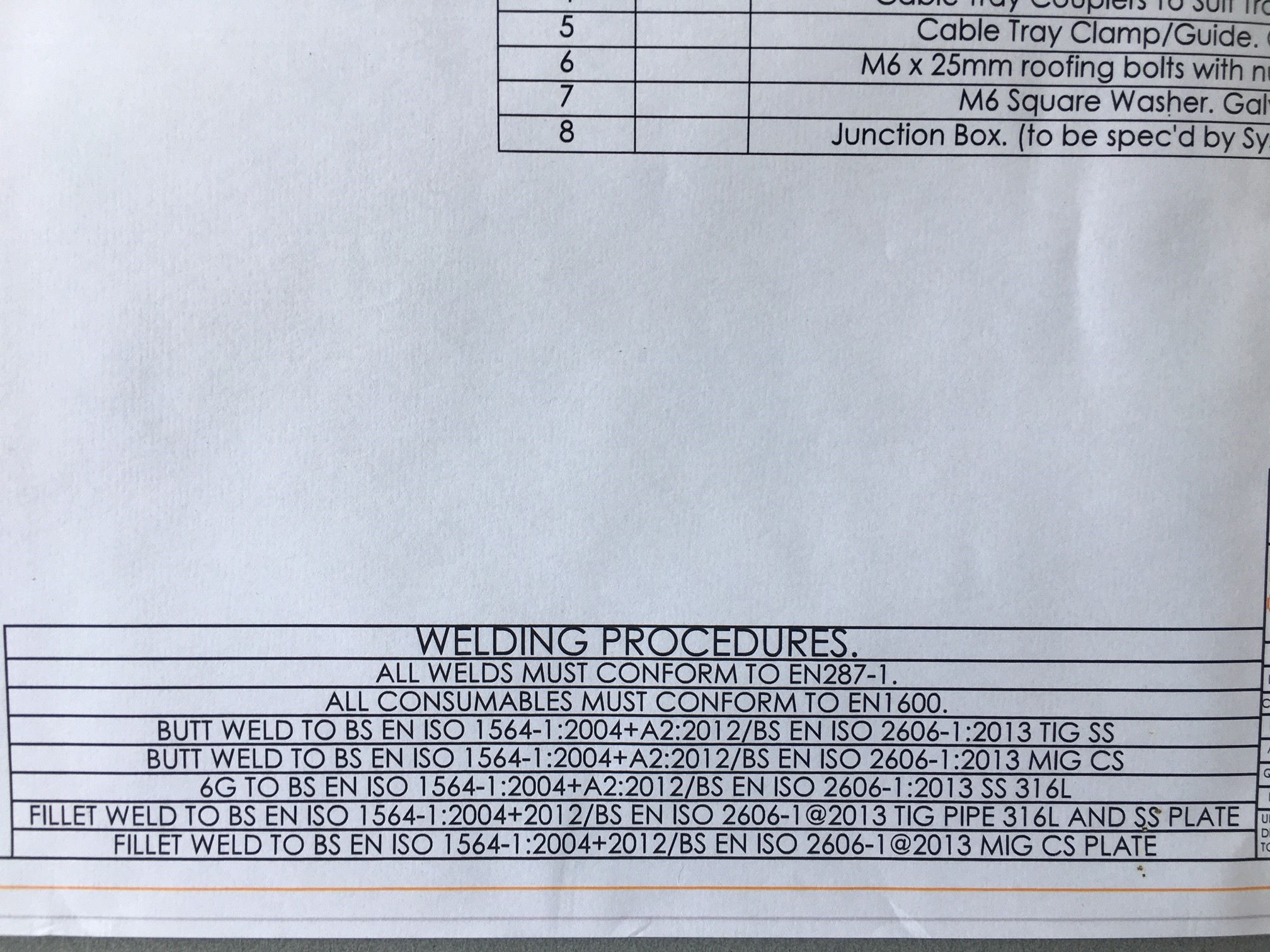

| Appendix 2 | t1038UK01_welding_pro.jpg |

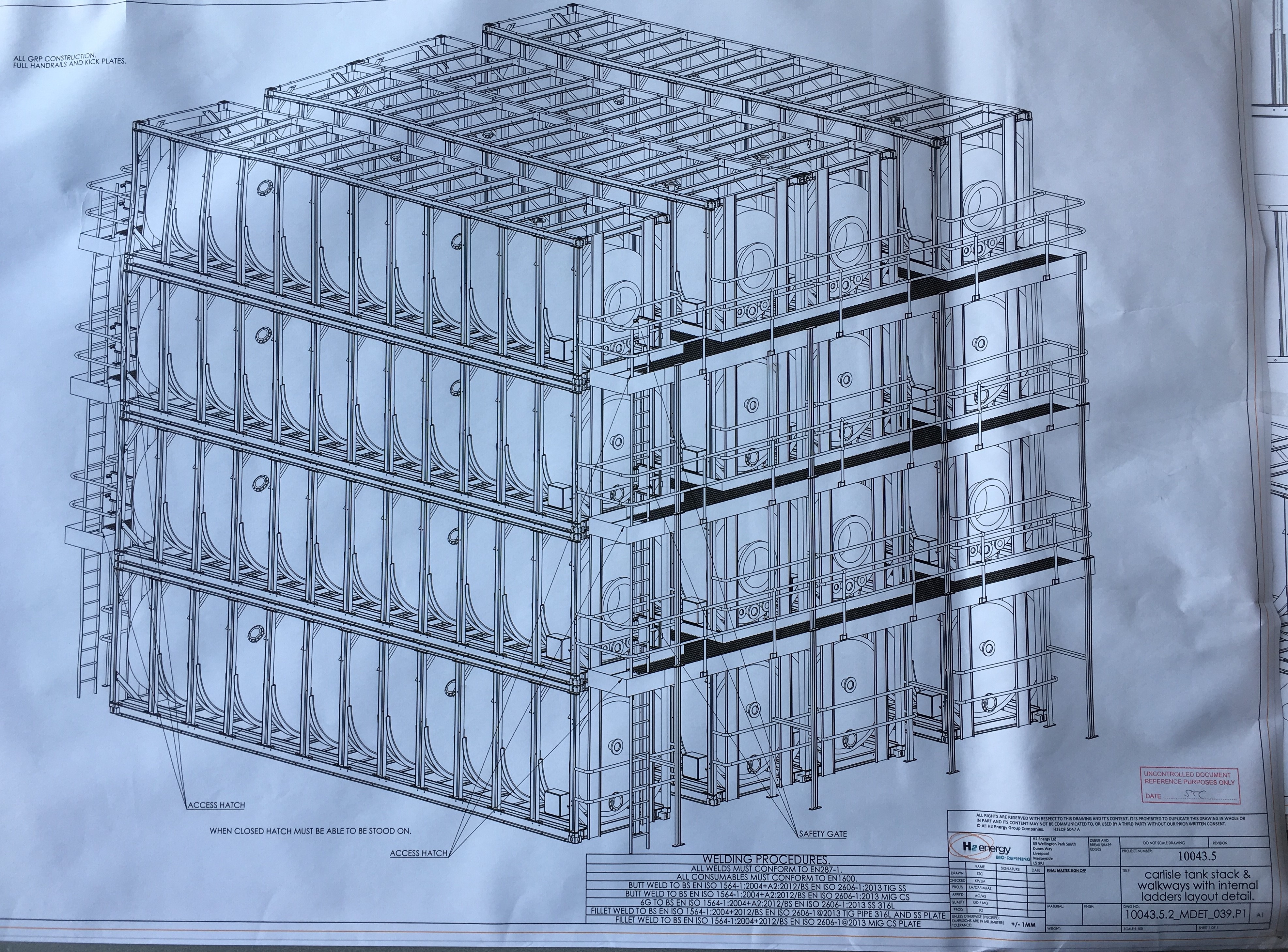

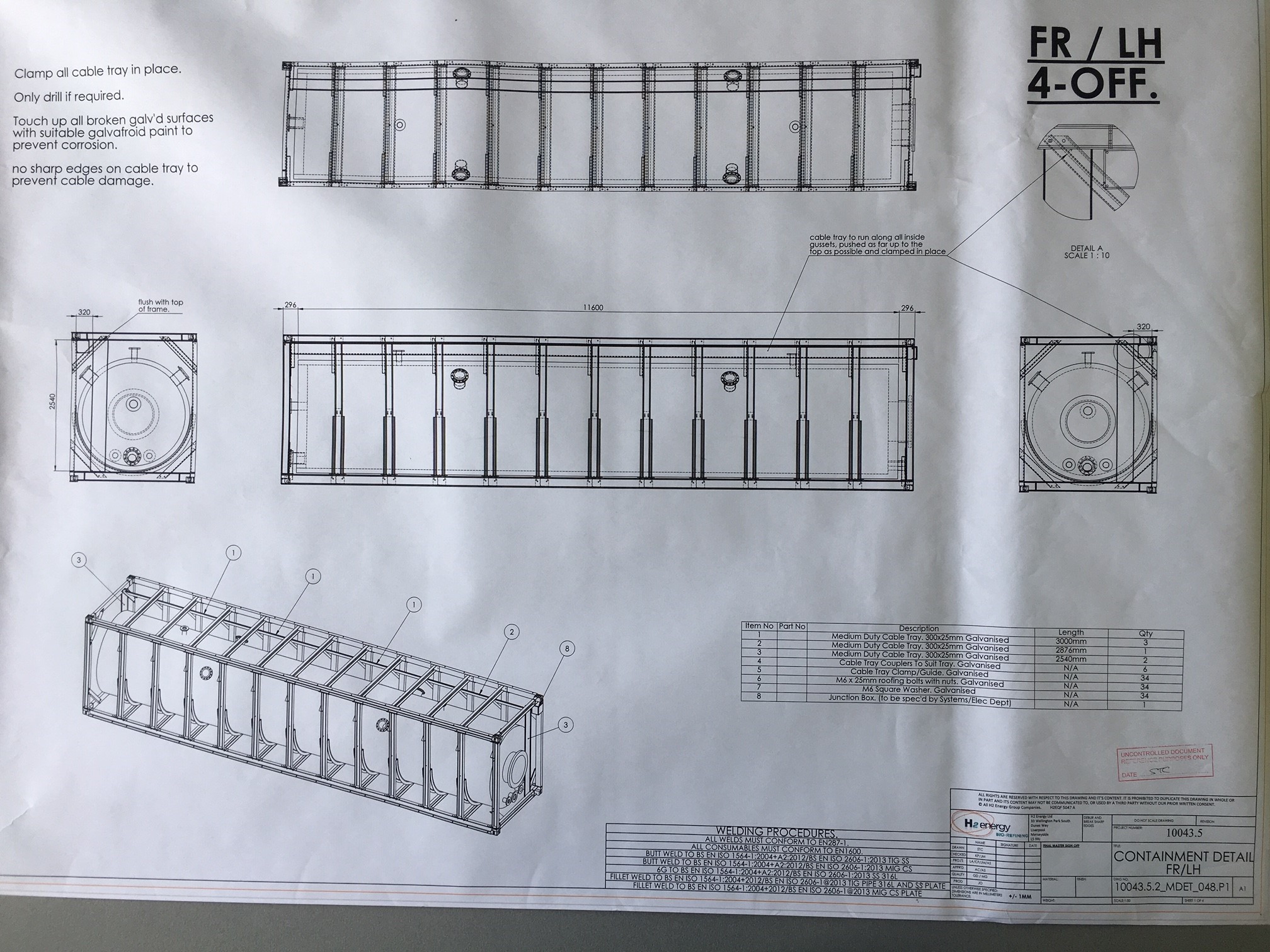

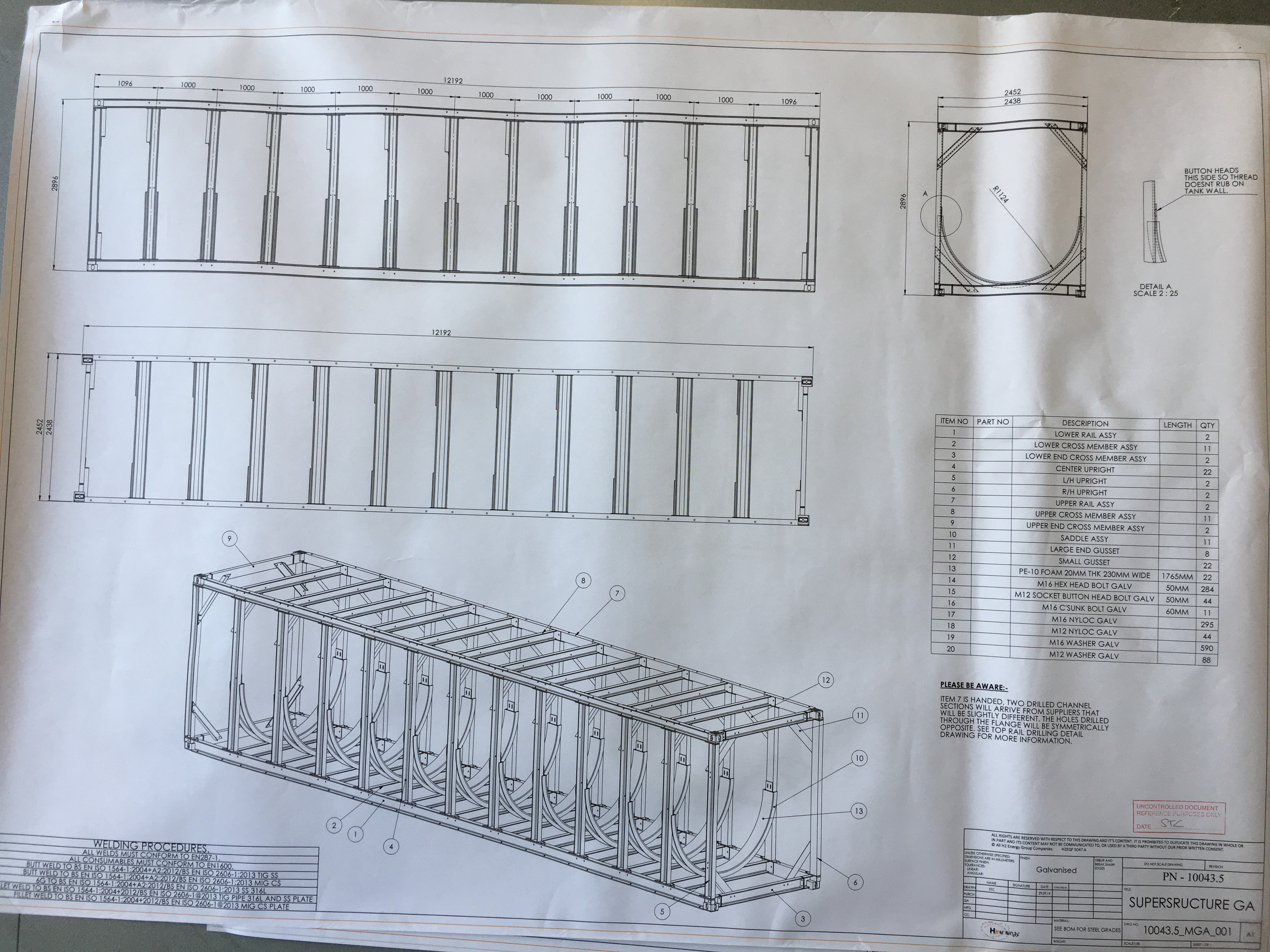

| Appendix 3 | t1038UK01_stucture.jpg |

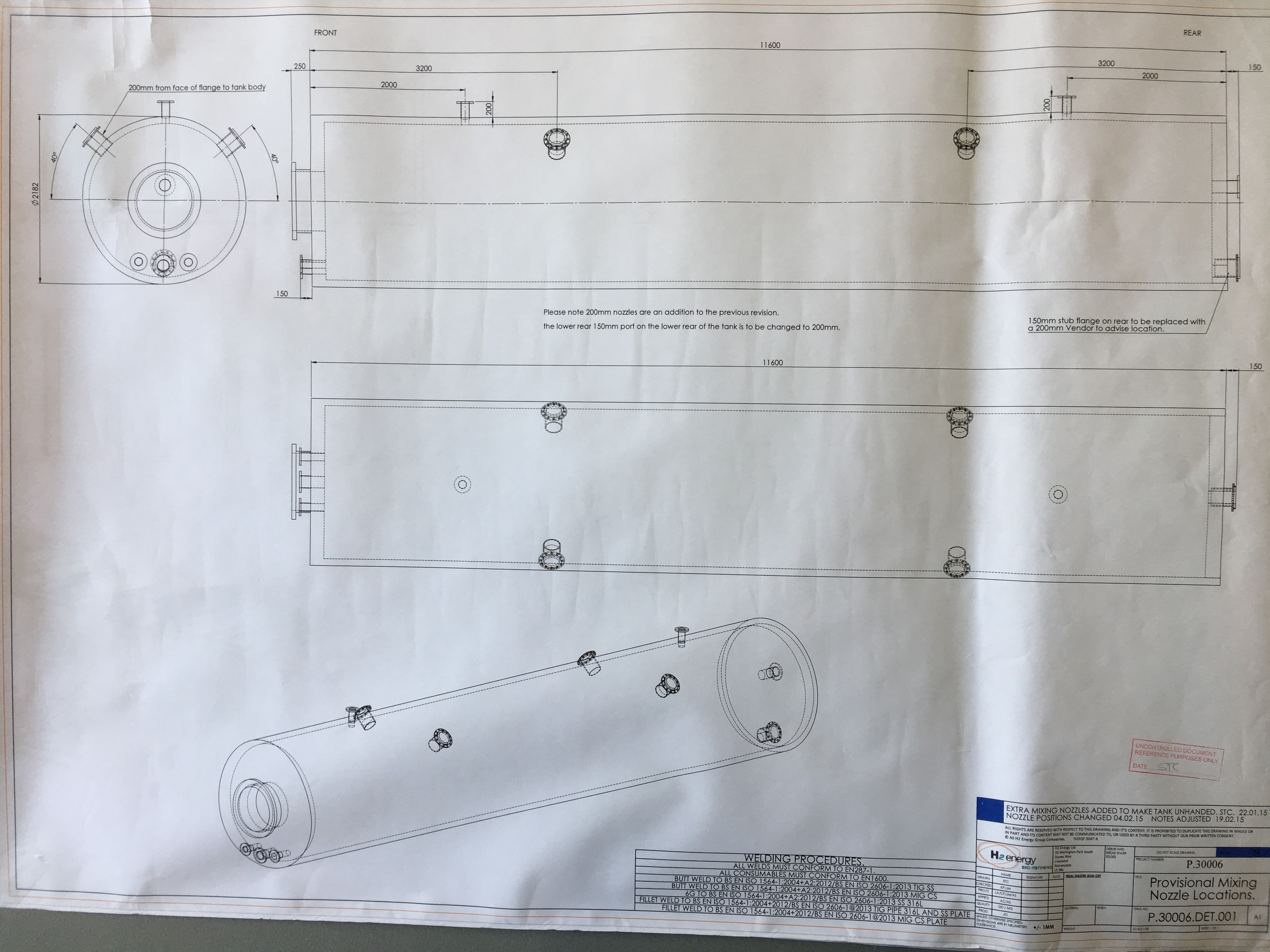

| Appendix 4 | t1038UK01_tank.jpg |

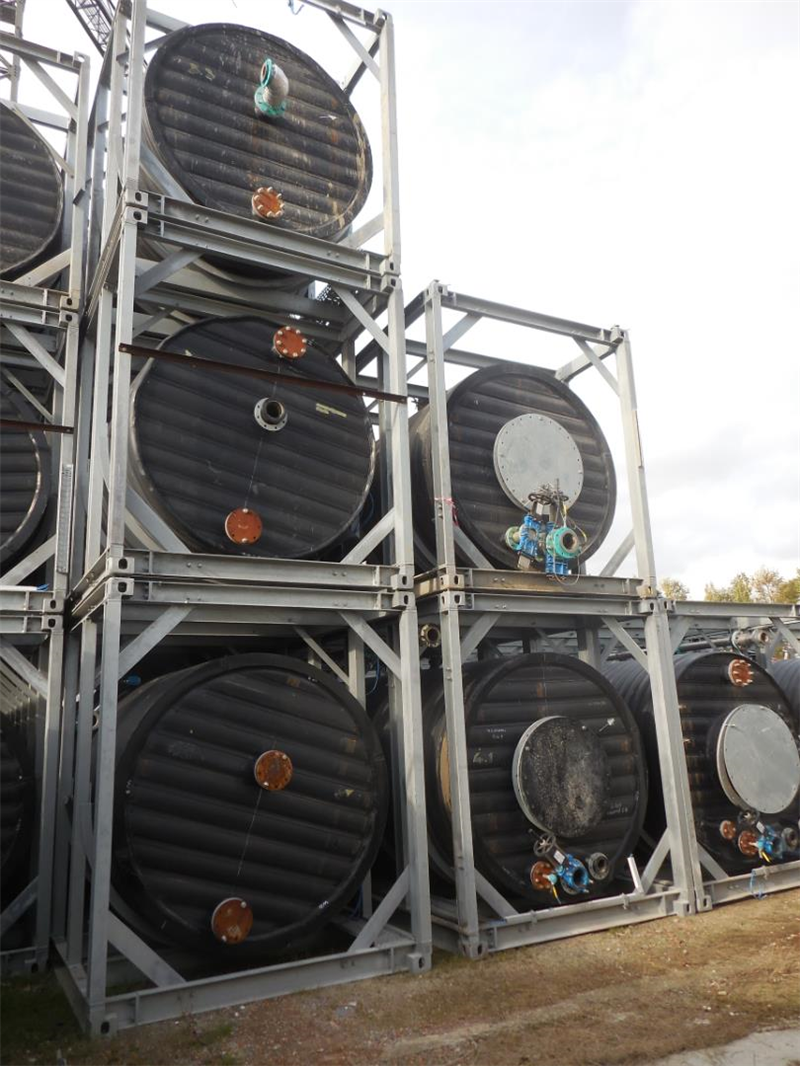

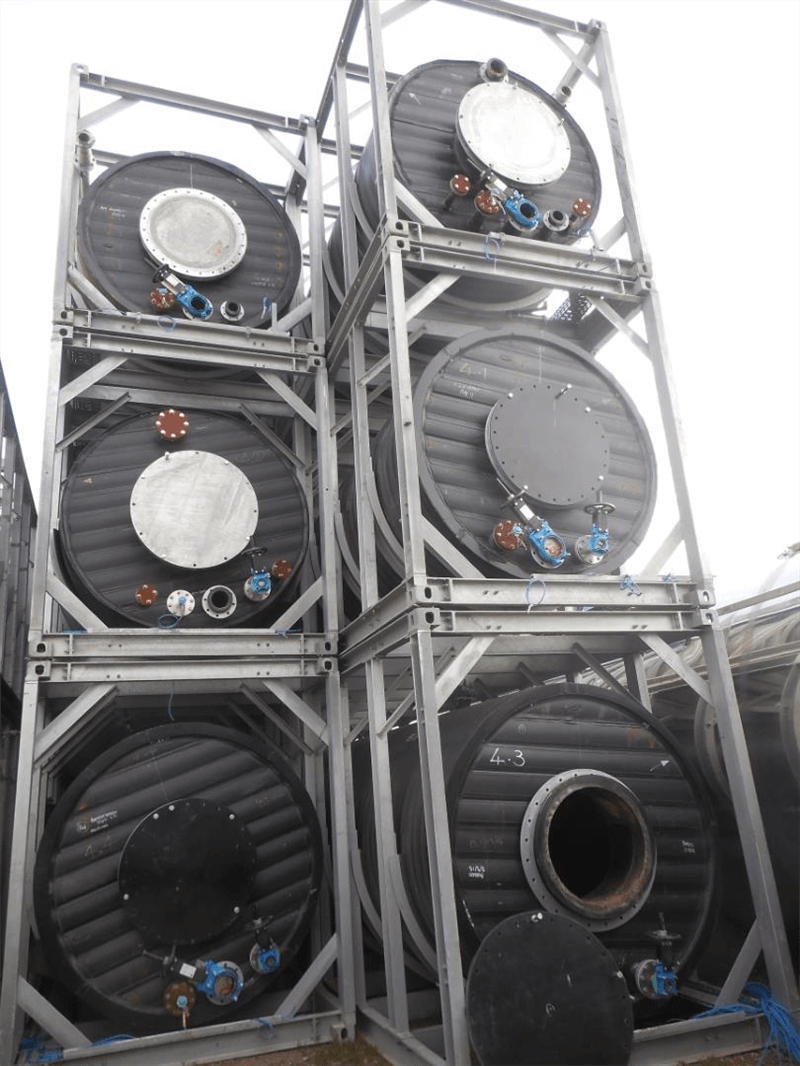

| Appendix 5 | t1038UK01_staking.jpg |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 90 |
| Bottom thickness (mm) | 90 |
| Periphery (mm) | 6865 |
| Cylindrical length (mm) | 11070 |
| Total height (mm) | 2900 |
| Length (mm) | 12000 |
| Diameter tank (mm) | 2000 |
| Width (mm) | 2500 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

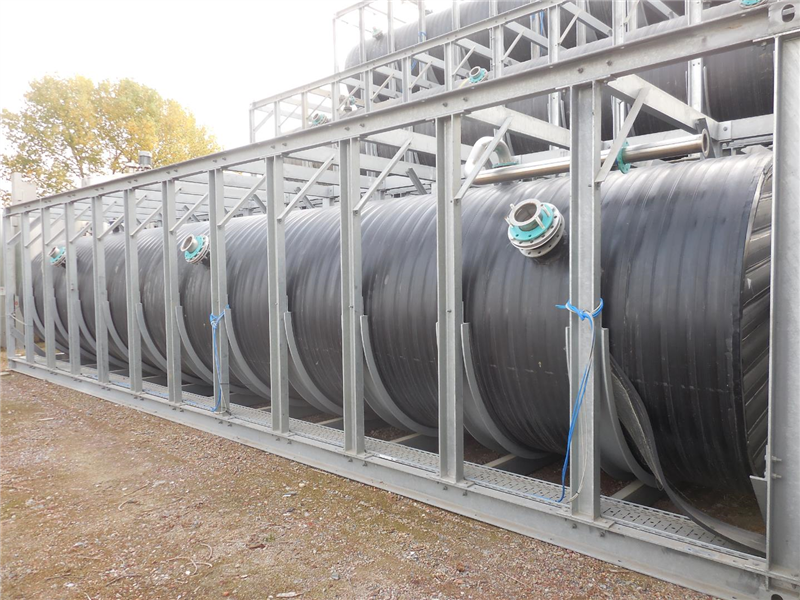

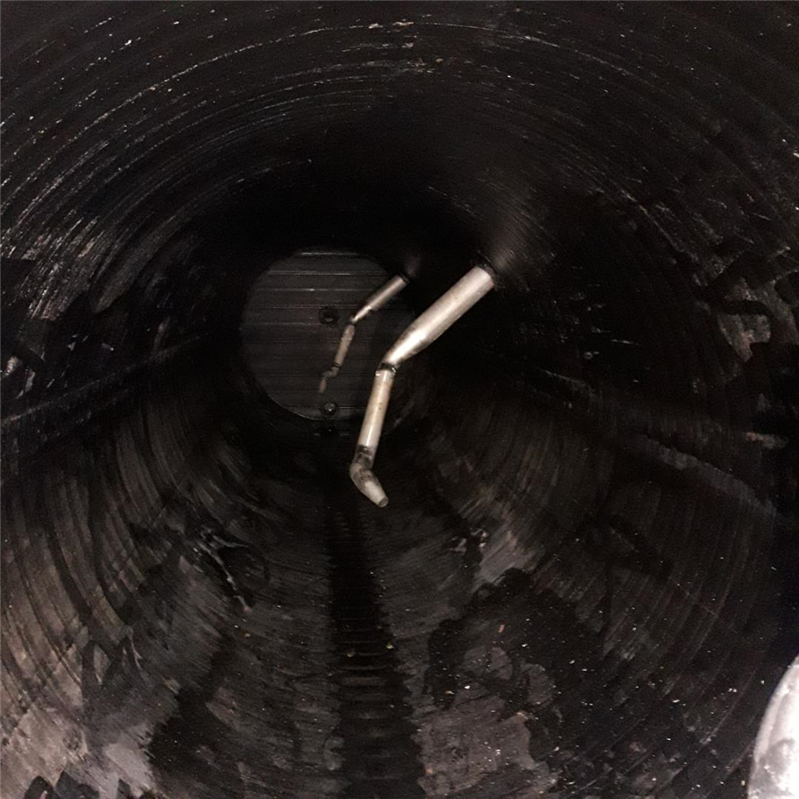

| Description (EN) | Tank mounted in ISO 40ft high cube container frame (12m x 2.5m x 2.9m) • Specially equipped for logistics purposes • hdpe Tank length 11600mm • Outdoor Ø 2183mm • EX-Anaerobic digestion ♦ overall volume 35.8m3, with a design volume of 33.95m3, Weight PE tank 3000kg • The weight of the pipe is 195kg/m ♦ Side1= 2 x DN150 (1 with ss316 blindflange) ; Side2= 1 x DN150 + inside lose flange SS316, 2 x DN100, 1 x DN800 ; Top= 2 x DN100 ; Side= 3 x DN200 +pipe SS316 + inside SS316 pipe with elbow |
