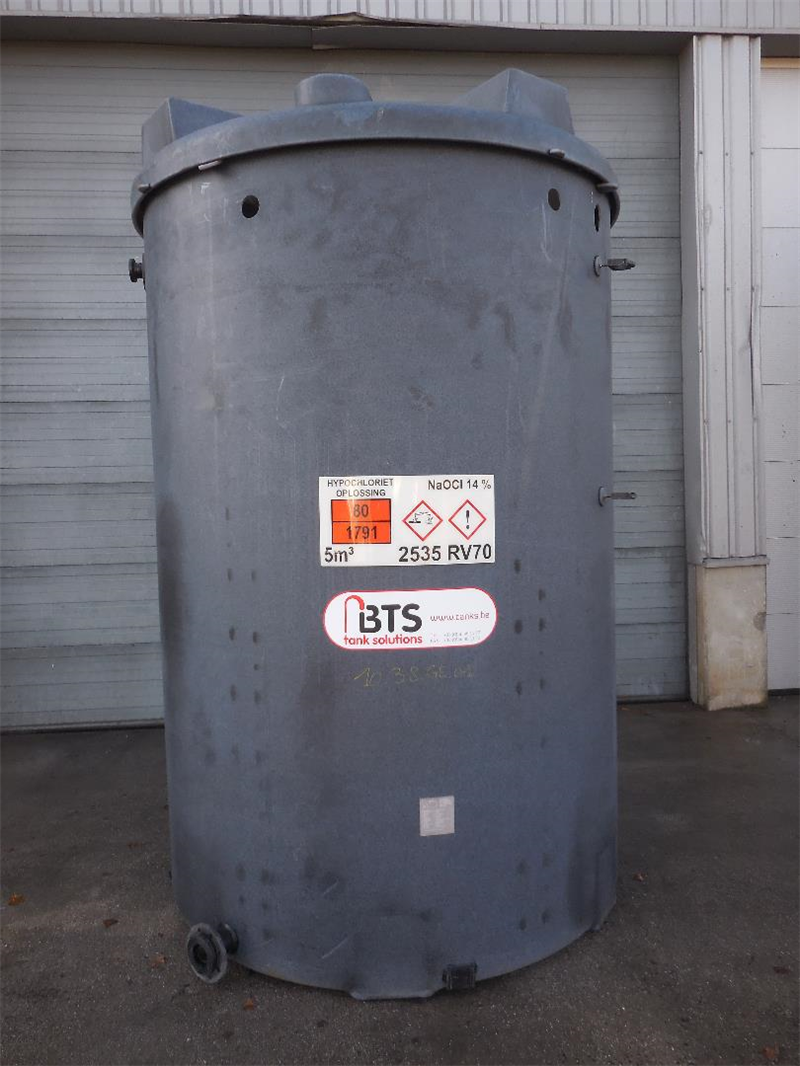

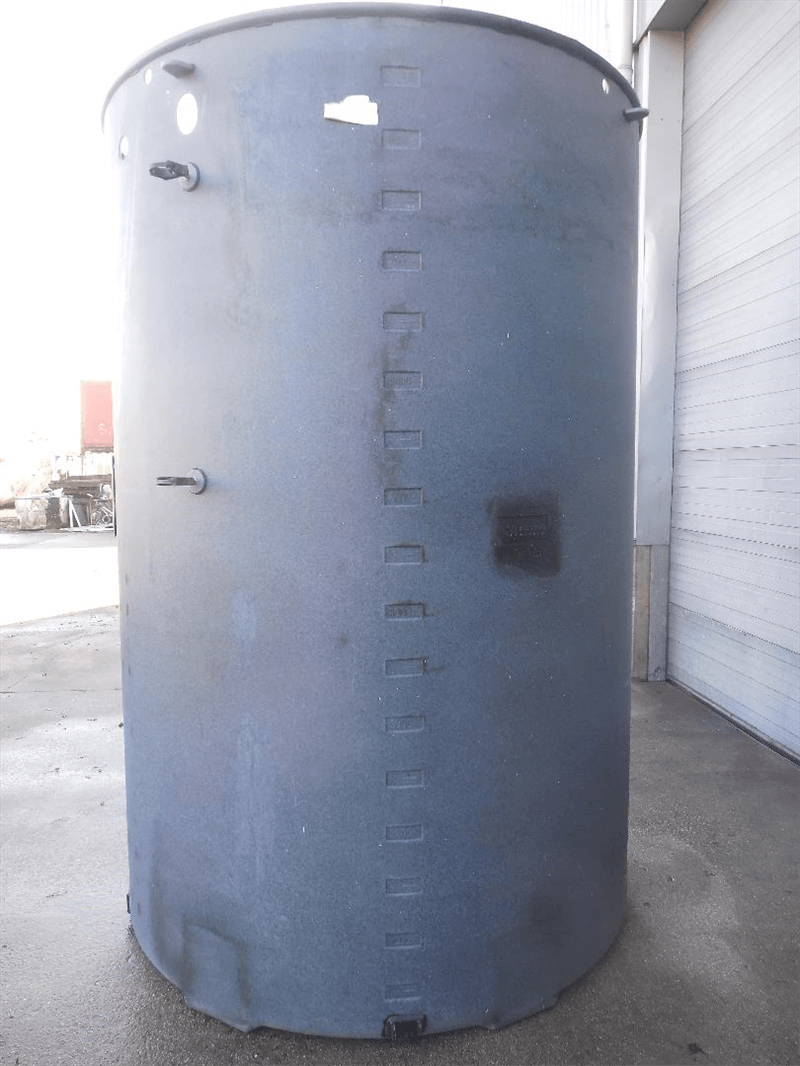

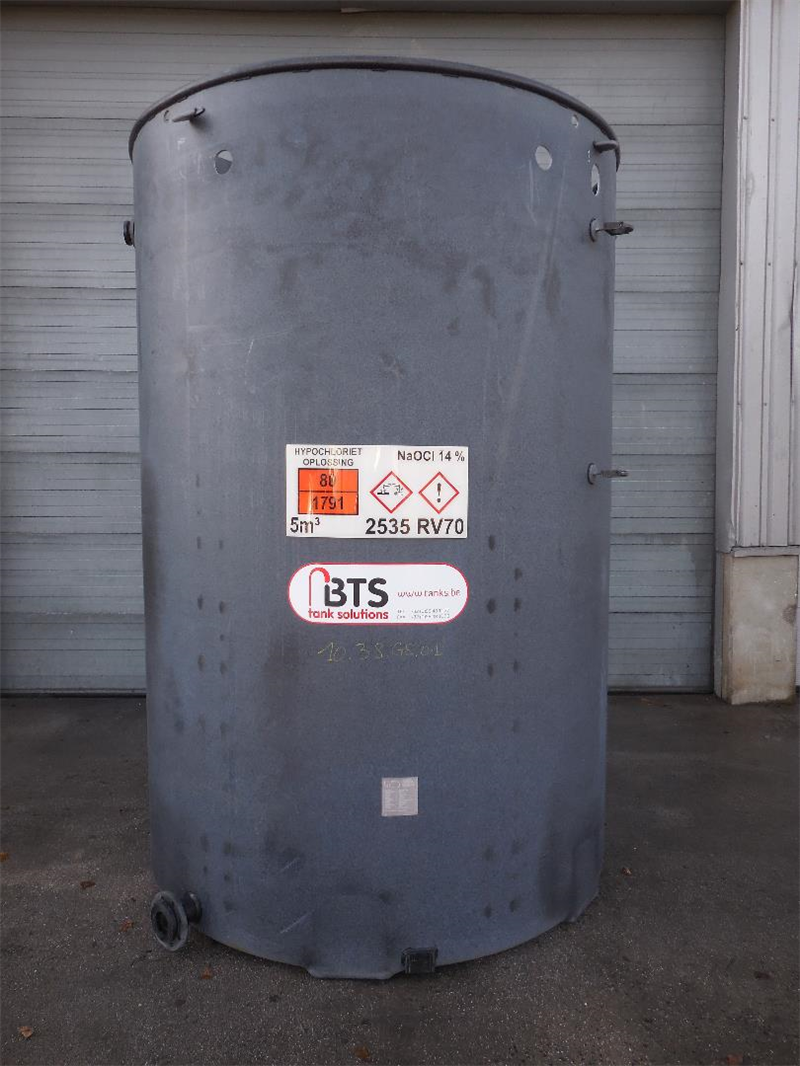

Used storage tank
- Material: HDPE
- Condition: Used
- Volume (in litres): 5050 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.38.GE.01 |
| Material | HDPE |
| Number | 1 |
| Capacity (Liters) | 5050 |
| Type tank | Storage tank |
| Fixation | NON |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 4 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 360 |
| Tank with total drain? | No |

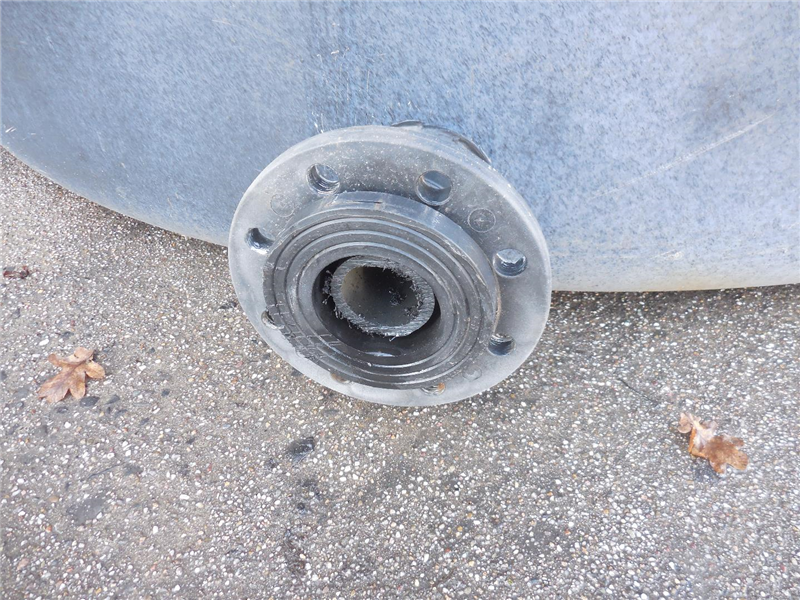

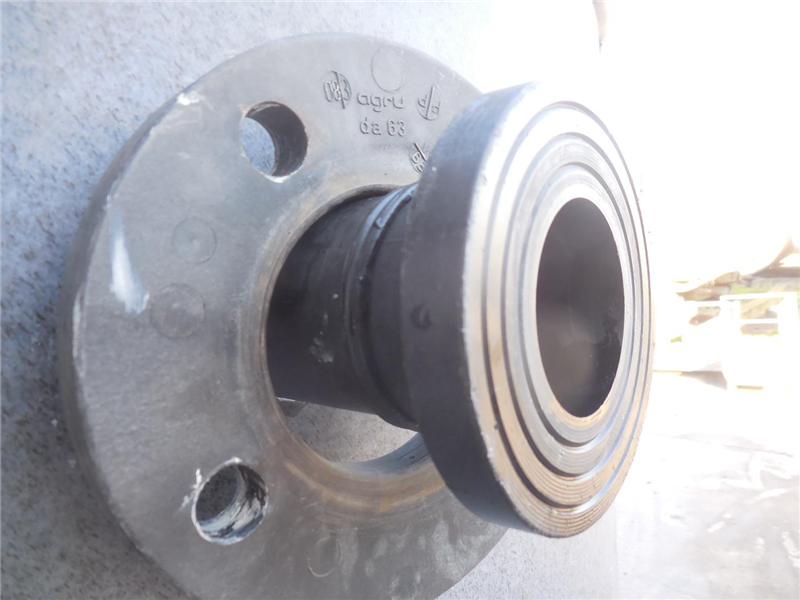

| Type of outlet (s) | FLENS DN80 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Condition | Used |

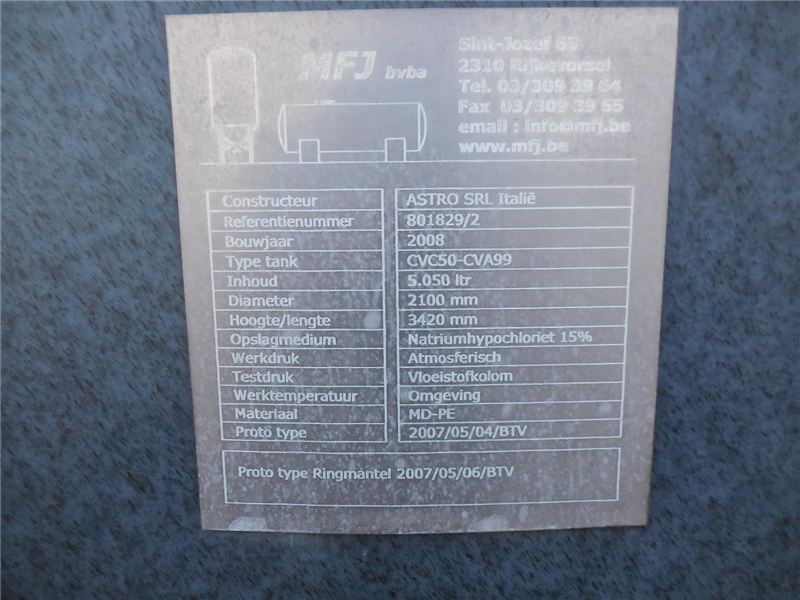

| Type plate manufacturer | Yes |
| Manufacturer | ASTRO SRL ITALY |
| Year Built | 2008 |
| Design Code | 207/05/04/BTV |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 10 |
| Periphery (mm) | 6250 |
| Cylindrical length (mm) | 2500 |
| Outer wall thickness (mm) | 10 |
| Outside diameter tank (mm) | 1990 |
| Total height (mm) | 3400 |
| Diameter tank (mm) | 1620 |
| Width (mm) | 1990 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

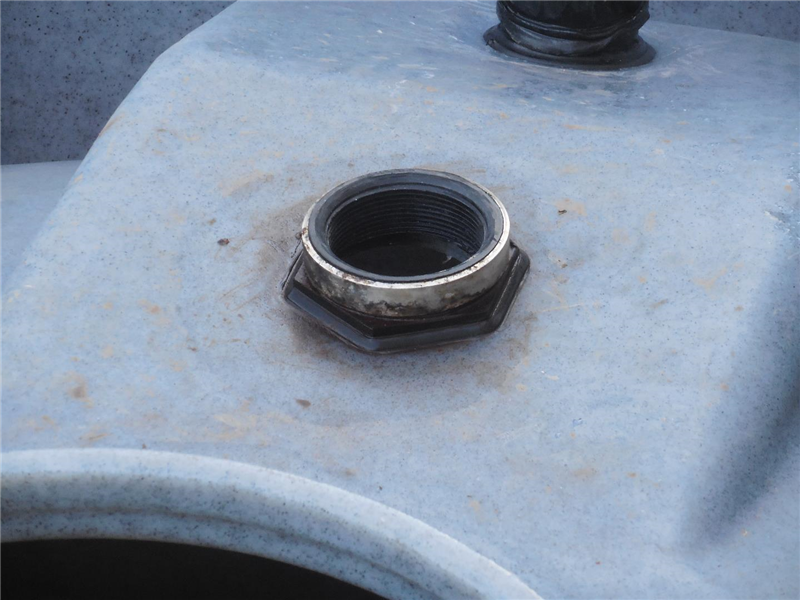

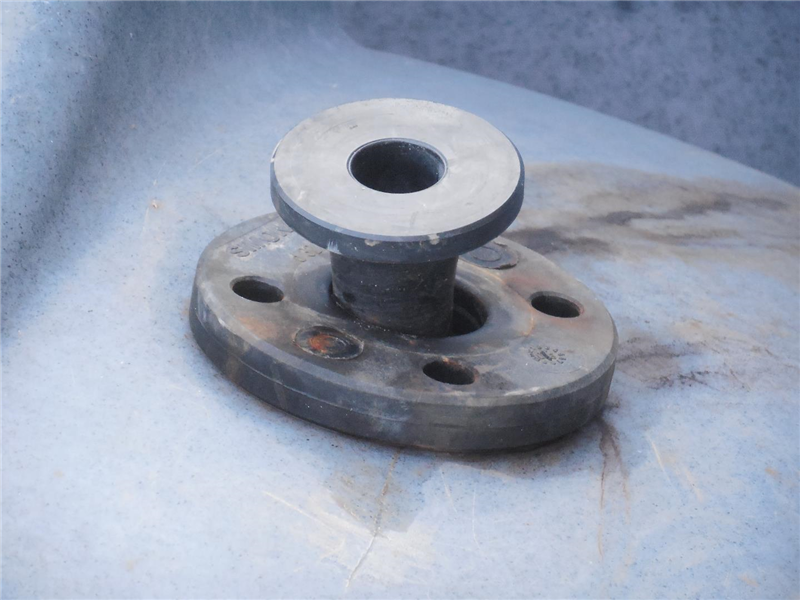

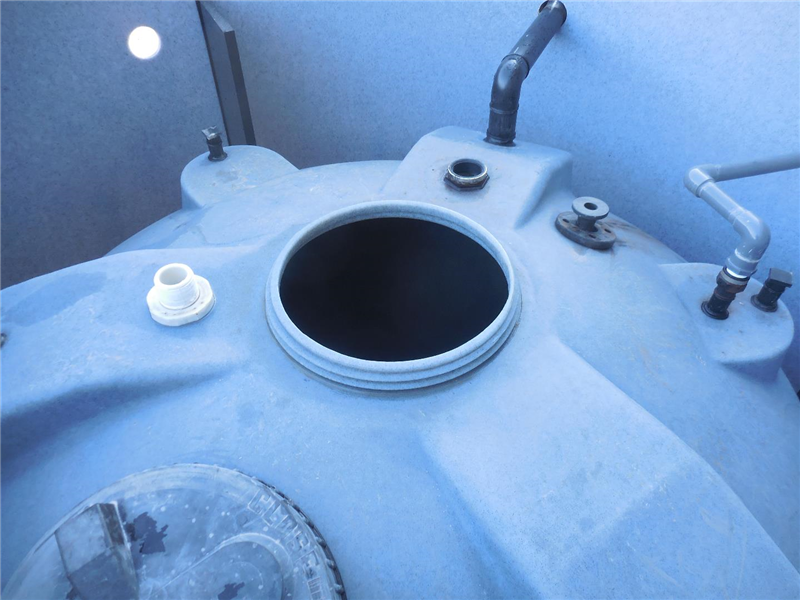

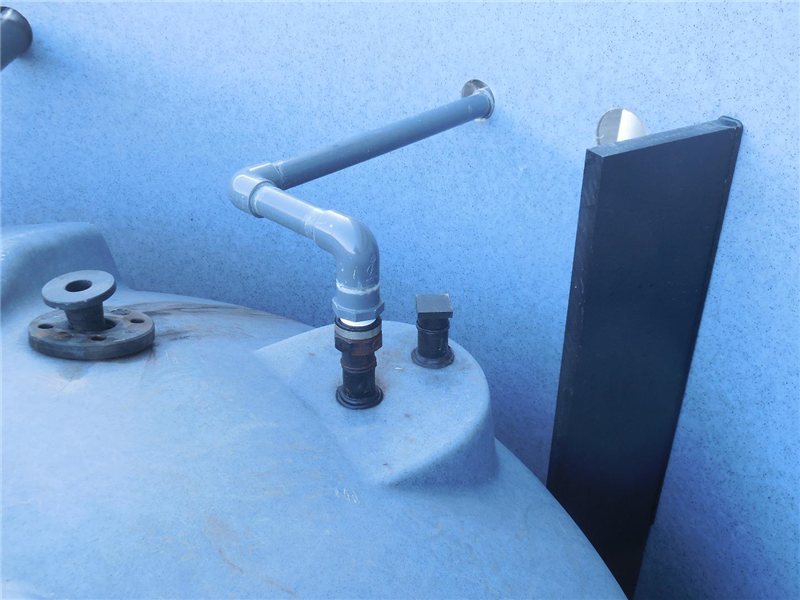

| Description (EN) | Detachable lid on outer casing with manhole Ø600 mm • Fixed lid on inner tank with manhole Ø360 mm • Filling tube with flange NW50 • Extra connection with flange NW25 |
