Used storage tank
- Material: HDPE
- Condition: Used
- Volume (in litres): 5000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.37.FA.03 |
| Material | HDPE |
| Number | 1 |
| Capacity (Liters) | 5000 |
| Type tank | Storage tank |
| Fixation | NON |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø500mm |
| Tank with total drain? | No |
| Type of outlet (s) | Zuigbuis flens DN 50 |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Condition | Used |

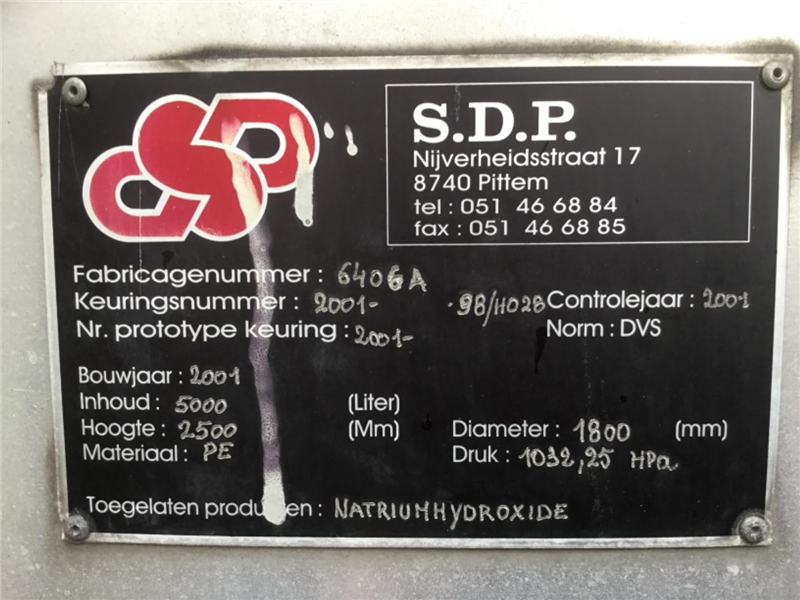

| Type plate manufacturer | Yes |
| Manufacturer | S.D.P. |
| Year Built | 2001 |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 10 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 10 |
| Bottom thickness (mm) | 10 |
| Periphery (mm) | 5652 |
| Cylindrical length (mm) | 2500 |
| Outer wall thickness (mm) | 10 |
| Outside diameter tank (mm) | 1920 |
| Total height (mm) | 2700 |
| Length (mm) | 1800 |
| Diameter tank (mm) | 1600 |
| Width (mm) | 1800 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 60 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
