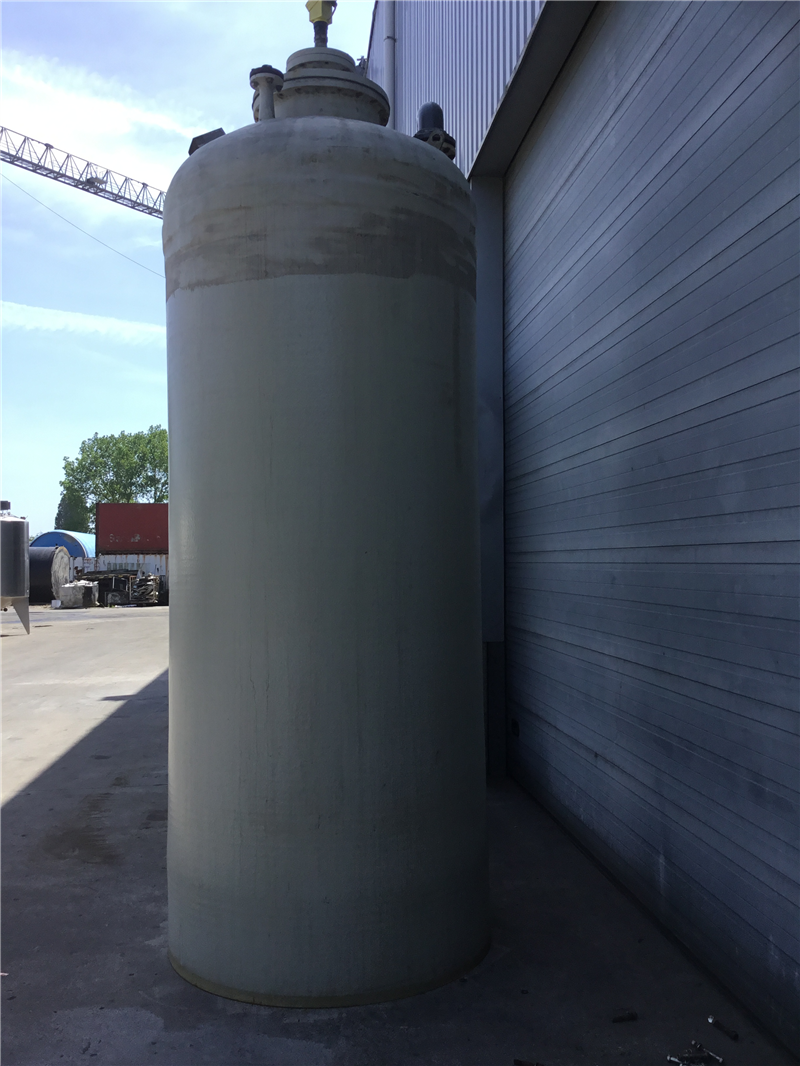

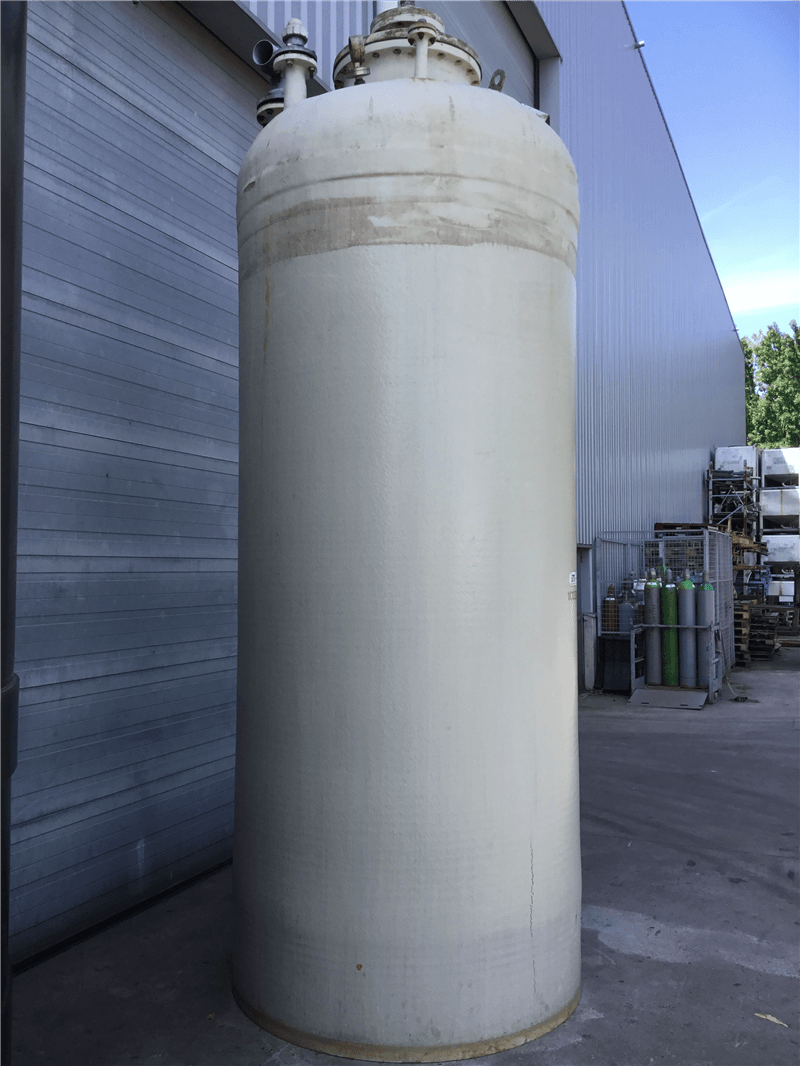

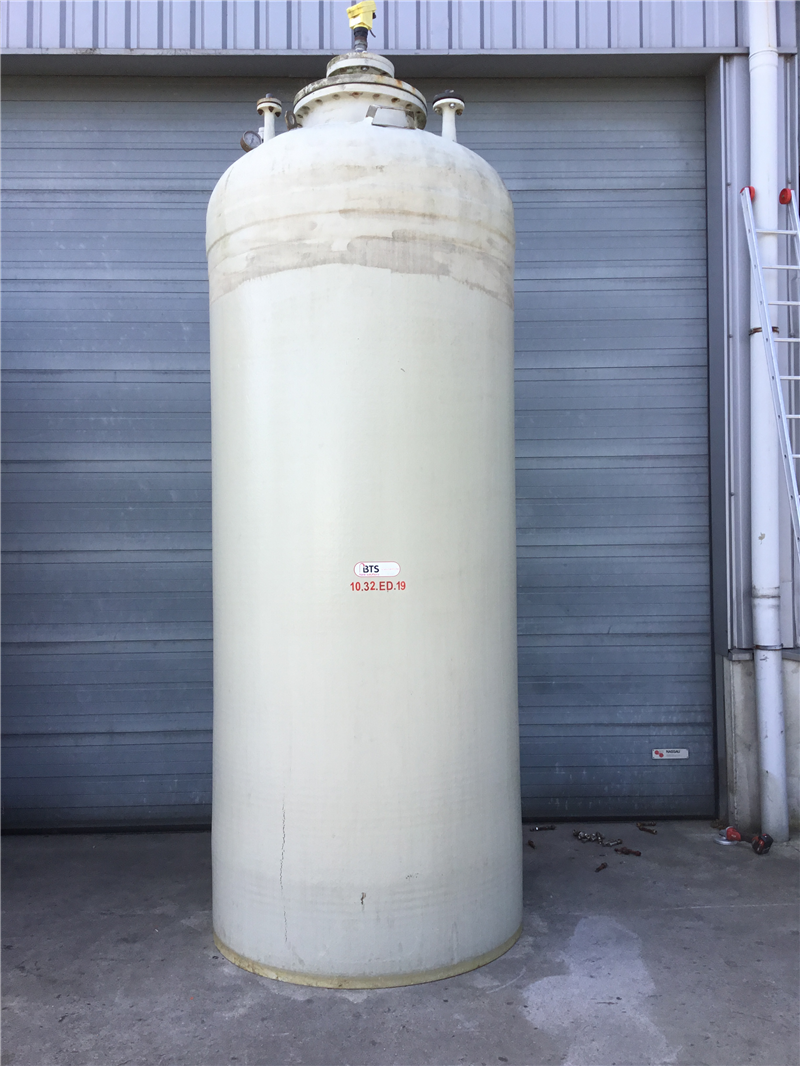

Used pressure tank
- Material: Fiberglass
- Condition: Used
- Volume (in litres): 6000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.32.ED.19 |
| Material | Fiberglass |
| Number | 1 |
| Capacity (Liters) | 6000 |
| Type tank | Pressure Tank |
| Design pressure tank ( Barg) | 2,5 |
| Test pressure tank (Barg) | 2,5 |
| Fixation | NON |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

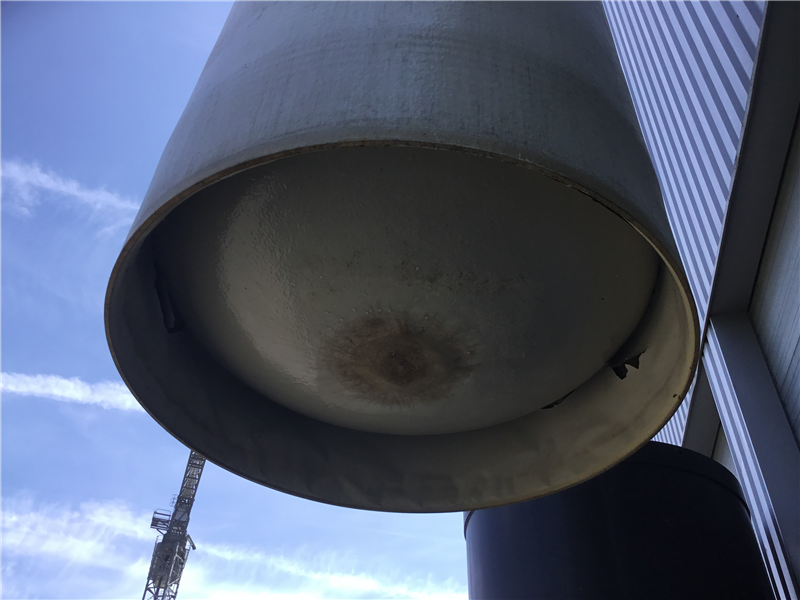

| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Density (kg/dm³) | 1,15 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø600 |
| Tank with total drain? | No |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 810 |
| Condition | Used |

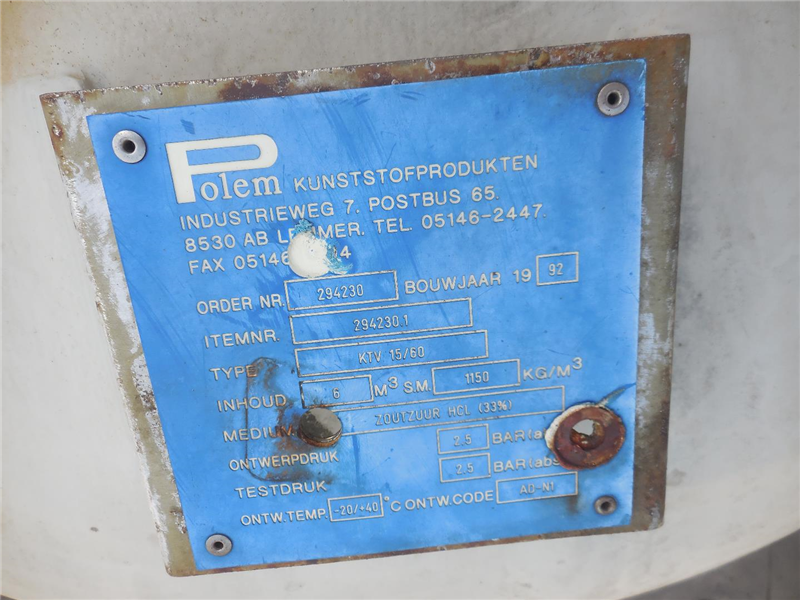

| Type plate manufacturer | Yes |
| Manufacturer | POLEM |
| Year Built | 1992 |
| Design Code | AD-N1 |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 6 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6 |
| Bottom thickness (mm) | 6 |
| Periphery (mm) | 4805 |
| Cylindrical length (mm) | 3070 |
| Height bottom (mm) | 400 |
| Total height (mm) | 4600 |
| Diameter tank (mm) | 1530 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

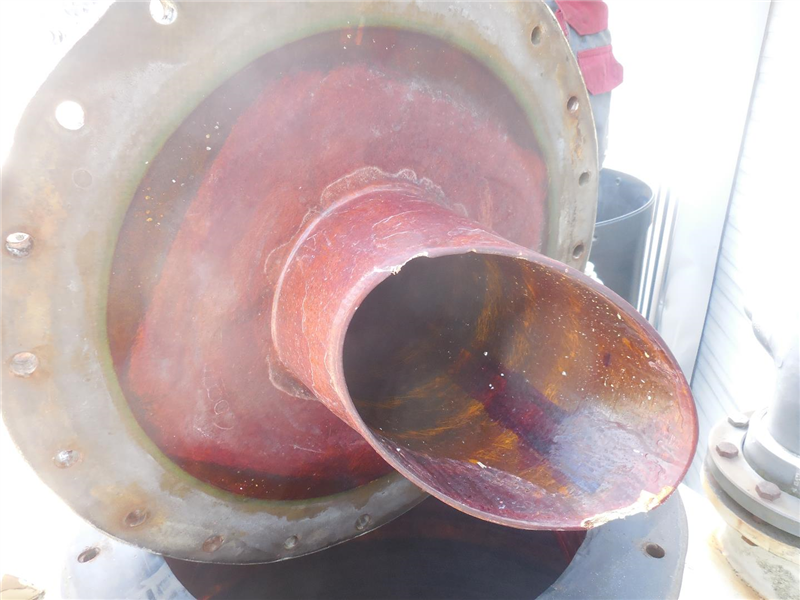

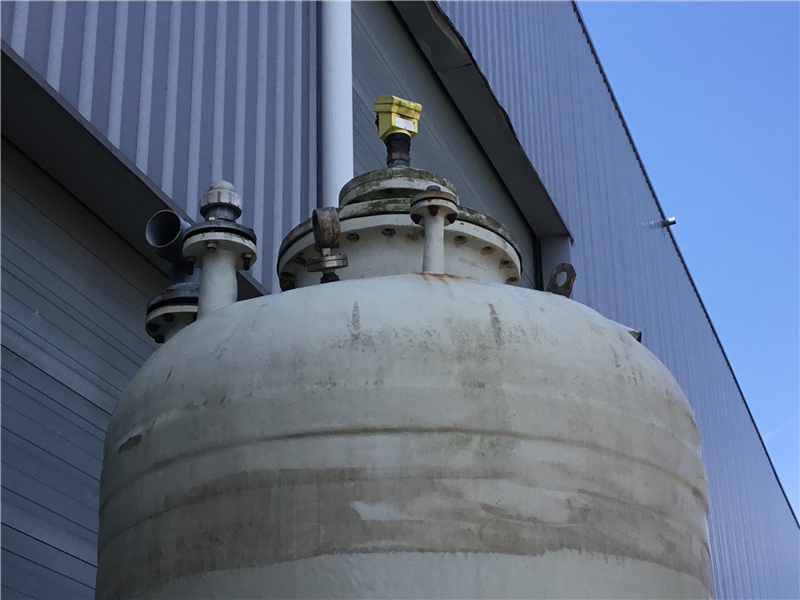

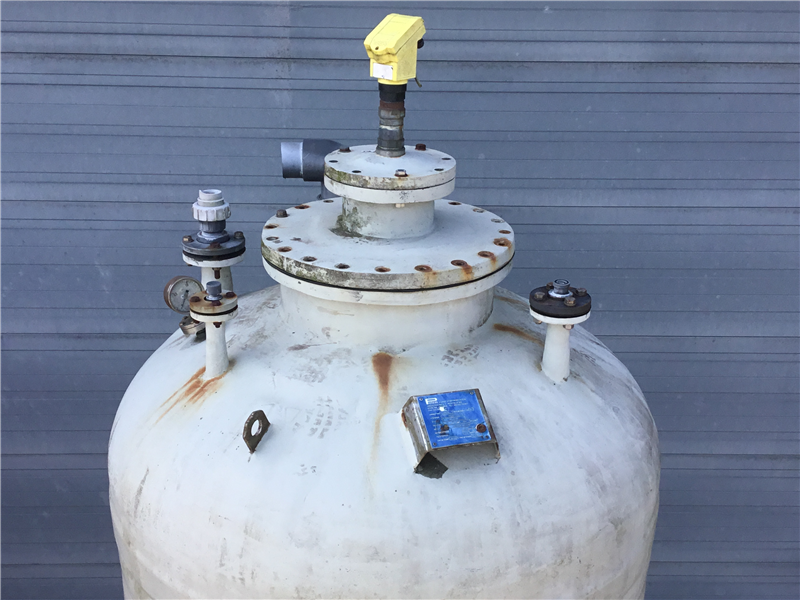

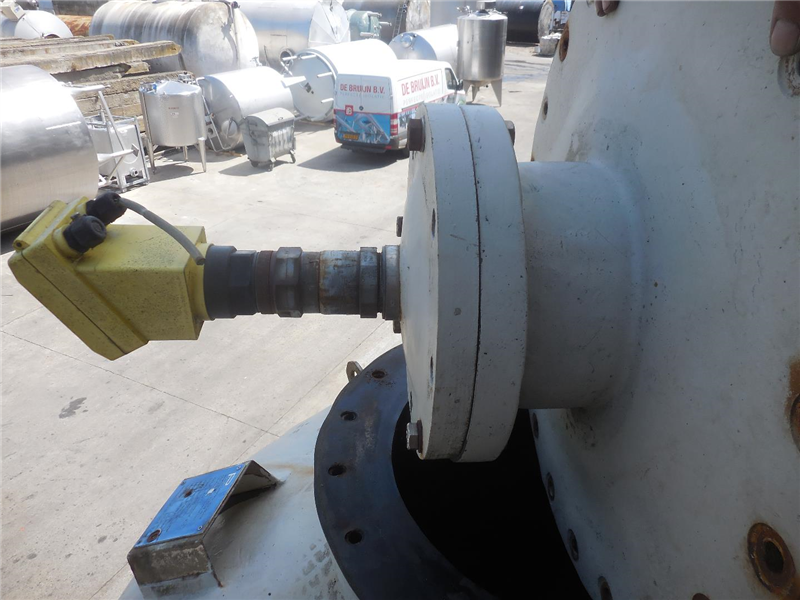

| Description (EN) | Hydrochloric acid HCL 30% • Tank with convex bones on skirt • Connections at the top: 1x manhole 600mm with bolted lid + sensor 1x flange NW50 + 1x flange NW65 + 1x flange NW25 + 1x barometer • POLEM - Design code AD-N1 - Type KTV 15/60 |
