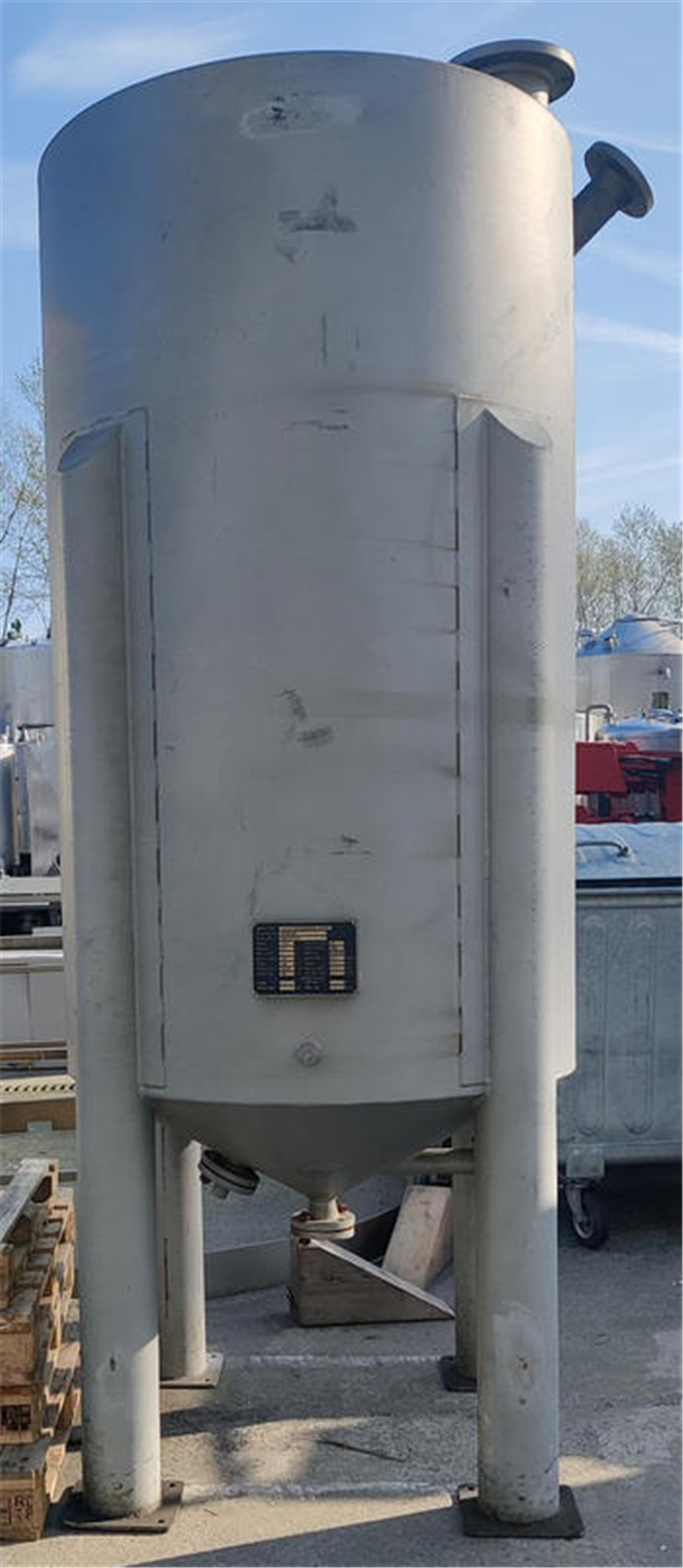

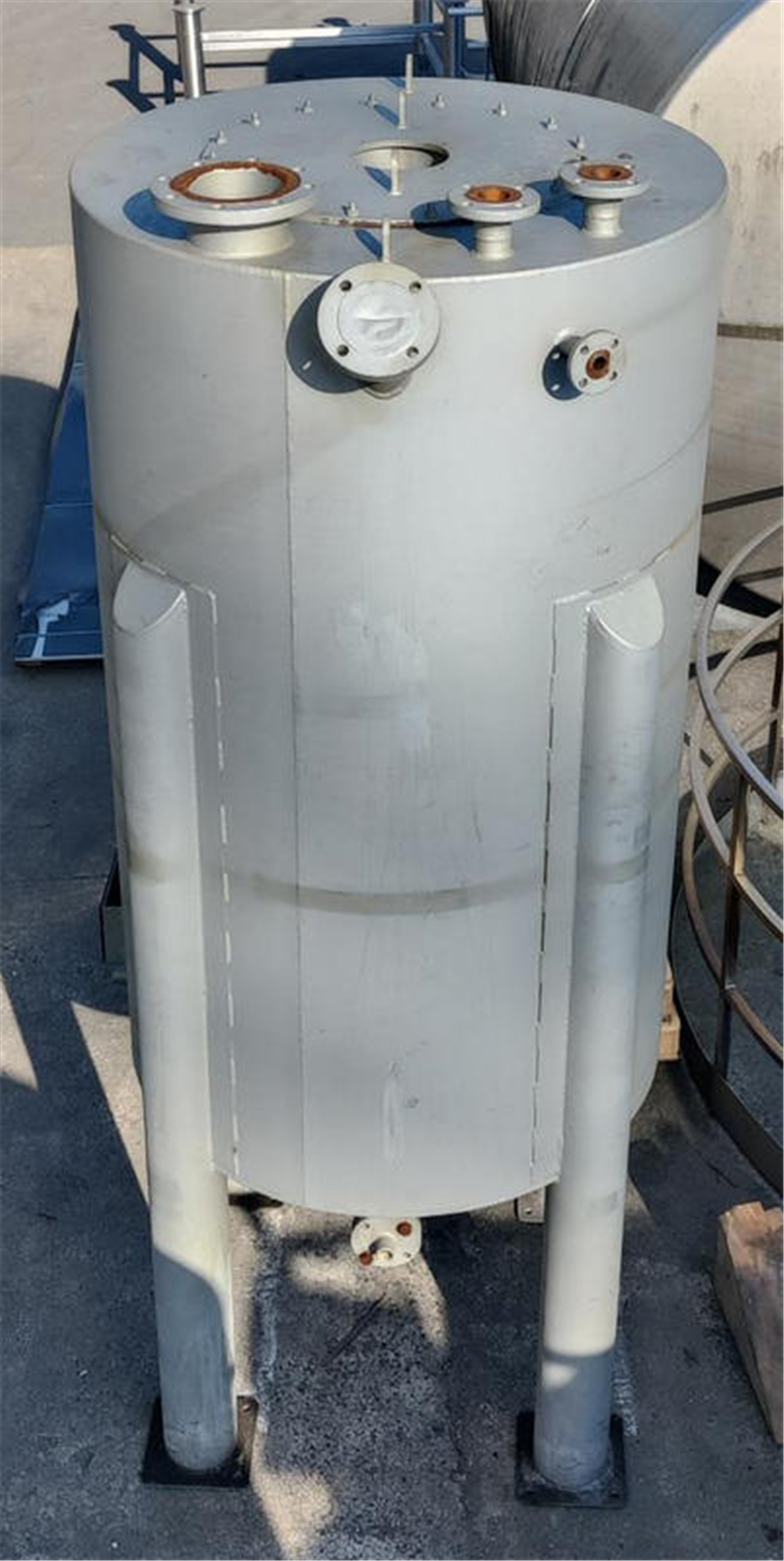

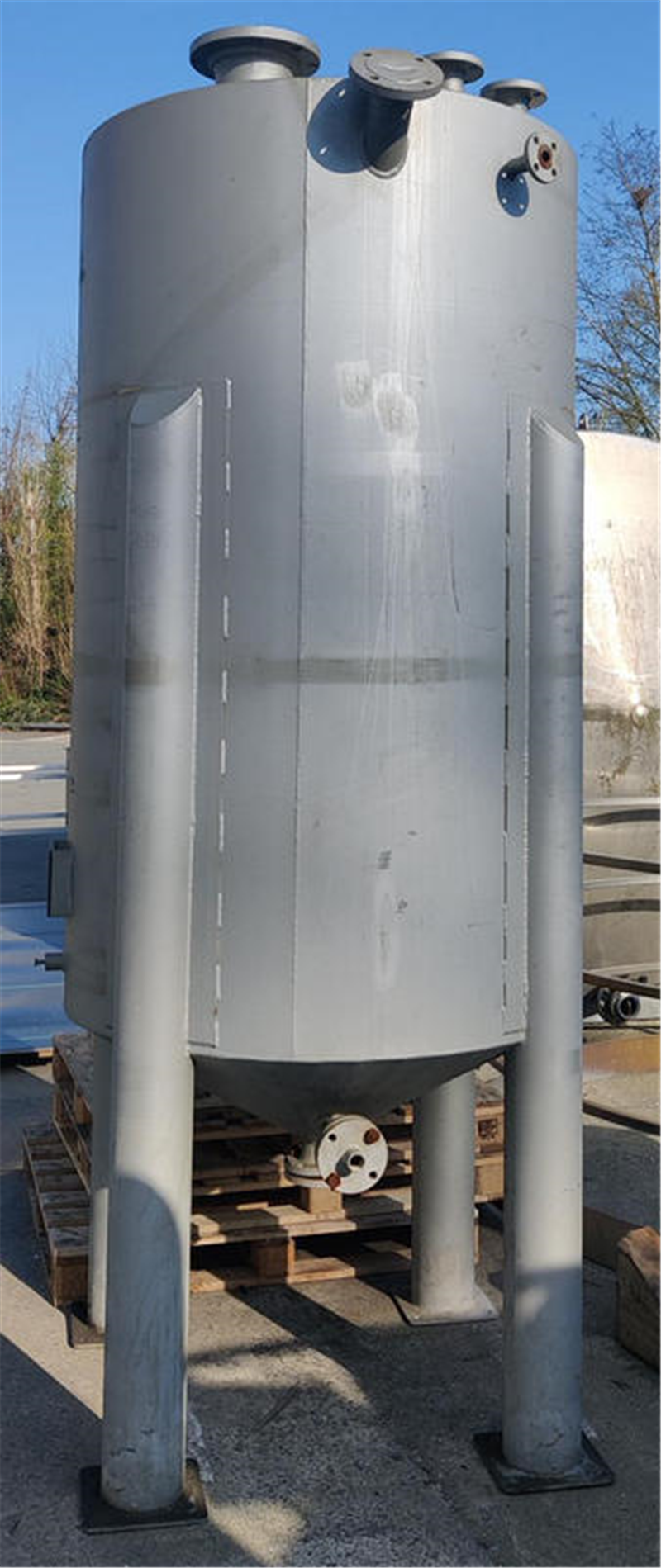

Used storage tank
- Material: Steel
- Condition: Used
- Volume (in litres): 2390 L
- In stock: 1
| General | |
|---|---|
| Material | Steel |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |

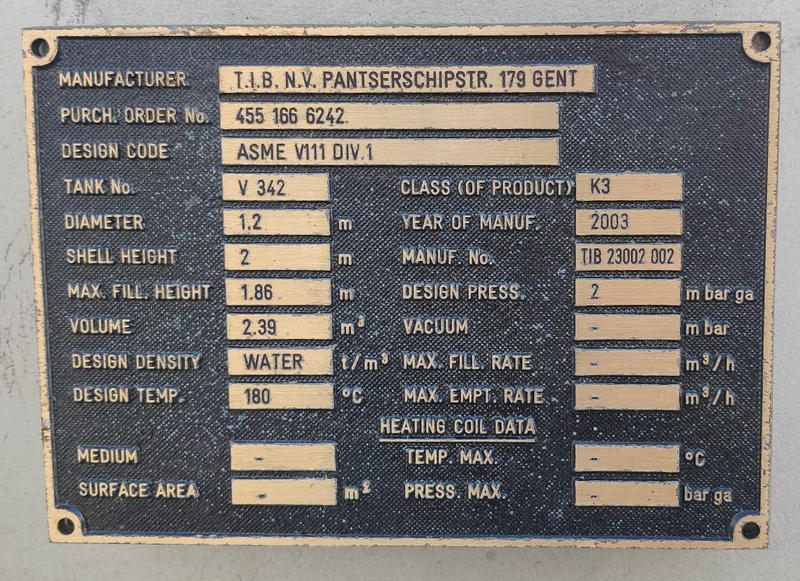

| Type plate manufacturer | Yes |
| Manufacturer | T.I.B. |
| Year Built | 2003 |
| Show Online? | Yes |
| Appendix 1 | 0546SH01_draw.dwg |
| Appendix 2 | 0546SH01_02_03_draw.pdf |
| Tank | |
|---|---|
| Capacity (Liters) | 2390 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

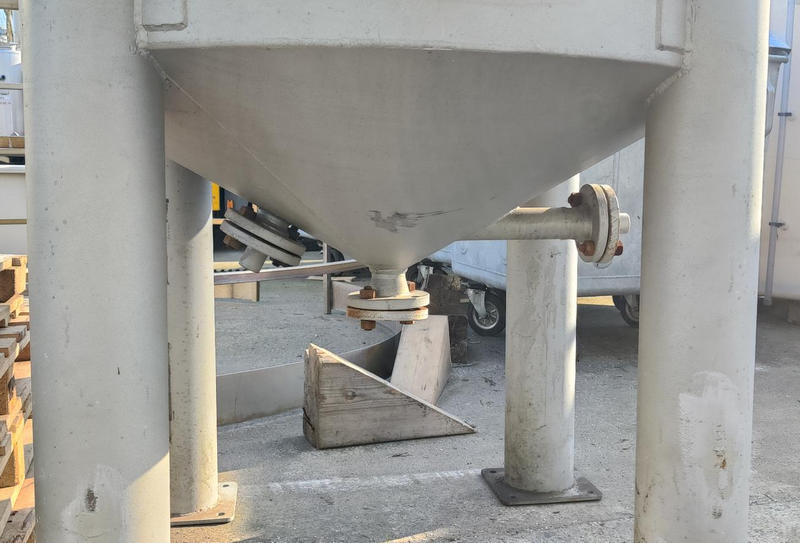

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |
| Density (kg/dm³) | 1 |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | DN50 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 5 |
| Cylinder Thickness (mm) | 5.6 |
| Periphery (mm) | 3770 |
| Cylindrical length (mm) | 2000 |
| height bottom (mm) | 300 |
| height bottom (mm) | 300 |
| height bottom (mm) | 300 |
| Total height (mm) | 3000 |
| Length (mm) | 1400 |
| Diameter tank (mm) | 1190 |
| Width (mm) | 1270 |

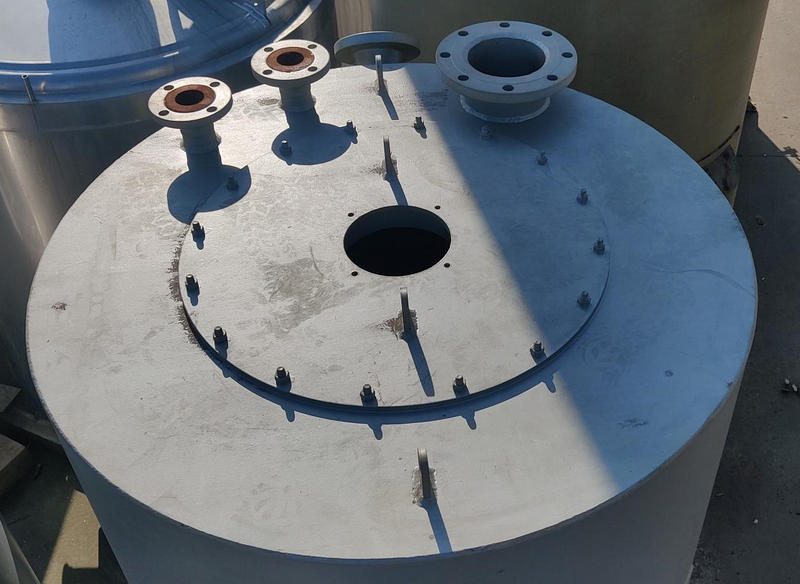

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat head |

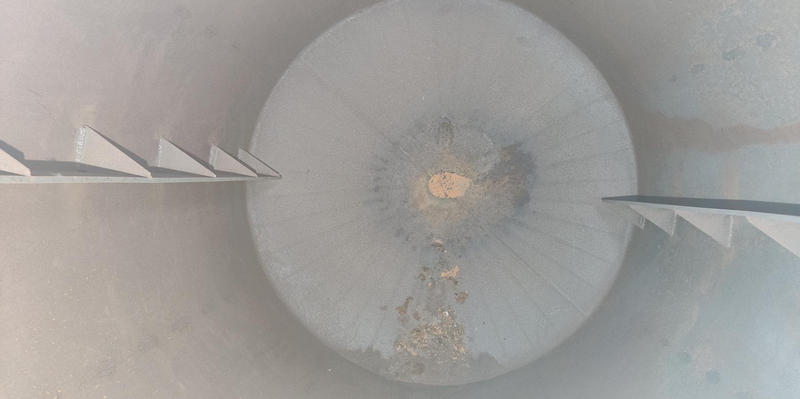

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Number of baffles | 2 |
