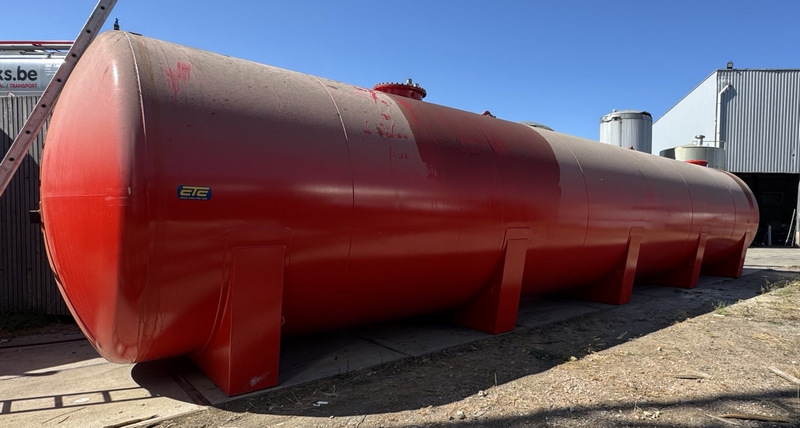

Used storage tank
- Material: Steel
- Condition: Used
- Volume (in litres): 100000 L
- In stock: 1
| General | |
|---|---|
| Item number | 05.46.PM.01 |
| Material | Steel |
| Number | 1 |
| Capacity (Liters) | 100000 |
| Type tank | Storage tank |
| Fixation | 5 cradles |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 2 |

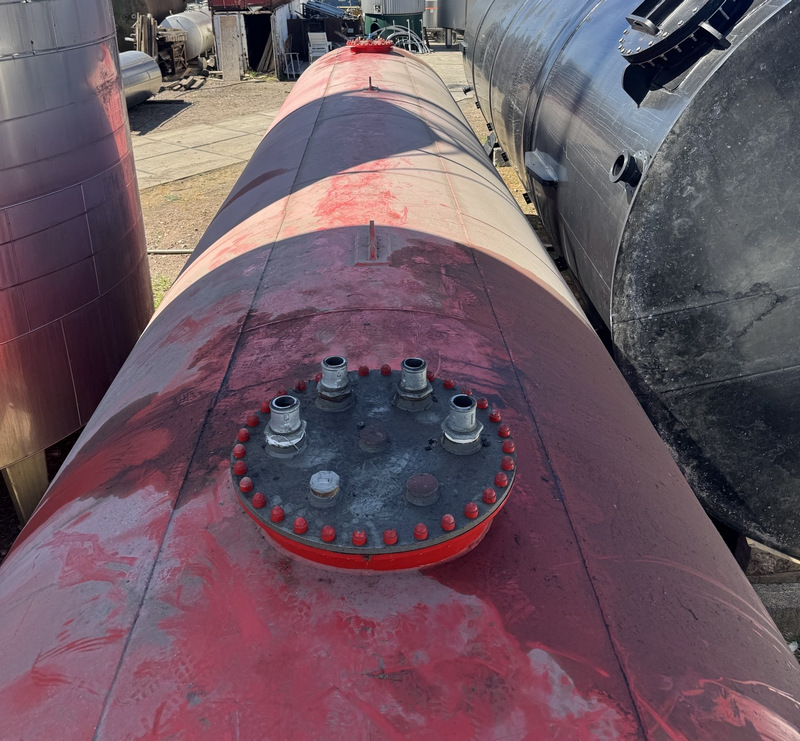

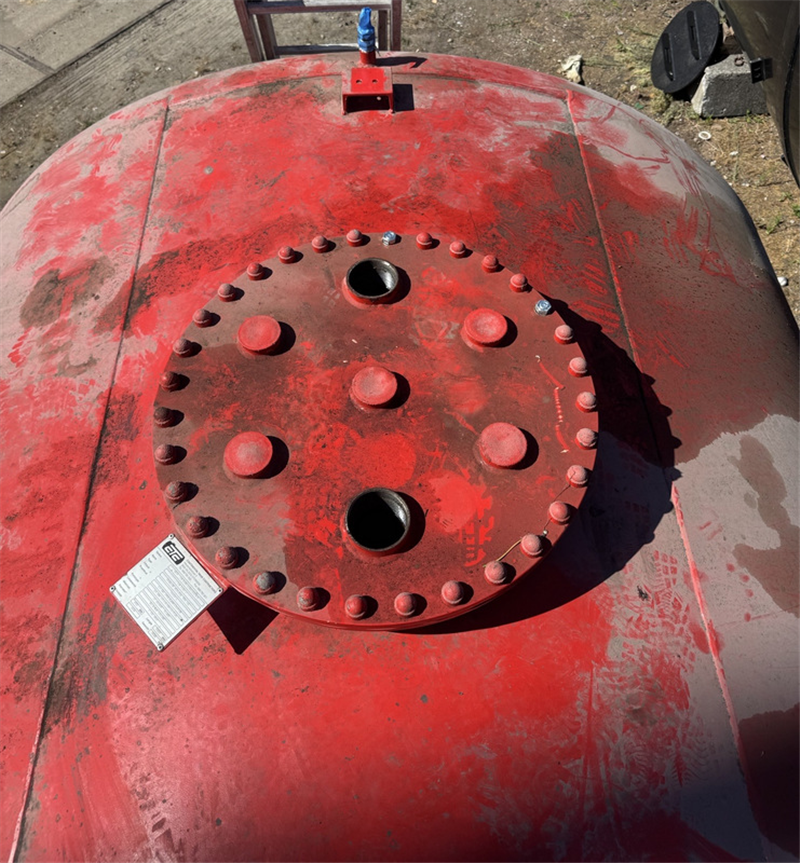

| Number of manhole | 2 |
| Position of manhole (s) | Top |
| Dimensions of manholes | DN600 |
| Tank with total drain? | No |
| Type of outlet (s) | Lage zuig |
| Diameter of outlet (mm) | 2" & 3" |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Weight (kg) | 14500 |
| Condition | Used |

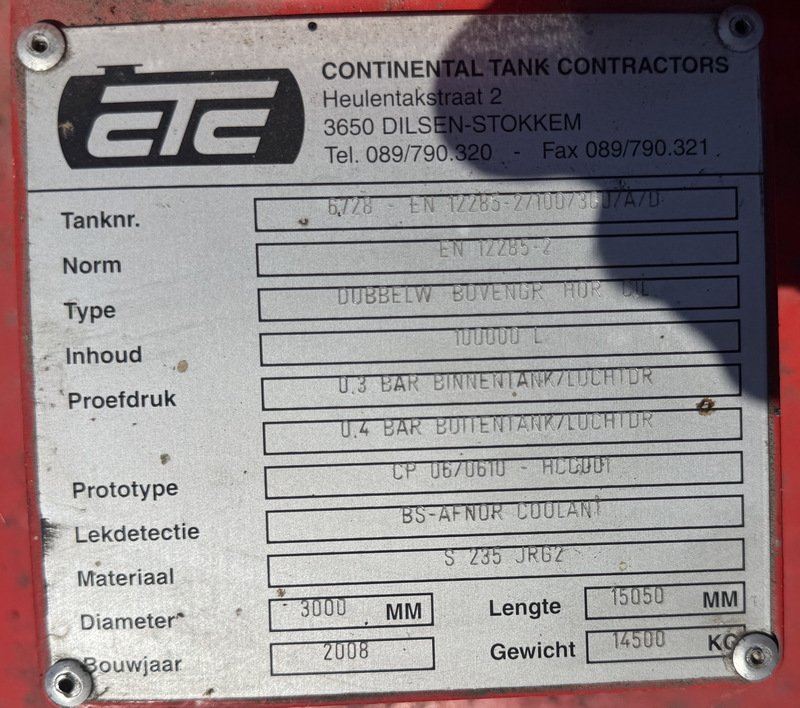

| Type plate manufacturer | Yes |
| Manufacturer | CTC Continental Tank Contractors |
| Year Built | 2008 |
| Design Code | EN12285-2 |
| Construction data available | No |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 7 |
| Bottom thickness (mm) | 7 |
| Periphery (mm) | 9530 |
| Cylindrical length (mm) | 14140 |
| Height bottom (mm) | 600 |
| Outer wall thickness (mm) | 3 |
| Total height (mm) | 3410 |
| Length (mm) | 15050 |
| Diameter tank (mm) | 3000 |
| Width (mm) | 3080 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

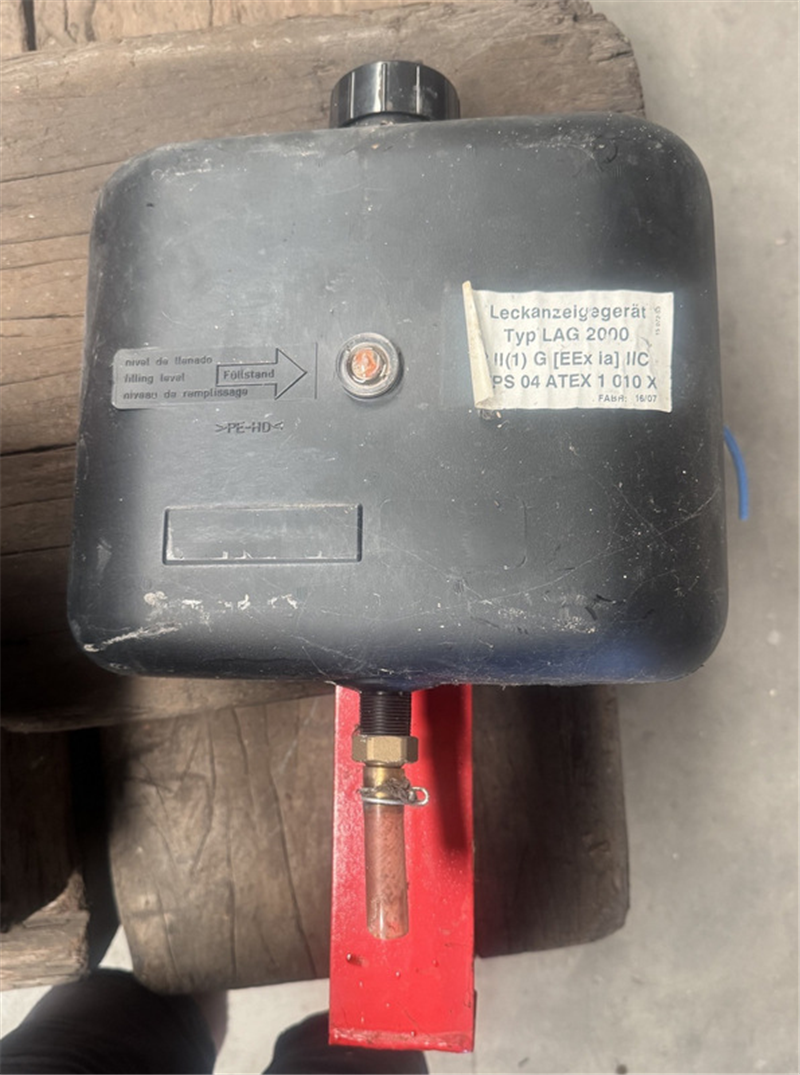

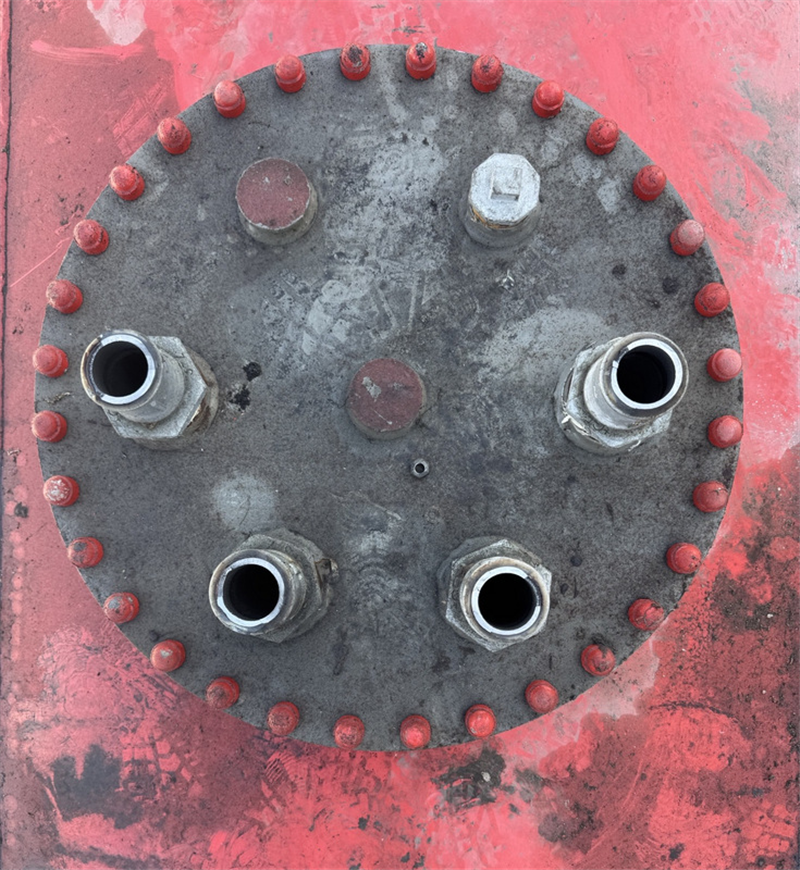

| Description (EN) | 1 manhole equipped with welding sleeves 4x 3" and 2x 2", 1 manhole equipped with welding sleeves 2x 3" and 5x 2" -- Leak detection indicator Type LAG2000 with BS-AFNOR Coolant -- Test pressure 0.3 Bar inner tank/air pressure -- 0.4 Bar outer tank/air pressure |
