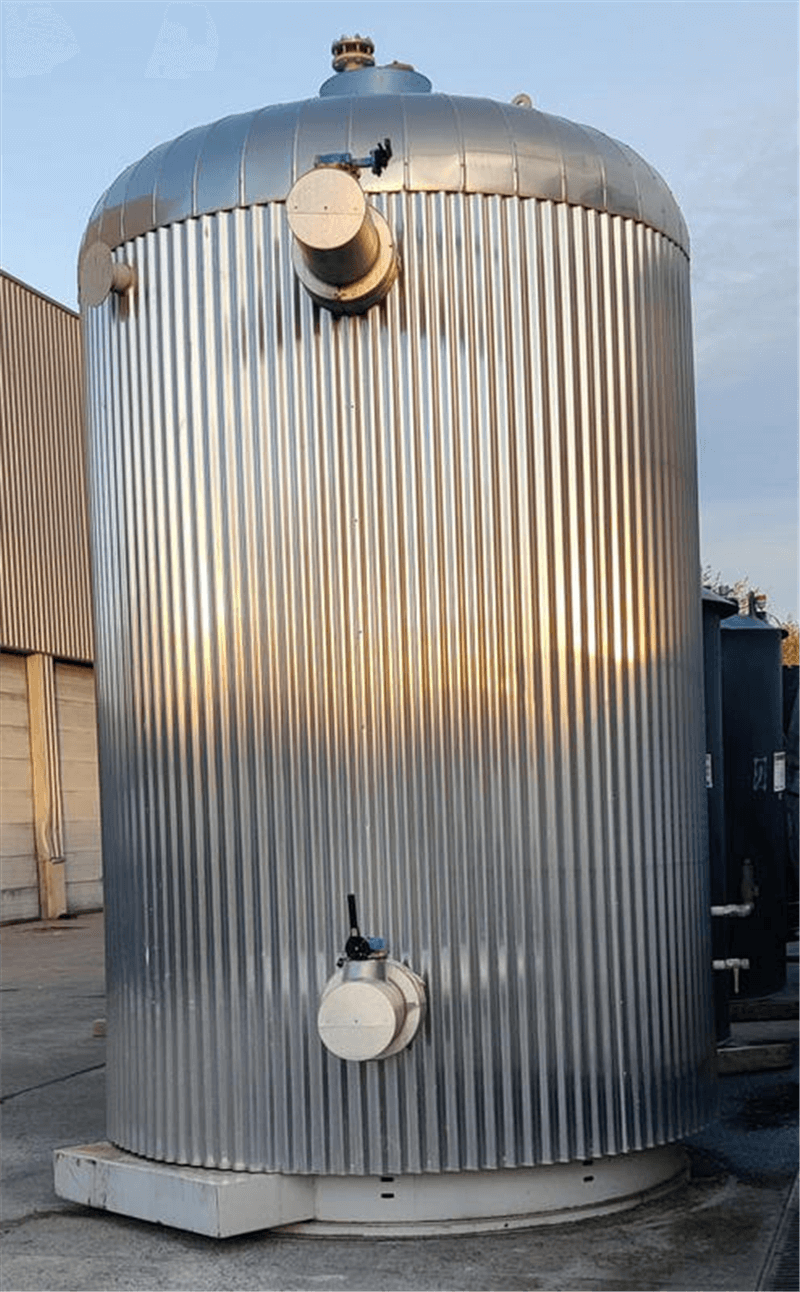

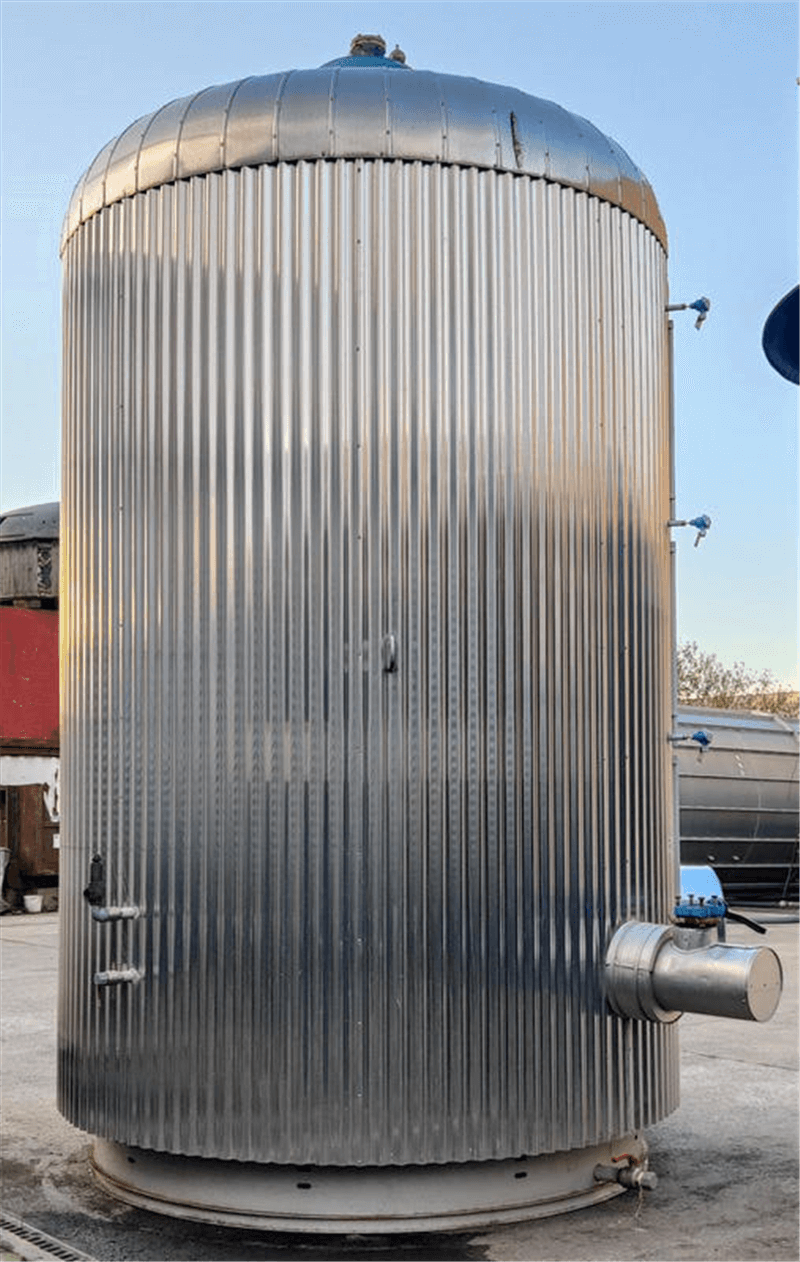

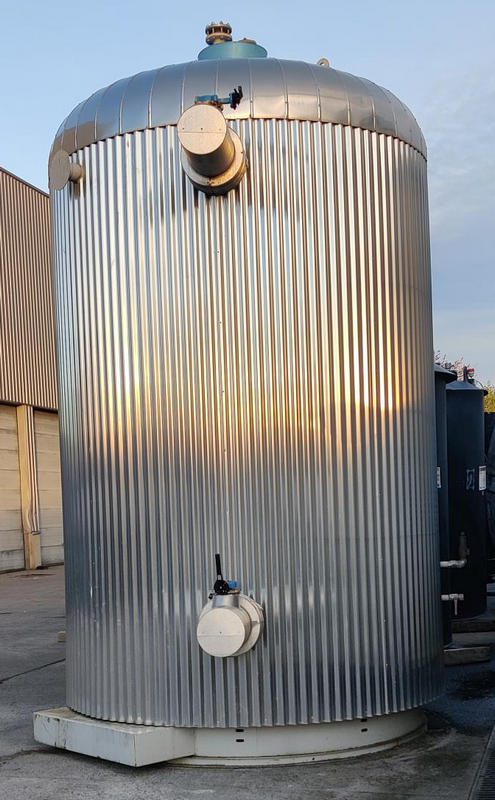

Used storage tank
- Material: Steel
- Condition: Used
- Volume (in litres): 20000 L
- In stock: 1
| General | |
|---|---|
| Item number | 05.45.XY.01 |
| Material | Steel |
| Number | 1 |
| Capacity (Liters) | 20000 |
| Type tank | Storage tank |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | dia 400mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. bolkraan |
| Diameter of outlet (mm) | DN50 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 2300 |
| Condition | Used |

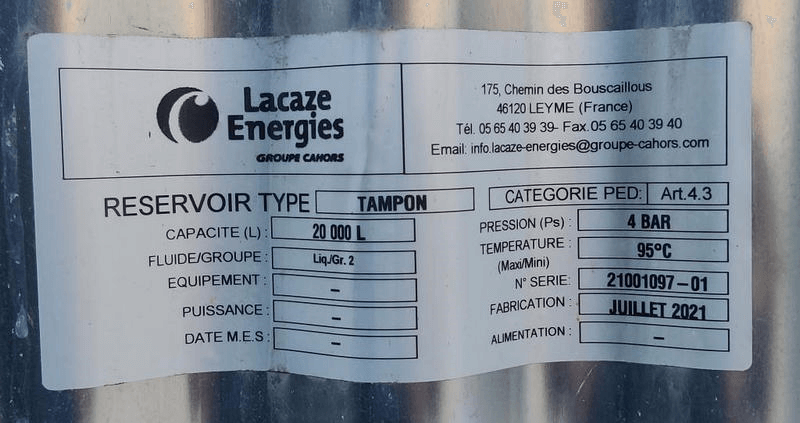

| Type plate manufacturer | Yes |

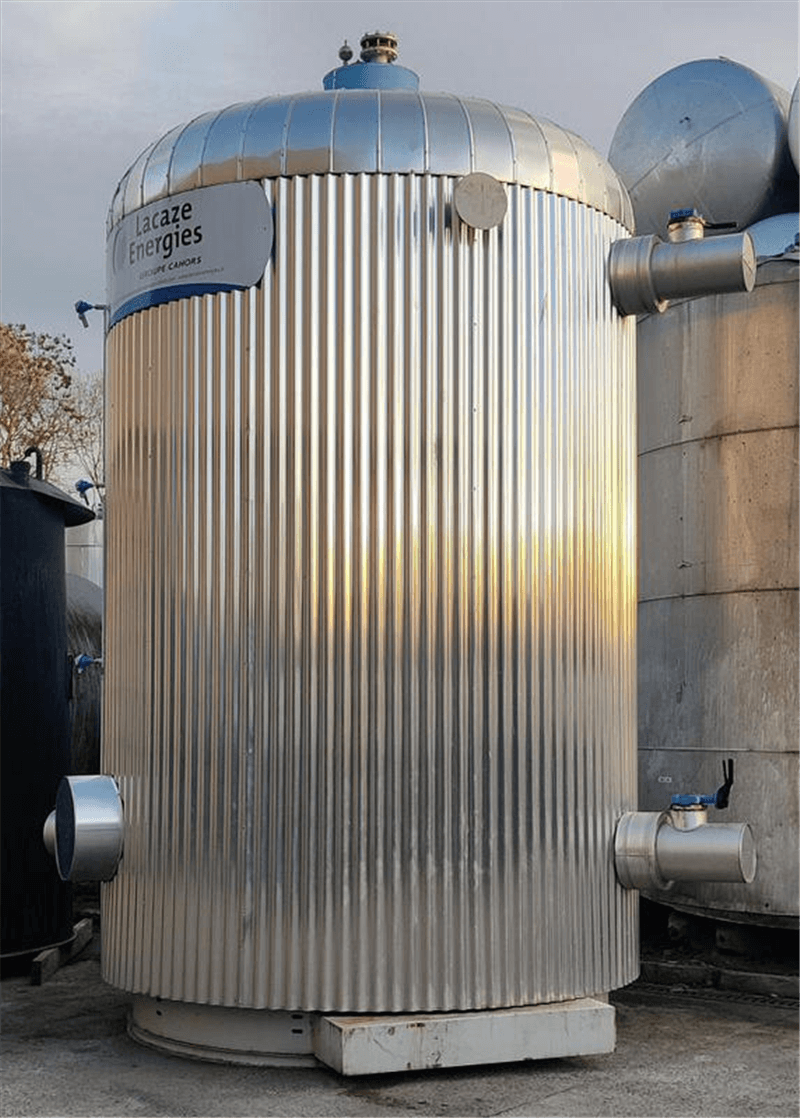

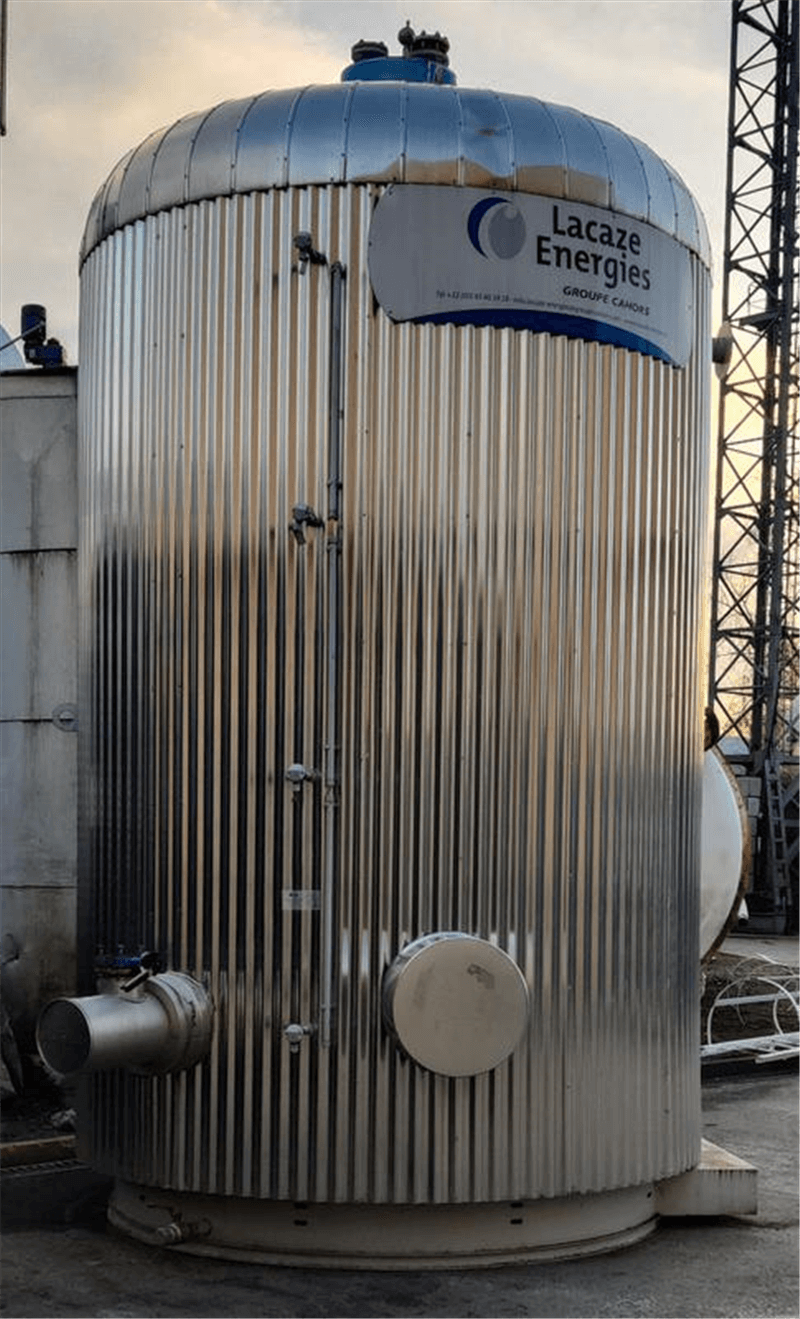

| Manufacturer | LACAZE ENERGIES |
| Year Built | 2021 |
| Appendix 1 | 0545XY01_PLAN.PDF |

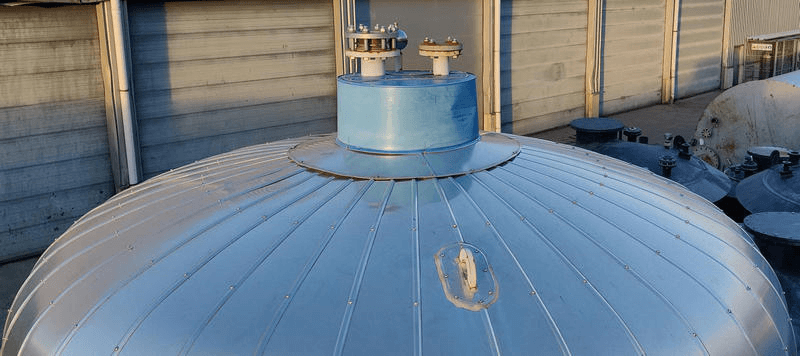

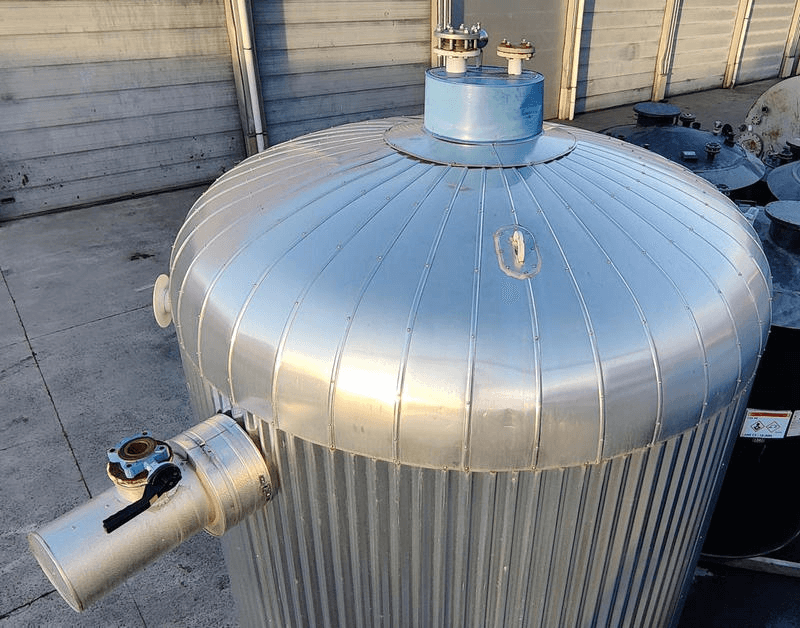

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Periphery (mm) | 8850 |
| Cylindrical length (mm) | 3435 |
| Height bottom (mm) | 550 |
| Outside diameter tank (mm) | 2820 |
| Total height (mm) | 5150 |
| Length (mm) | 3050 |
| Diameter tank (mm) | 2500 |
| Width (mm) | 3200 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 150 |
| Finishing insulation | Profile Cladding |
| Remarks | |
|---|---|

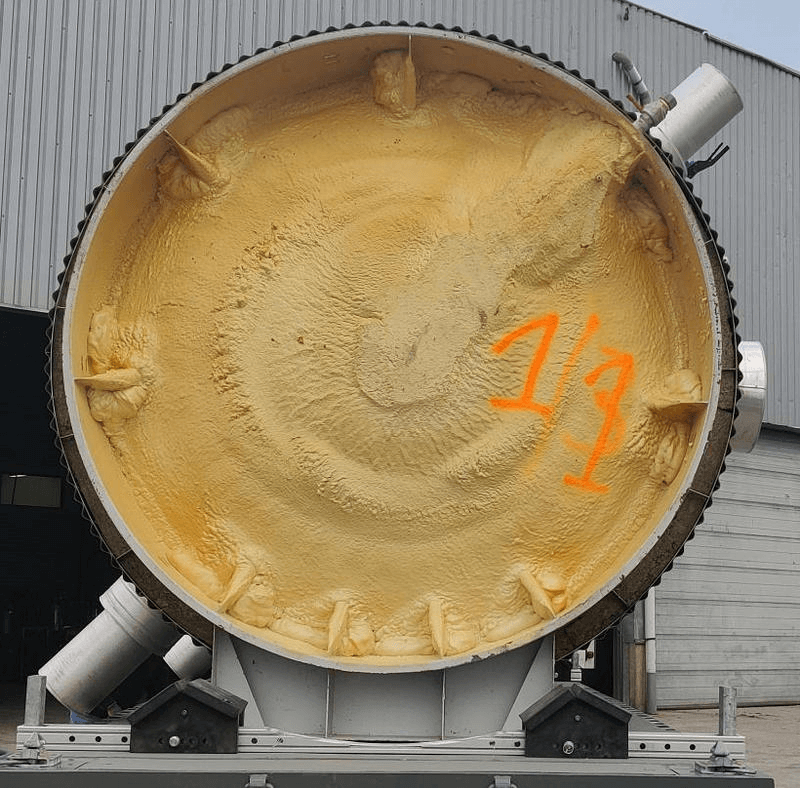

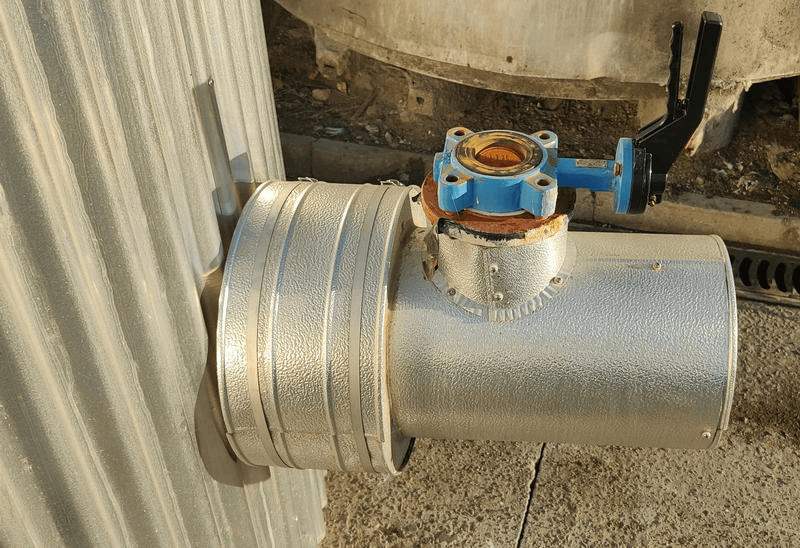

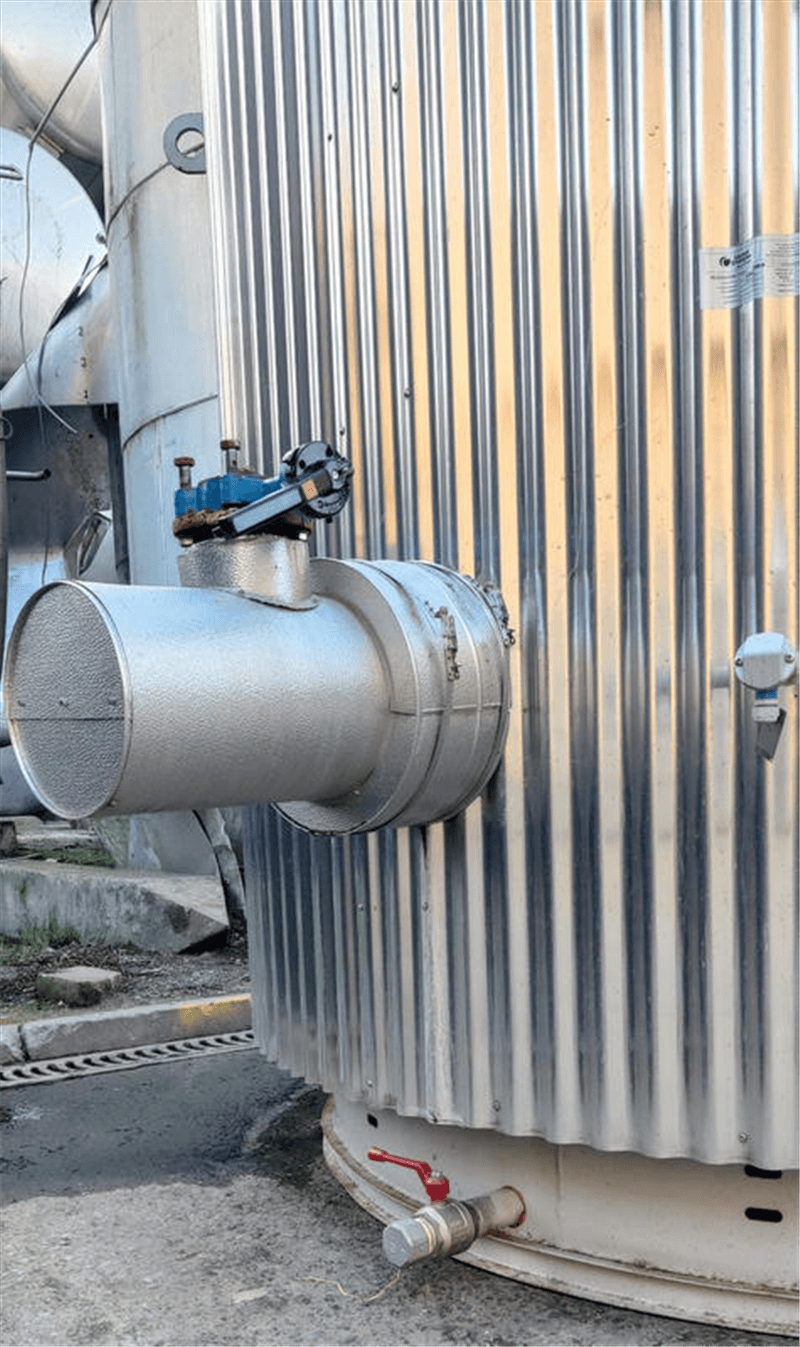

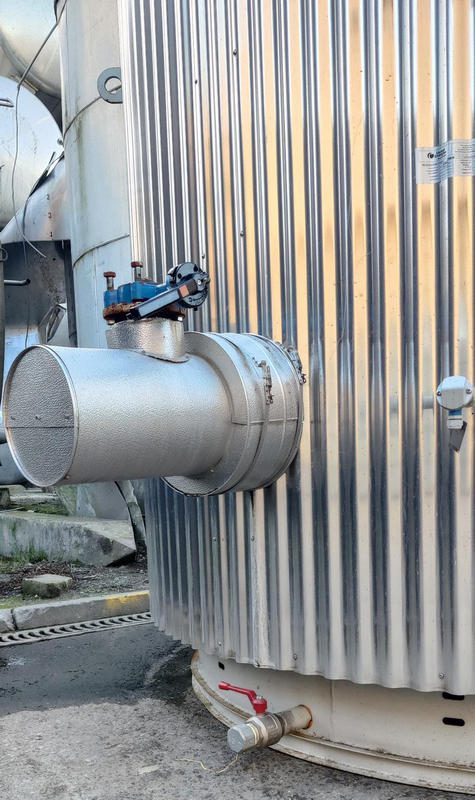

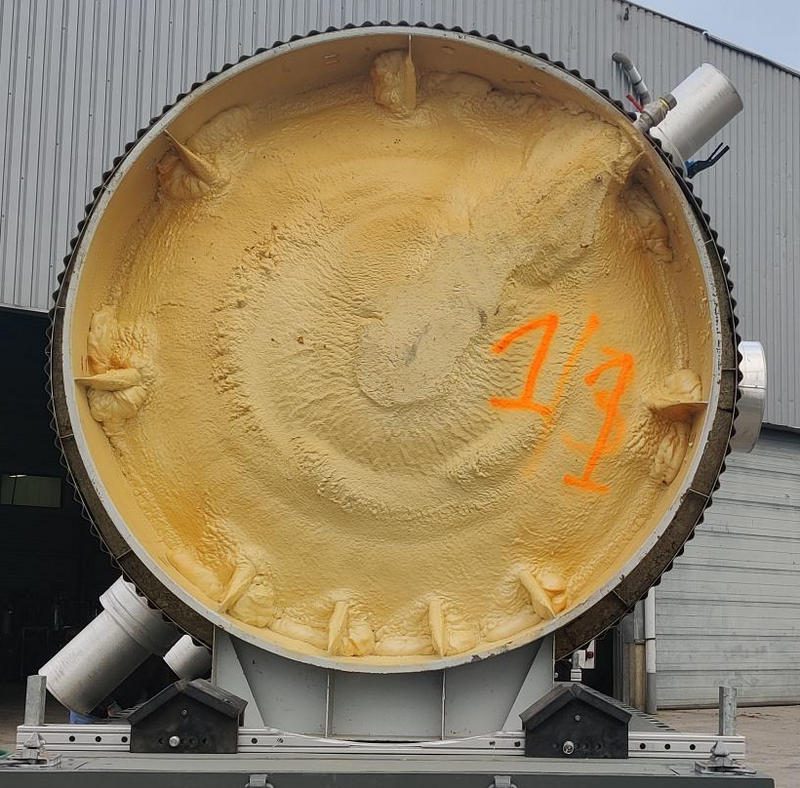

| Description (EN) | Hot water tank --- Working pressure 4 bar --- Test pressure 5.7 bar --- max. working temperature 95°C --- 3x IN/OUT flange DN150 + male butterfly valve DN65 --- base insulation PUR |
