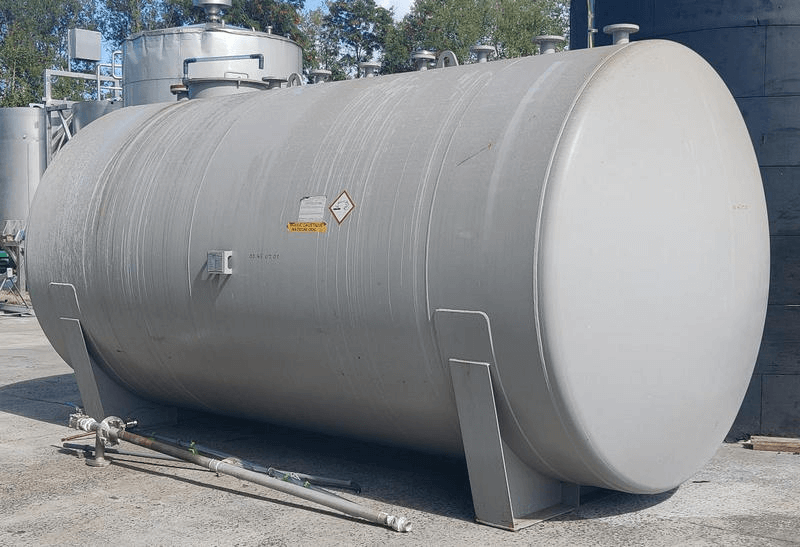

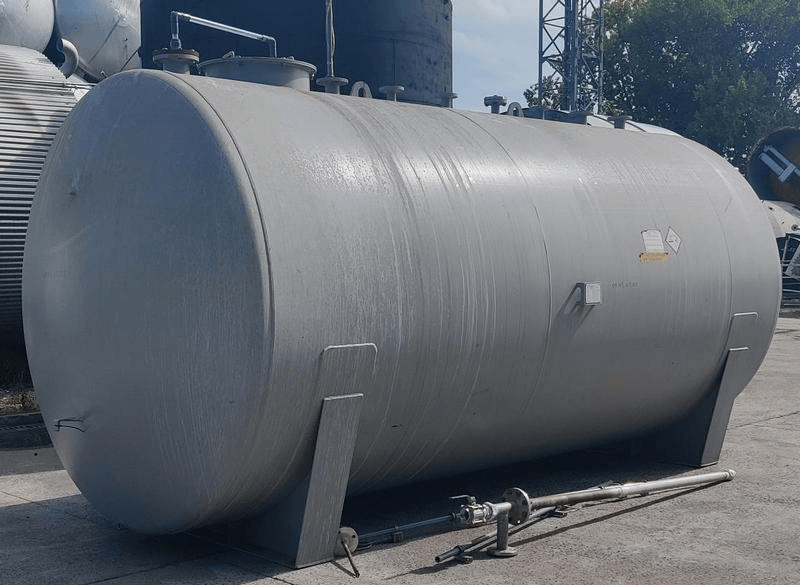

Used storage tank
- Material: Steel
- Condition: Used
- Volume (in litres): 24500 L
- In stock: 1
| General | |
|---|---|
| Item number | 05.45.UT.01 |
| Material | Steel |
| Number | 1 |
| Capacity (Liters) | 24500 |
| Type tank | Storage tank |

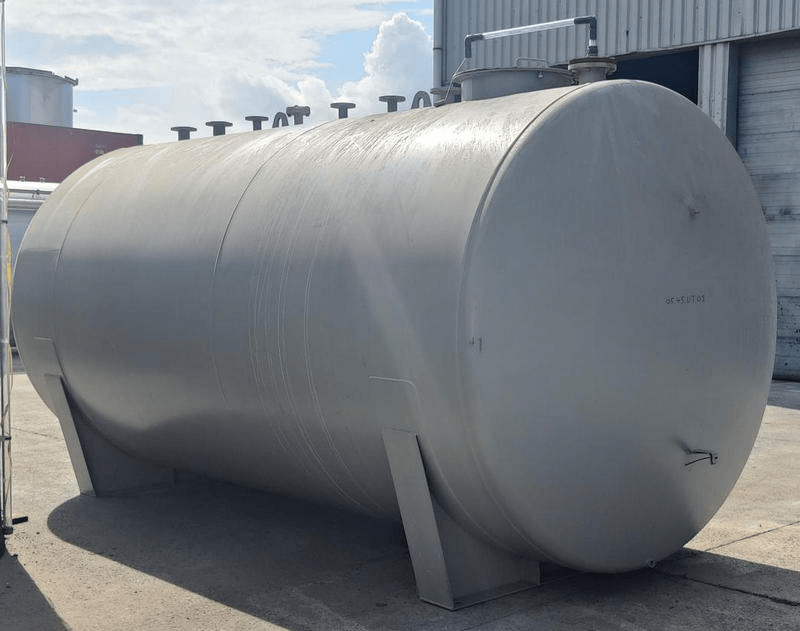

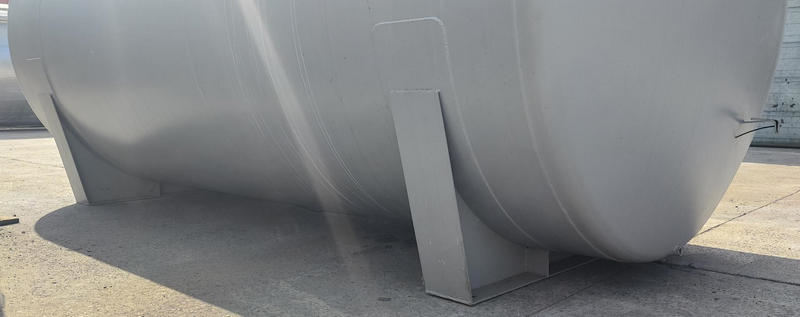

| Fixation | 2 cradles |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |

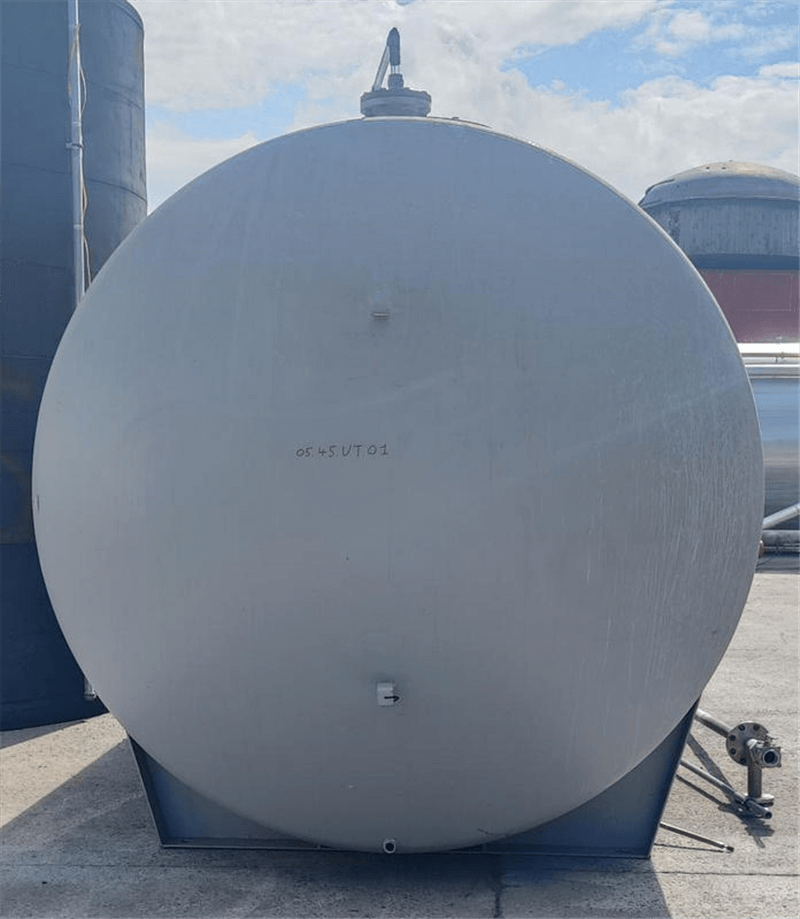

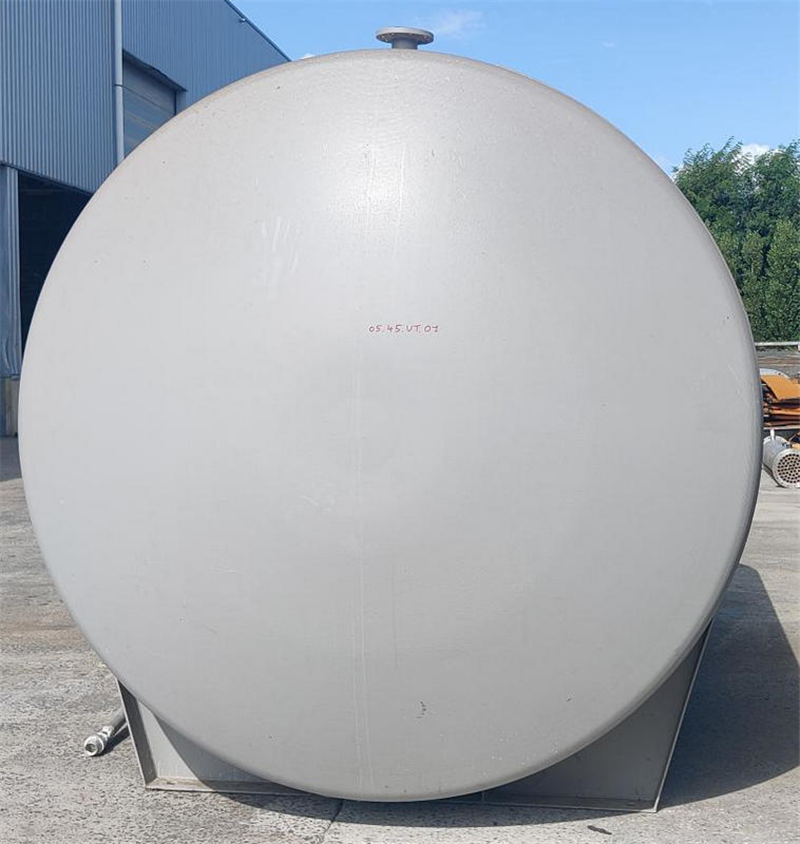

| Bottom | Dished bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 2 |

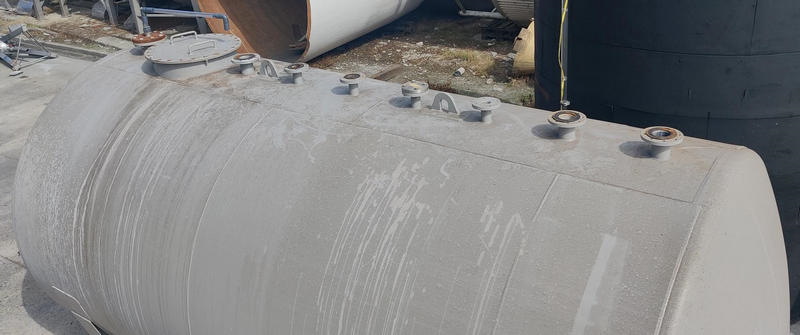

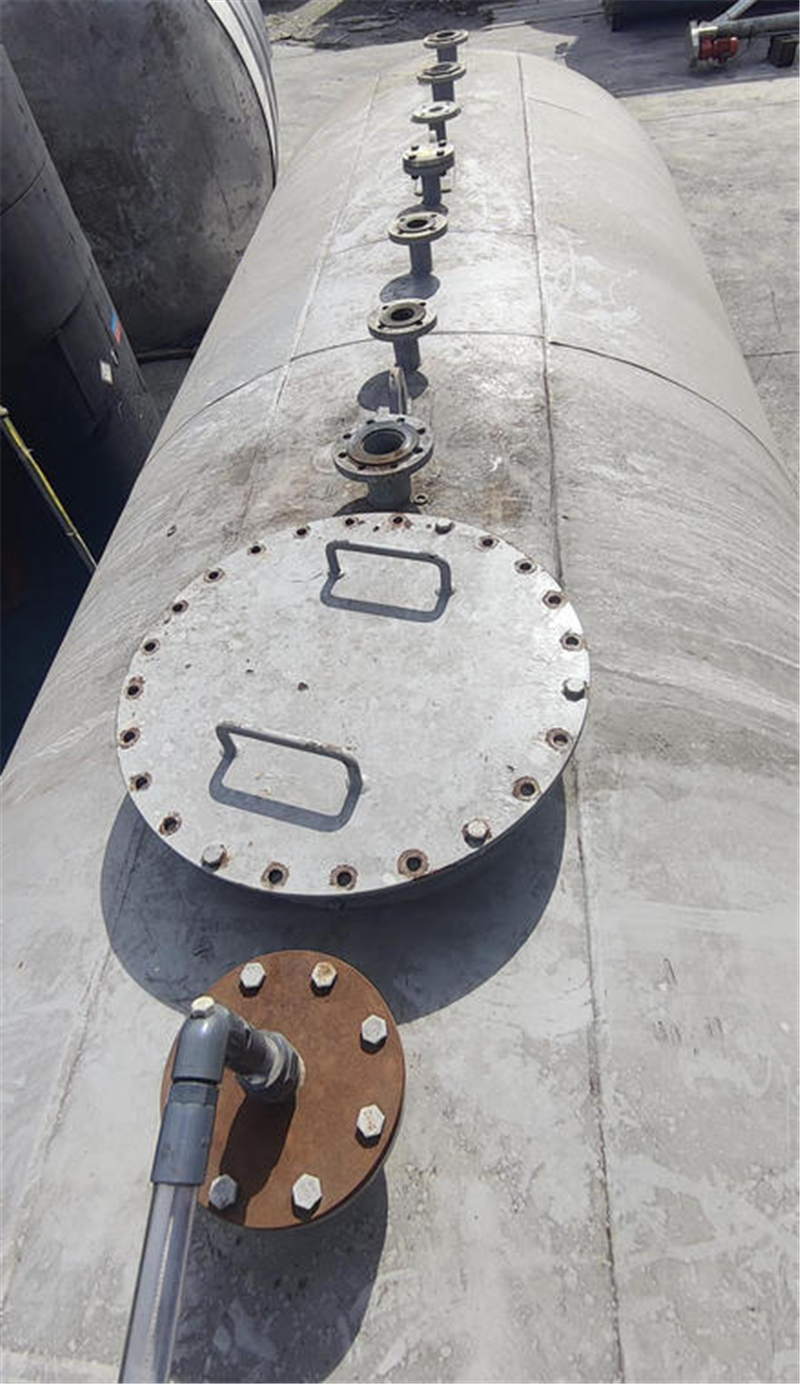

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 600mm |
| Tank with total drain? | No |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 6500 |
| Condition | Used |

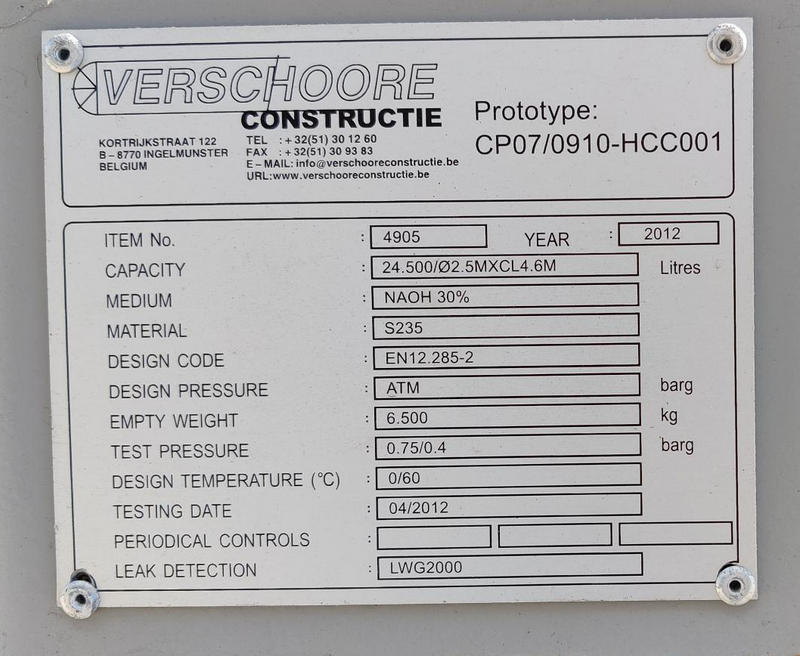

| Type plate manufacturer | Yes |
| Manufacturer | VERSCHOORE |
| Year Built | 2012 |
| Design Code | D1 |
| Appendix 1 | 0545UT01_reinigingscertificat.pdf |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6,3 |
| Periphery (mm) | 7930 |
| Cylindrical length (mm) | 4700 |
| Height bottom (mm) | 500 |
| Outside diameter tank (mm) | 2525 |
| Total height (mm) | 2850 |
| Length (mm) | 5650 |
| Diameter tank (mm) | 2500 |
| Width (mm) | 2580 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

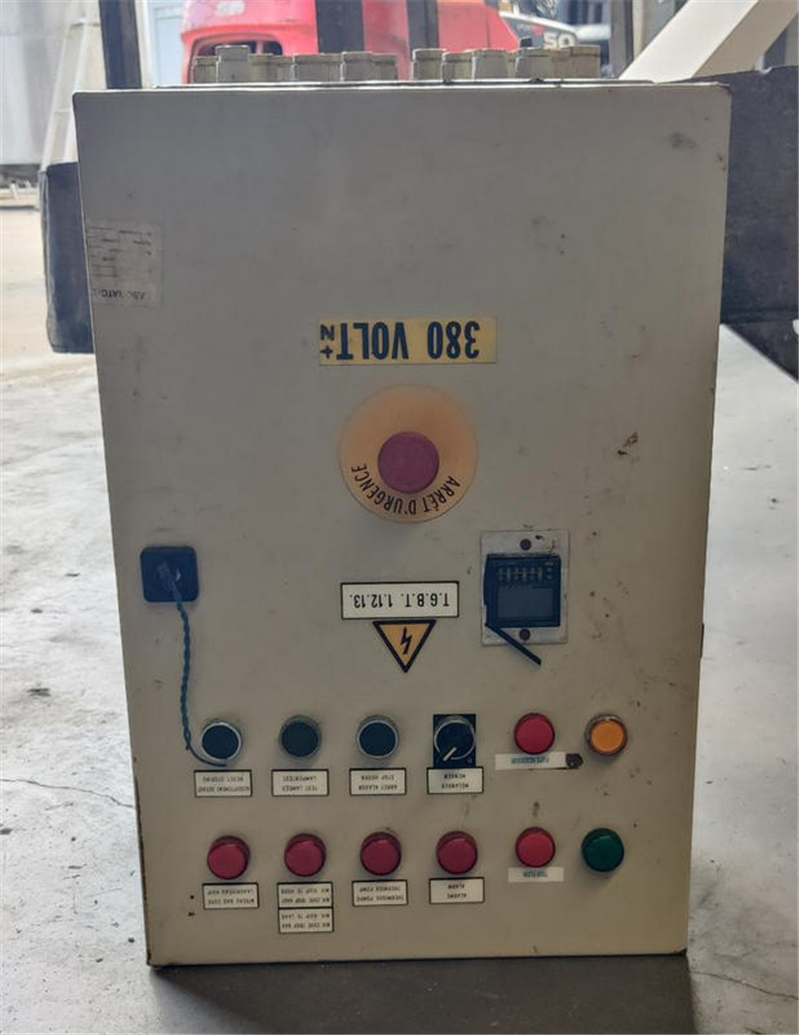

| Description (EN) | working pressure ATM --- test pressure 0.75/0.4 barg --- design temperature 0°C-60°C --- incl. switch cabinet --- no leak detection system available |
