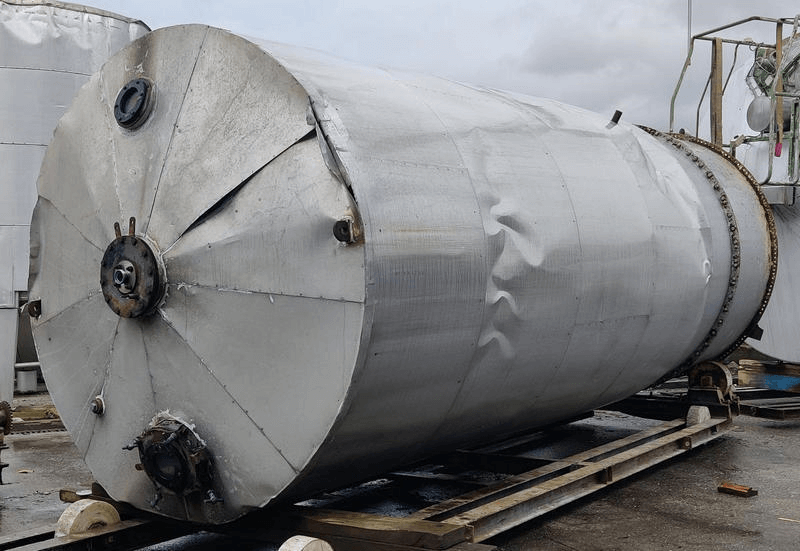

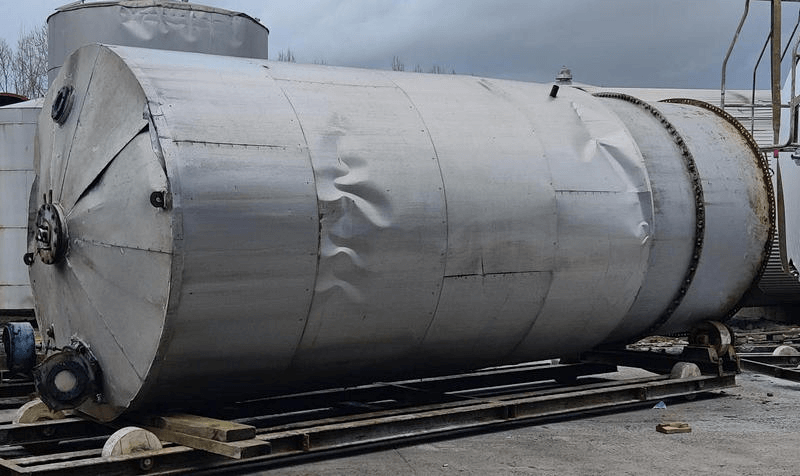

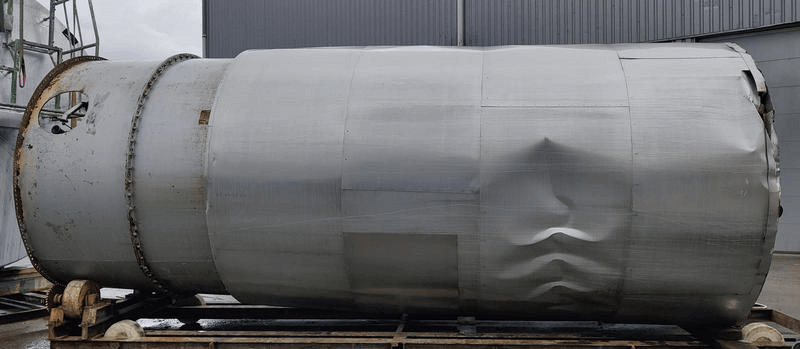

Used storage tank
- Material: Steel
- Condition: Used
- Volume (in litres): 27000 L
- In stock: 1
| General | |
|---|---|
| Item number | 05.44.XY.01 |
| Material | Steel |
| Number | 1 |
| Capacity (Liters) | 27000 |
| Type tank | Storage tank |

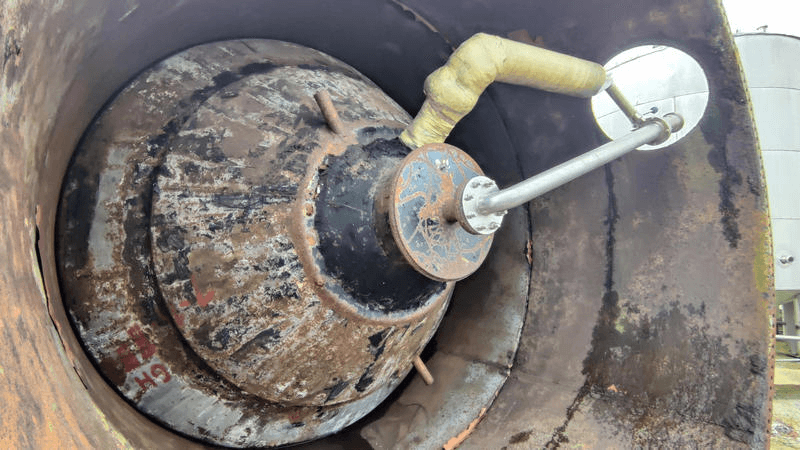

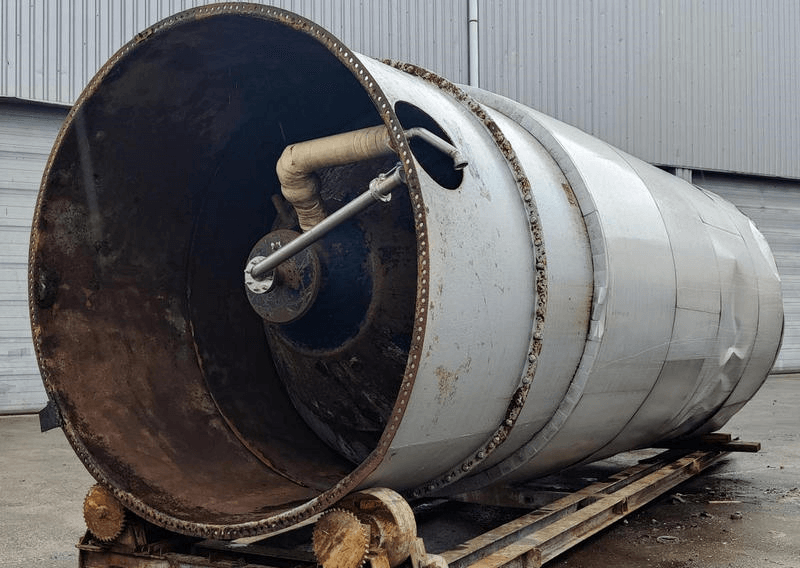

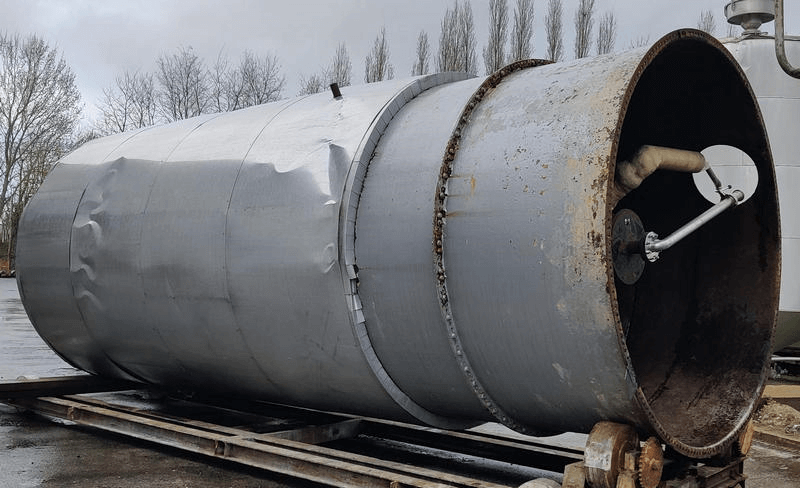

| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |

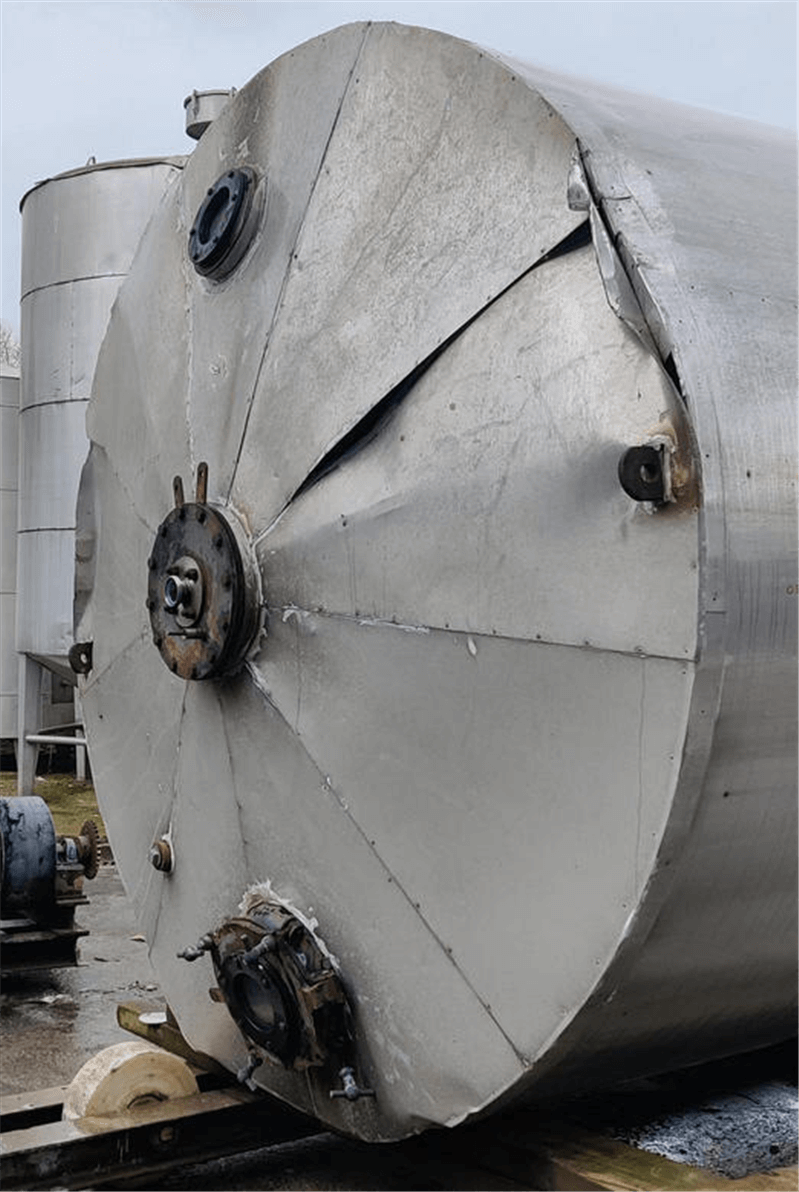

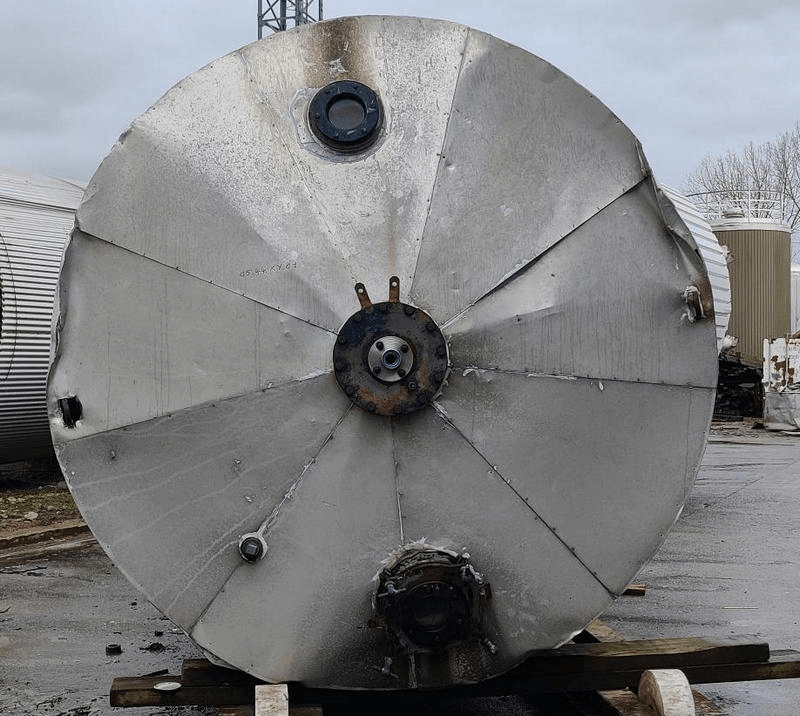

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 320 |
| Tank with total drain? | Yes |
| Type of outlet (s) | voedingskoppeling |
| Diameter of outlet (mm) | DN80 + manuele vlinderklep |
| locality | B-7711 Belgium |

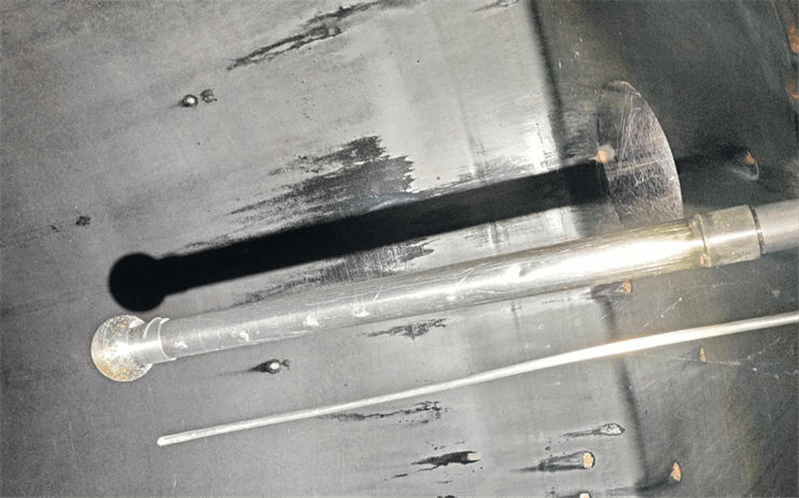

| Provision tank cleaning | CIP ball |
| Weight (kg) | 3500 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 5,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,4 |
| Periphery (mm) | 8720 |
| Cylindrical length (mm) | 4500 |
| Height bottom (mm) | 1300 |
| Outside diameter tank (mm) | 2780 |
| Total height (mm) | 7000 |
| Diameter tank (mm) | 2610 |
| Width (mm) | 2780 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 85 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
