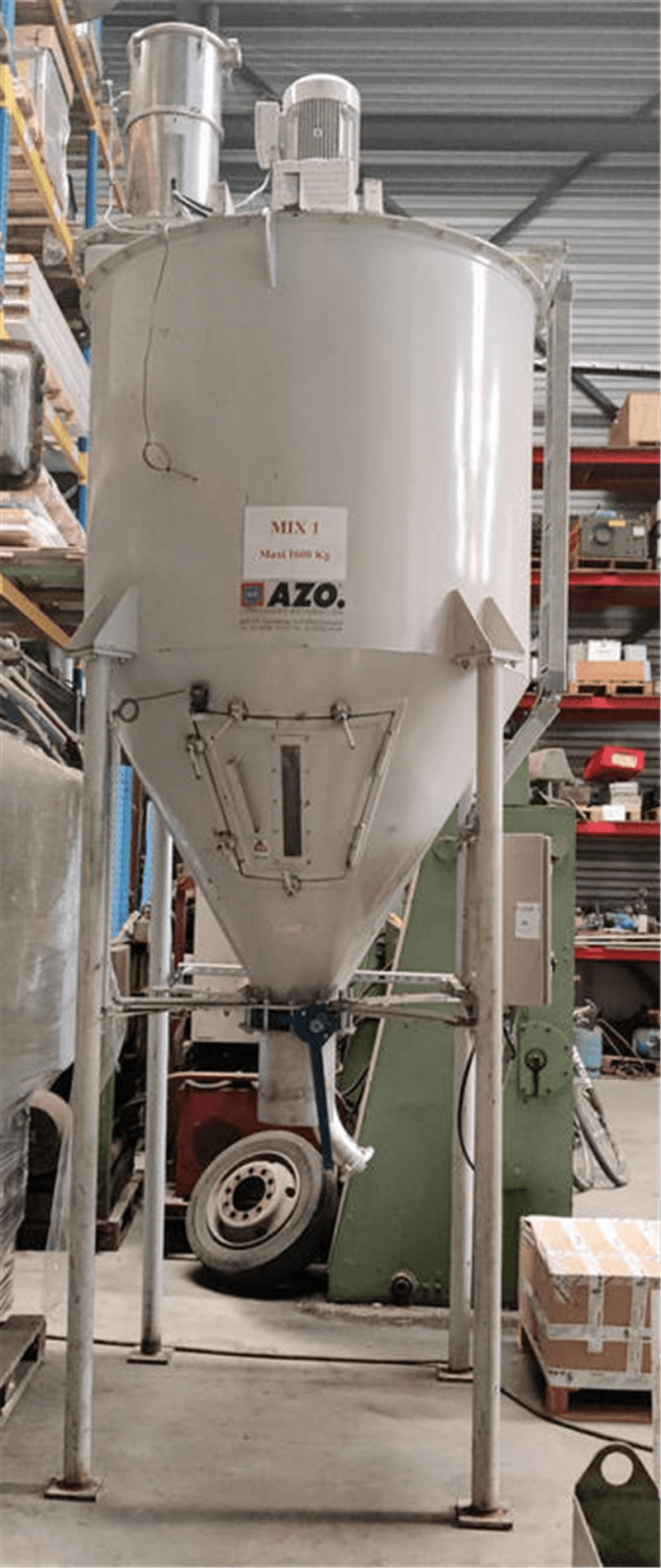

Used silo
- Material: Steel
- Condition: Used
- Volume (in litres): 2500 L
- In stock: 1
| General | |
|---|---|
| Item number | 05.44.MC.01 |
| Material | Steel |
| Number | 1 |
| Capacity (Liters) | 2500 |
| Type tank | Silo |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Bottom |
| Dimensions of manholes | 320x520mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | manuele vlinderklep |
| Diameter of outlet (mm) | DN250 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 700 |
| Condition | Used |
| Type plate manufacturer | No |
| Manufacturer | AZO |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 2,1 |
| Periphery (mm) | 4730 |
| Cylindrical length (mm) | 1250 |
| Height bottom (mm) | 1100 |
| Total height (mm) | 4800 |
| Length (mm) | 1970 |
| Diameter tank (mm) | 1500 |
| Width (mm) | 1750 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|

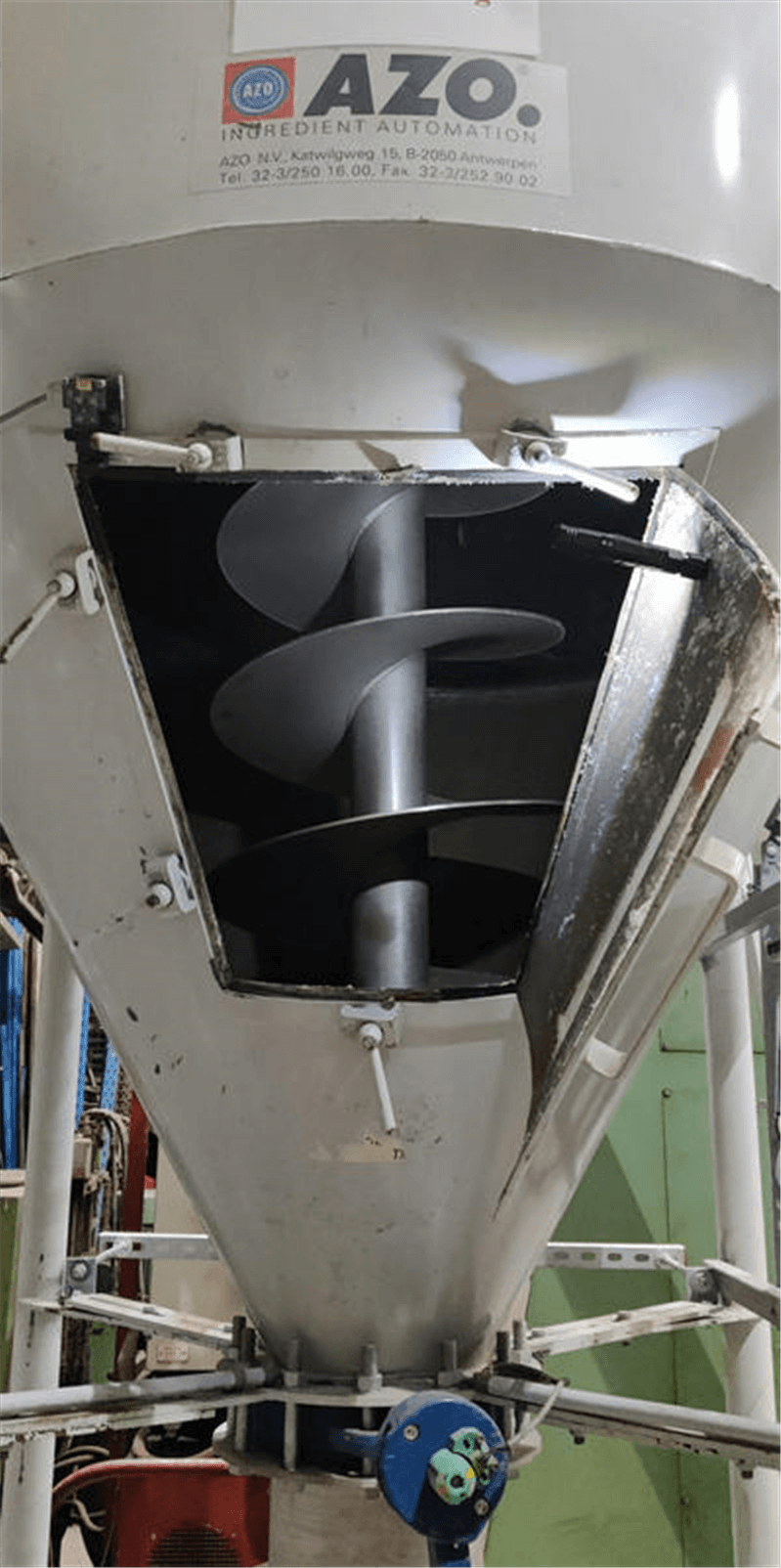

| Number of agitators | 1 |

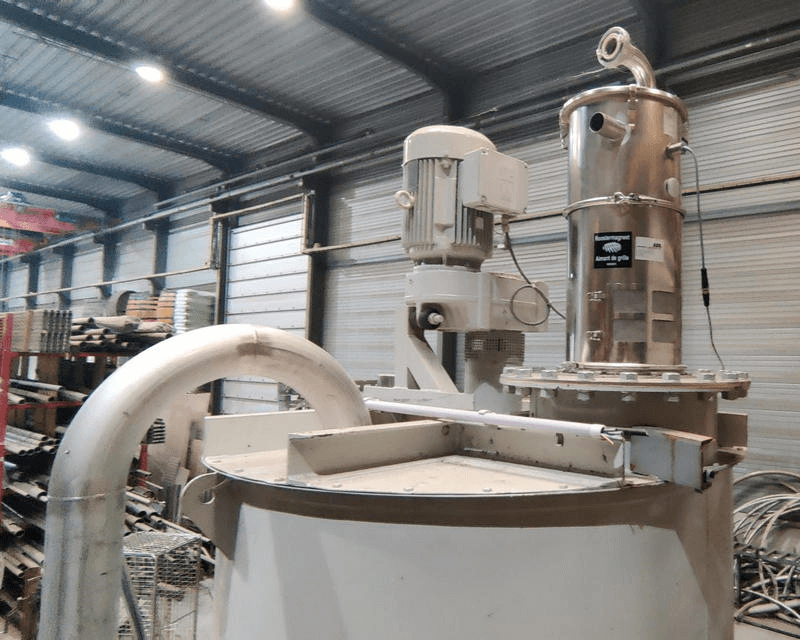

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Steel |

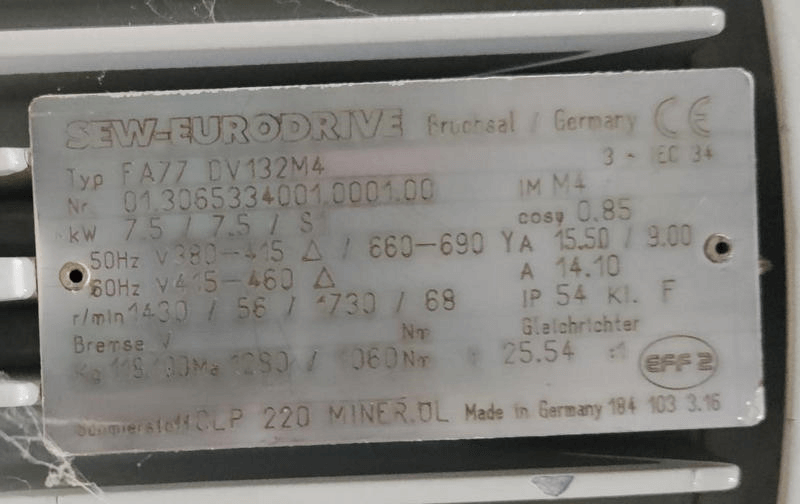

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 7,5 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 56 |
