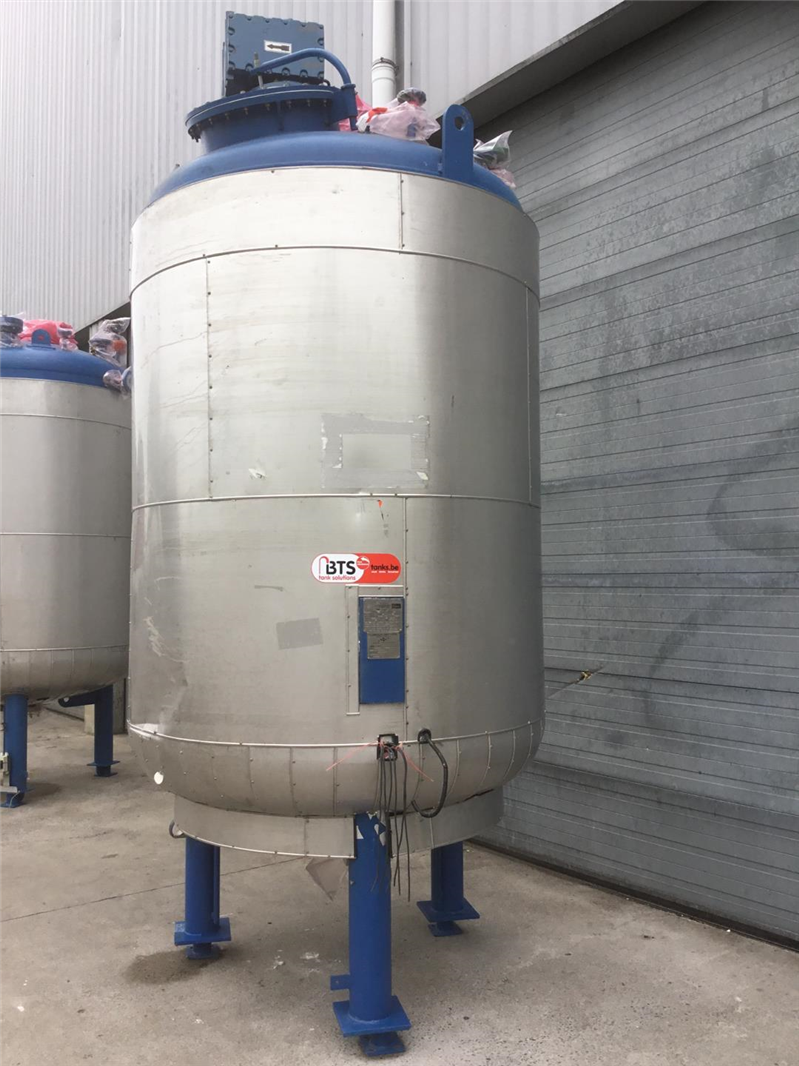

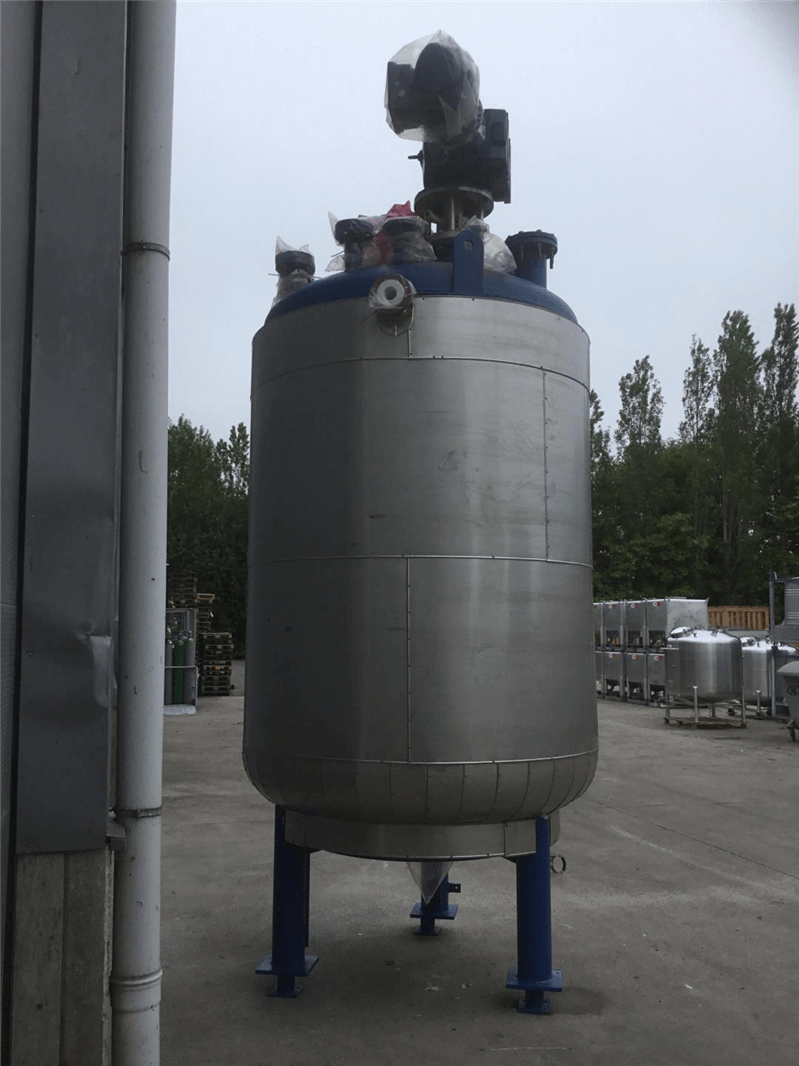

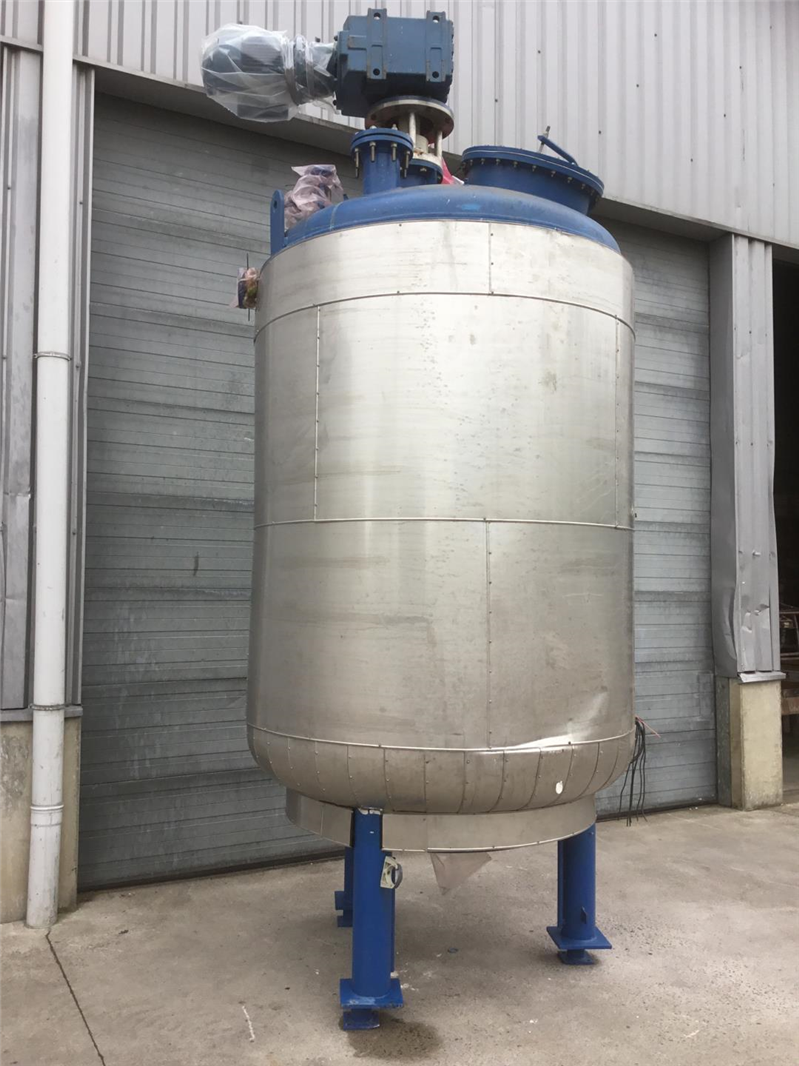

Used pressure tank

  • Material: PTFE
  • Condition: Used
  • Volume (in litres): 7750 L
  • In stock: 1
General
Item number 05.39.FU.01
Material PTFE
Number 1
Capacity (Liters) 7750
Type tank Pressure Tank
Service pressure tank (Barg) 1,75
Test pressure tank (Barg) 2,62
Fixation 3 legs
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Dished bottom
Tank model Single wall
Number lifting lugs 2
Number of manhole 1
Position of manhole (s) Top
Dimensions of manholes 600
Tank with total drain? Yes
Type of outlet (s) Flens
Diameter of outlet (mm) 45
locality B-7711 Belgium
Provision tank cleaning None
Weight (kg) 2000
Condition Used

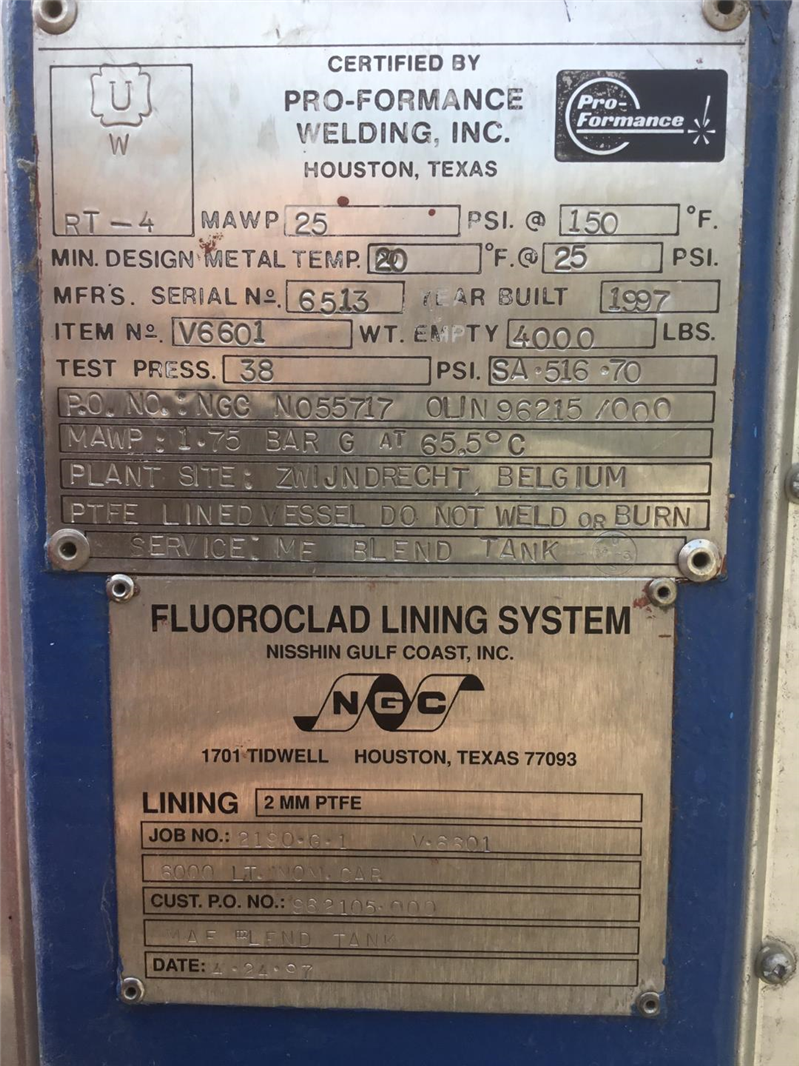

Type plate manufacturer Yes
Manufacturer PRO-FORMANCE WELDING Houston Texas
Year Built 1997
Design Code BT-4
Construction data available Yes
Appendix 1 0539FU_Fluoroclad.pdf
Appendix 2 t0539FU01_2190gf-1.pdf
Appendix 3 t0539FU01_2190gf-2.pdf
Appendix 4 t0539FU01_2190gf-3.pdf
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank
05.39.FU.01 - Used pressure tank

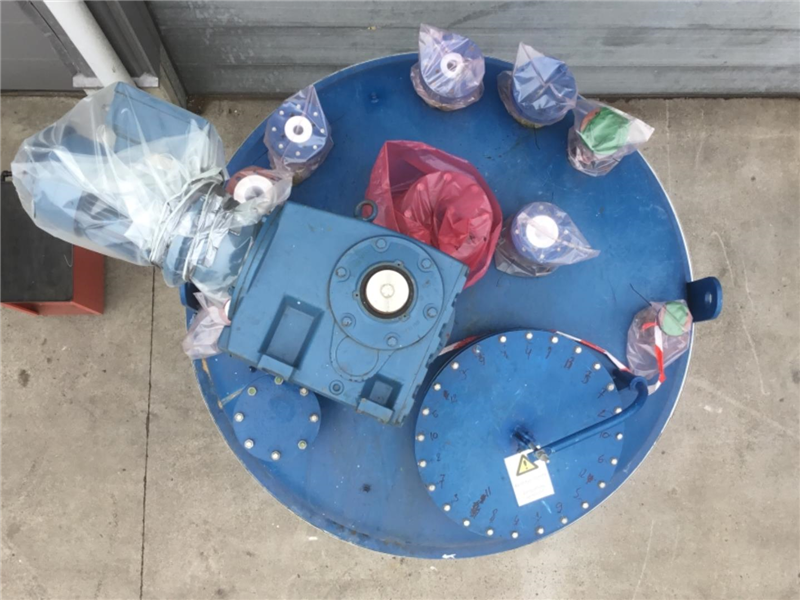

Top side
Configuration top-side Closed
Detail closed top side Dished bottom
Thickness closed dome (mm) 6,35
Dimensions
Bottom thickness (mm) 6,35
Cylindrical length (mm) 2413
Height bottom (mm) 300
Outside diameter tank (mm) 1829
Total height (mm) 4650
Diameter tank (mm) 1829
Insulation
Insulation Yes
Performance insulation cylinder and bottom isolated
Type of insulation Insulating wool
Thickness (mm) 60

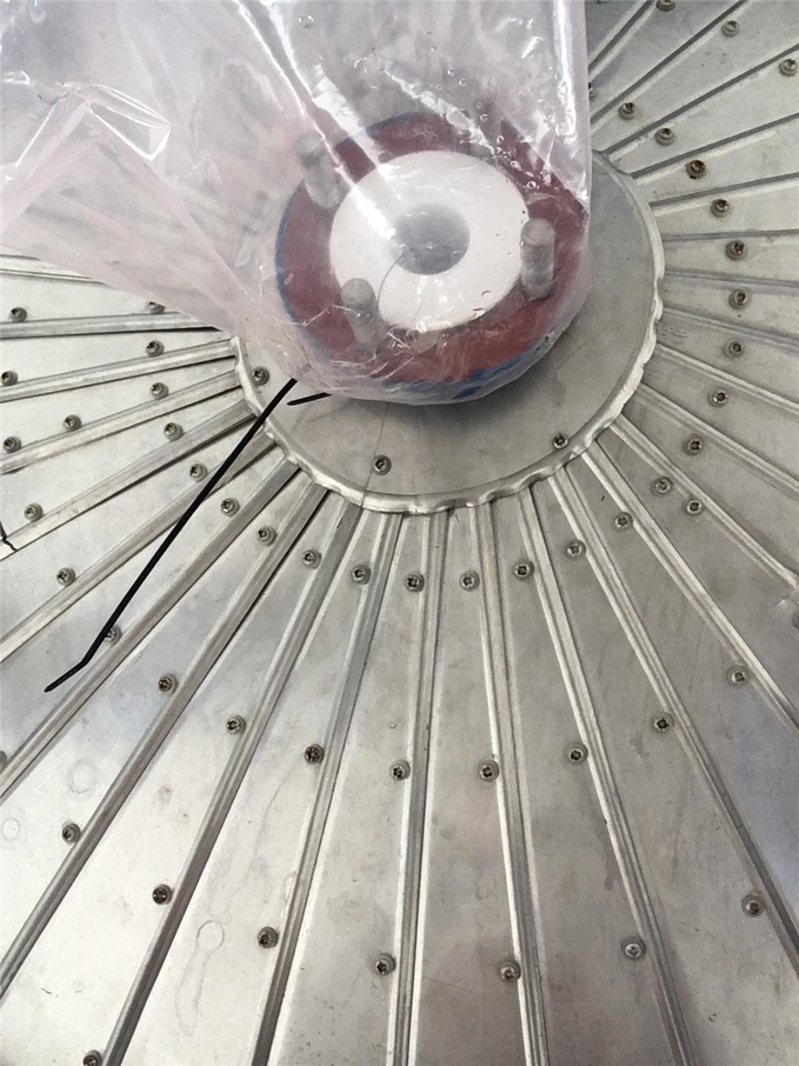

Finishing insulation Rivited sheet cladding
Insulation material Aluminium
Heating
Number of heating type 1
Heating 1: Type electrical tracing

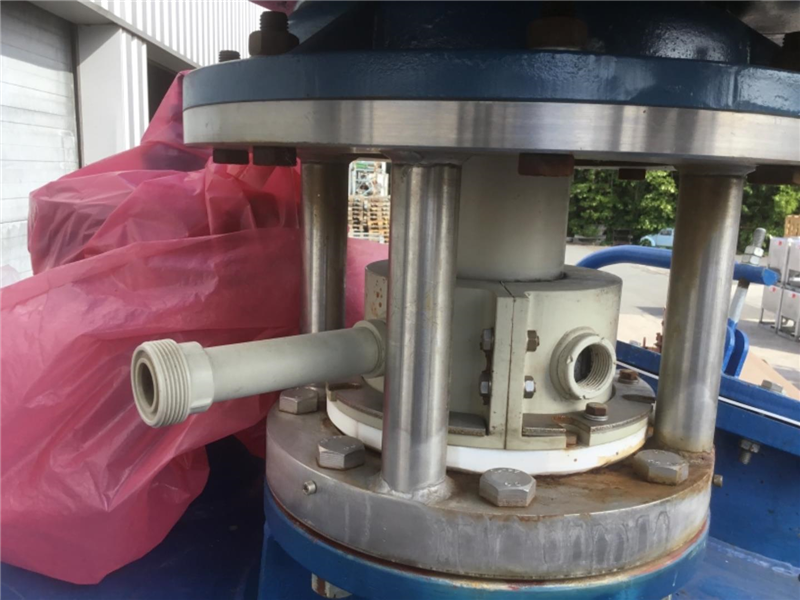

Agitators
Number of agitators 1

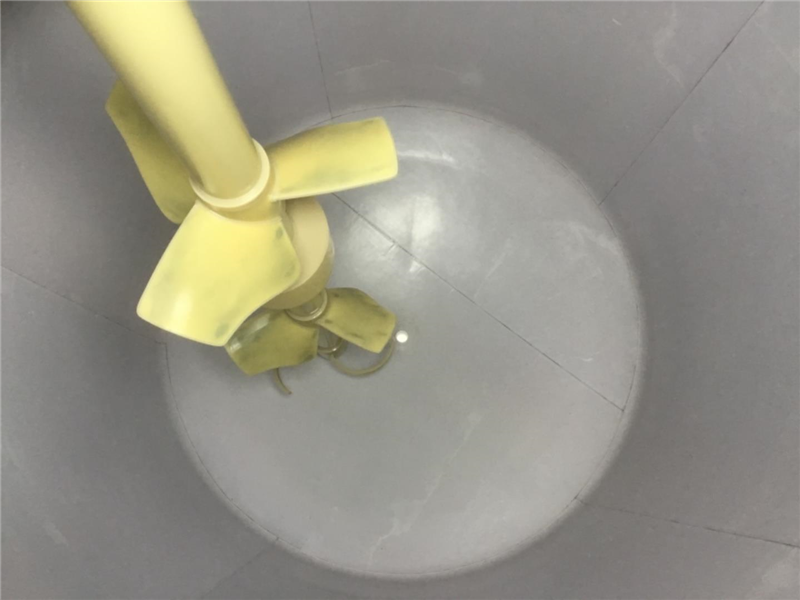

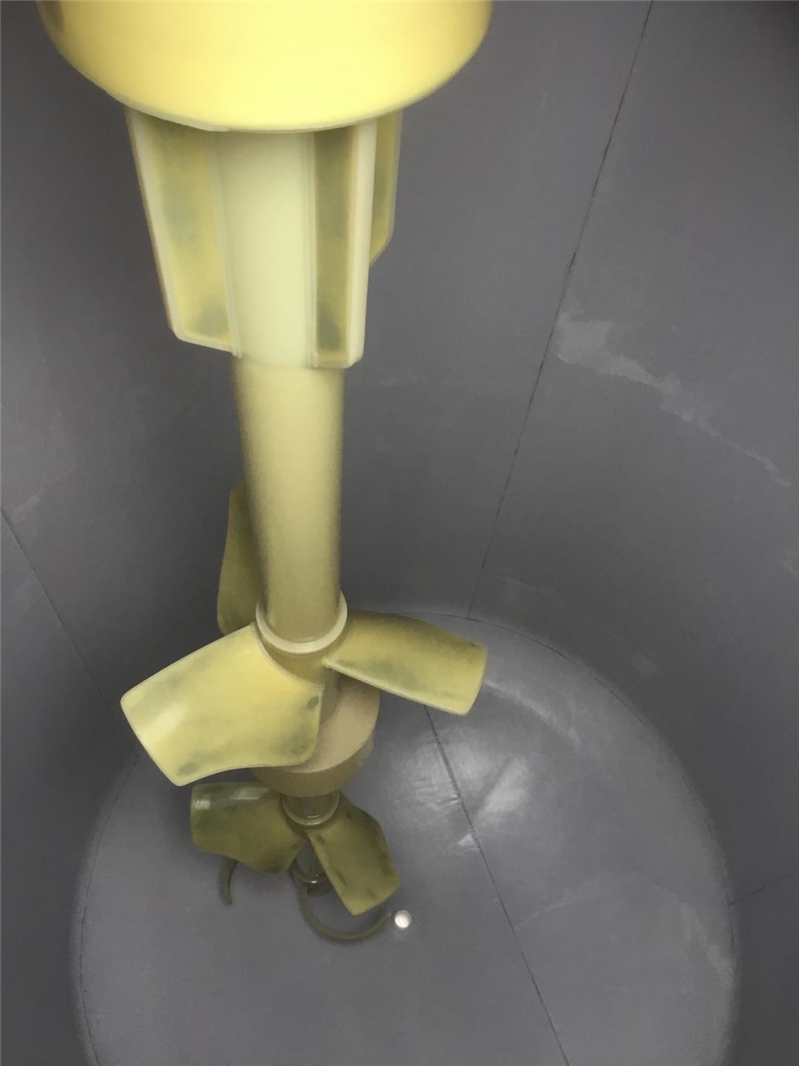

Agitator 1: Type Slowly rotating mixer
Agitator 1: Position decentrally on the top
Agitator 1: Material PTFE
Agitator 1: stirring element type Propeller
Agitator 1: Length (mm) 2500

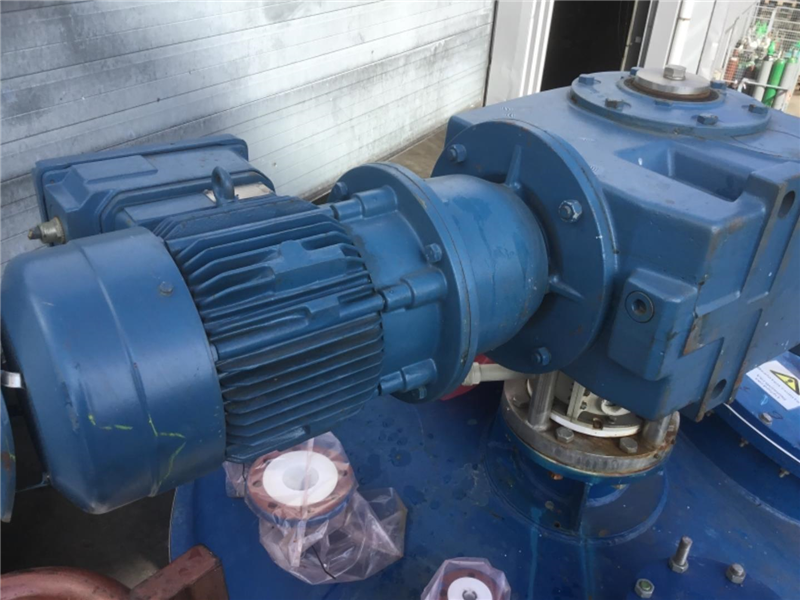

Agitator 1: Engine Type electric motor
Agitator 1: Atex/Ex? No
Agitator 1: Voltage (V) 400
Agitator 1: Power (kw) 5,5

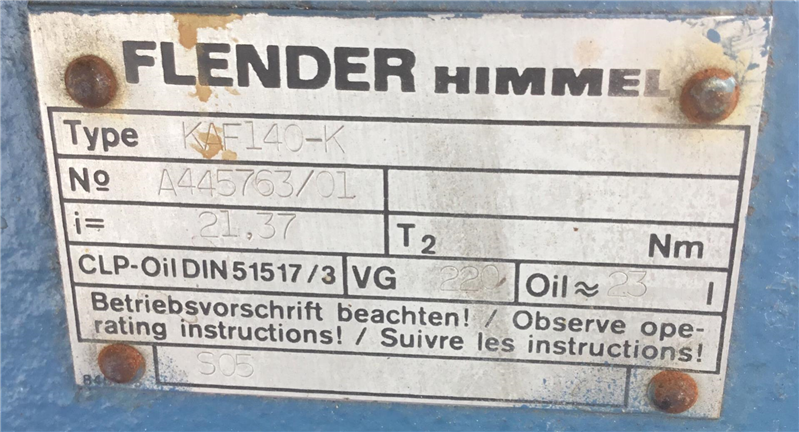

Agitator 1: Drive Type Reductor
Agitator 1: Speed (r / min) 140
Remarks

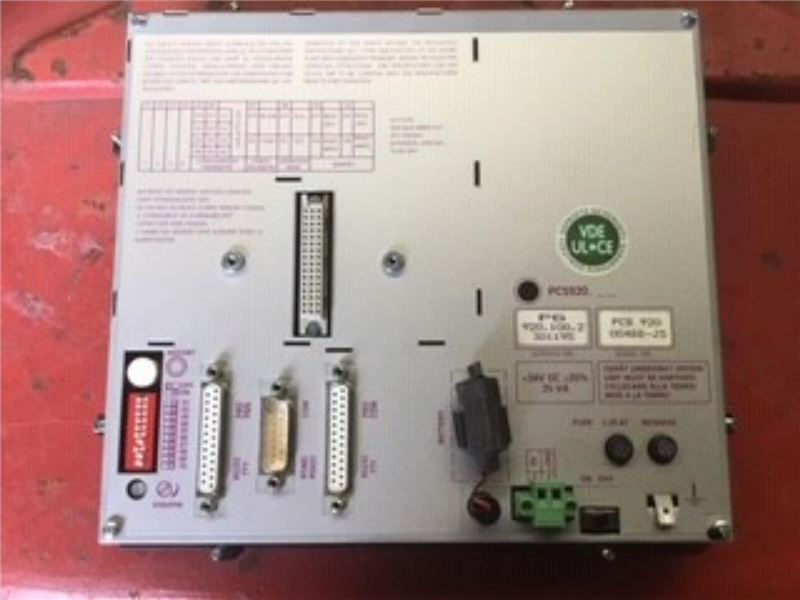

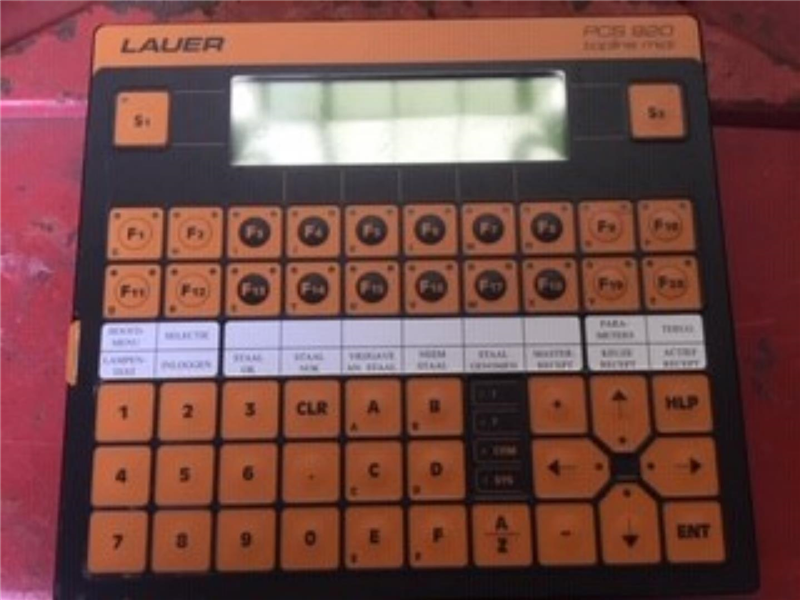

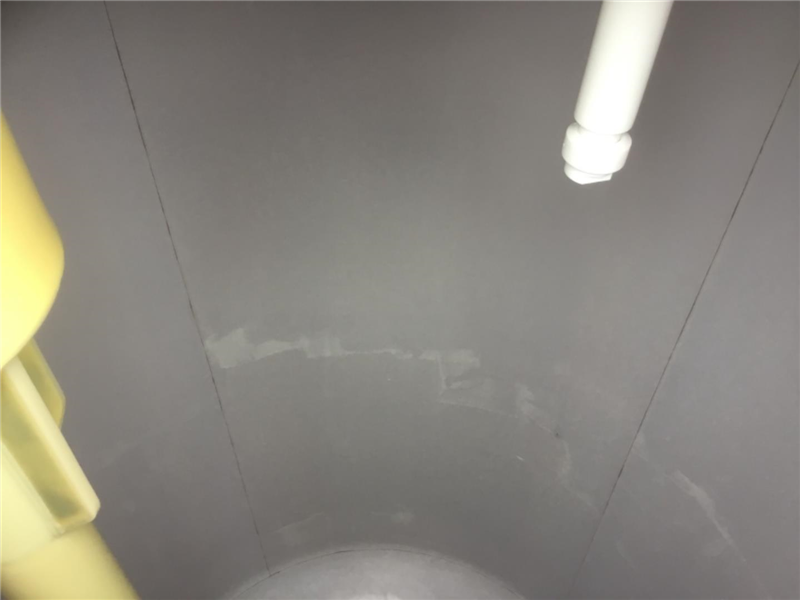

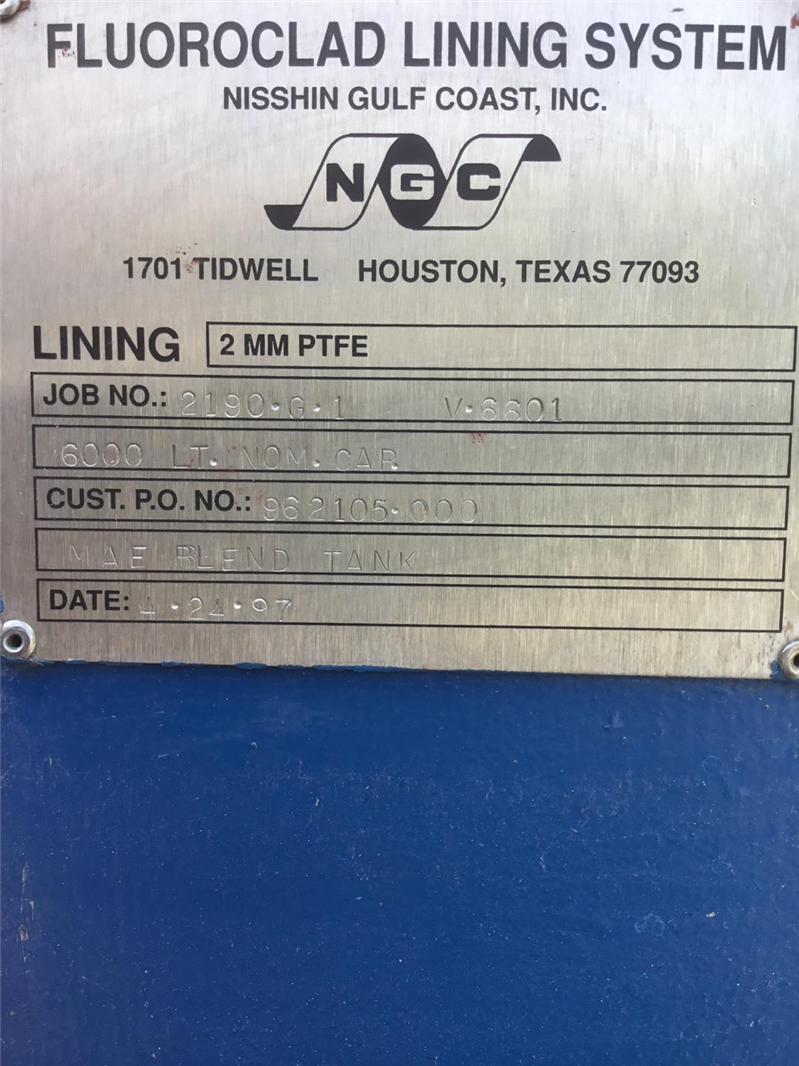

Description (EN) serial n° 6513 • Fluoroclad lining system 2 mm PTFE • Readout available, total 3 pieces
