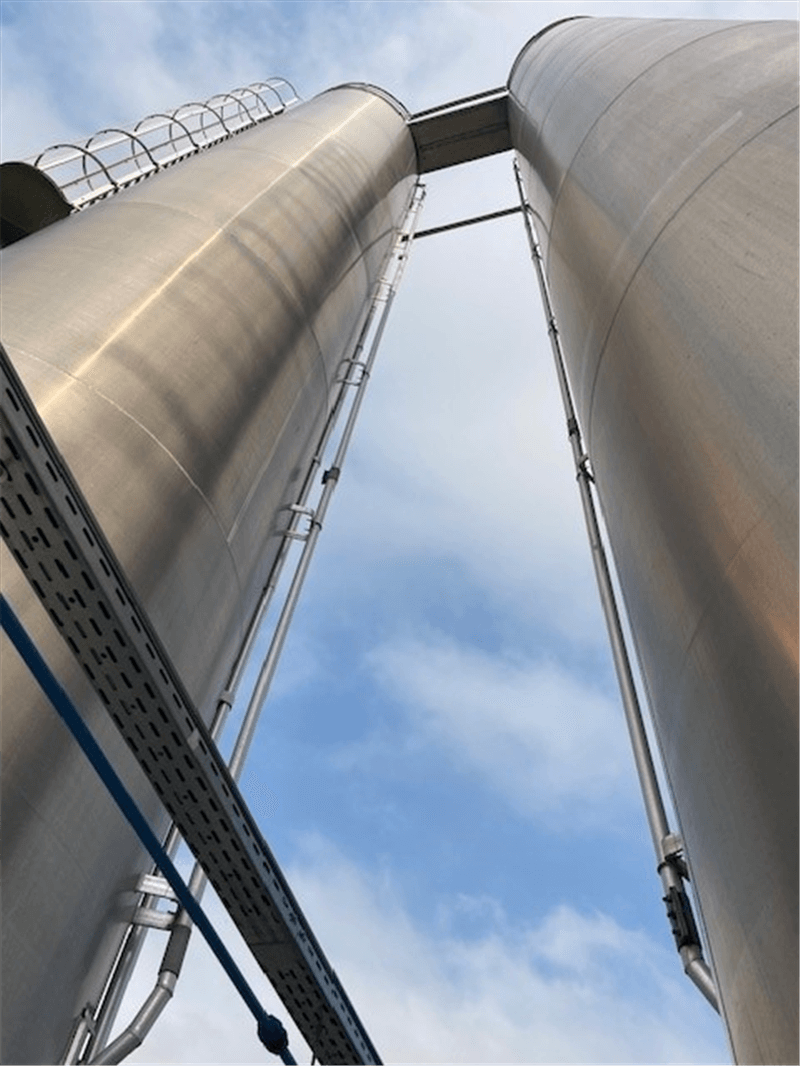

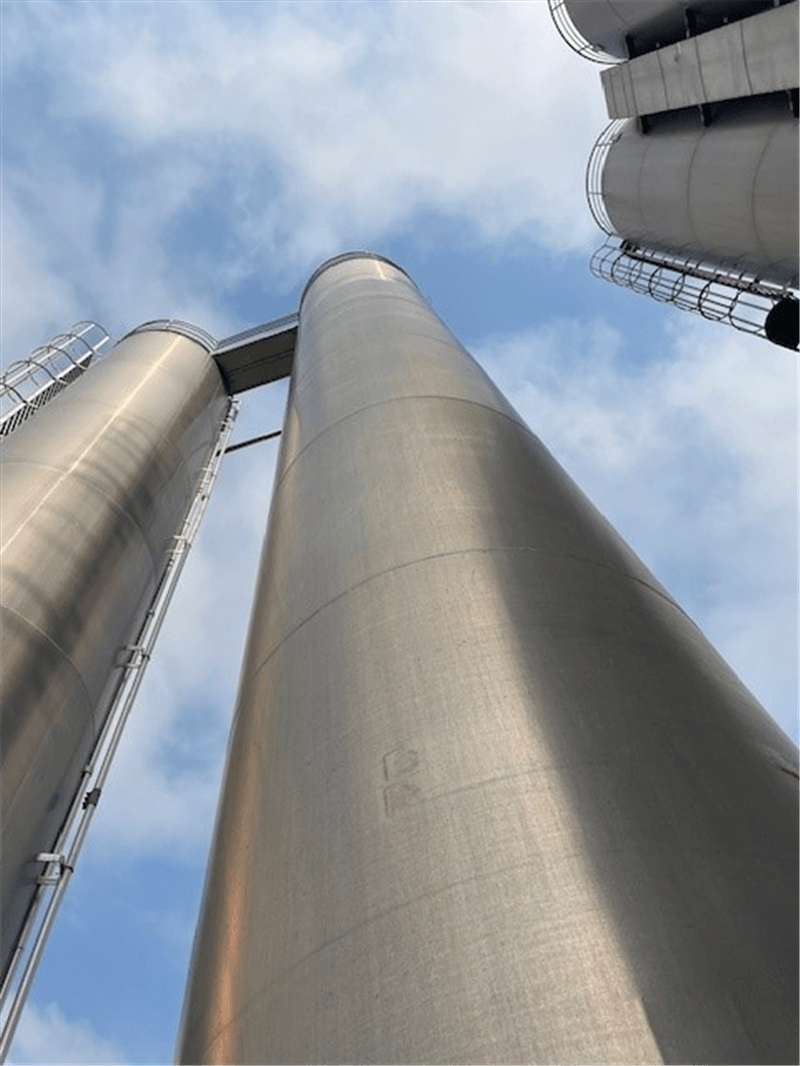

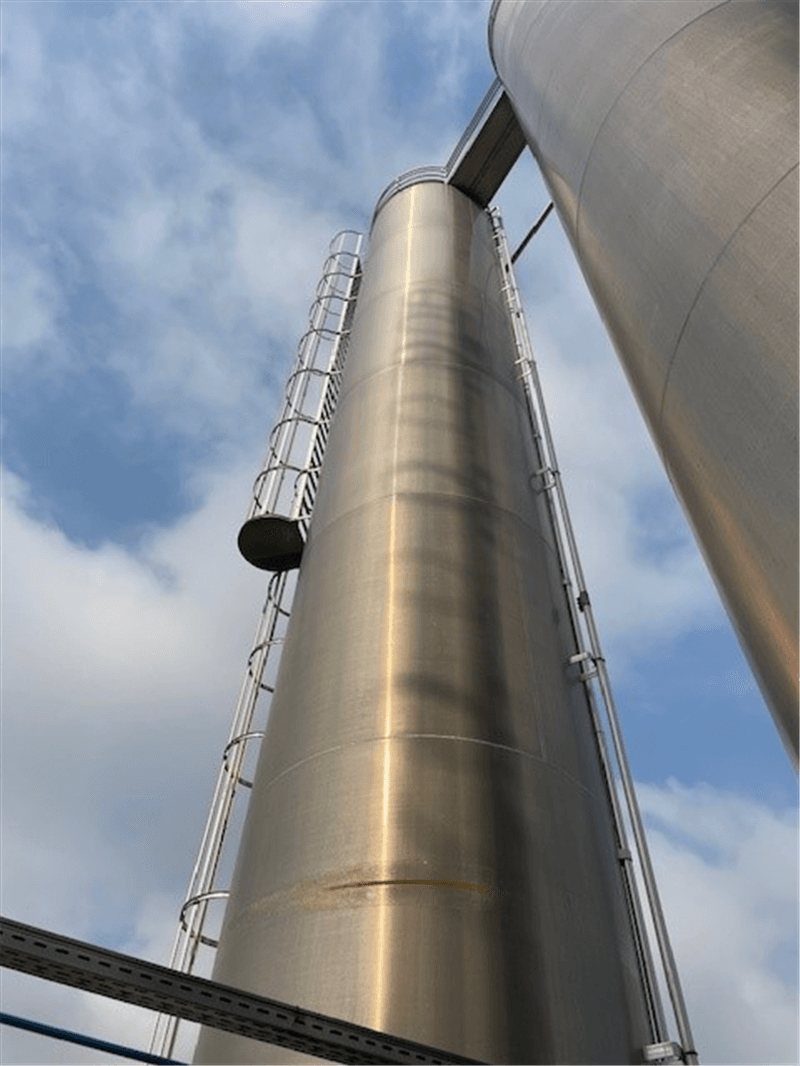

Used silo
- Material: Aluminium
- Condition: Used
- Volume (in litres): 70000 L
- In stock: 1
| General | |
|---|---|
| Item number | 04.45.KE.26 |
| Material | Aluminium |
| Number | 1 |
| Capacity (Liters) | 70000 |
| Type tank | Silo |

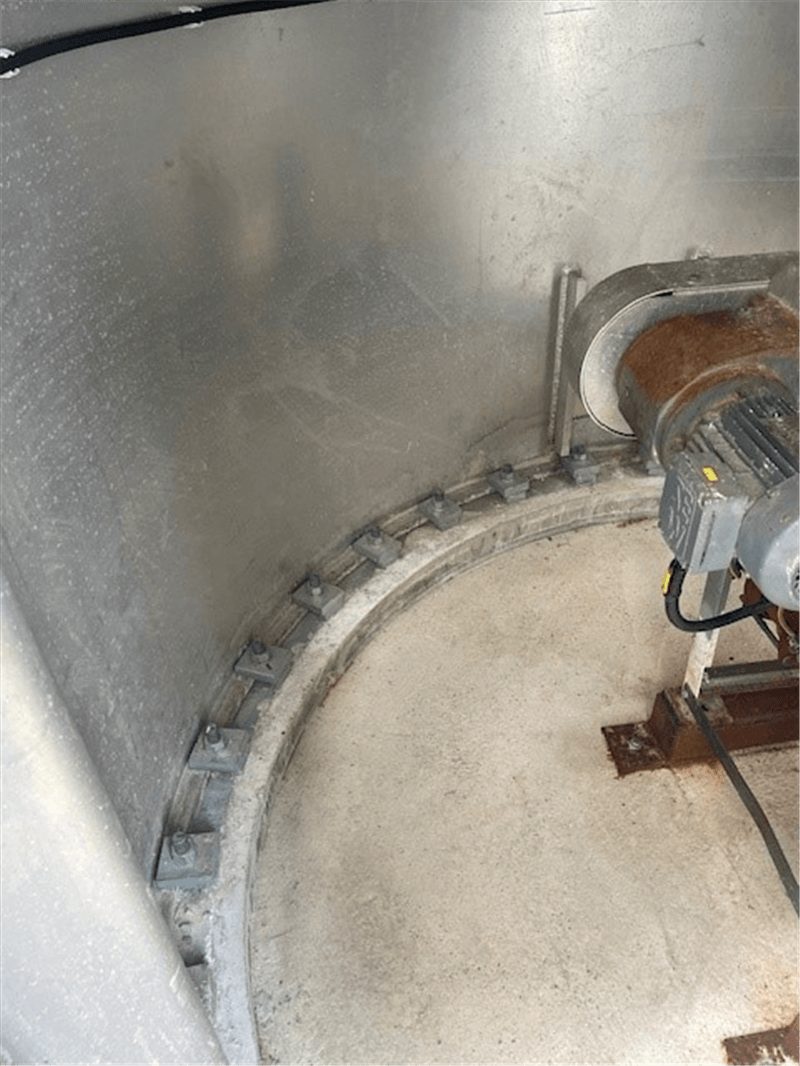

| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

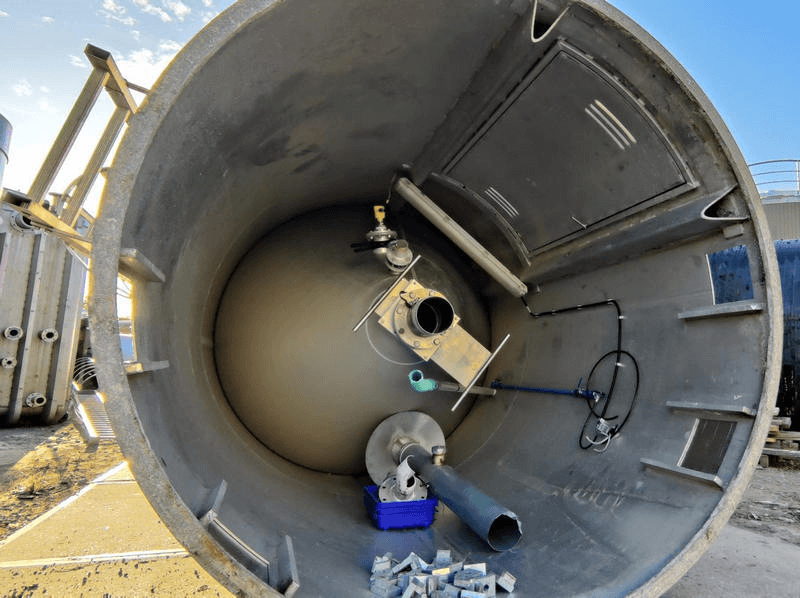

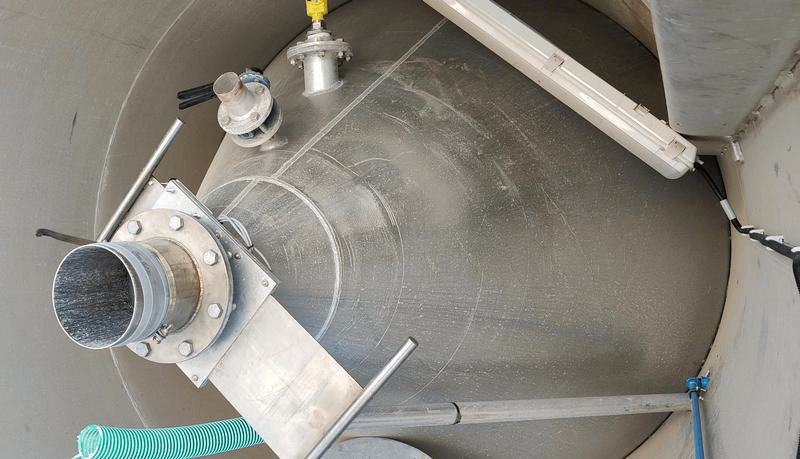

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Density (kg/dm³) | 0,55 |
| Tank with total drain? | Yes |

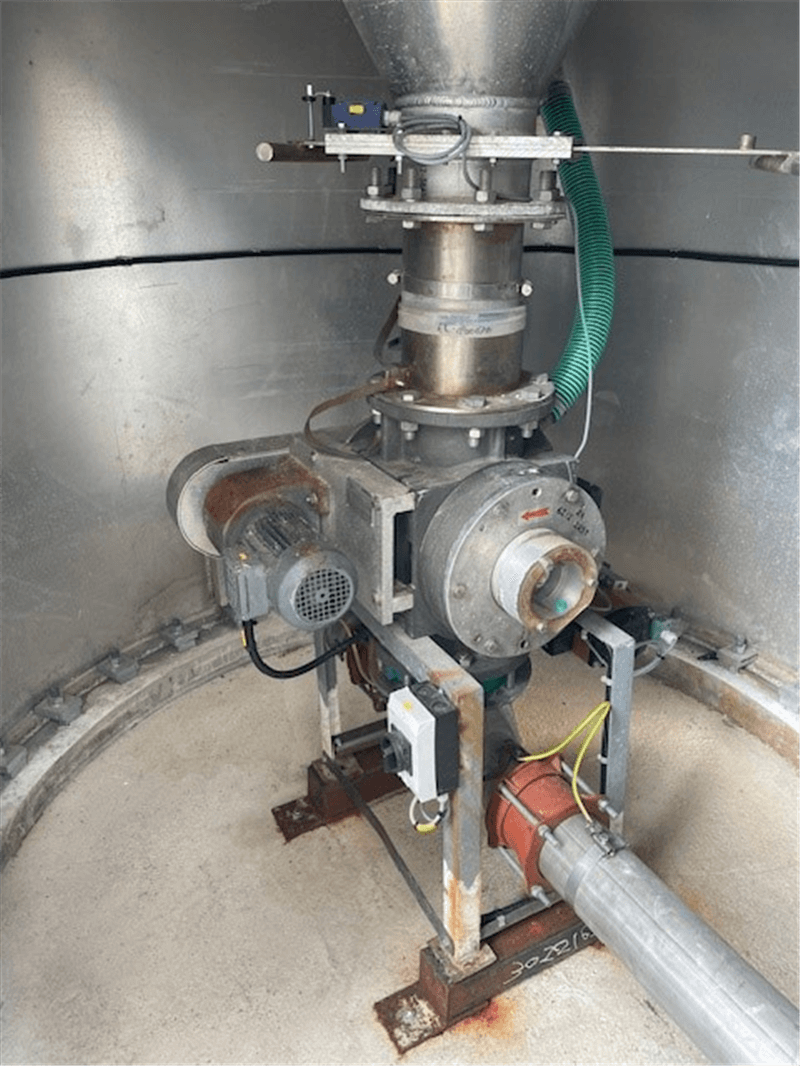

| Type of outlet (s) | man. schuifafsluiter |
| Diameter of outlet (mm) | 200 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 2700 |
| Condition | Used |

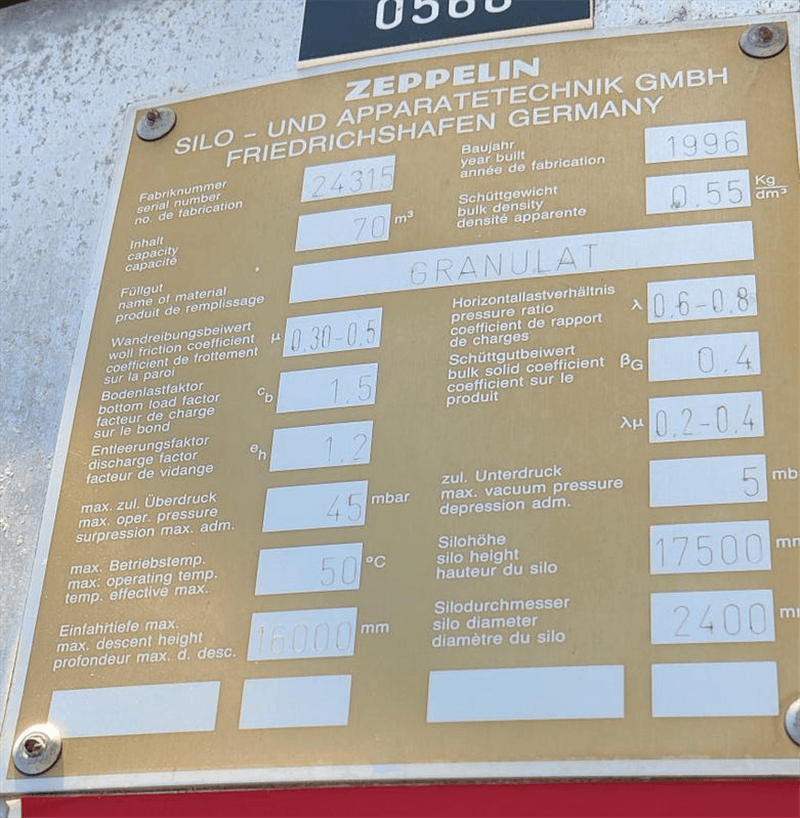

| Type plate manufacturer | Yes |
| Manufacturer | Zeppelin |
| Year Built | 1996 |
| Construction data available | No |
| Working temperature (° C) | 50 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 4,2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Bottom thickness (mm) | 4,1 |
| Cylindrical length (mm) | 14100 |
| Slope bottom (°) | 60 |
| Height bottom (mm) | 2000 |
| Total height (mm) | 19400 |
| Length (mm) | 2500 |
| Diameter tank (mm) | 2400 |
| Width (mm) | 2700 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

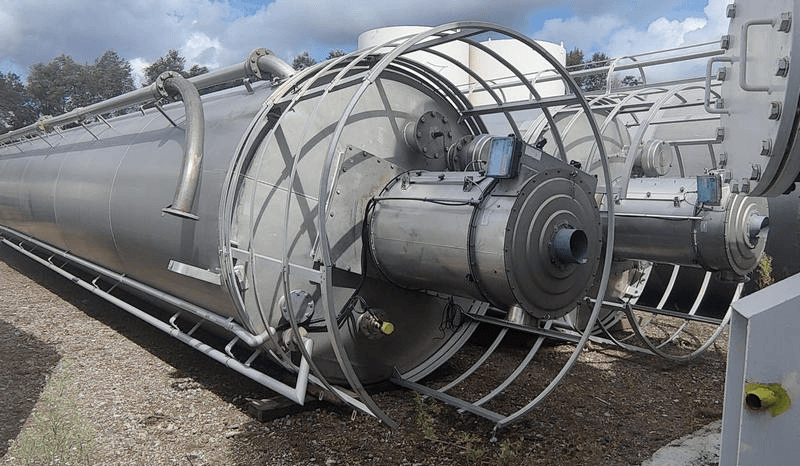

| Description (EN) | Design pressure: +45 / -5 mBar - Working temperature: max. 50°C - With balustrade |
