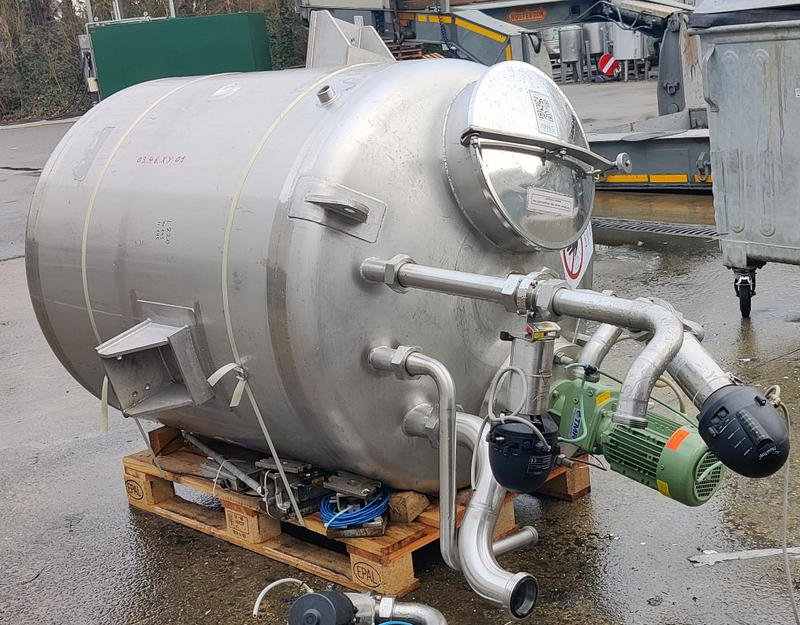

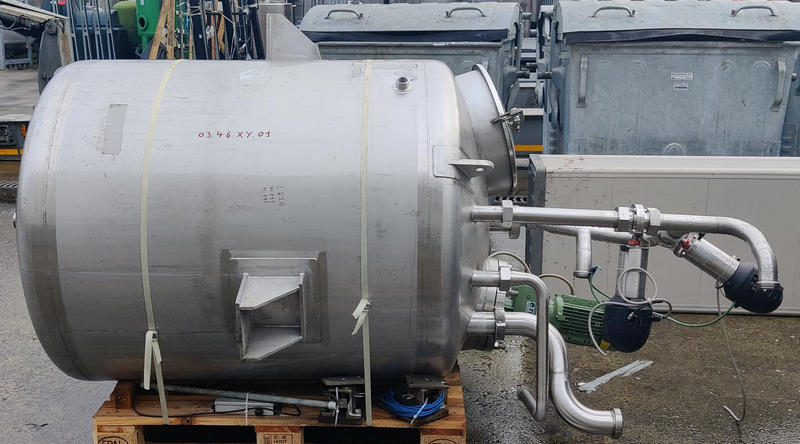

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 1300 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.XY.01 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1300 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

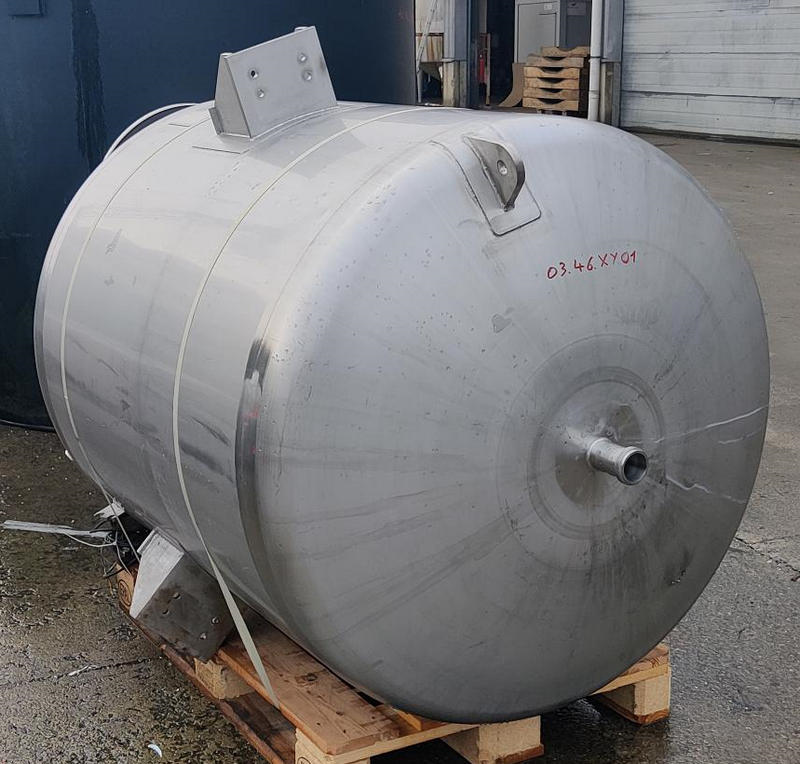

| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 420mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | SMS |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |

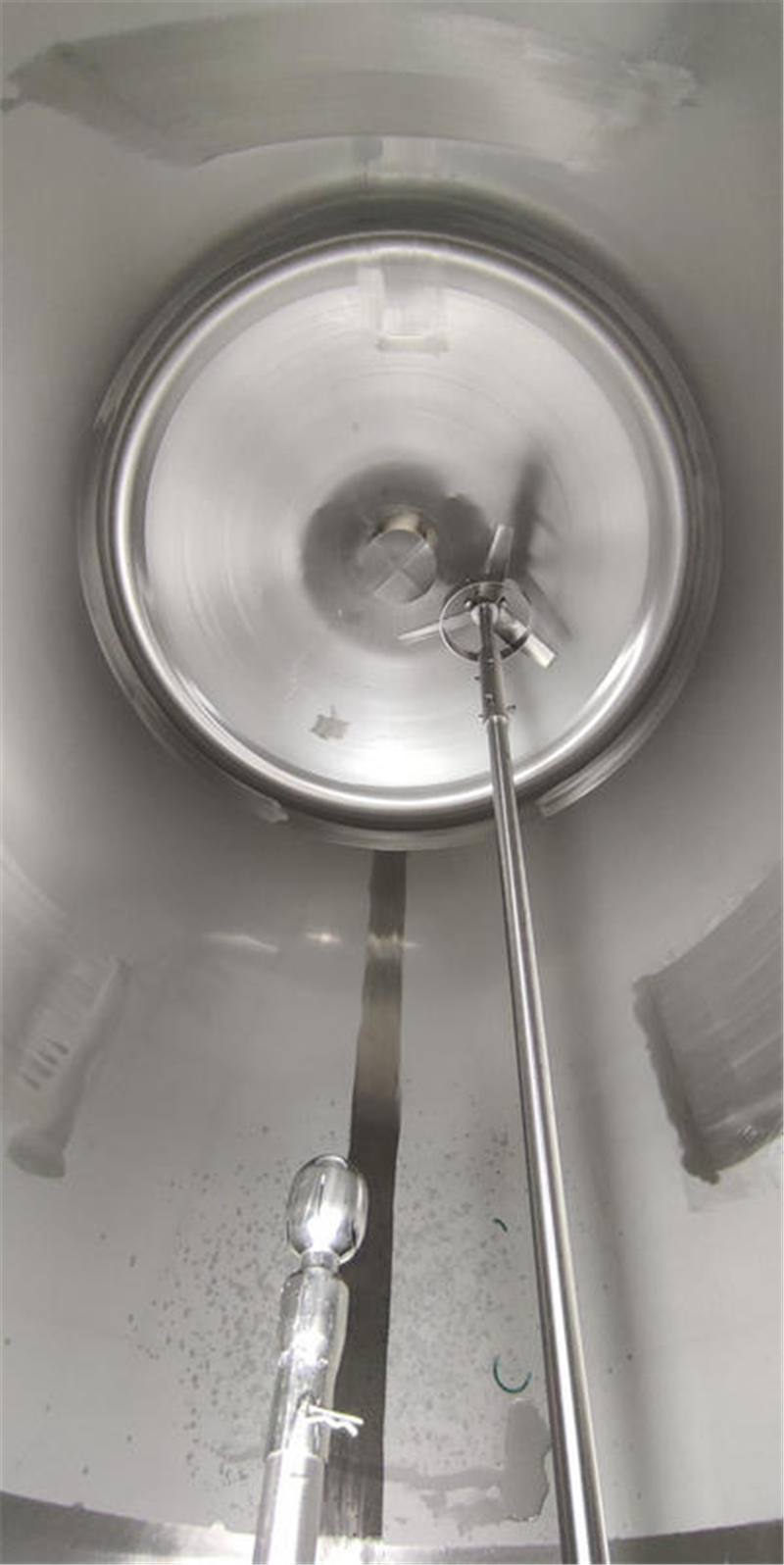

| Provision tank cleaning | CIP ball |
| Weight (kg) | 250 |
| Condition | Used |

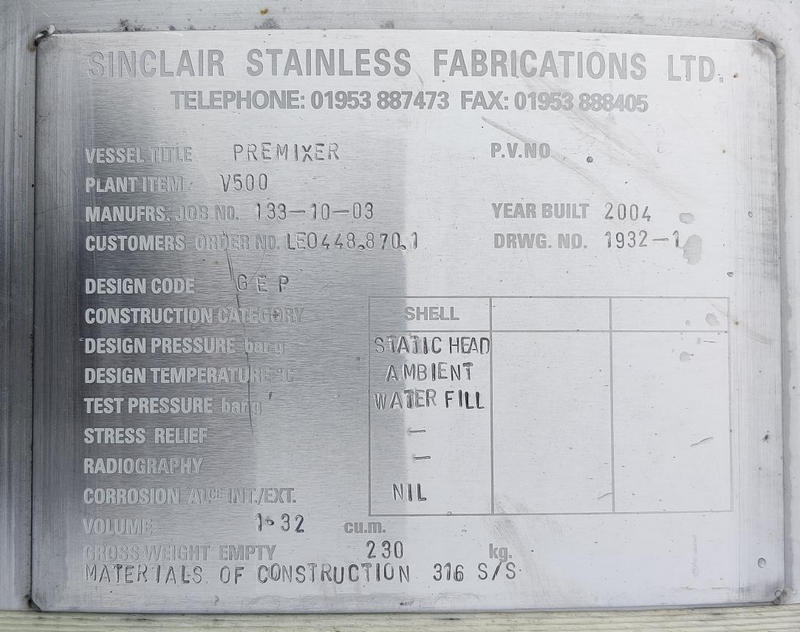

| Type plate manufacturer | Yes |
| Manufacturer | SINCLAIR |
| Year Built | 2004 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 2,9 |
| Periphery (mm) | 3470 |
| Cylindrical length (mm) | 1100 |
| Height bottom (mm) | 250 |
| Total height (mm) | 2700 |
| Length (mm) | 1260 |
| Diameter tank (mm) | 1100 |
| Width (mm) | 1260 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|

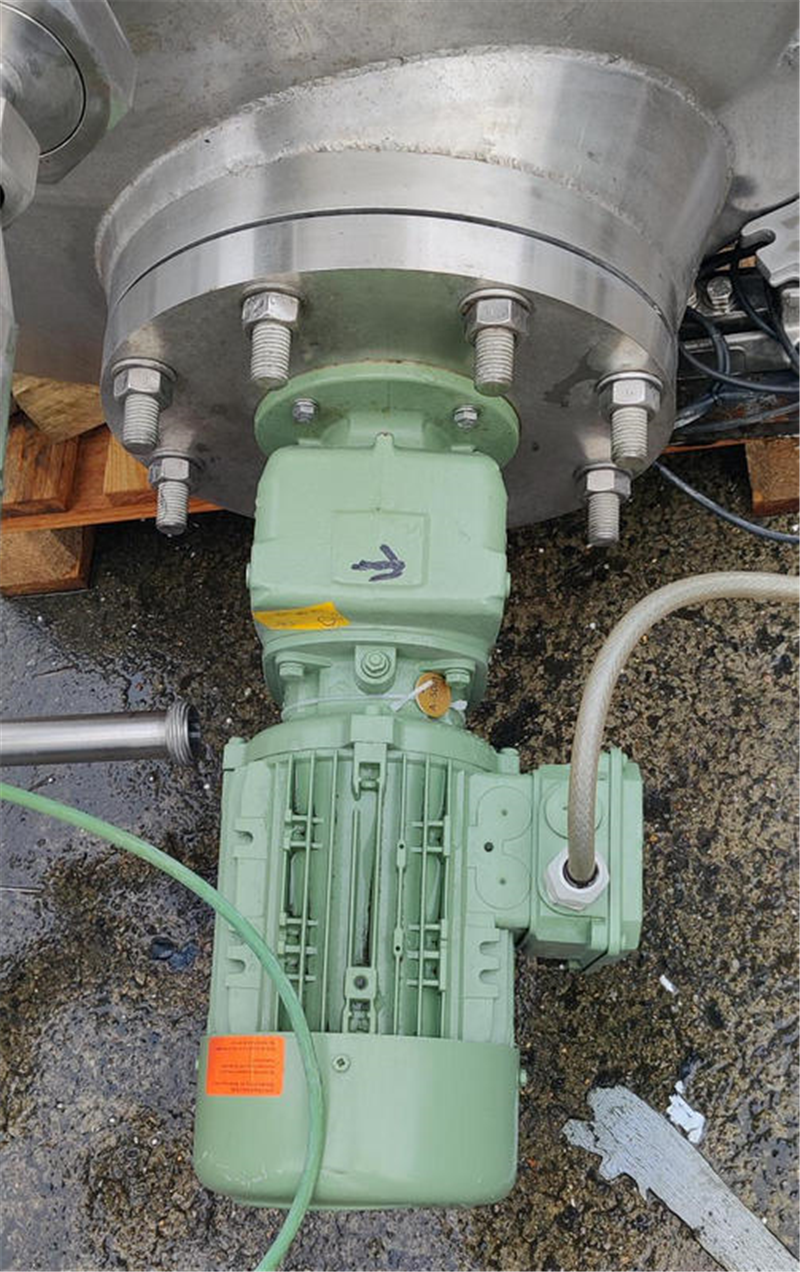

| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1400 |

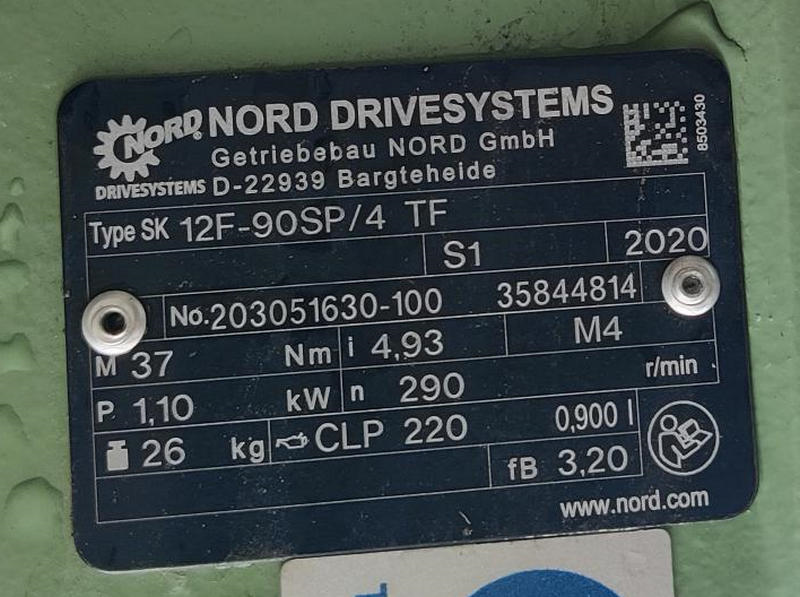

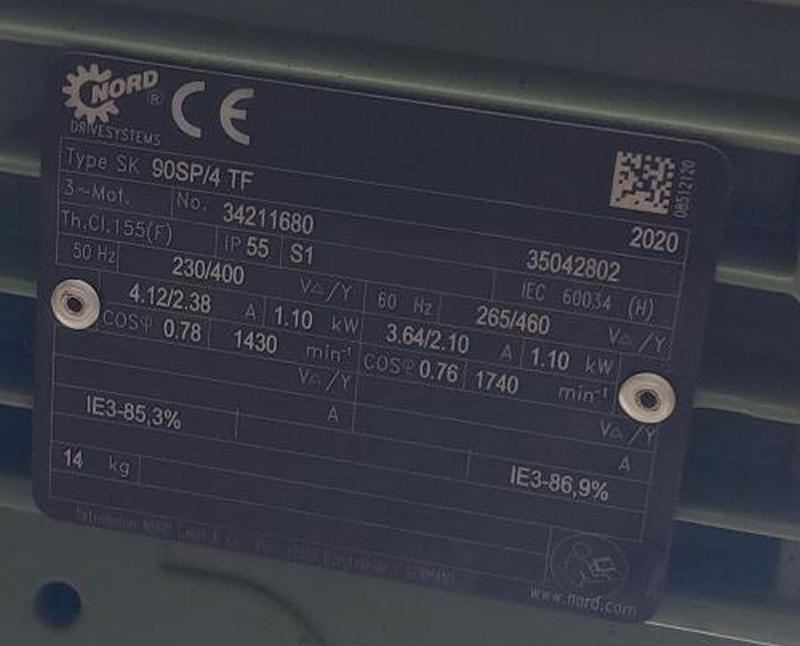

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 230/400 |
| Agitator 1: Power (kw) | 1,1 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 290 |
| Remarks | |
|---|---|

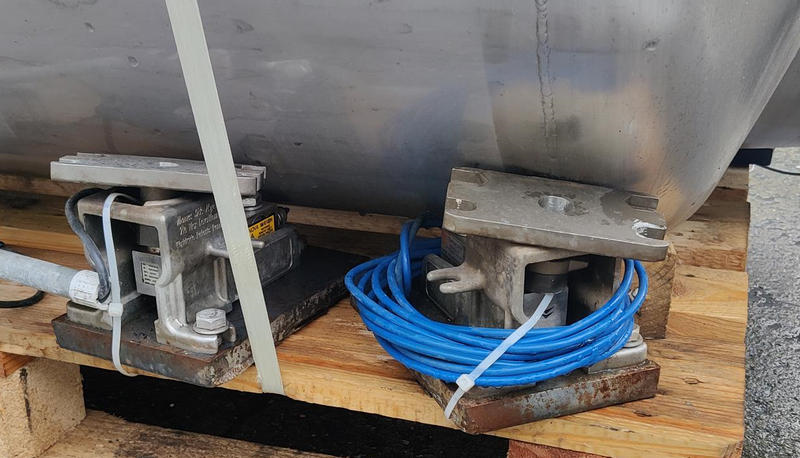

| Description (EN) | Design temp AMB --- Pressure test: water fill --- load cells available |
