Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 77000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.OO.04 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 77000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | DN 500 |

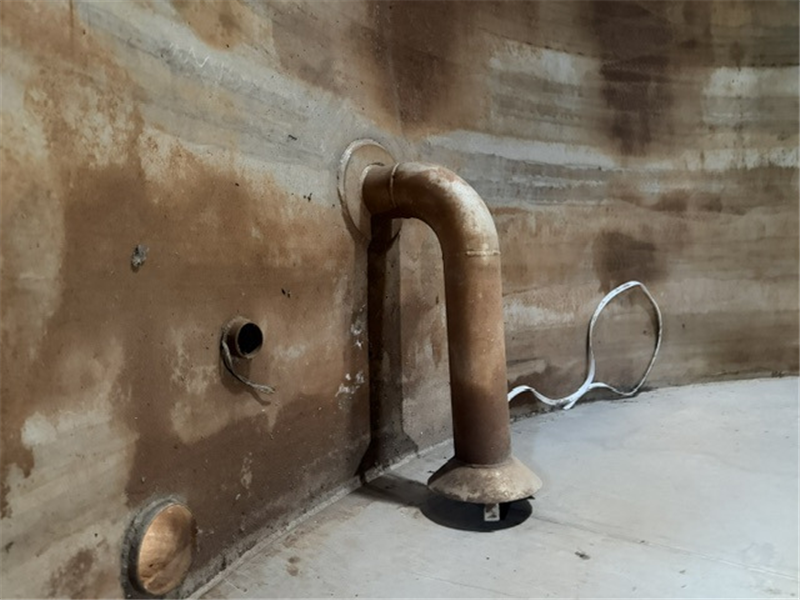

| Tank with total drain? | Yes |
| Type of outlet (s) | Flens |
| Diameter of outlet (mm) | DN 100 |
| locality | On location |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 4500 |
| Condition | Used |

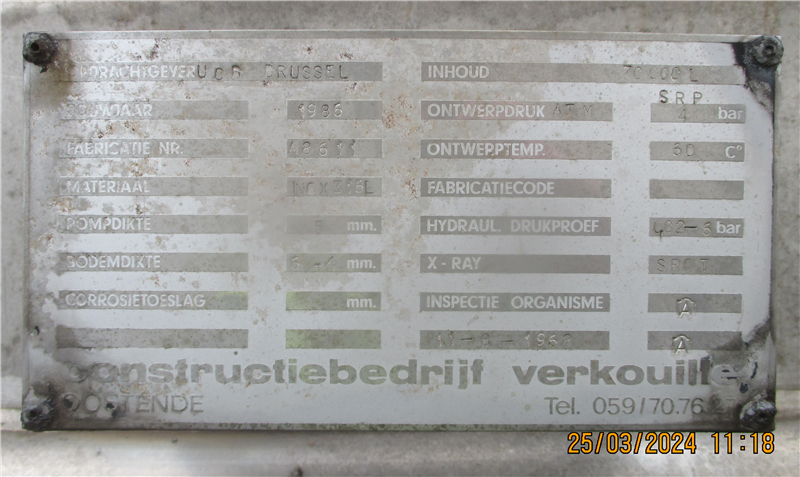

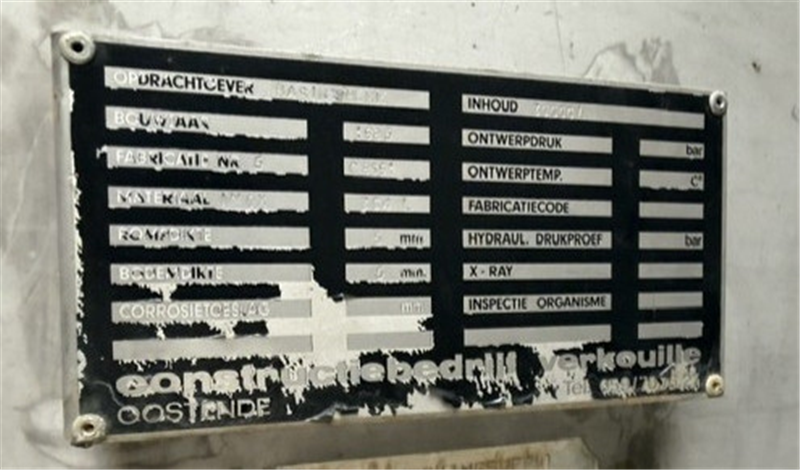

| Manufacturer | Verkouille |
| Year Built | 1986 |
| Appendix 1 | TB421-TB422 orientatieplan.pdf |
| Appendix 2 | TB421-TB422.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 6 |
| Periphery (mm) | 12246 |
| Cylindrical length (mm) | 7000 |
| Total height (mm) | 7500 |
| Diameter tank (mm) | 3750 |
| Width (mm) | 3900 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Remarks | |
|---|---|

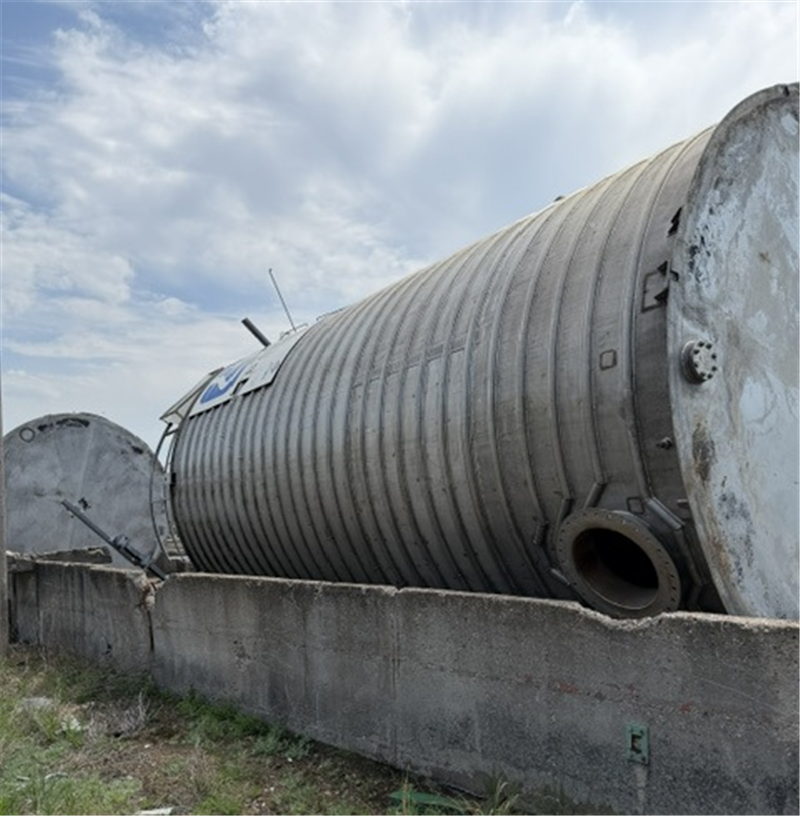

| Description (EN) | Heating system Halfpipe Working pressure 6 Bar -- inlet and outlet DN40 |
