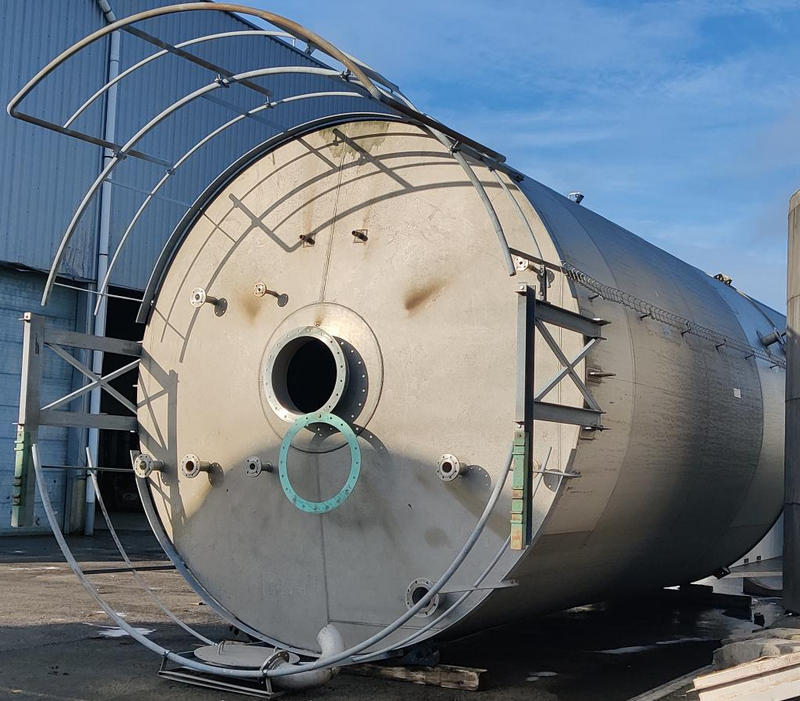

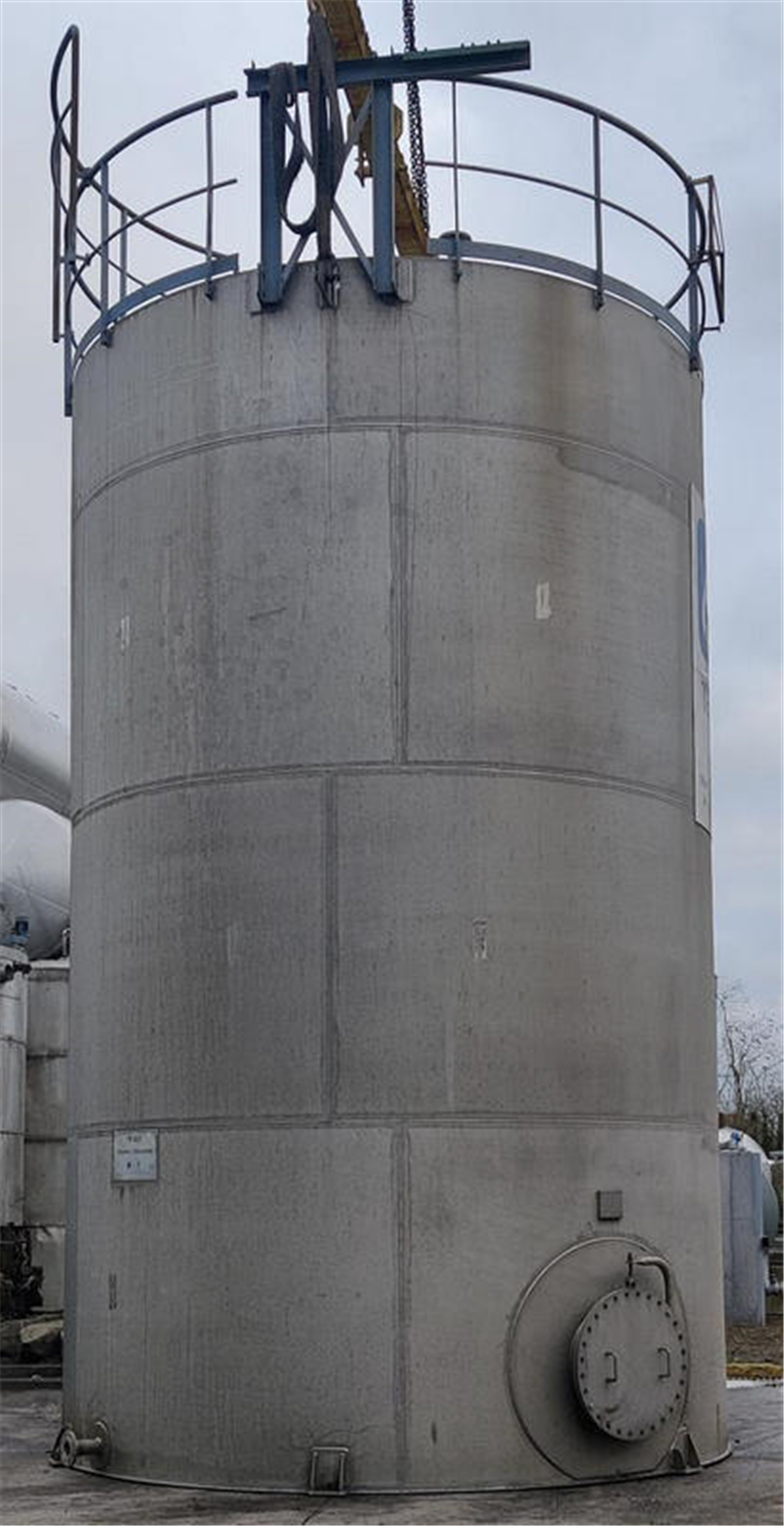

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 103000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.OO.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 103000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

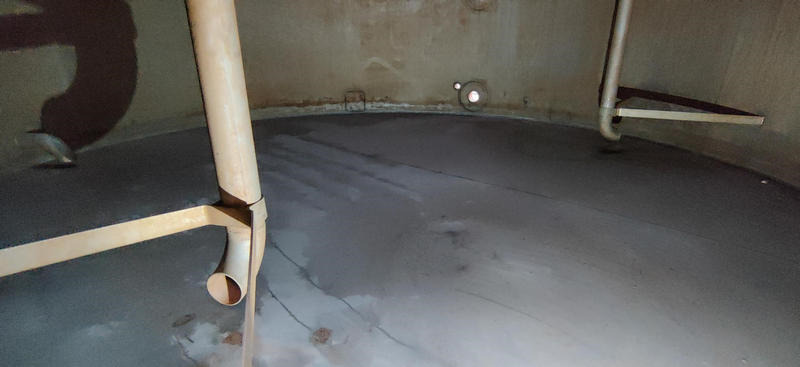

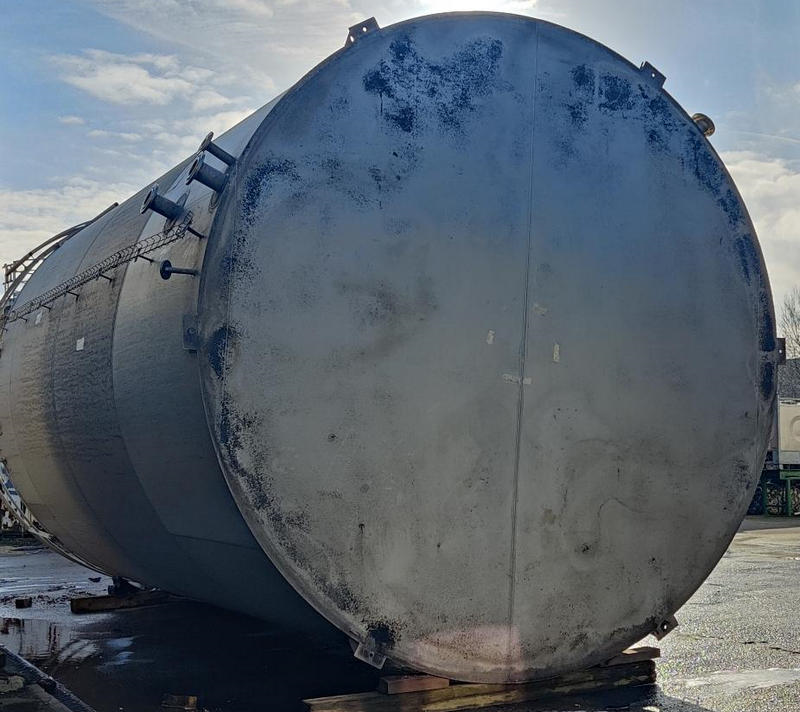

| Bottom | Flat bottom |
| Tank model | Single wall |

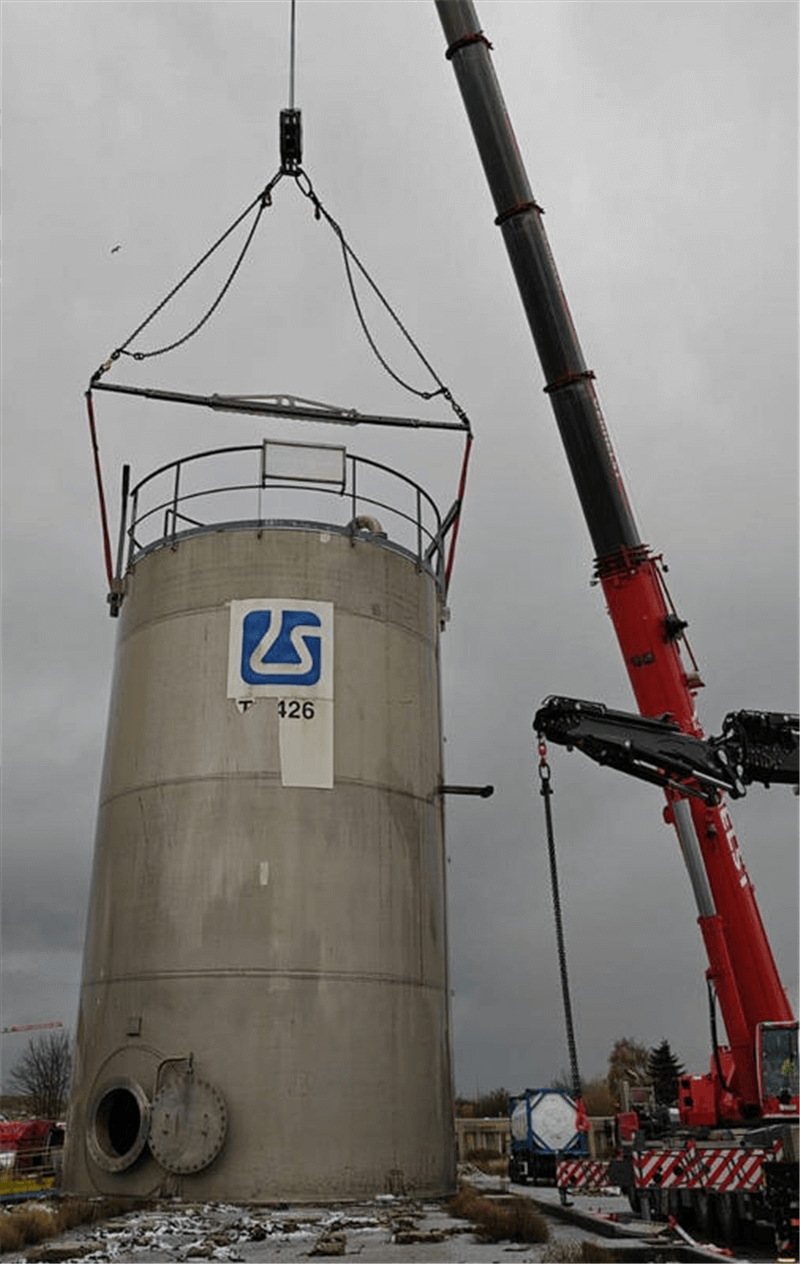

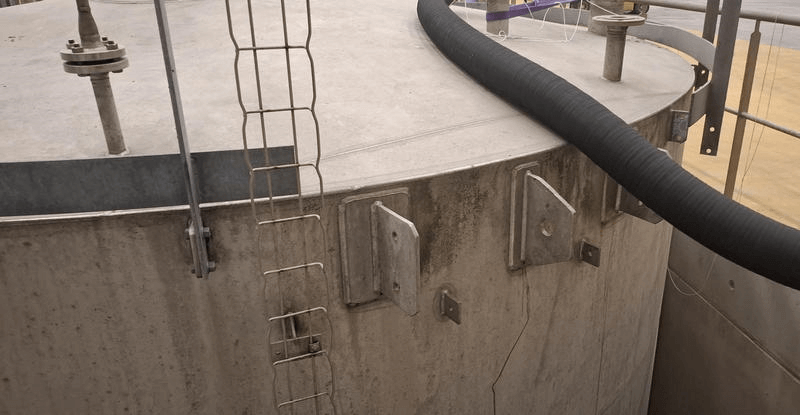

| Number lifting lugs | 4 |
| Density (kg/dm³) | 1,2 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 600mm |
| Tank with total drain? | No |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 5500 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | JACKSON |
| Year Built | 1996 |
| Top side | |
|---|---|

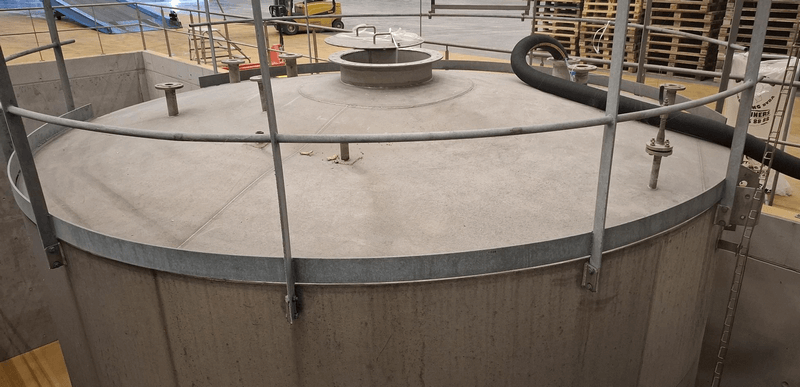

| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5,3 |
| Bottom thickness (mm) | 6,4 |
| Periphery (mm) | 13510 |
| Cylindrical length (mm) | 7000 |
| Total height (mm) | 8800 |
| Length (mm) | 4730 |
| Diameter tank (mm) | 4290 |
| Width (mm) | 4520 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | Design pressure ATM --- design temperature 50°C |
