Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 60000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.OL.30 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 60000 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

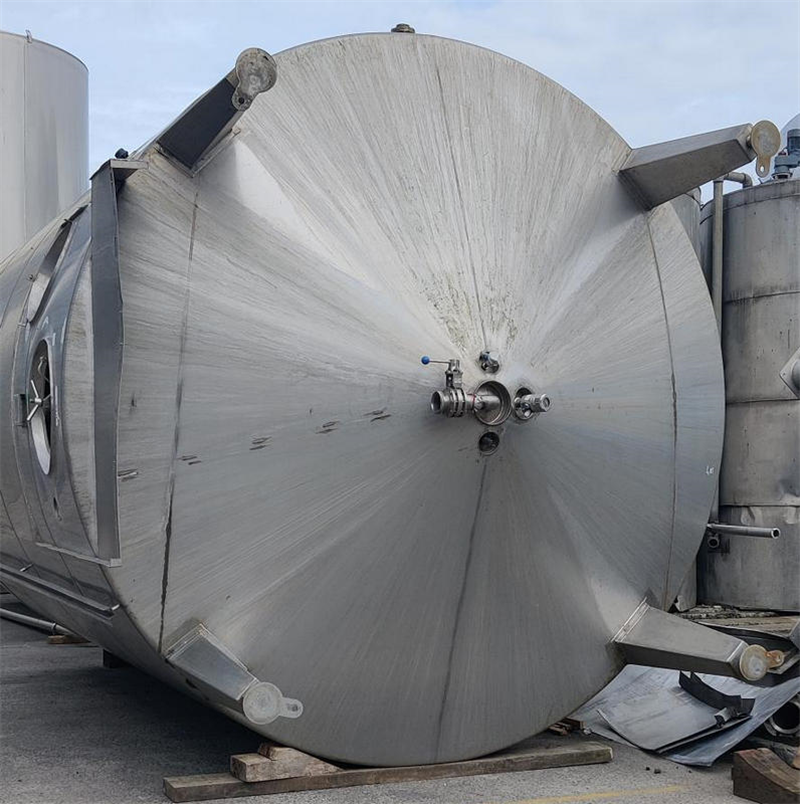

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

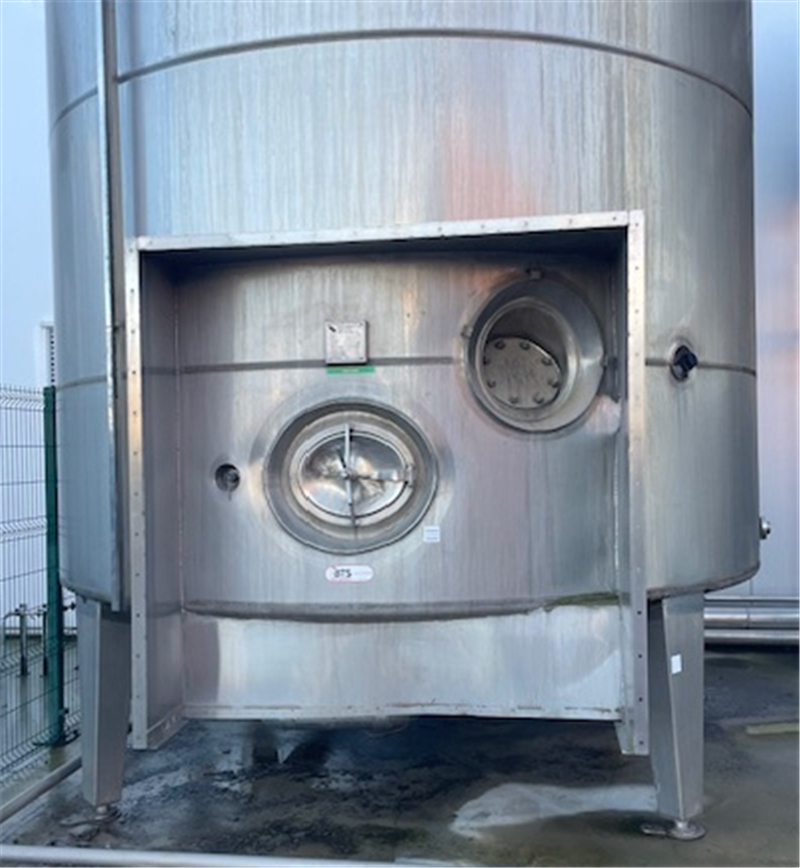

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 340x440mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. vlinderkraan |
| Diameter of outlet (mm) | DN80 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 4200 |
| Condition | Used |

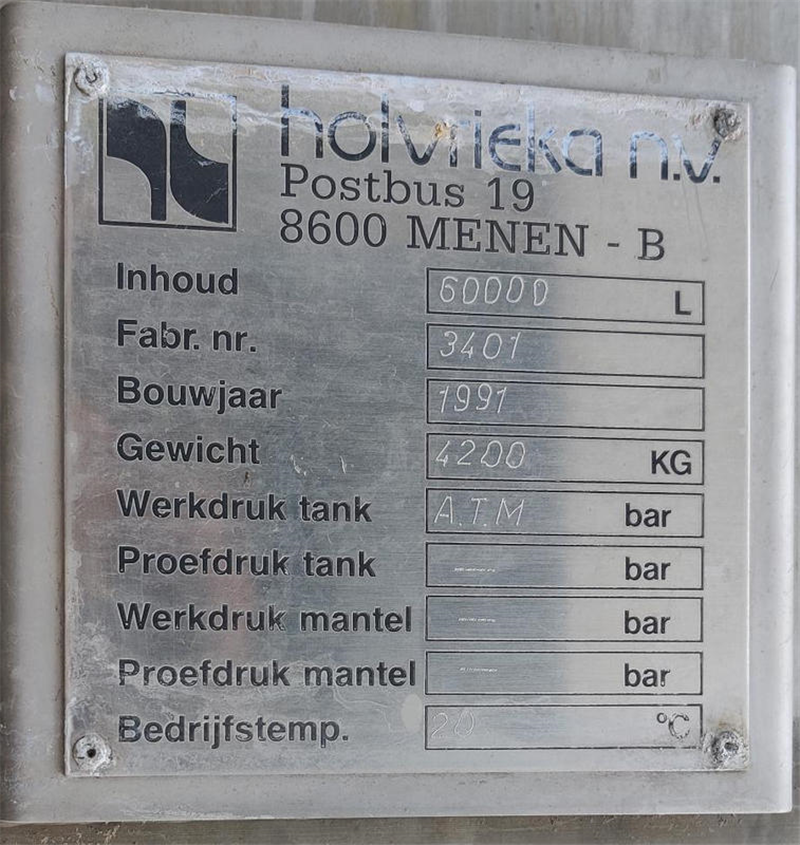

| Type plate manufacturer | Yes |
| Manufacturer | Holvrieka |
| Year Built | 1991 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 3,1 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Periphery (mm) | 12020 |
| Cylindrical length (mm) | 5250 |
| Height bottom (mm) | 750 |
| Outside diameter tank (mm) | 3830 |
| Total height (mm) | 7200 |
| Length (mm) | 3950 |
| Diameter tank (mm) | 3680 |
| Width (mm) | 3860 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 6 |
| Finishing insulation | fully welded cladding |
