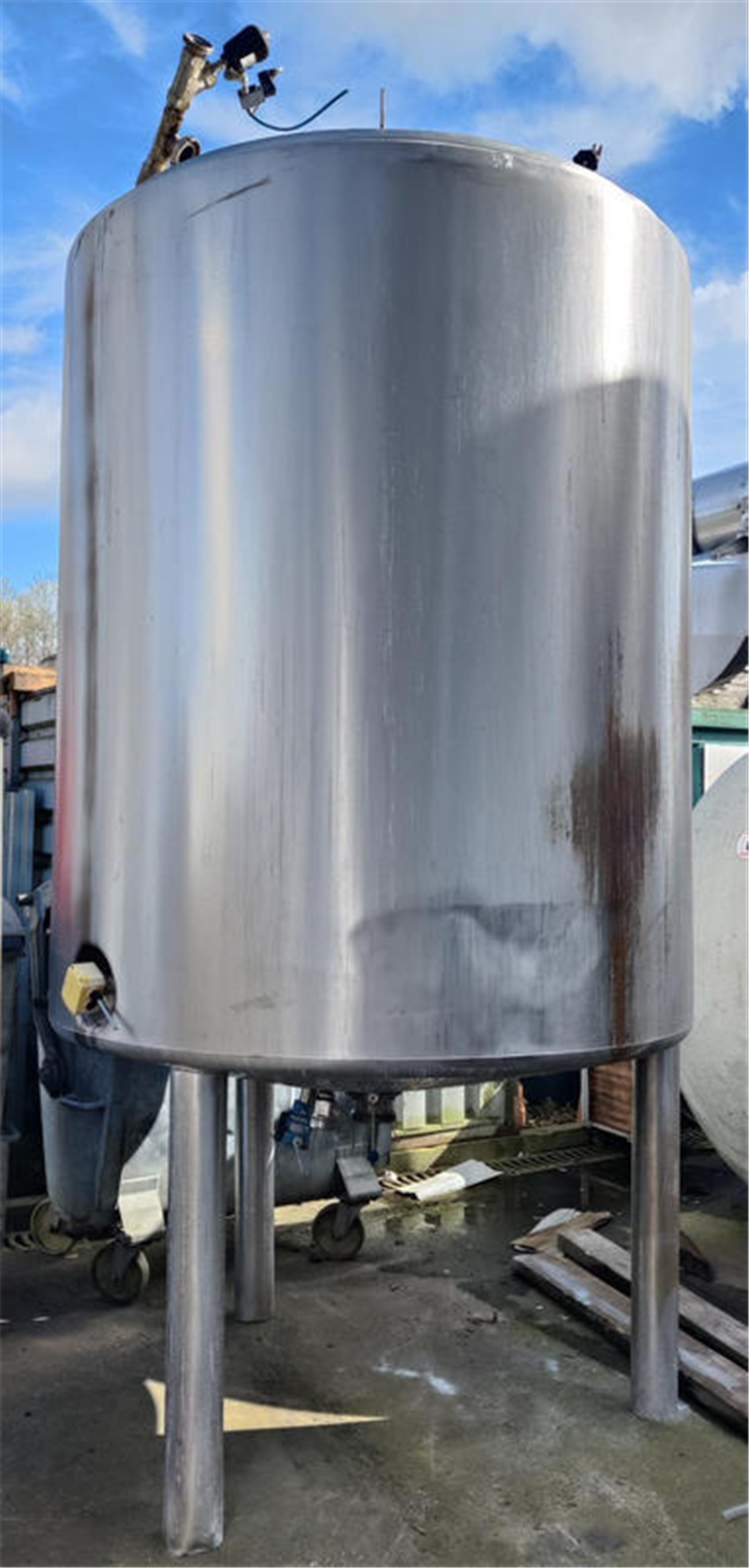

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 4000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.OL.28a |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 4000 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

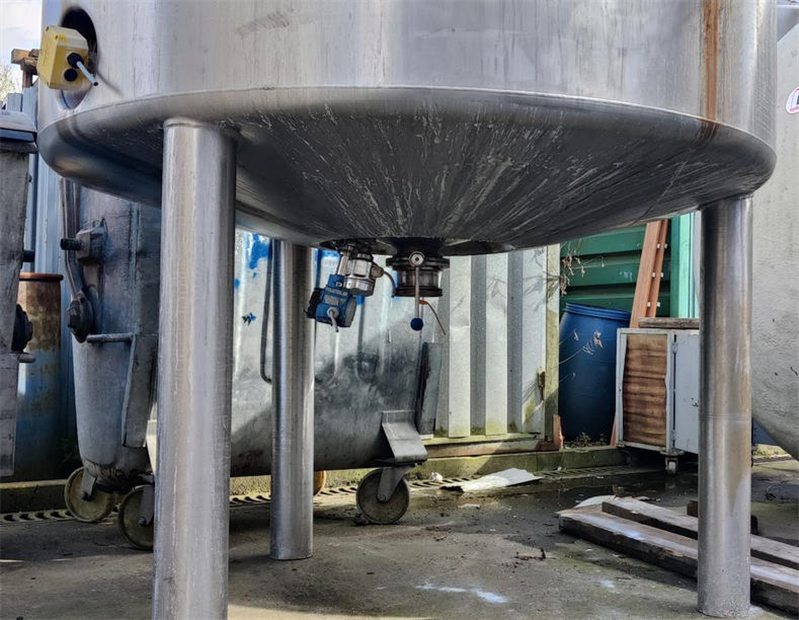

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

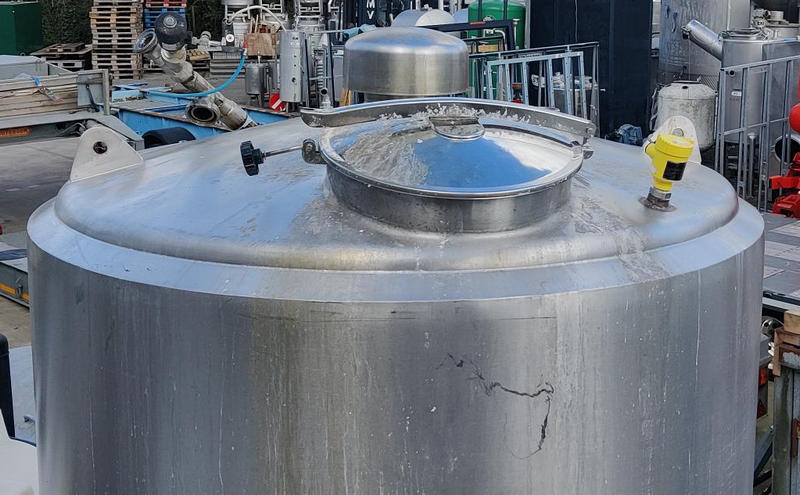

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia. 500mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. vlinderkraan |
| Diameter of outlet (mm) | DN100 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 510 |
| Condition | Used |

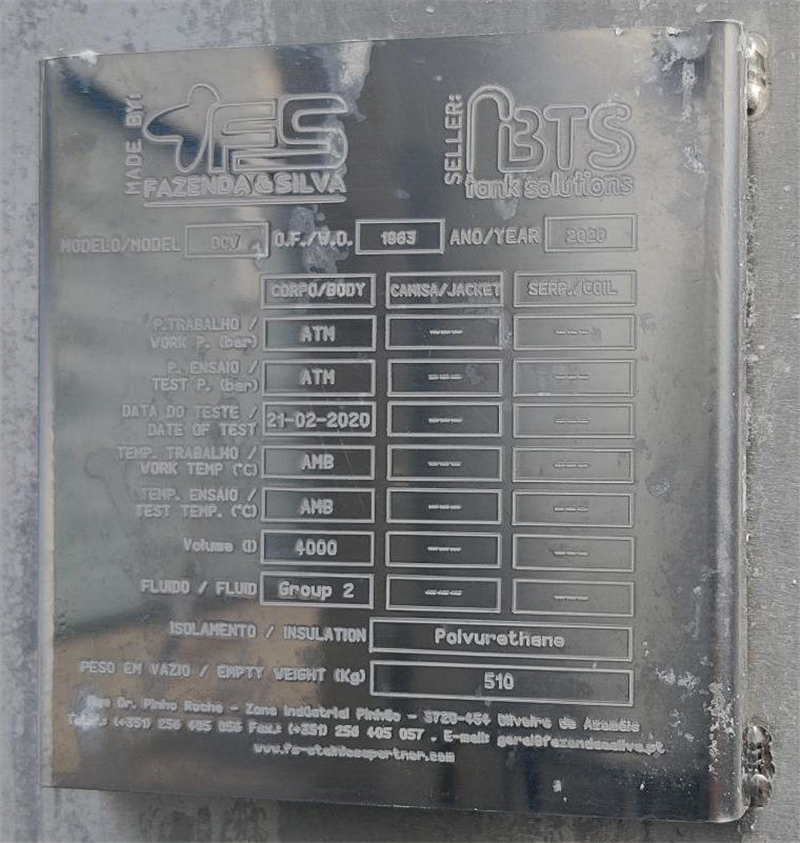

| Type plate manufacturer | Yes |
| Manufacturer | FS |
| Year Built | 2020 |
| Appendix 1 | 0346OL28a_draw.PDF |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,1 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Periphery (mm) | 5500 |
| Cylindrical length (mm) | 2000 |
| Height bottom (mm) | 200 |
| Outside diameter tank (mm) | 1750 |
| Total height (mm) | 3600 |
| Length (mm) | 1750 |
| Diameter tank (mm) | 1645 |
| Width (mm) | 1750 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | PUR Foam |
| Thickness (mm) | 50 |
| Finishing insulation | fully welded cladding |
