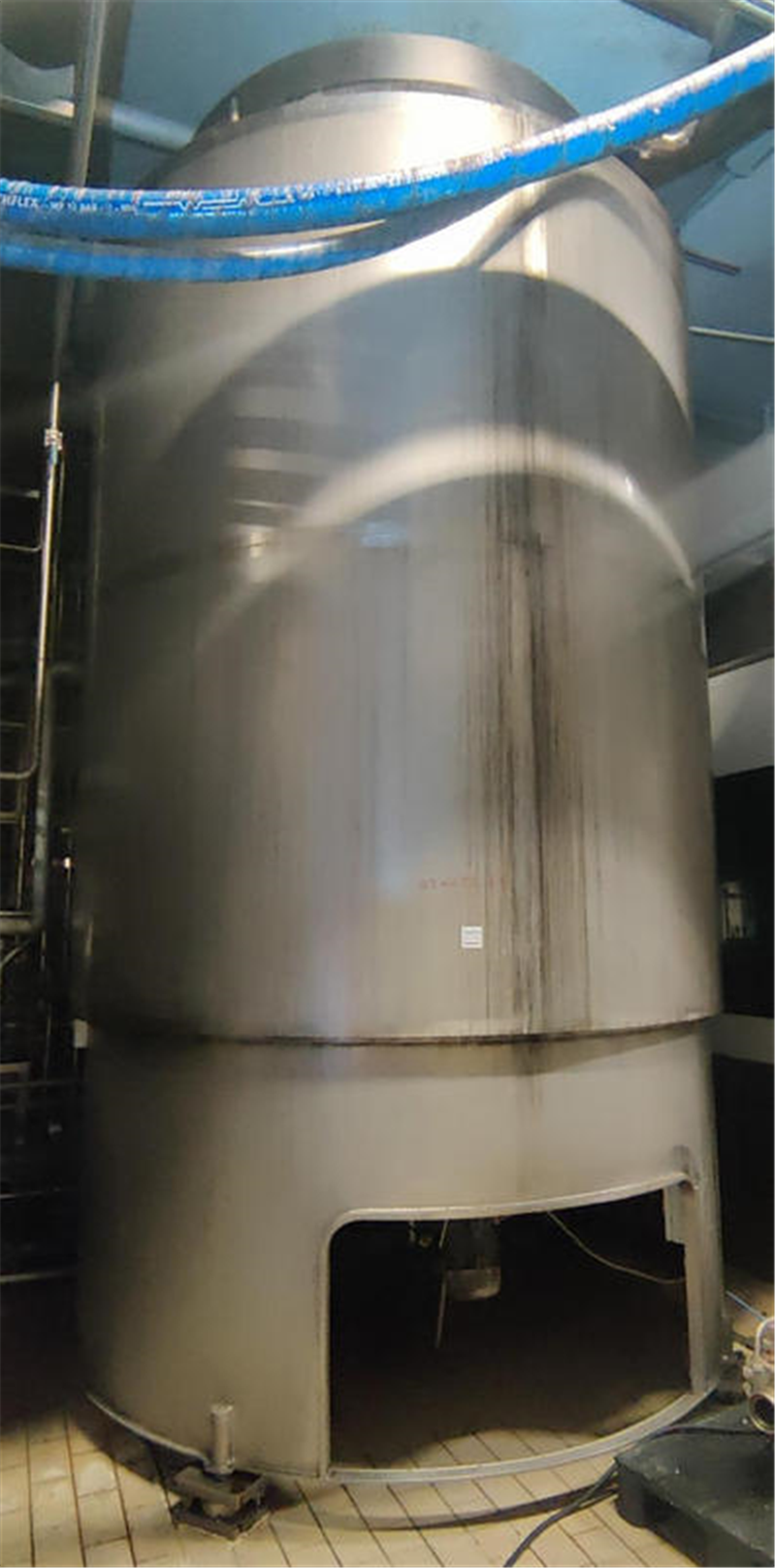

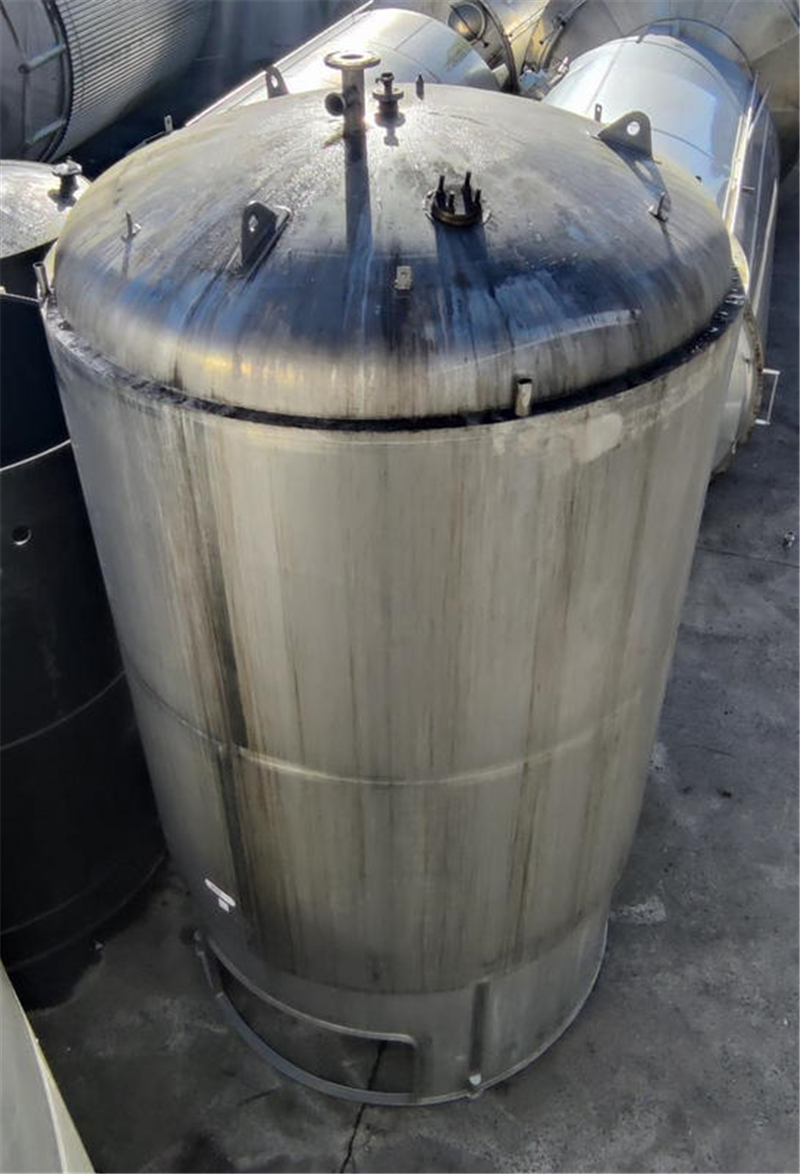

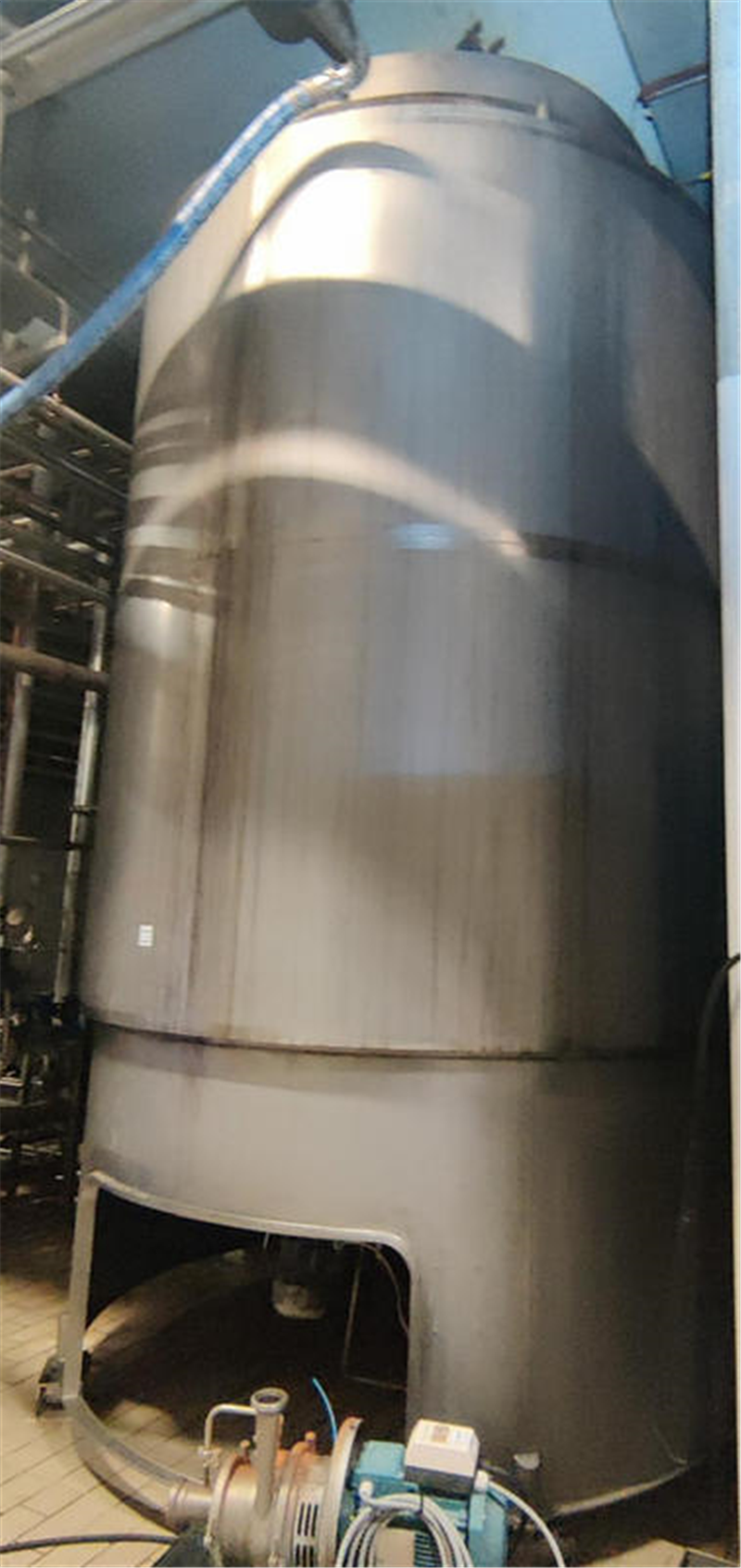

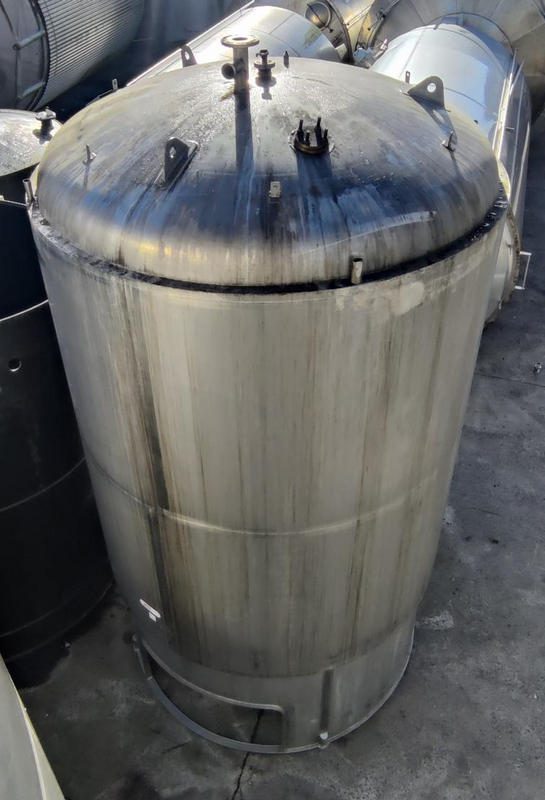

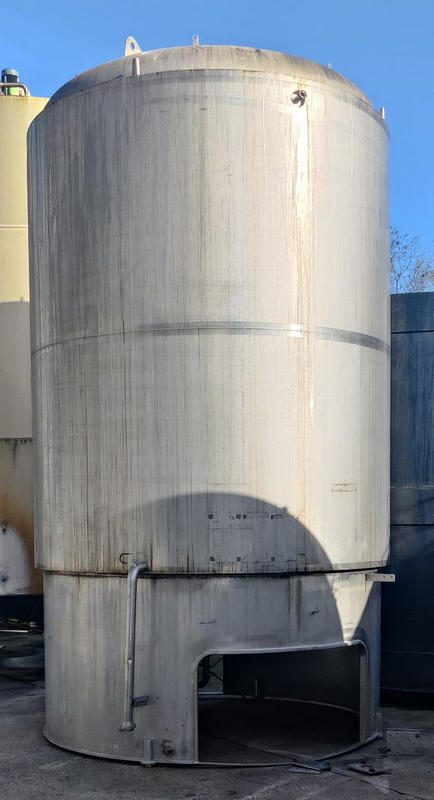

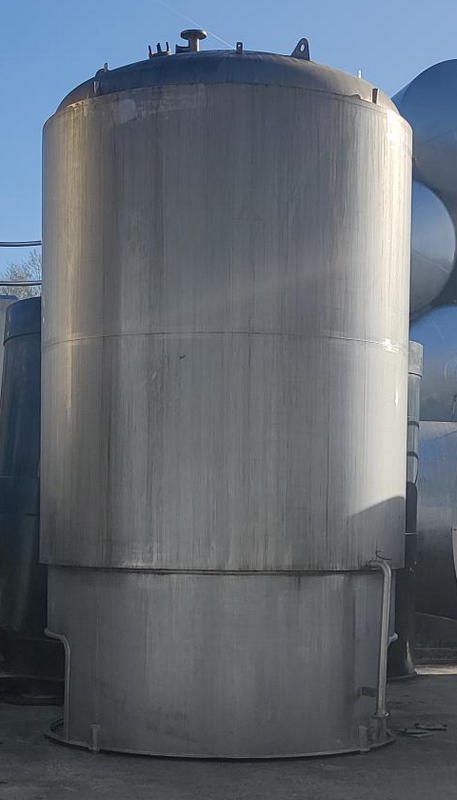

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 16500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.OL.26 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 16500 |
| Type tank | Mixing vessel |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Tank with total drain? | Yes |
| Type of outlet (s) | voedingskopp. |
| Diameter of outlet (mm) | 65 |
| locality | On location |
| Last application | Food |
| Weight (kg) | 1500 |
| Condition | Used |
| Type plate manufacturer | No |
| Manufacturer | STORK |
| Top side | |
|---|---|

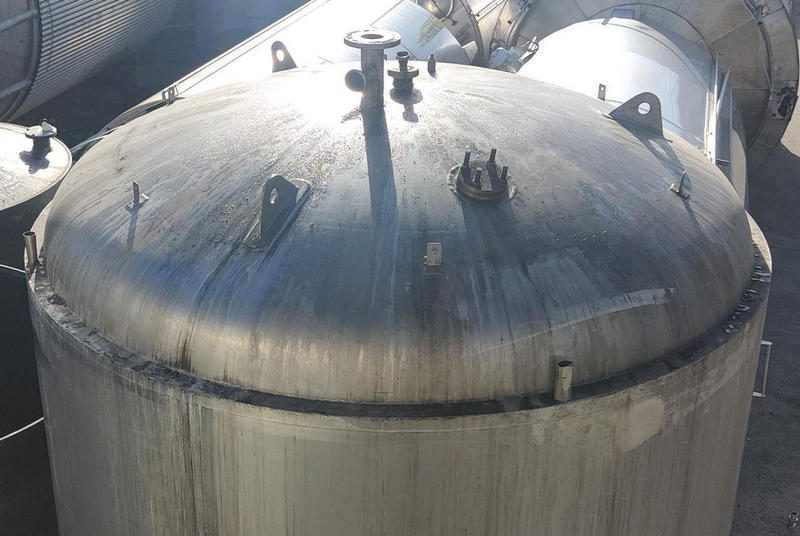

| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Bottom thickness (mm) | 3,1 |
| Periphery (mm) | 8280 |
| Cylindrical length (mm) | 3000 |
| Height bottom (mm) | 400 |
| Outside diameter tank (mm) | 2640 |
| Total height (mm) | 5000 |
| Length (mm) | 2790 |
| Diameter tank (mm) | 2500 |
| Width (mm) | 2640 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |
| Finishing insulation | fully welded cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Electric bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |

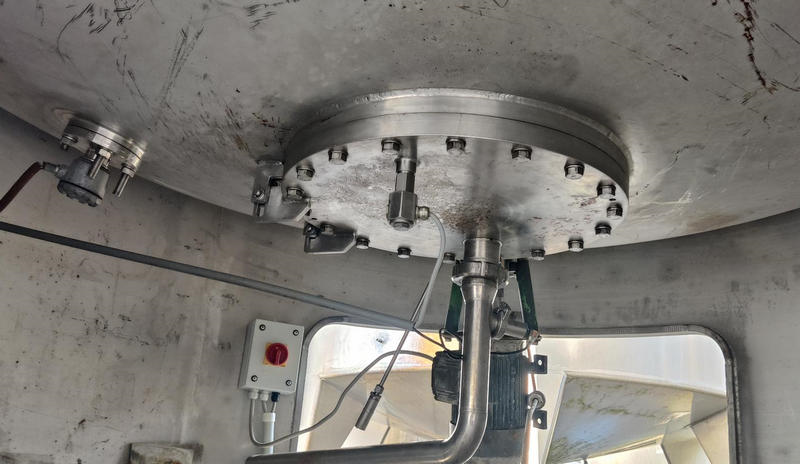

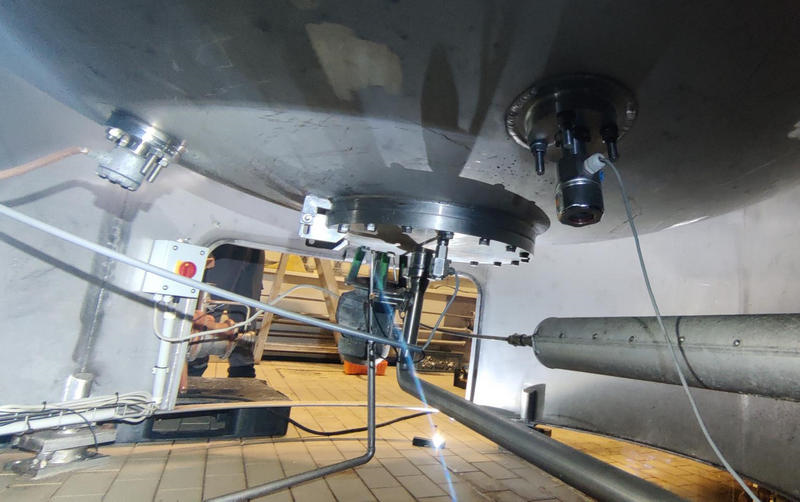

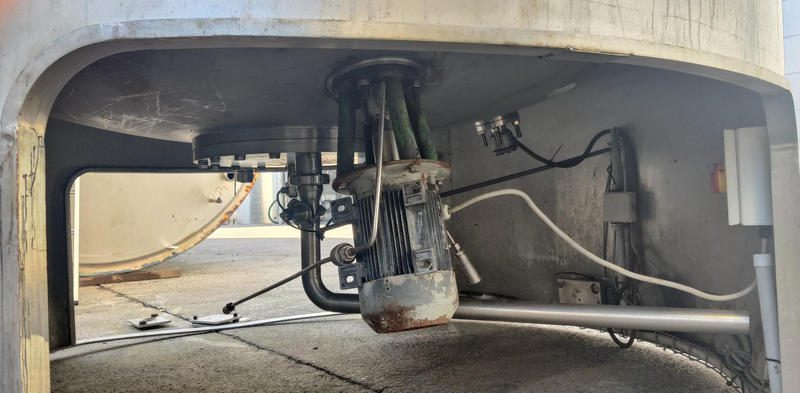

| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentralized in the bottom |

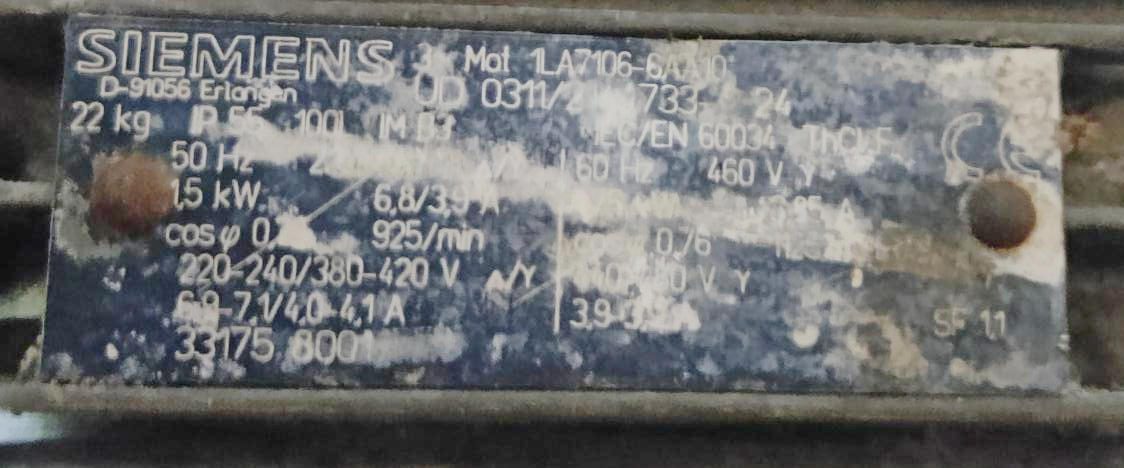

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 230/380 |
| Agitator 1: Power (kw) | 1,5 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 925 |
