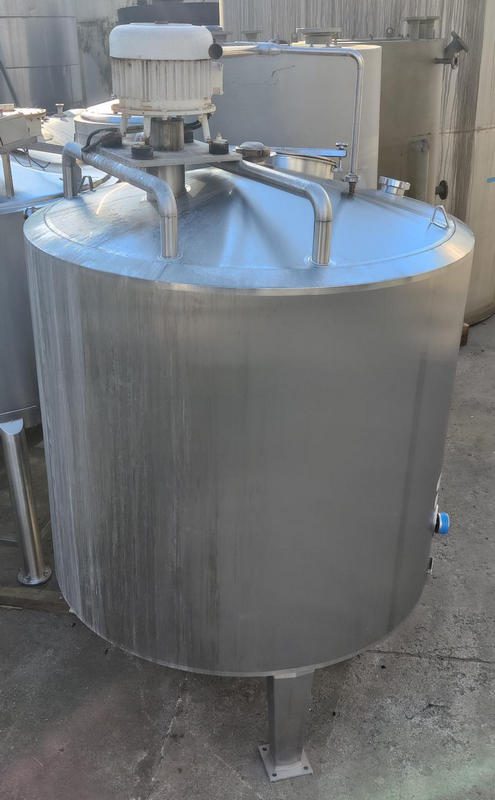

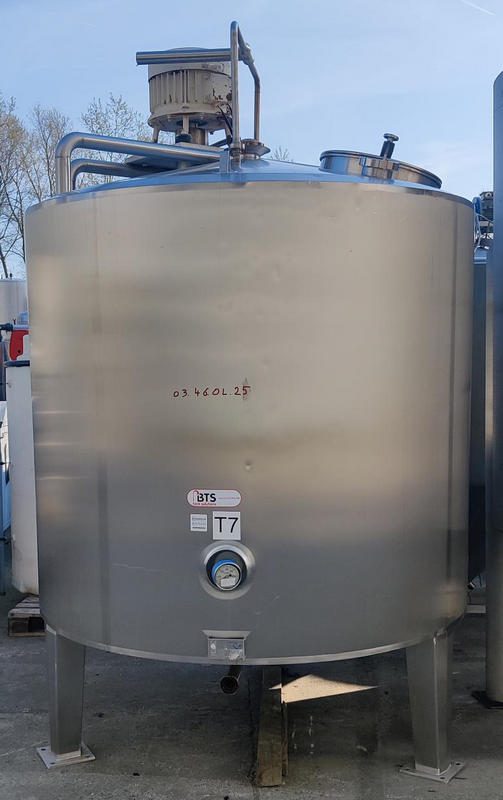

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 3500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.OL.25 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 3500 |
| Type tank | Mixing vessel |

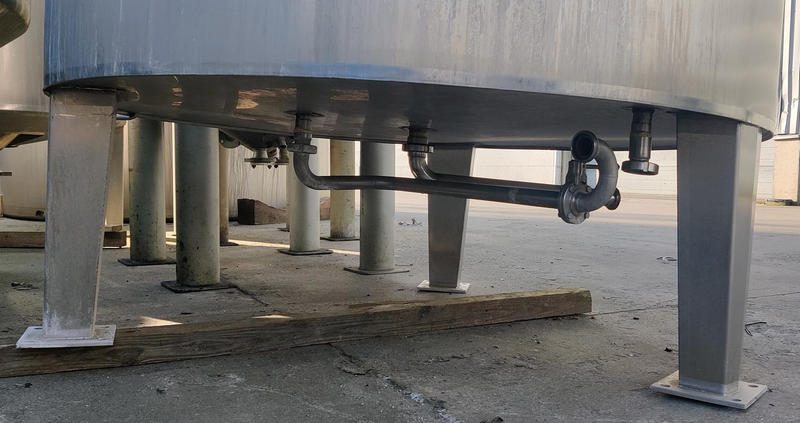

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |

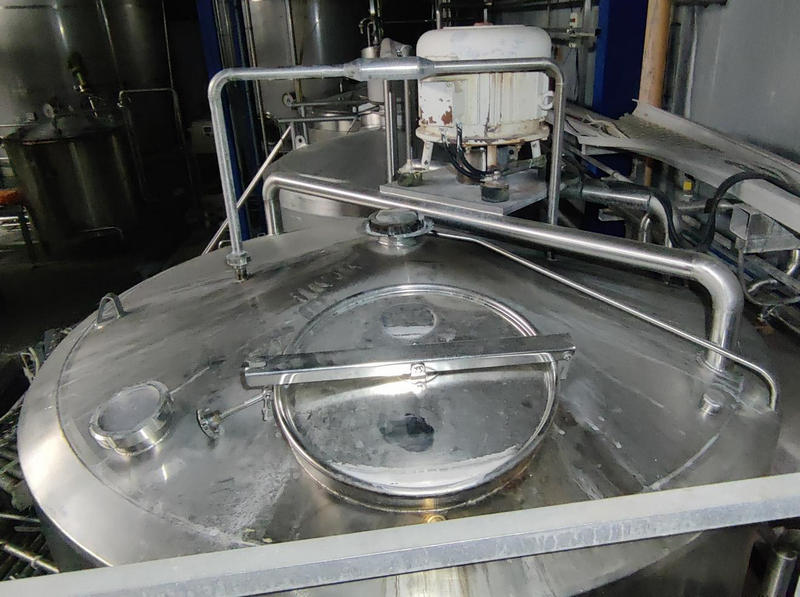

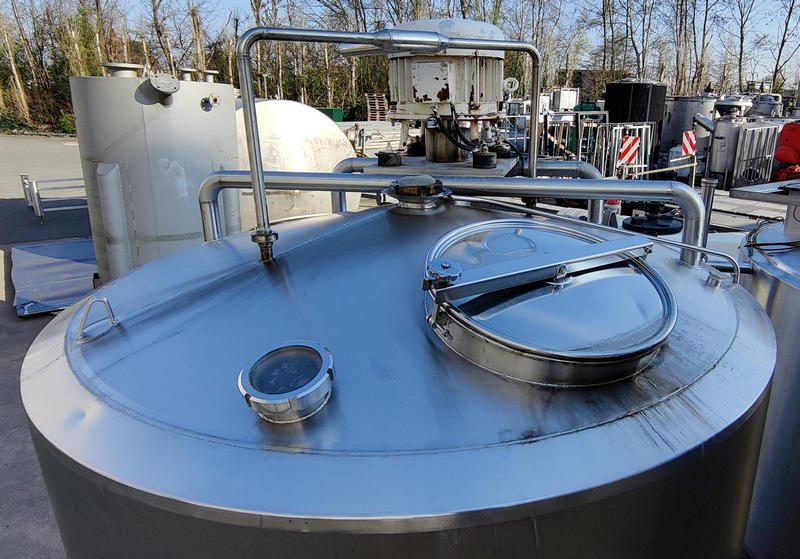

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 495mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 50 |
| locality | On location |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 750 |
| Condition | Used |

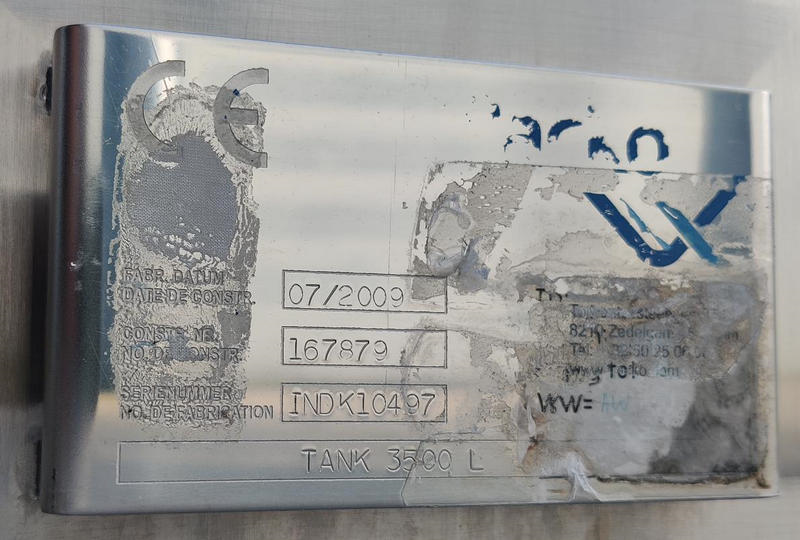

| Type plate manufacturer | Yes |
| Year Built | 2003 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,9 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,9 |
| Periphery (mm) | 6000 |
| Cylindrical length (mm) | 1600 |
| Height bottom (mm) | 200 |
| Outside diameter tank (mm) | 1910 |
| Total height (mm) | 3070 |
| Length (mm) | 2000 |
| Diameter tank (mm) | 1745 |
| Width (mm) | 1910 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 80 |
| Finishing insulation | fully welded cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Dimple plate |
| Agitators | |
|---|---|
| Number of agitators | 1 |

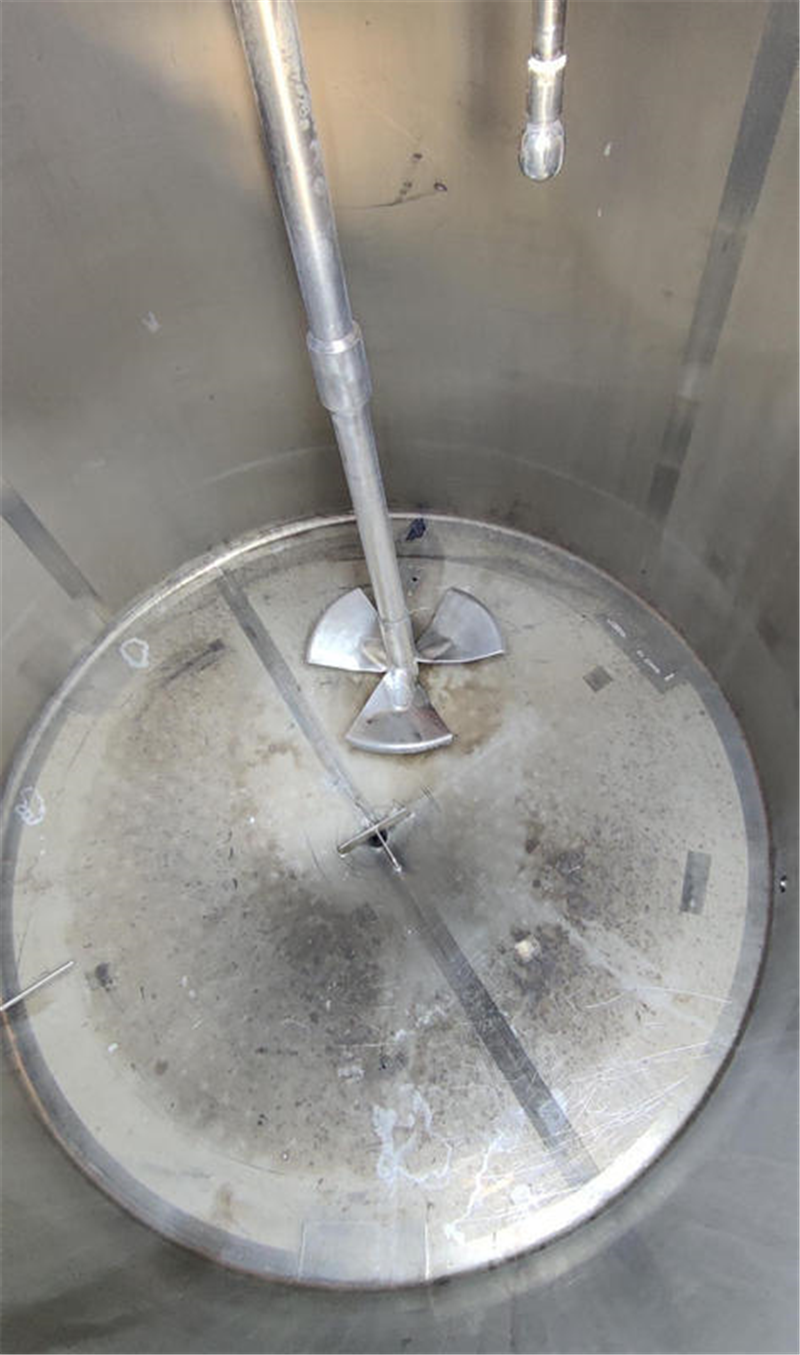

| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1900 |

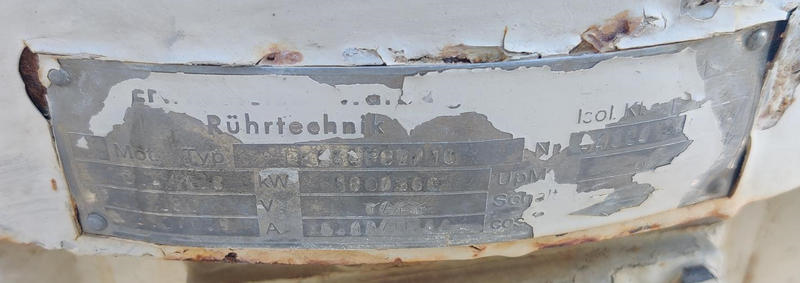

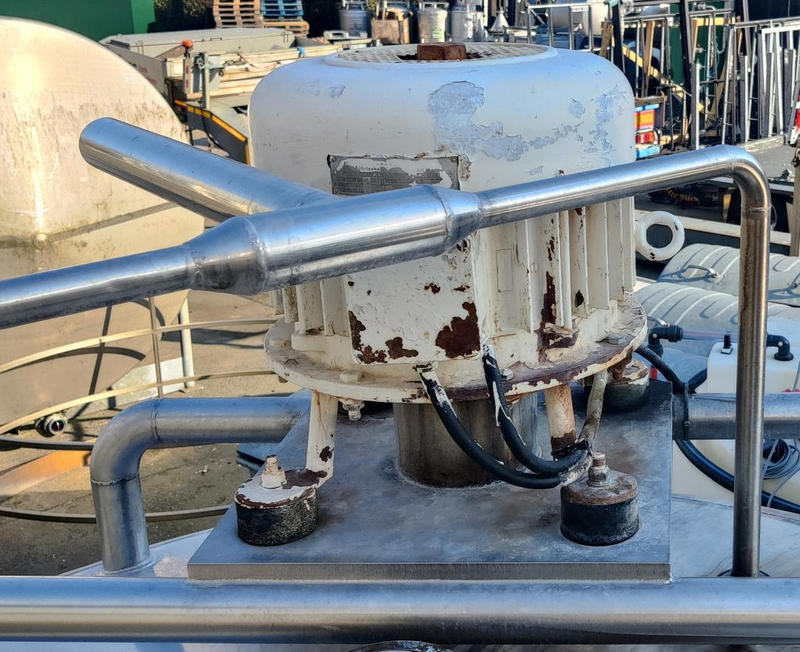

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 1,8 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 660 |
