Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 41000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.OL.21 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 41000 |

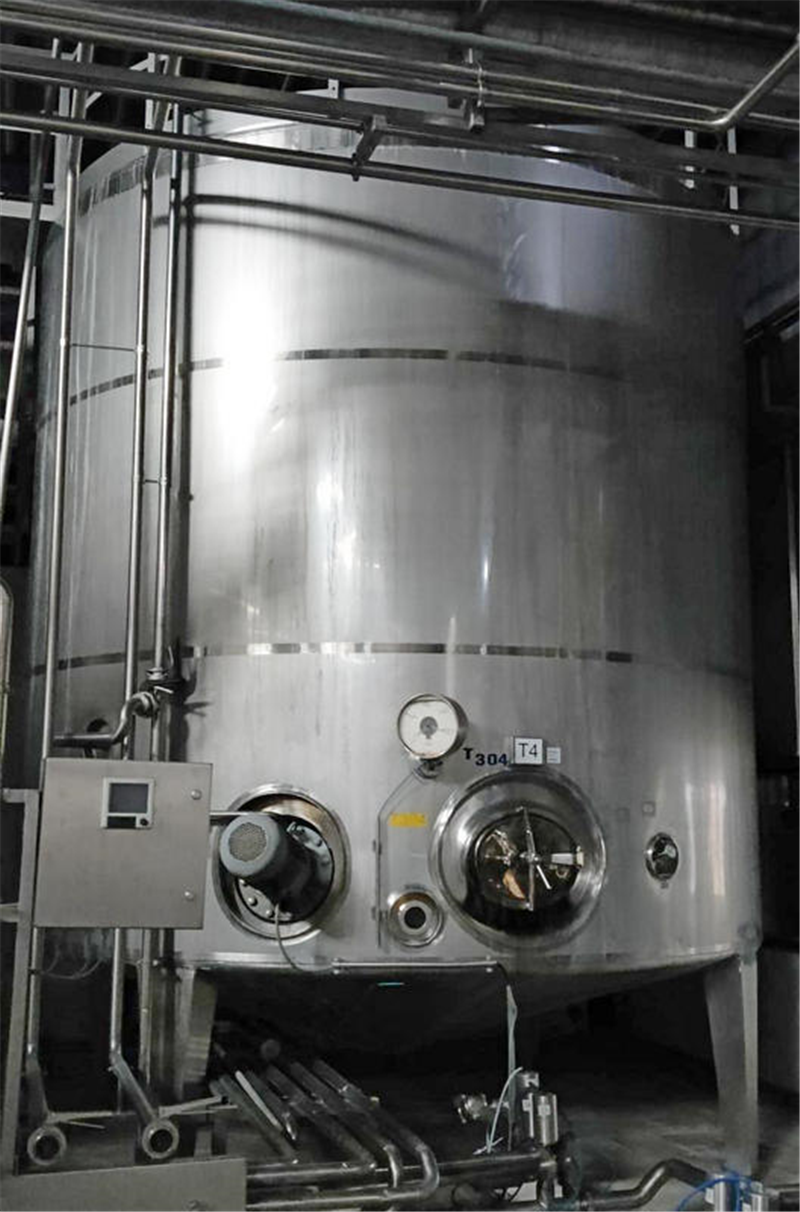

| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

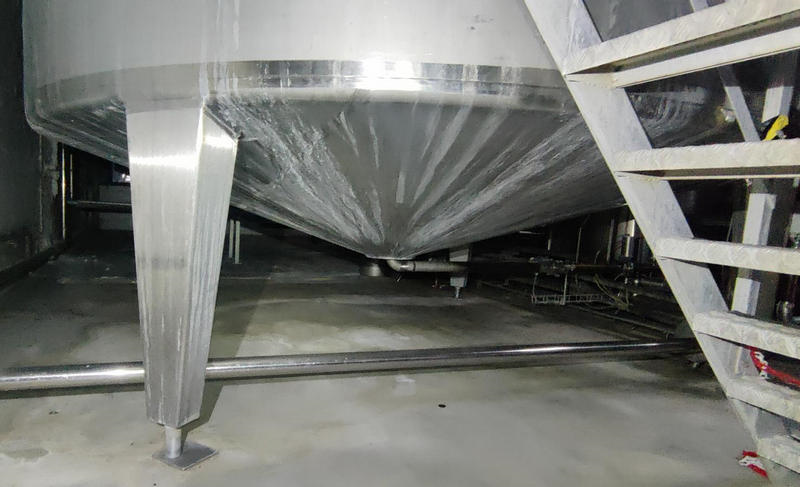

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

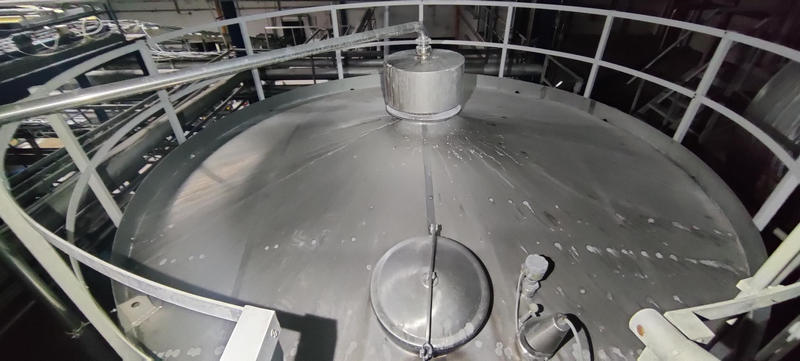

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 420mm / 430x340mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 65 |
| locality | On location |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 2500 |
| Condition | Used |
| Type plate manufacturer | No |
| Year Built | 2009 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 3,8 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,7 |
| Bottom thickness (mm) | 3,8 |
| Periphery (mm) | 12100 |
| Cylindrical length (mm) | 3400 |
| Height bottom (mm) | 600 |
| Outside diameter tank (mm) | 3850 |
| Total height (mm) | 5800 |
| Length (mm) | 4000 |
| Diameter tank (mm) | 3725 |
| Width (mm) | 3850 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 60 |
| Finishing insulation | fully welded cladding |
| Agitators | |
|---|---|

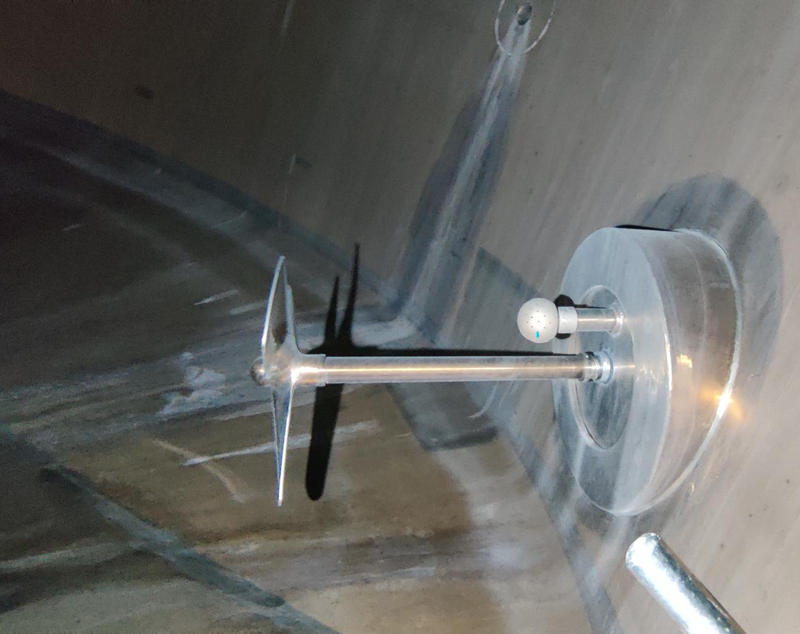

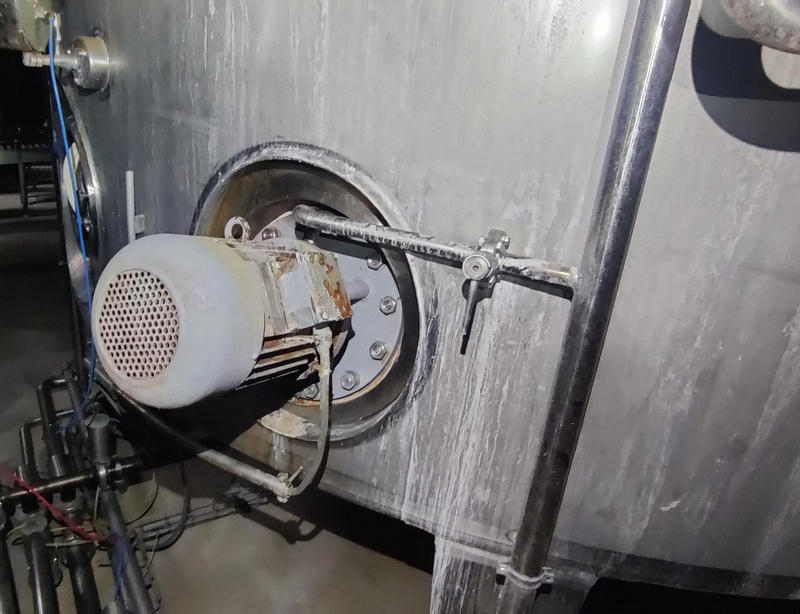

| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | Side -entry |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 600 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 2,5 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 930 |
