Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 104280 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.OL.13 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 104280 |
| Type tank | Mixing vessel |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

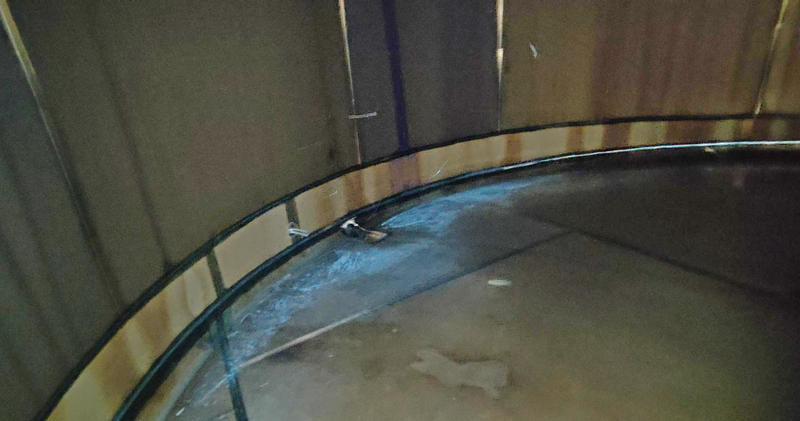

| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 440x300mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 100 |
| locality | On location |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 5500 |
| Condition | Used |

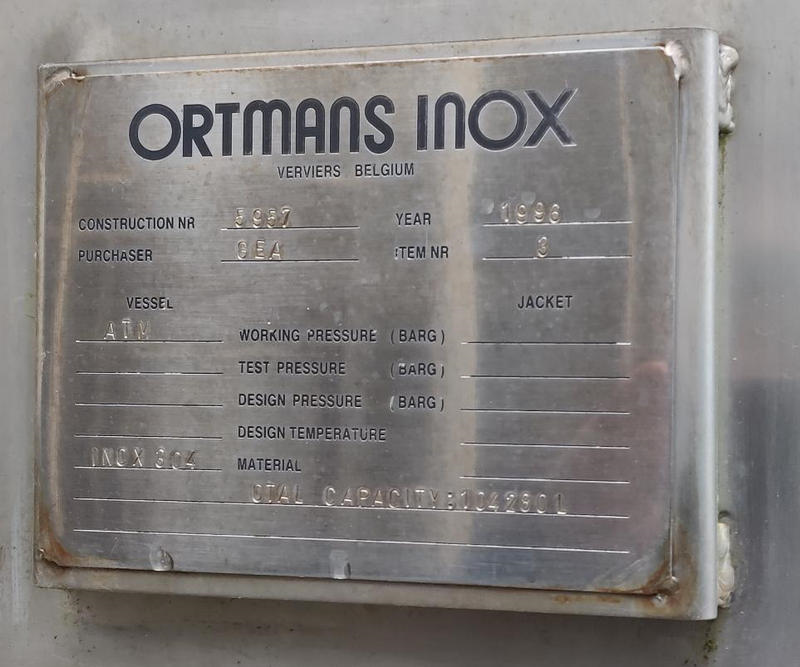

| Type plate manufacturer | Yes |
| Manufacturer | ORTMANS |
| Year Built | 1996 |

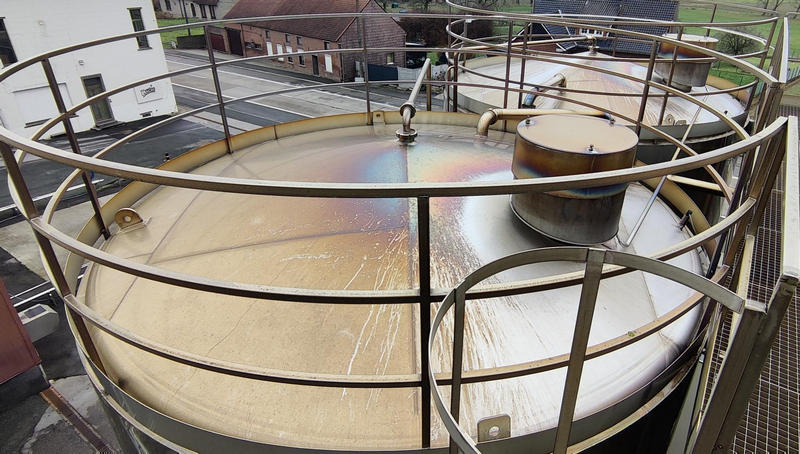

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,8 |
| Bottom thickness (mm) | 3,9 |
| Periphery (mm) | 12900 |
| Cylindrical length (mm) | 8550 |
| Slope bottom (°) | 3 |
| Outside diameter tank (mm) | 4100 |
| Total height (mm) | 9750 |
| Length (mm) | 4100 |
| Diameter tank (mm) | 3940 |
| Width (mm) | 4100 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |
| Thickness (mm) | 80 |
| Finishing insulation | fully welded cladding |
| Agitators | |
|---|---|
| Number of agitators | 1 |

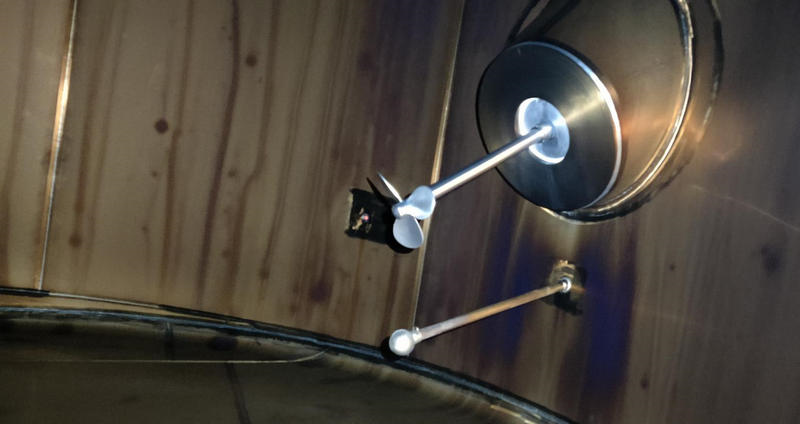

| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | Side -entry |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 700 |

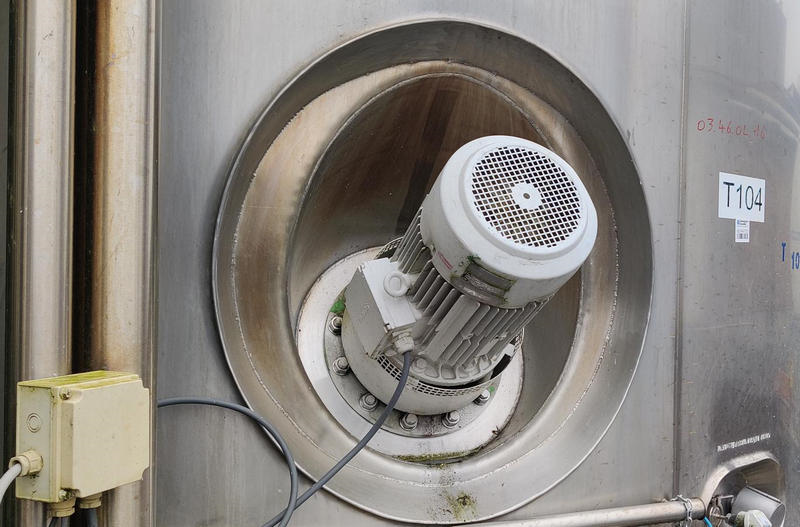

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 4,8 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 950 |
