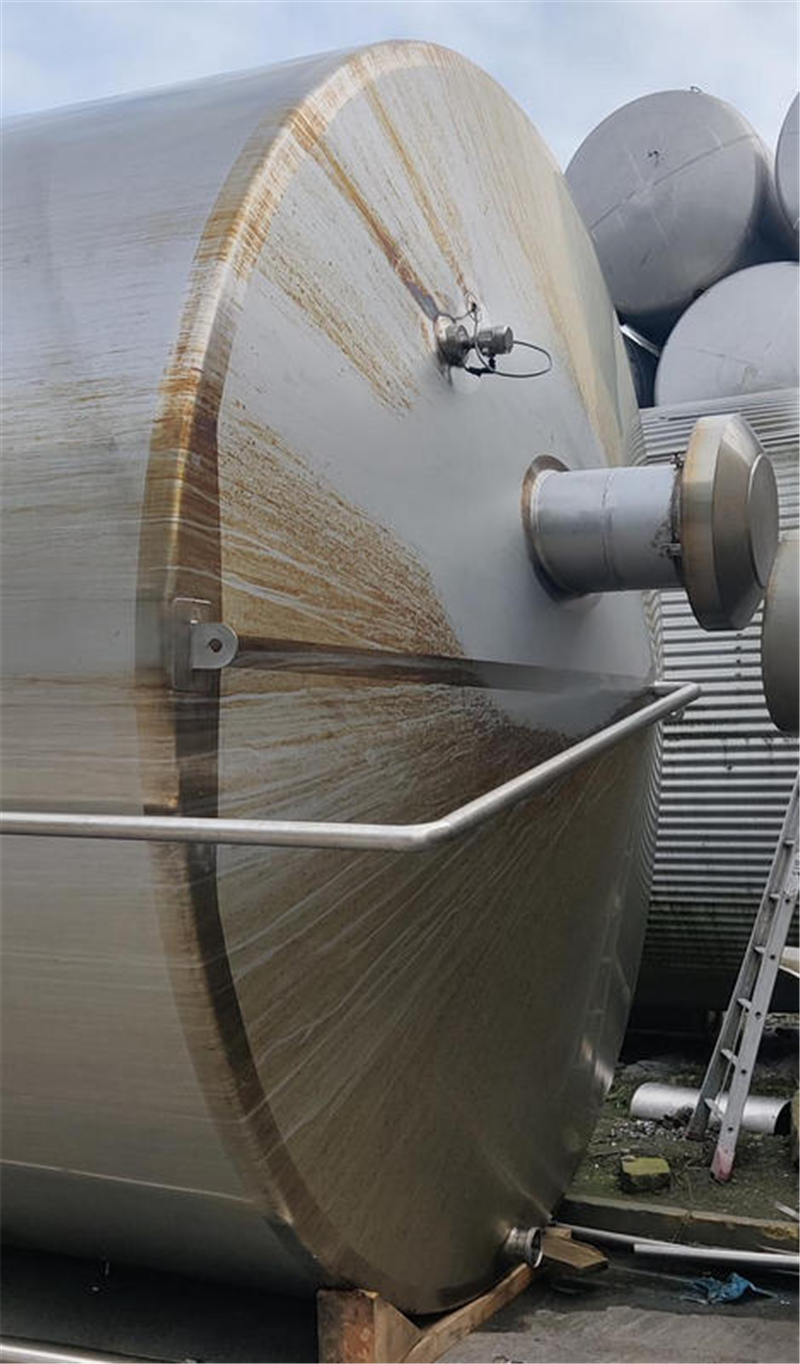

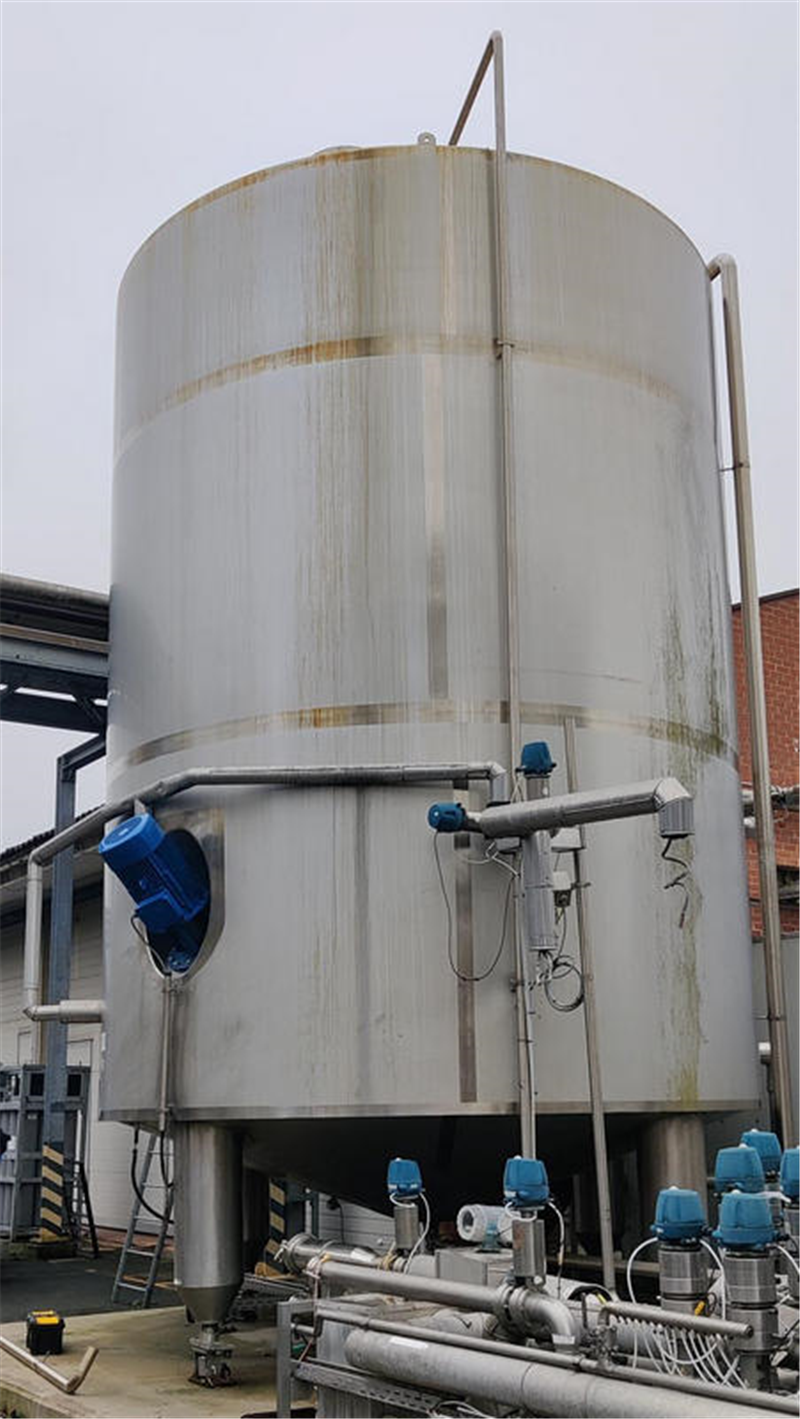

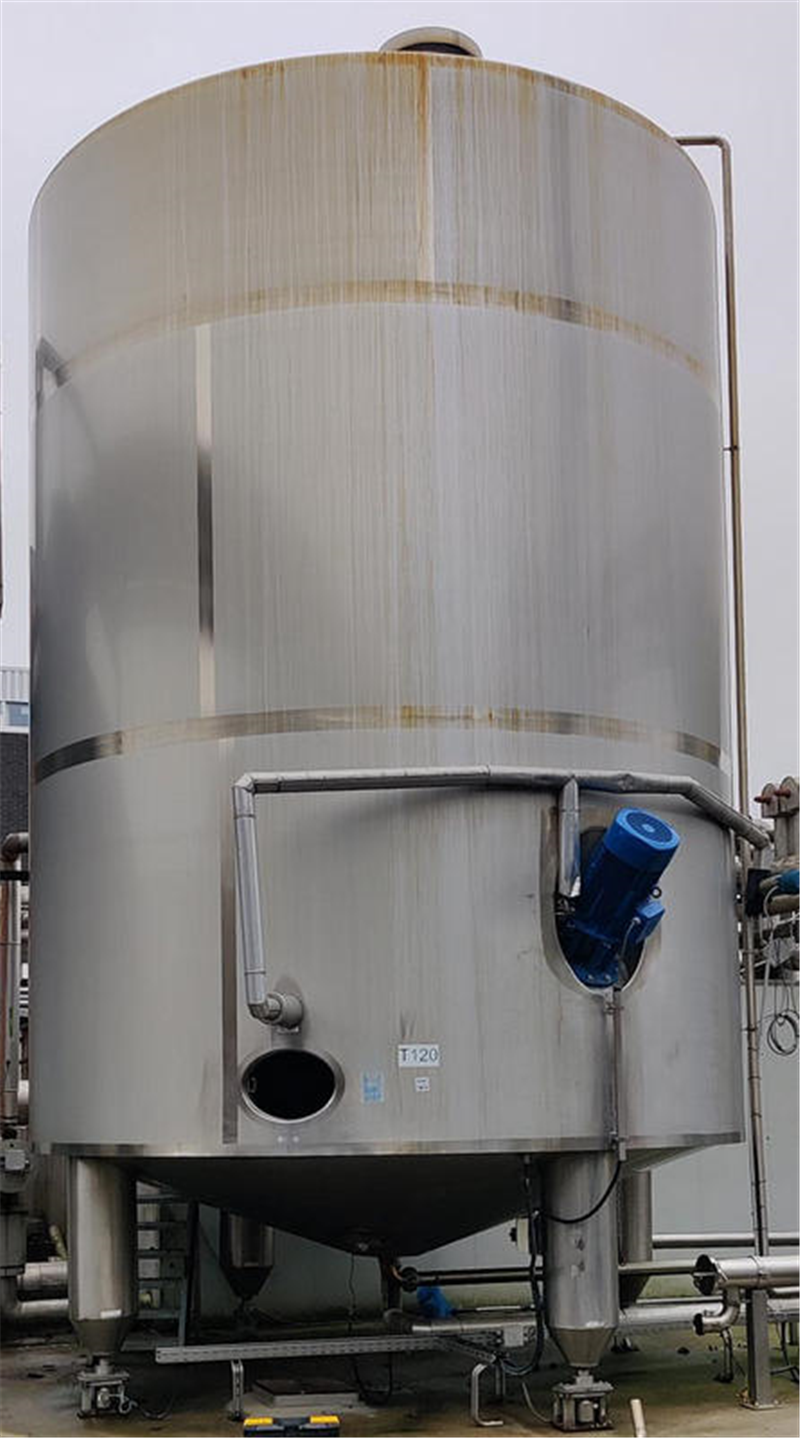

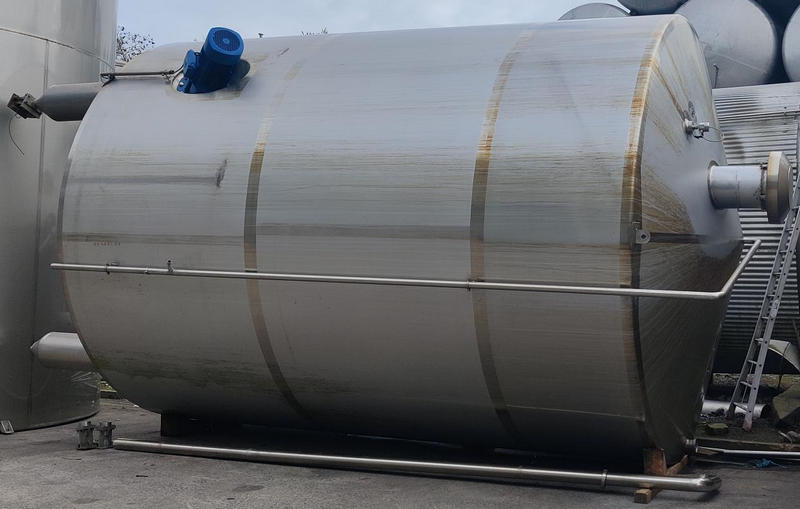

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 63000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.OL.07 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 63000 |
| Type tank | Mixing vessel |

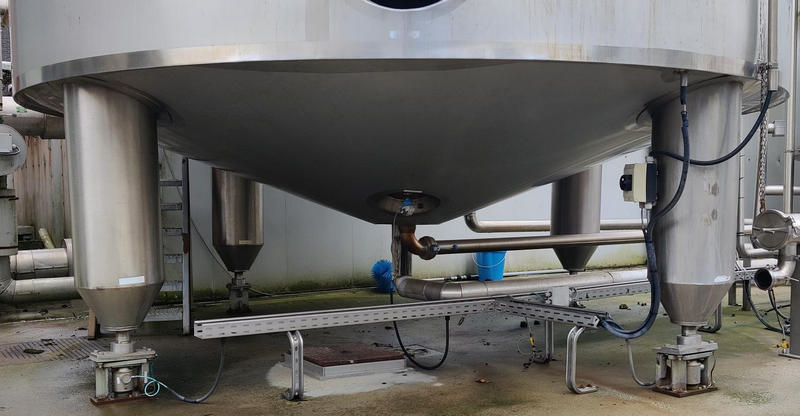

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

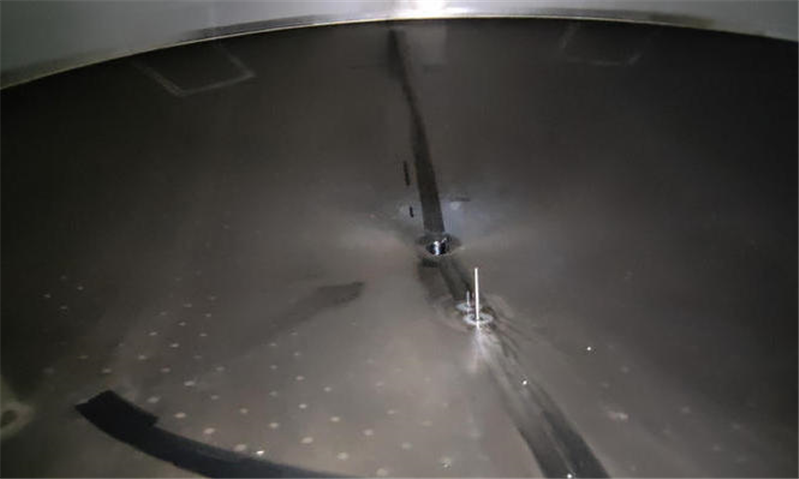

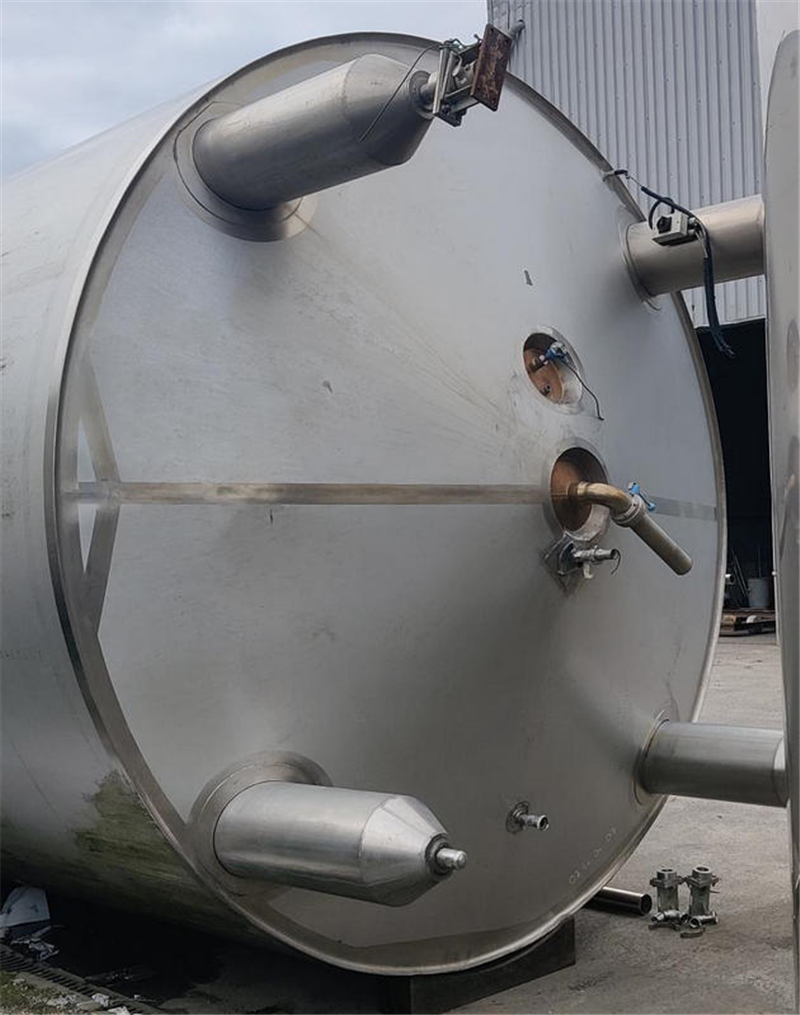

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Density (kg/dm³) | 3800 |

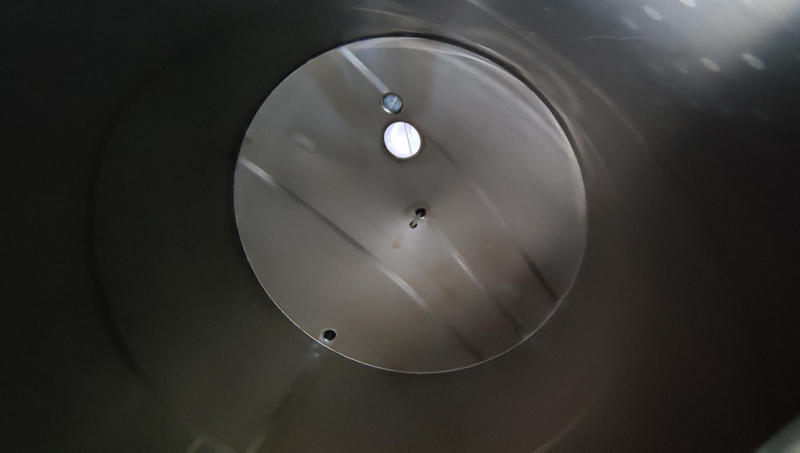

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | 420x310mm / dia 420 |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. vlinderkraan |
| Diameter of outlet (mm) | 80 |
| locality | On location |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 3800 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,8 |
| Bottom thickness (mm) | 3,7 |
| Periphery (mm) | 12470 |
| Cylindrical length (mm) | 5100 |
| Height bottom (mm) | 500 |
| Outside diameter tank (mm) | 3970 |
| Total height (mm) | 7400 |
| Length (mm) | 4170 |
| Diameter tank (mm) | 3845 |
| Width (mm) | 3970 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 60 |
| Finishing insulation | fully welded cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |

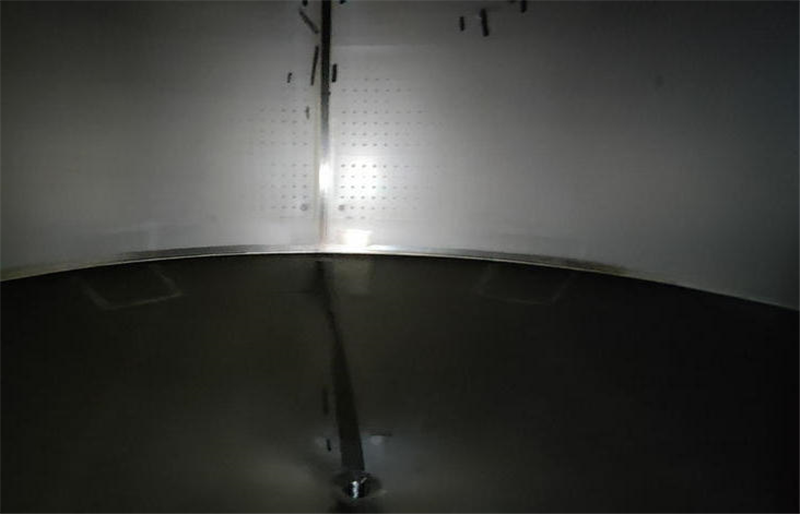

| Heating 1: Type | Dimple plate |
| Agitators | |
|---|---|
| Number of agitators | 1 |

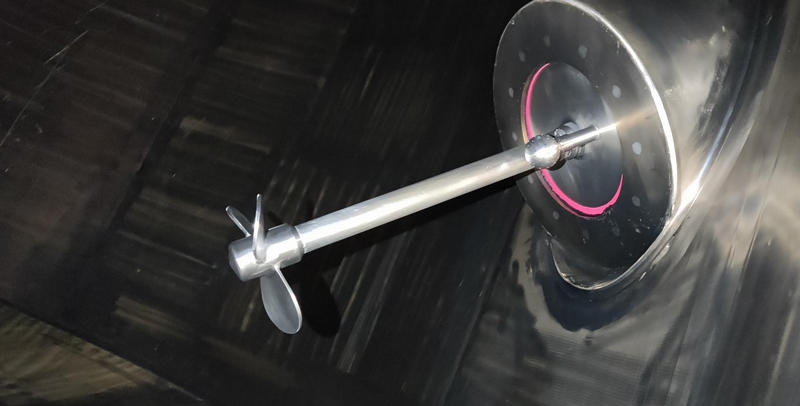

| Agitator 1: Type | Fast rotating mixer |

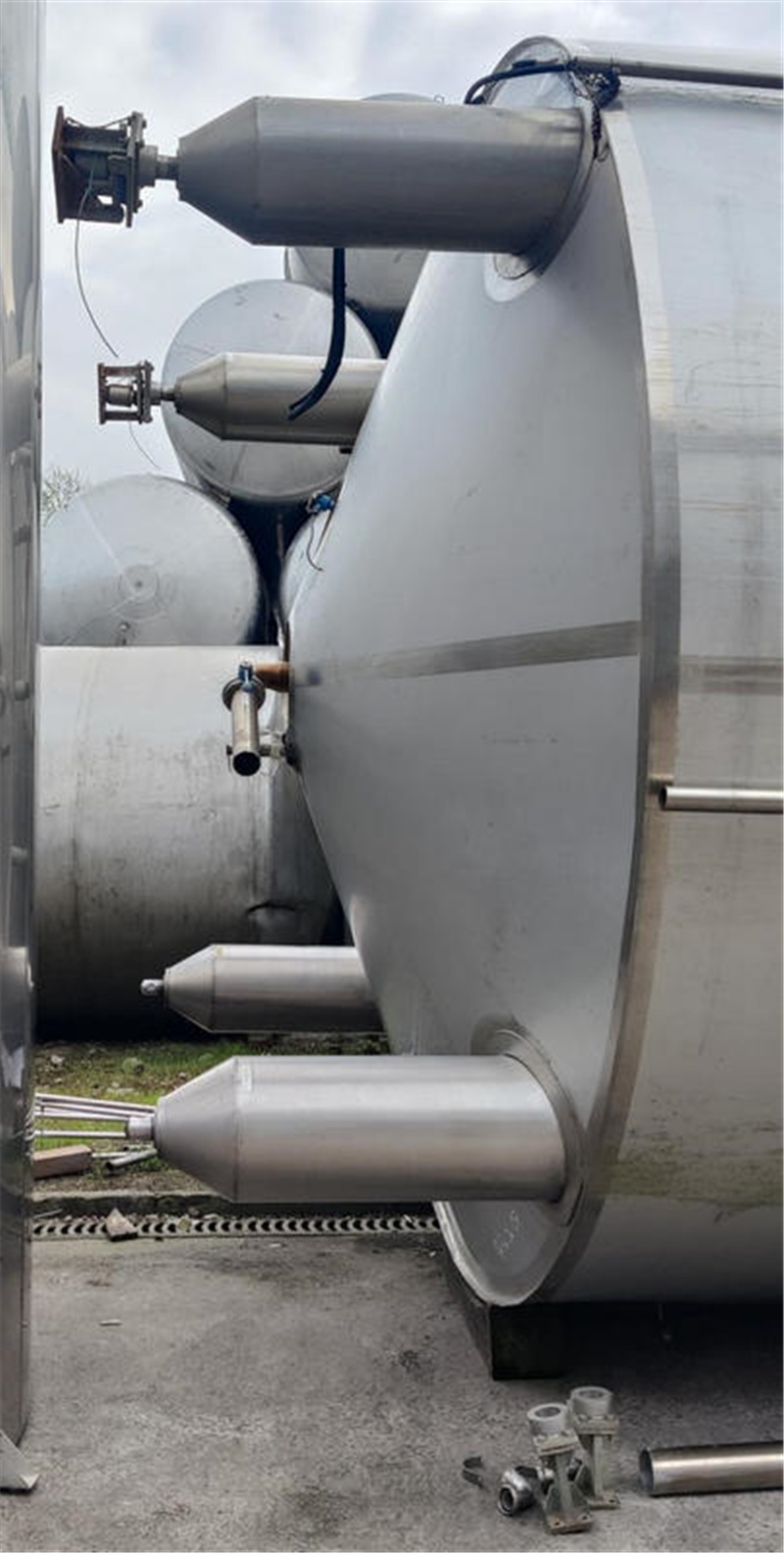

| Agitator 1: Position | Side -entry |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 700 |

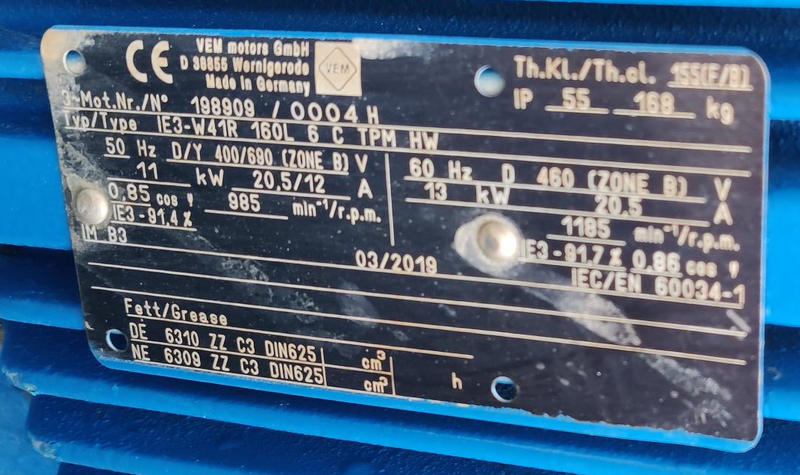

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 11 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 985 |
