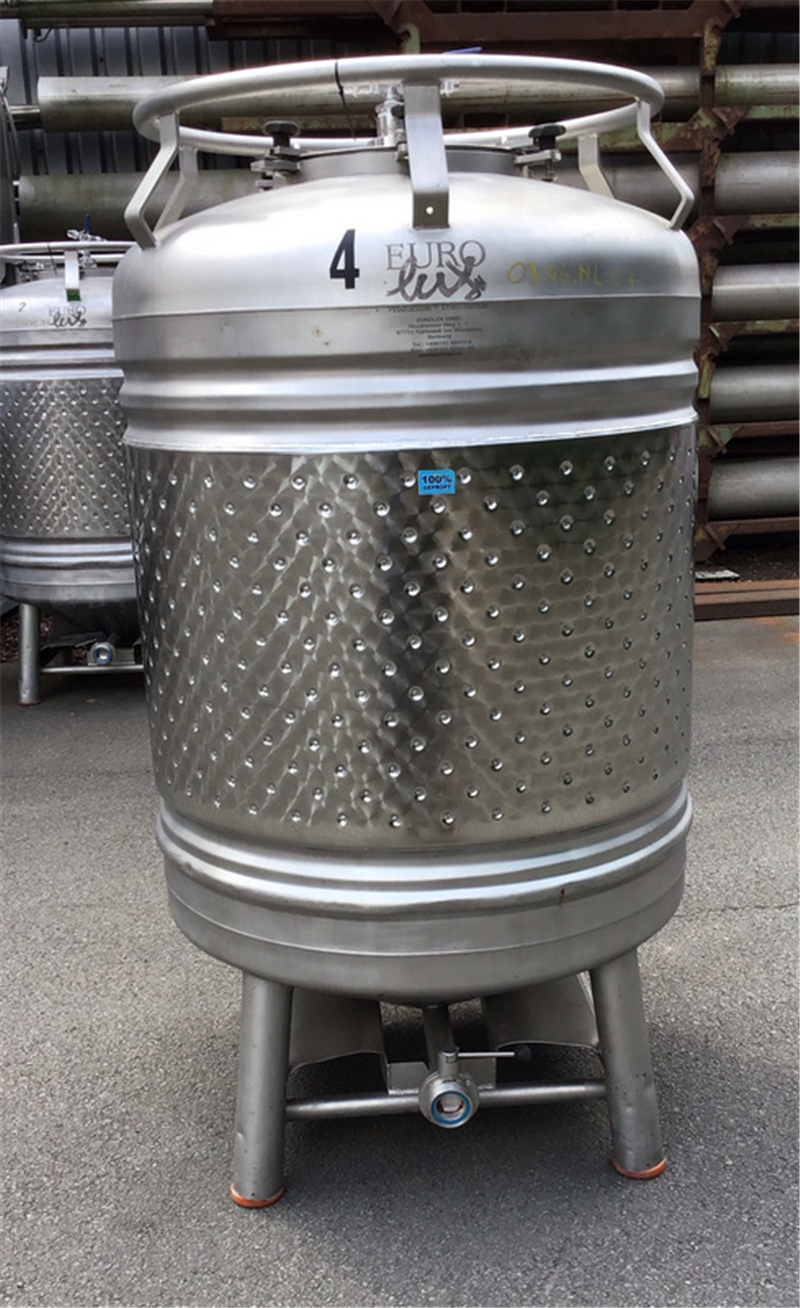

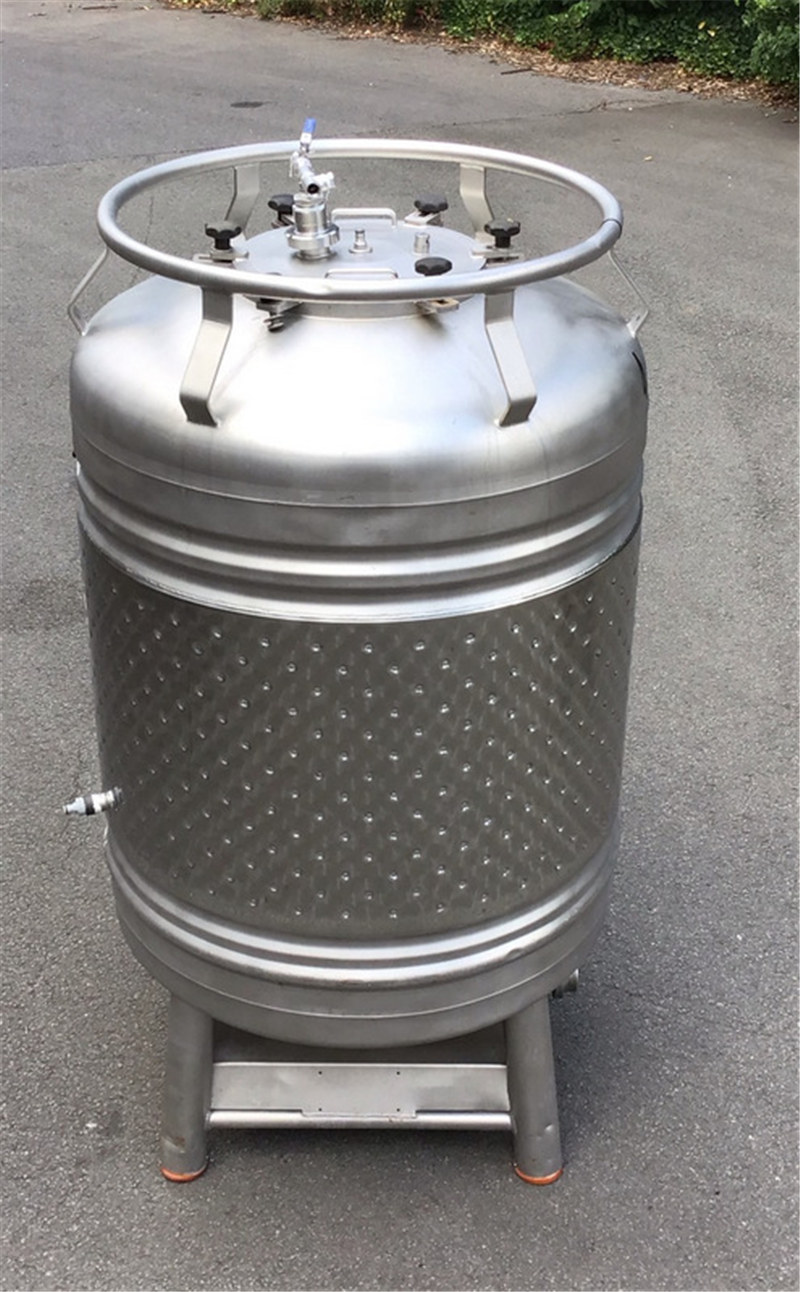

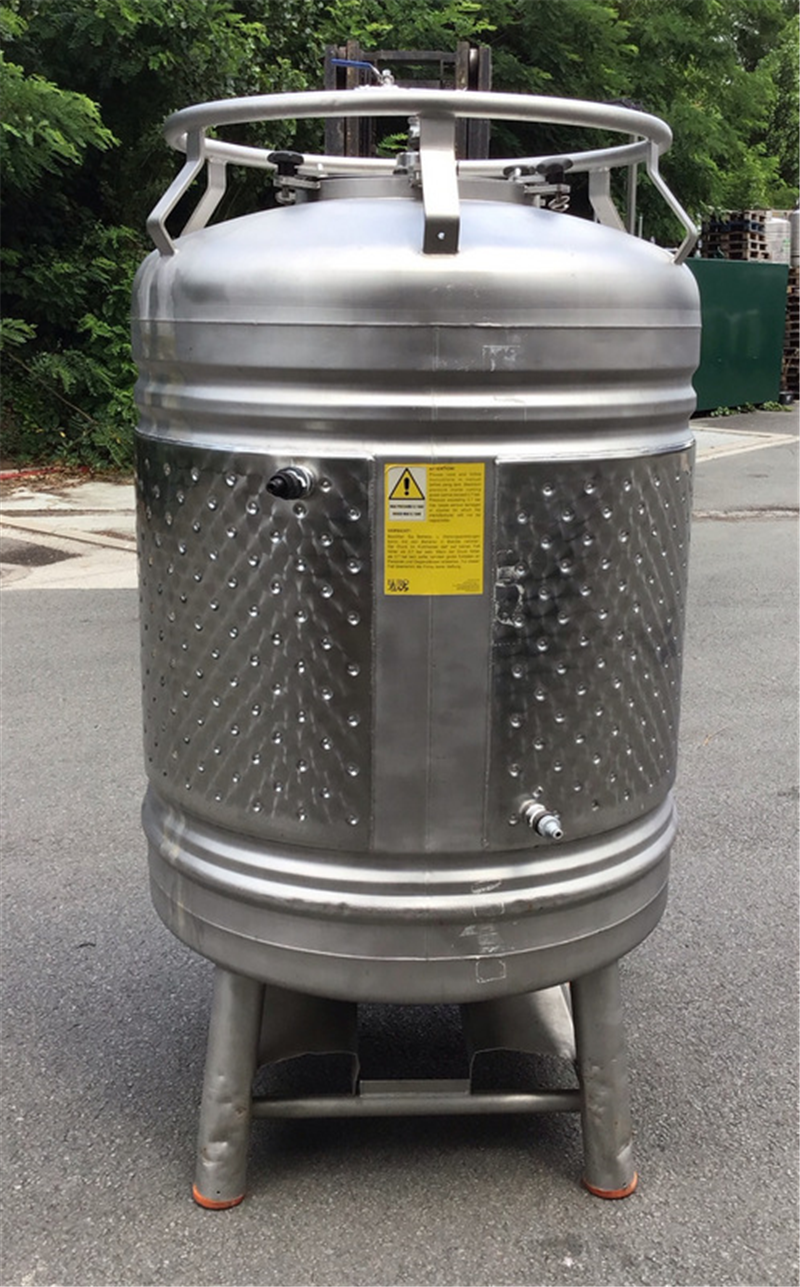

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.NL.07 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 1000 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |

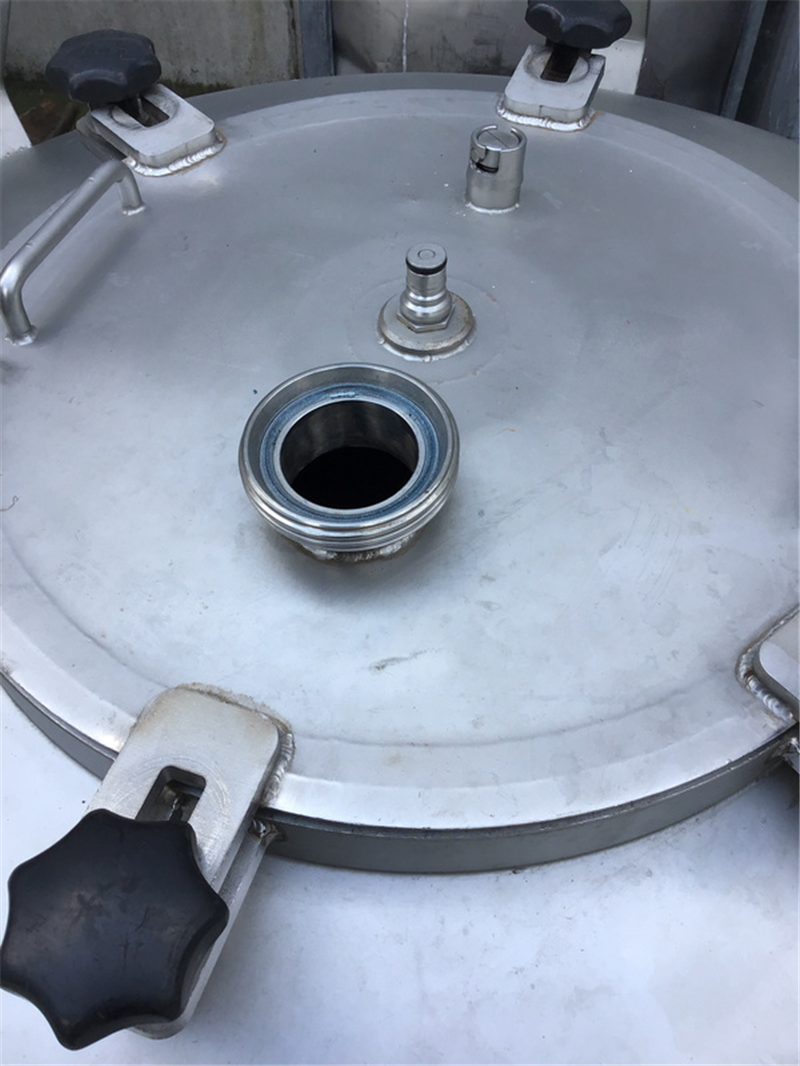

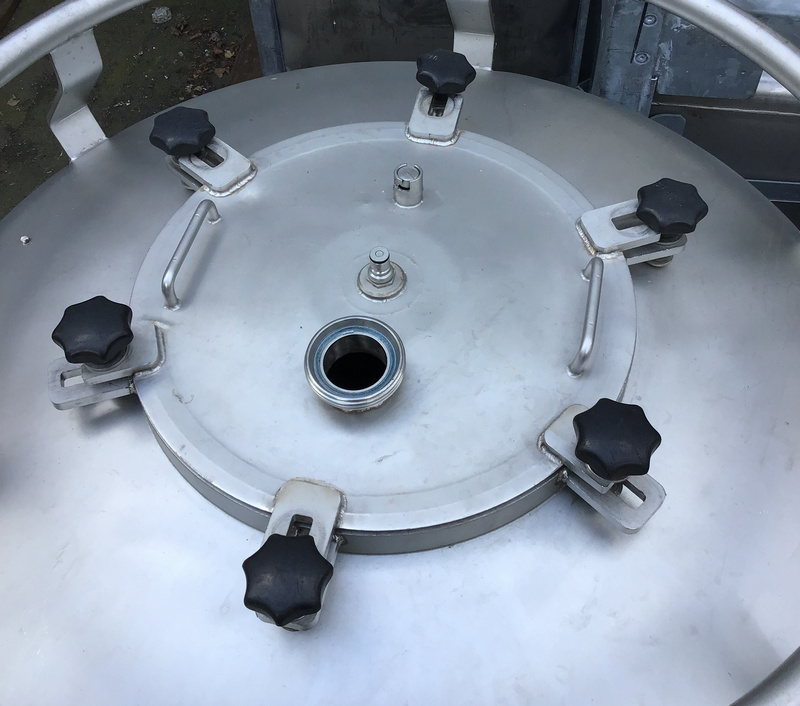

| Number of manhole | 1 |
| Position of manhole (s) | Top |

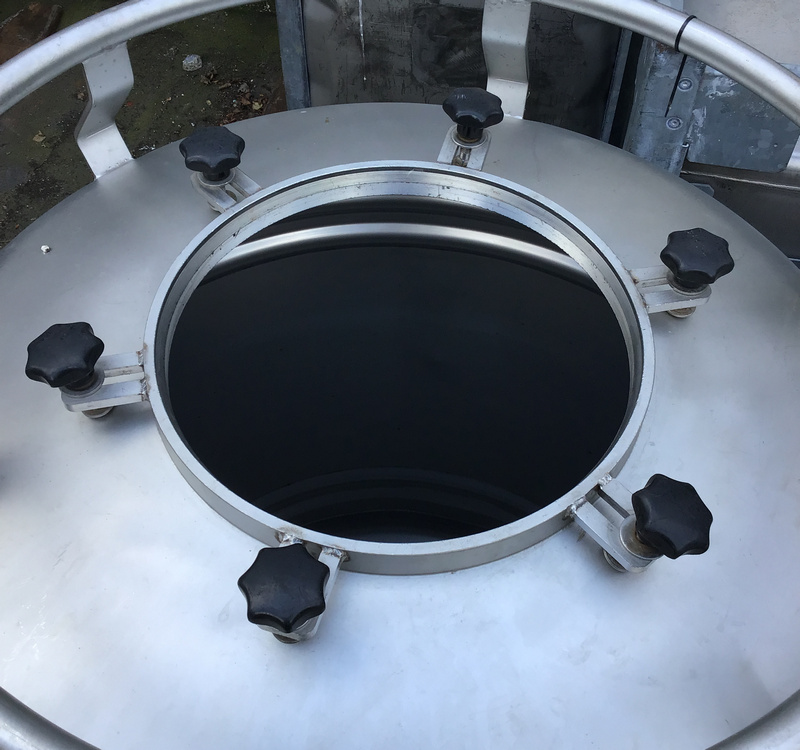

| Dimensions of manholes | dia. 400mm |
| Tank with total drain? | Yes |

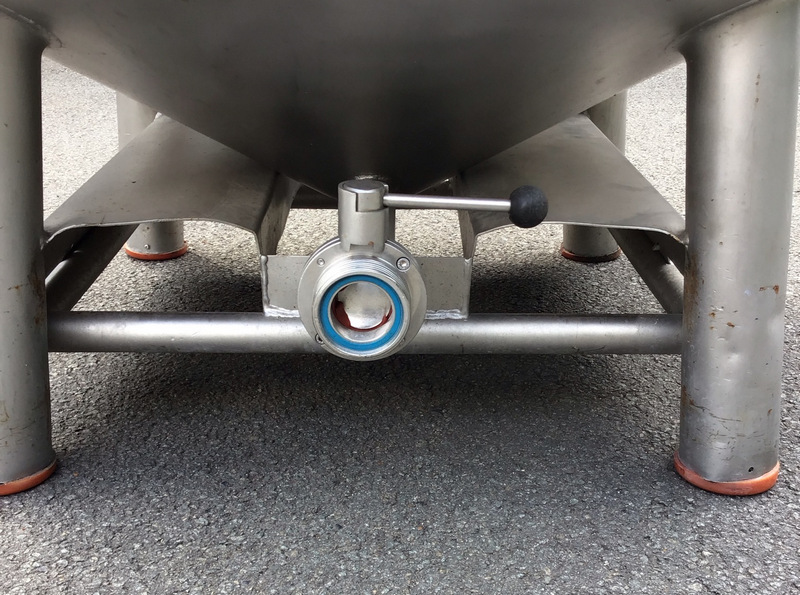

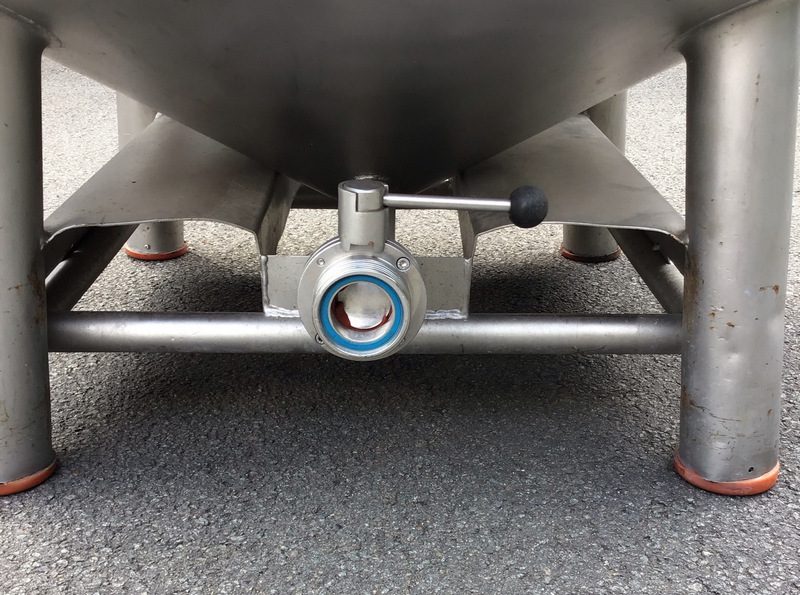

| Type of outlet (s) | Vlinderklep DN 50 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 190 |
| Condition | Used |
| Manufacturer | Euro Lux |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3,2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3,2 |
| Periphery (mm) | 3180 |
| Cylindrical length (mm) | 1060 |
| Height bottom (mm) | 280 |
| Outer wall thickness (mm) | 2 |
| Total height (mm) | 1850 |
| Length (mm) | 1100 |
| Diameter tank (mm) | 1000 |
| Width (mm) | 1100 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

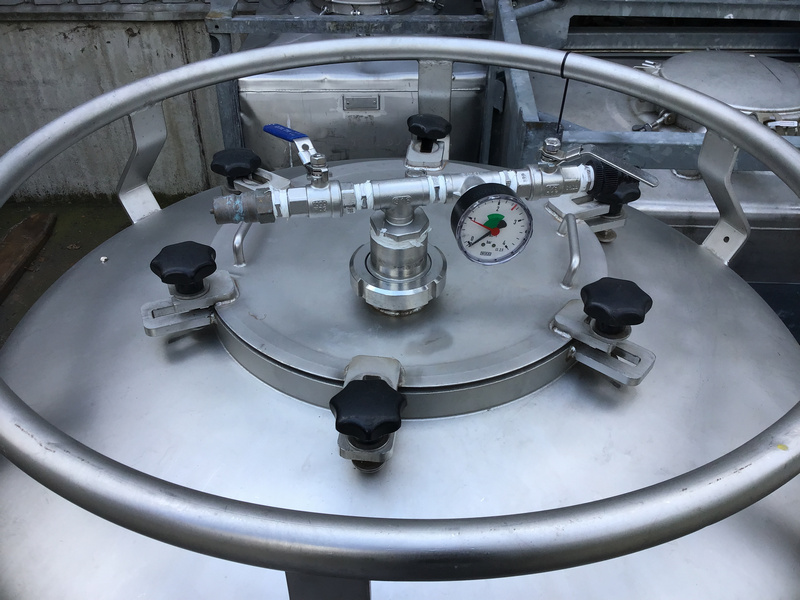

| Description (EN) | 620mm high cooling/heating jacket with 1/2" inlet and 1/2" outlet, max working pressure 2.0 Bar -- Manhole cover with 2 handles, approximately 400mm, equipped with pressure relief valve, CO2 valve DN6.5 and DN 50 (SMS connection) -- Tank test pressure +5.2 bar, Tank working pressure +3.4 bar -- Permissible working vacuum -0.15 bar -- Permissible working temperature -10/+130°C -- Stackable. |
