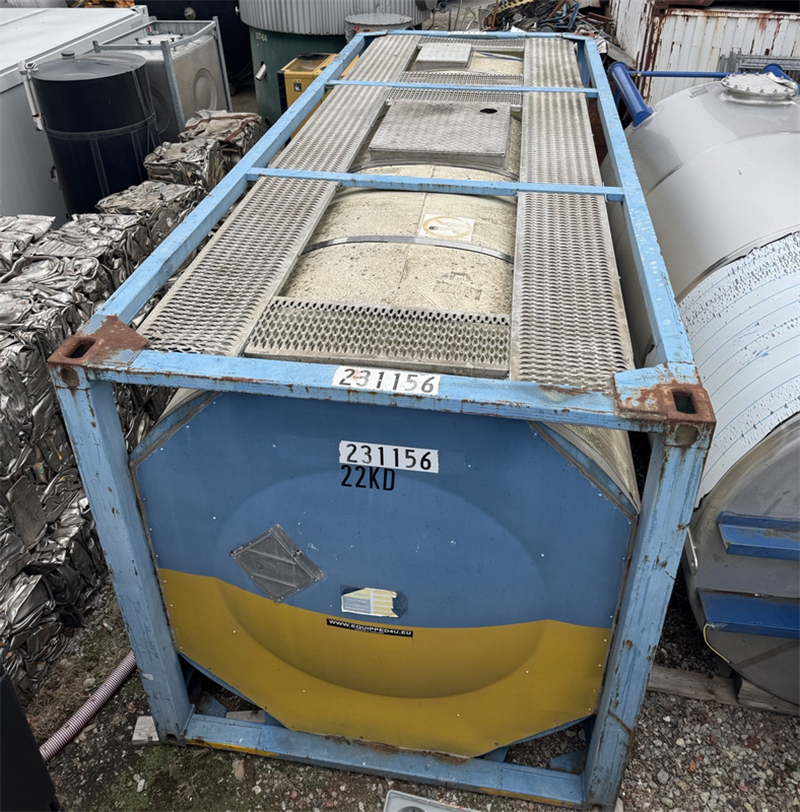

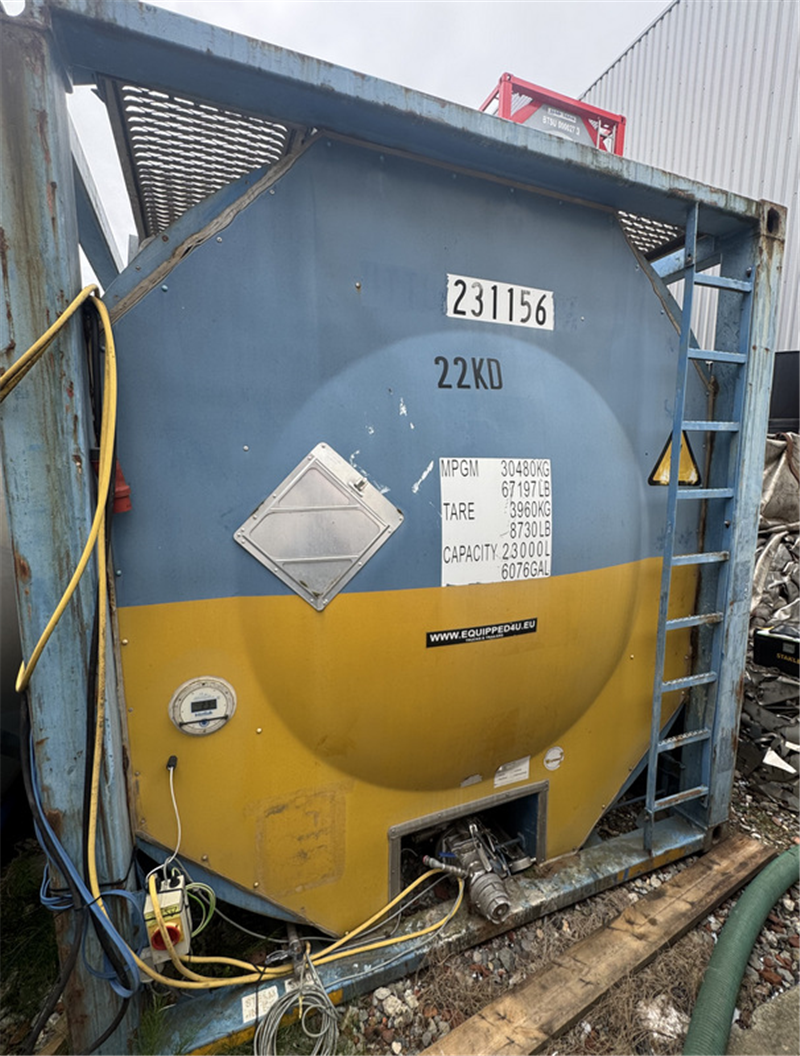

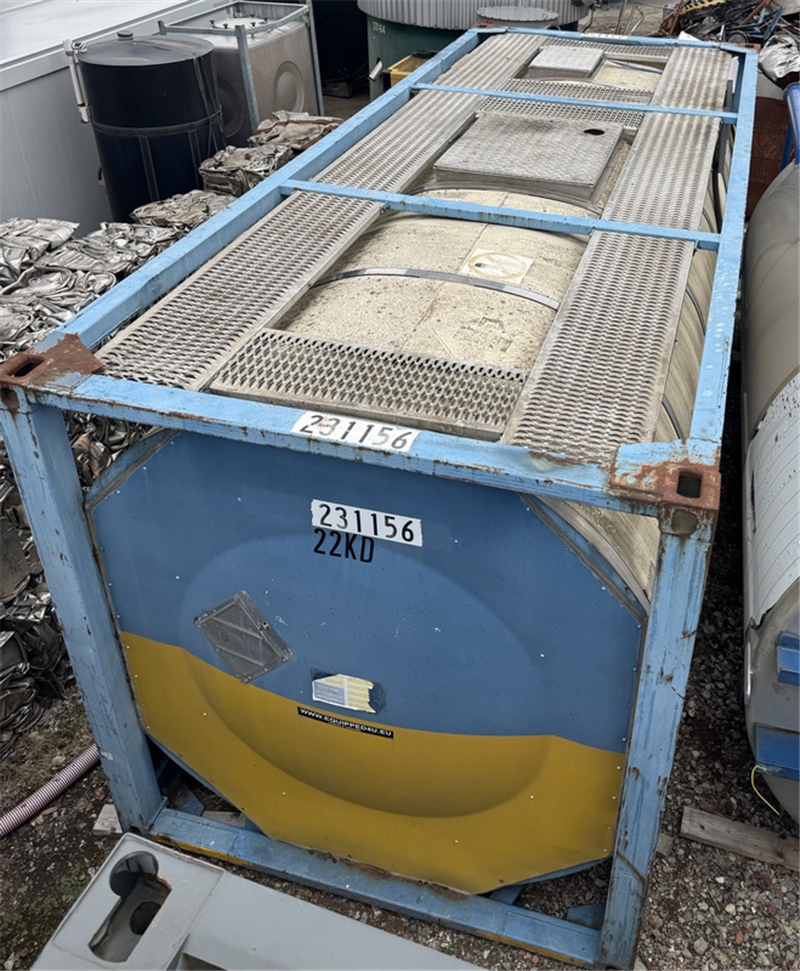

Used mobile tank/container
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 23000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.NL.01 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 23000 |
| Type tank | Mobile tank/container |
| Size | ISO container 20' |
| Fixation | - |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 4 |

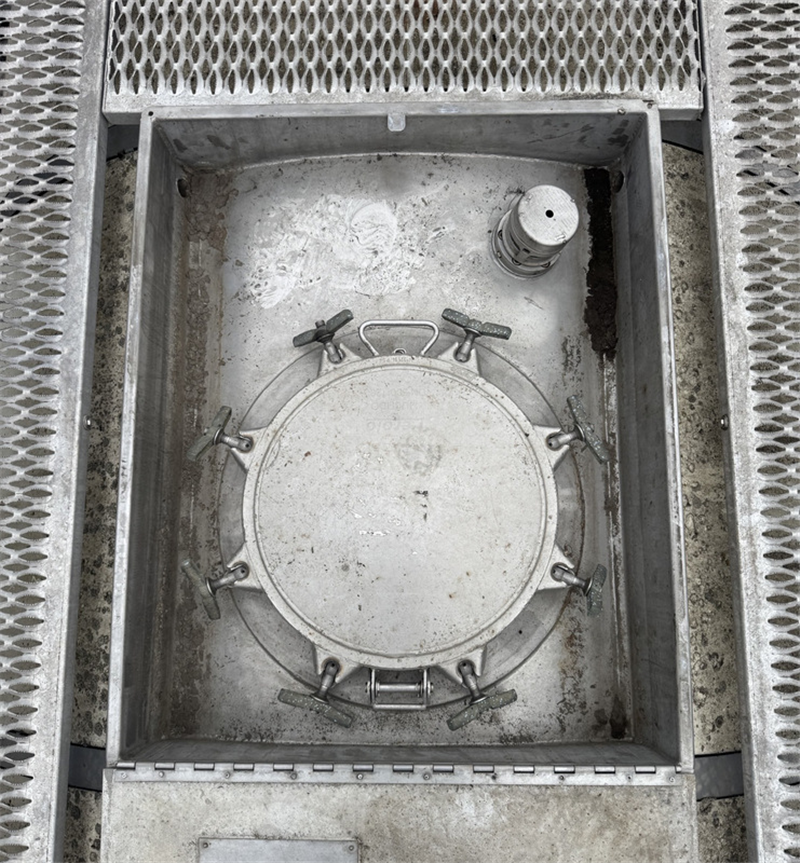

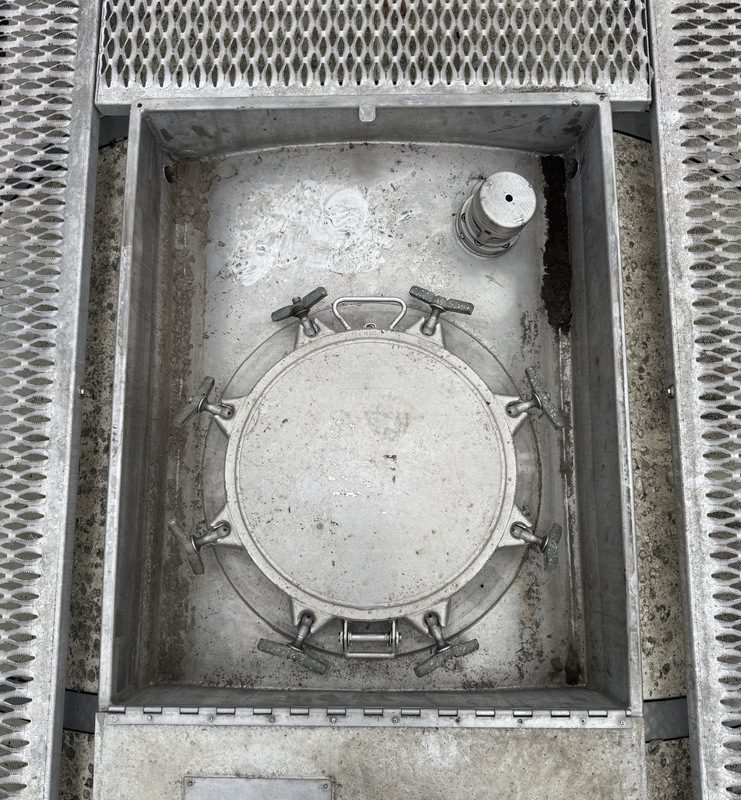

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | DIA. 500 |
| Tank with total drain? | Yes |

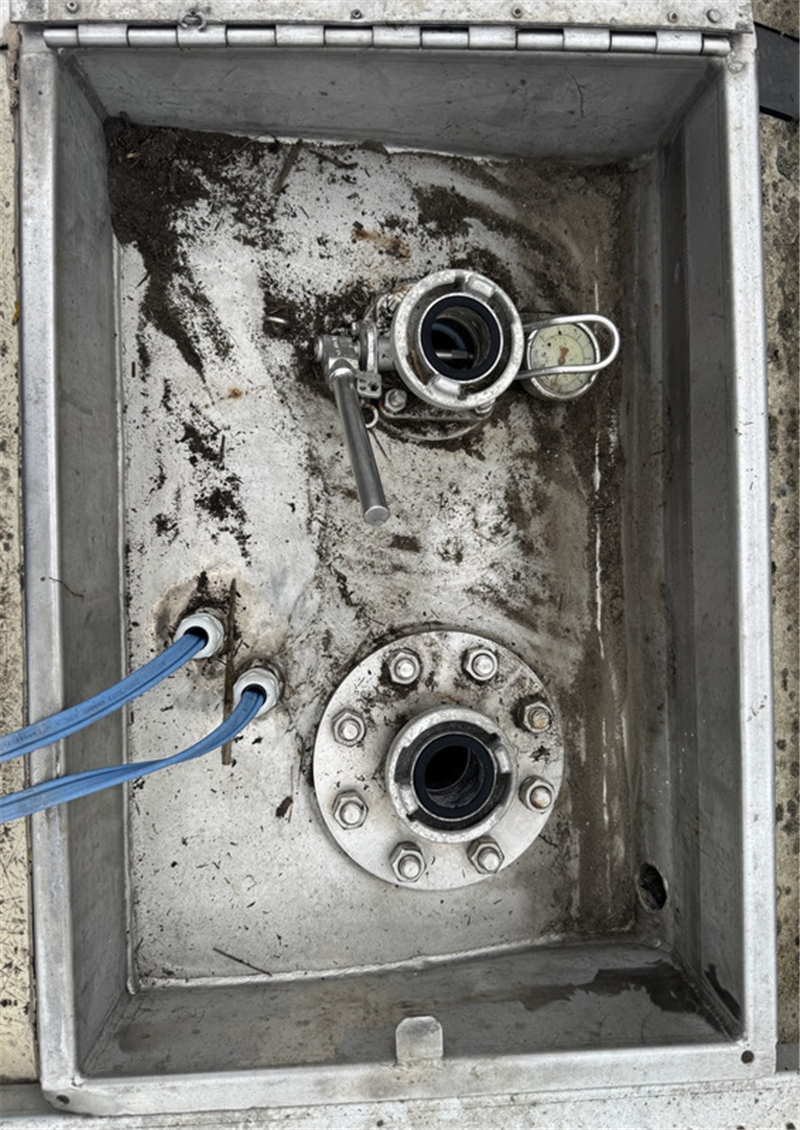

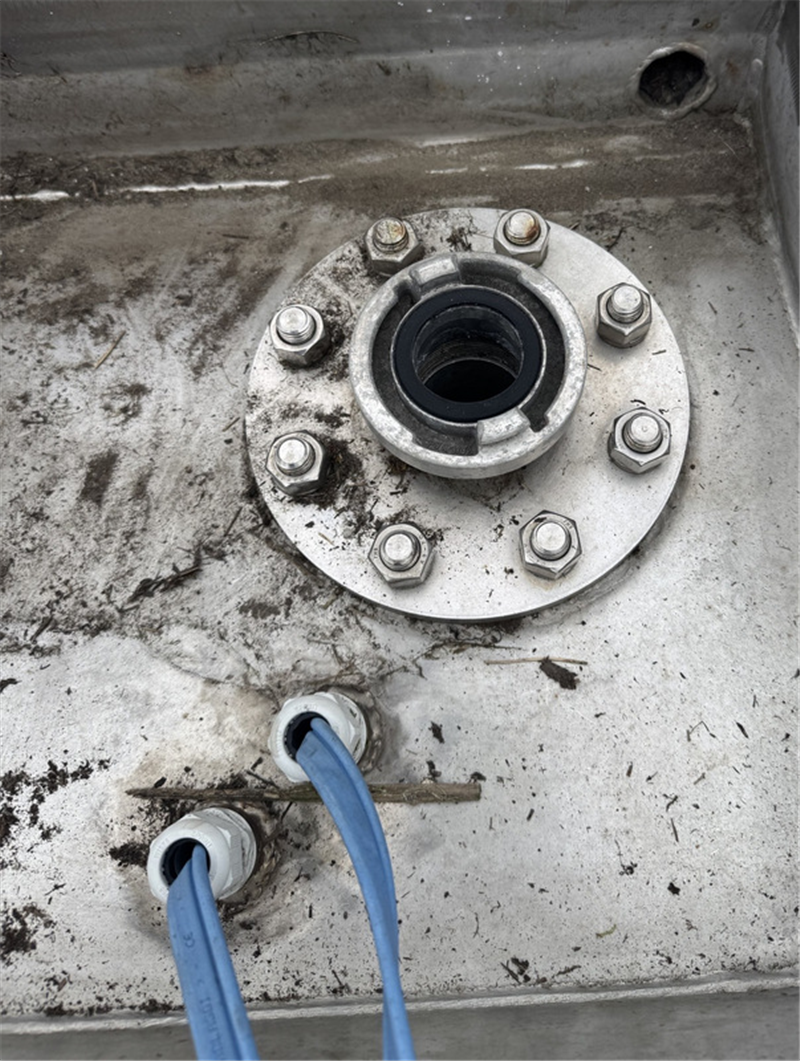

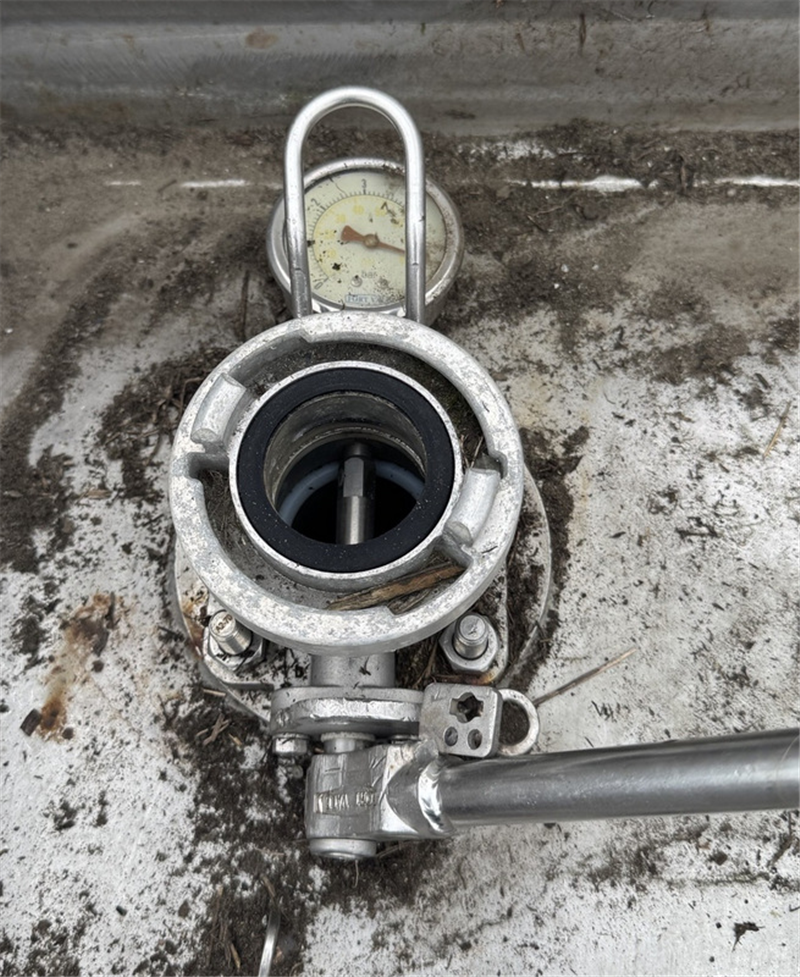

| Type of outlet (s) | Storz brandweeraansluiting |
| Diameter of outlet (mm) | 3" |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 3960 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | Vanttool |
| Year Built | 1994 |
| Design Code | ADB - BID - ASME |
| Construction data available | No |
| Working temperature (° C) | 110 |
| Appendix 1 | 0346NL01_heatingsystem.pdf |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,4 |
| Bottom thickness (mm) | 6,6 |
| Total height (mm) | 2591 |
| Length (mm) | 6058 |
| Diameter tank (mm) | 2414 |
| Width (mm) | 2438 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |

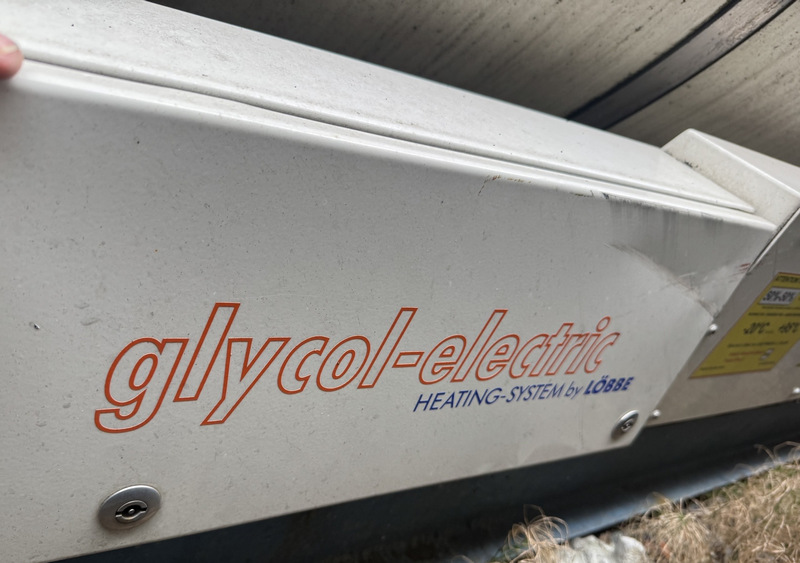

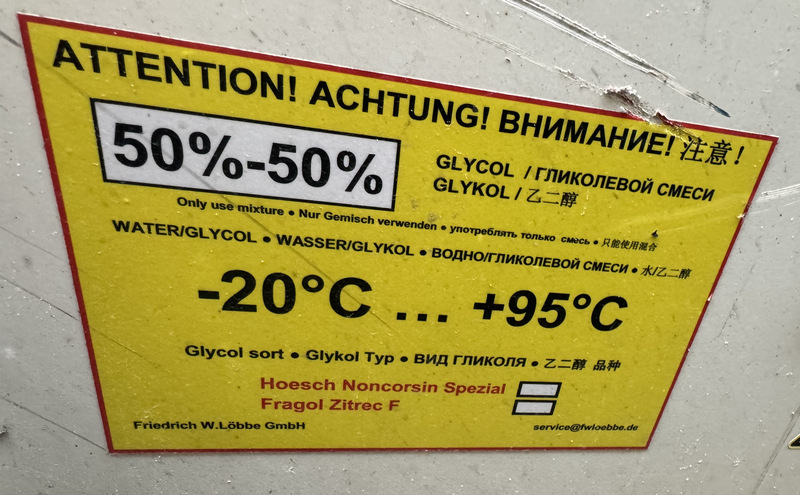

| Heating | |
|---|---|
| Number of heating type | 1 |

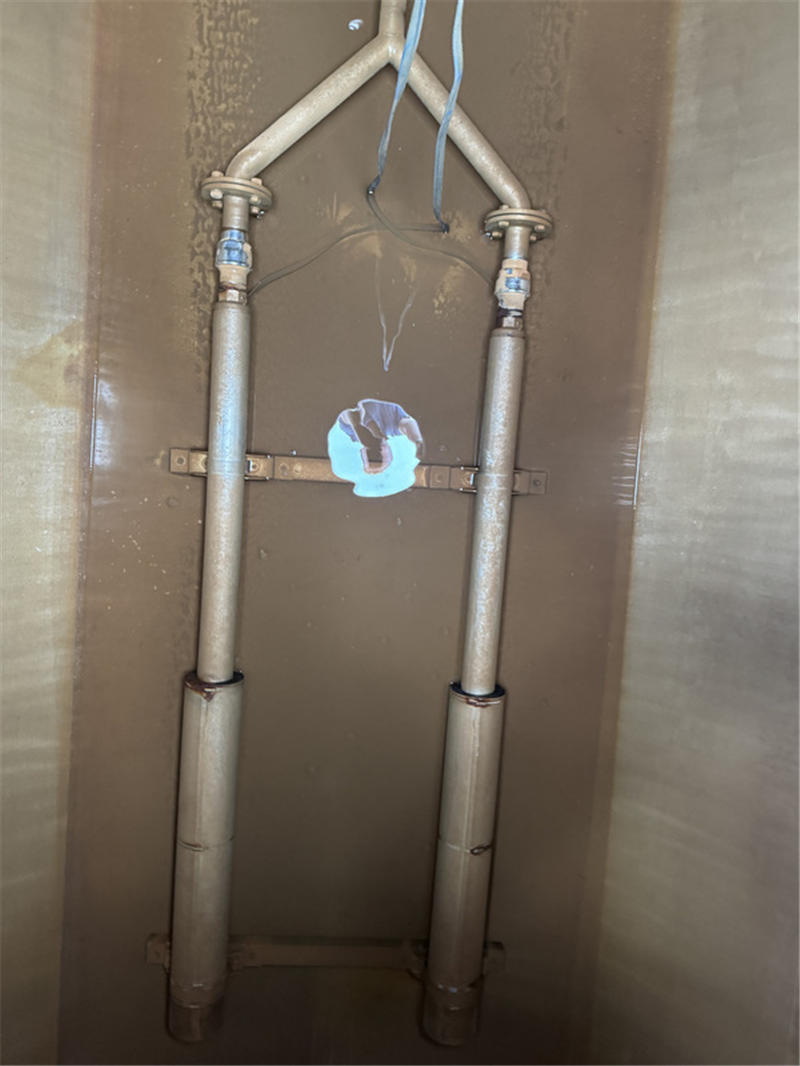

| Heating 1: Type | Heating coil only on the bottom |
| Heating 1: Max. service pressure | 4 |
| Heating 1: Max. test pressure | 4,4 |
| Heating 1: Max. design pressure °C | 110 |
