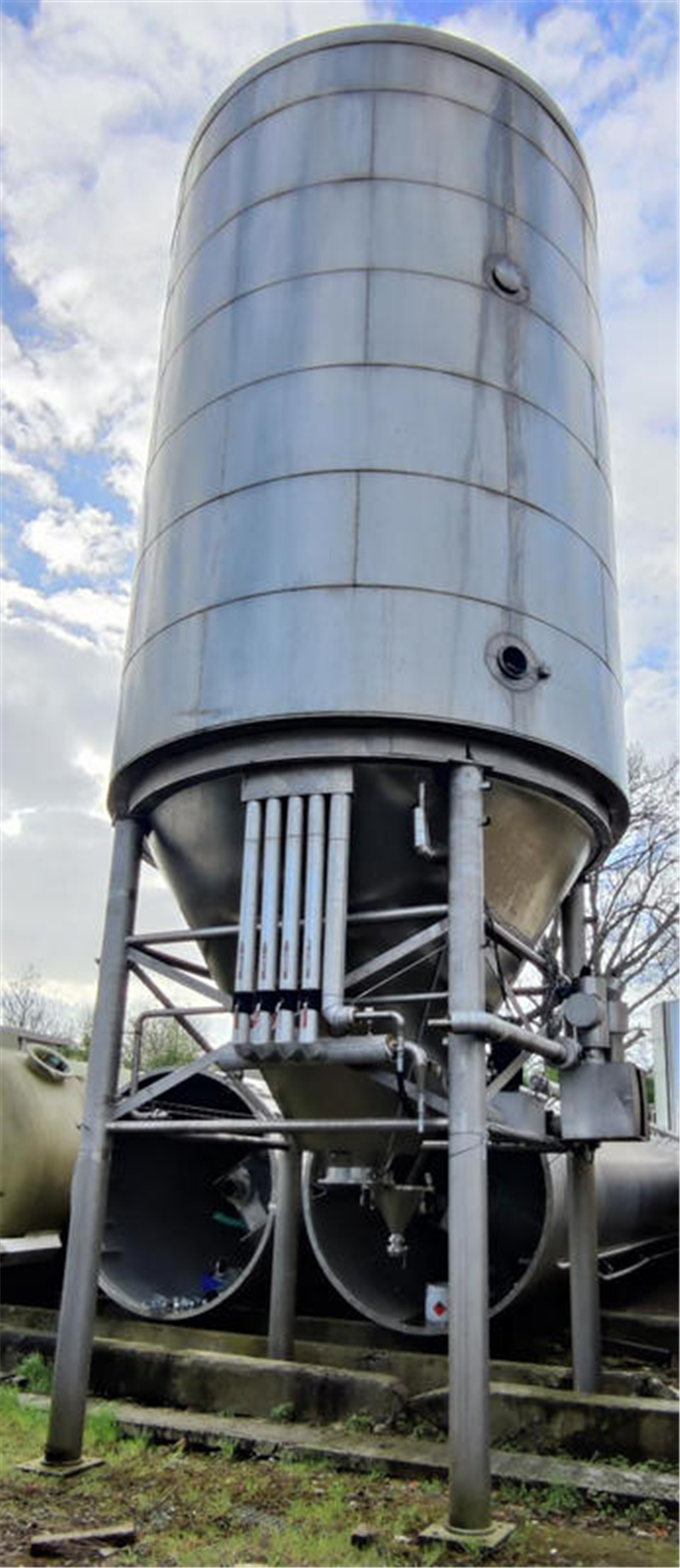

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 81100 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.LB.11 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 81100 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

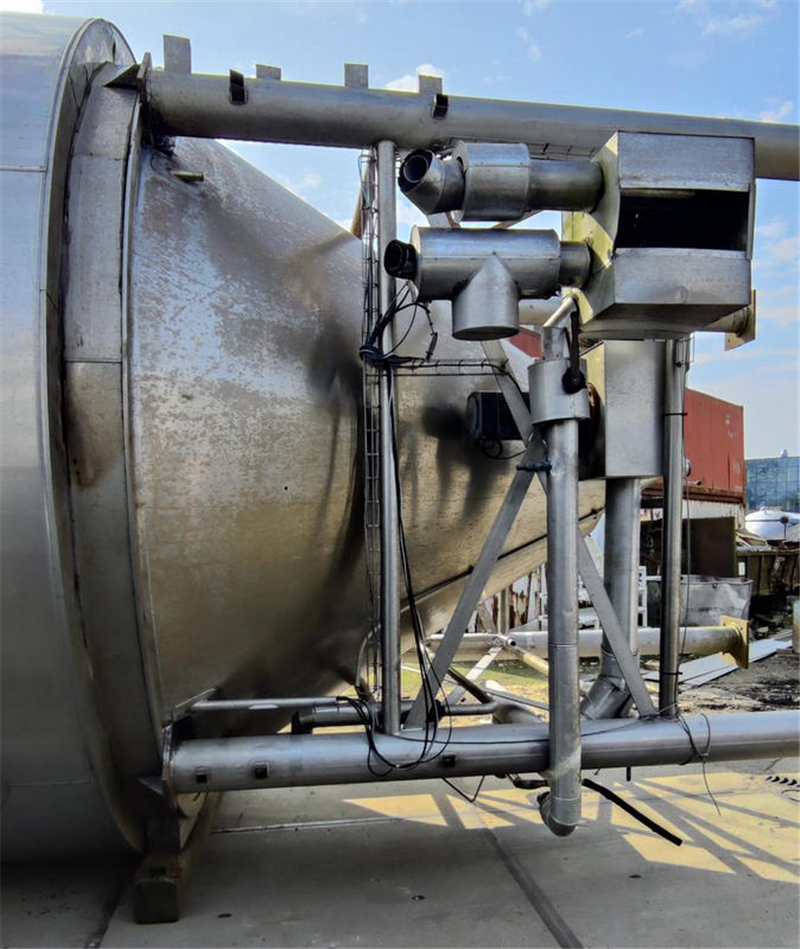

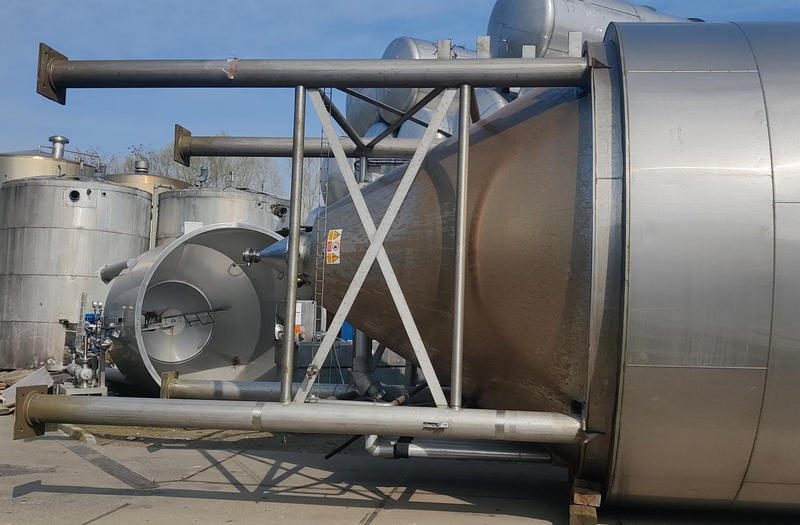

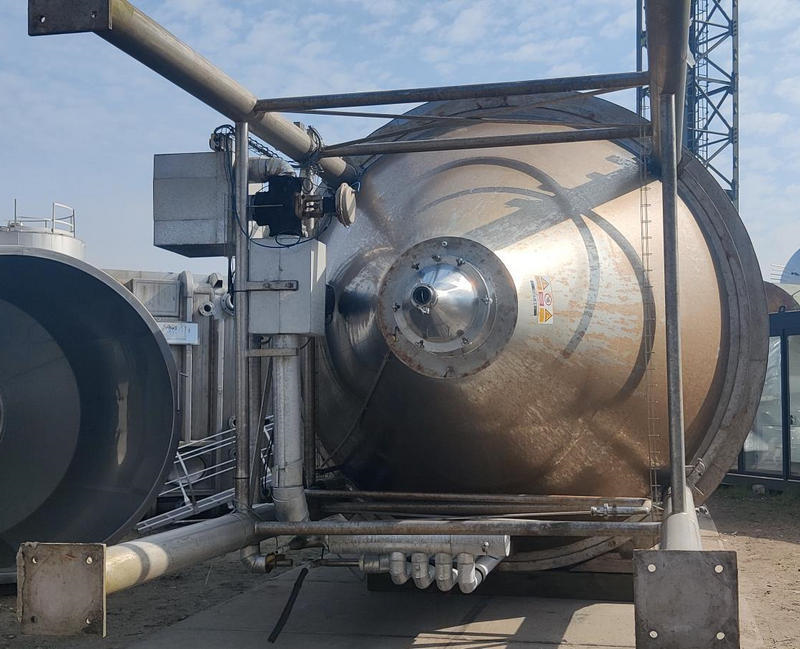

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |

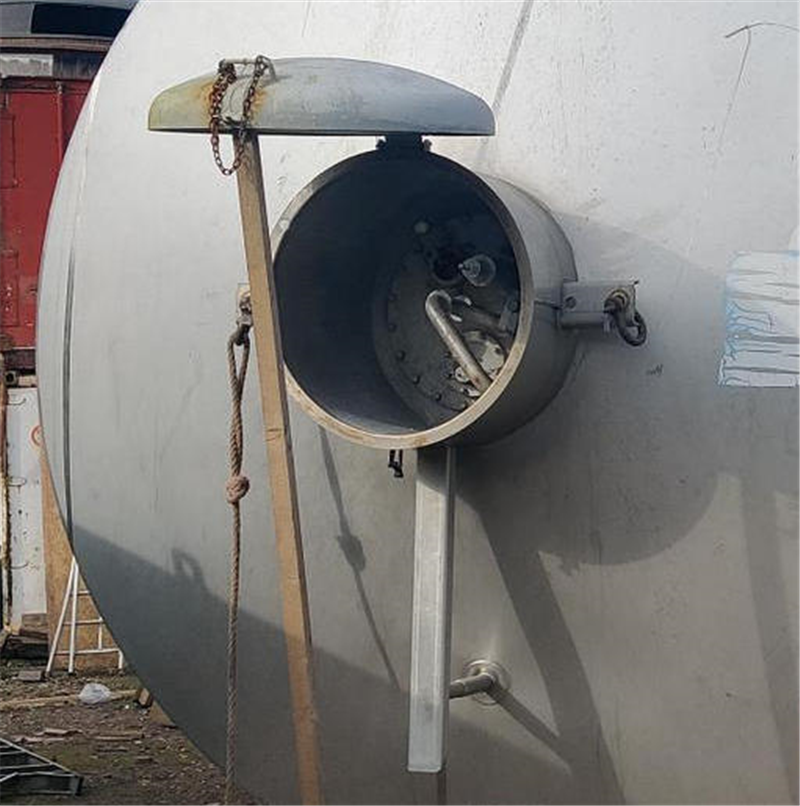

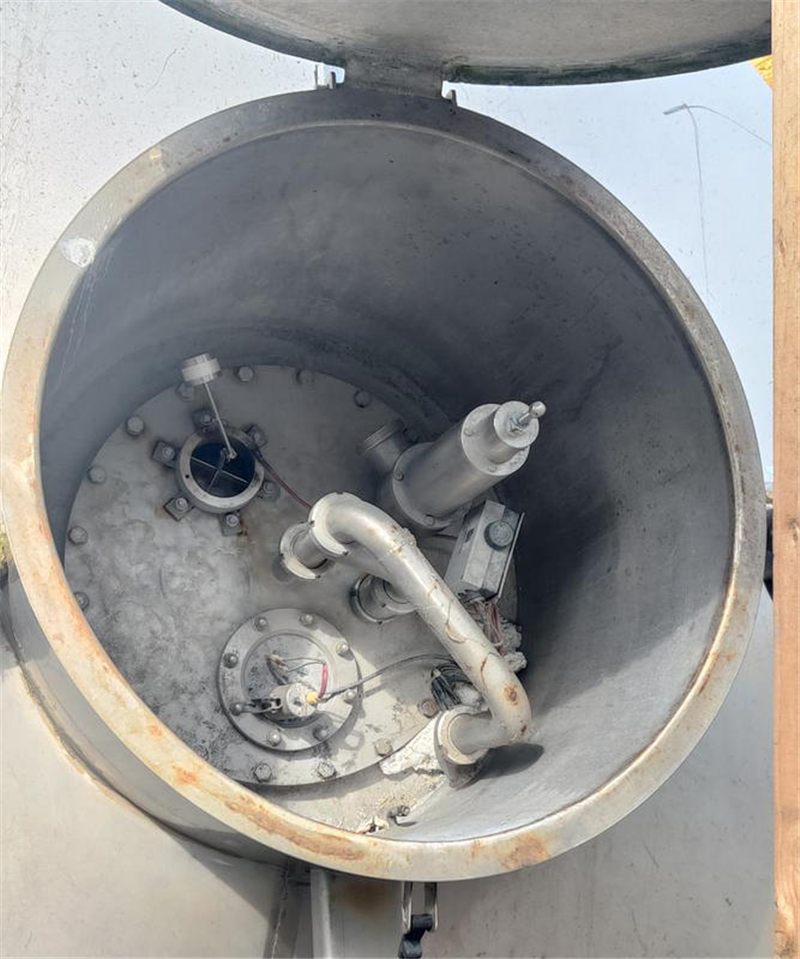

| Number of manhole | 2 |
| Position of manhole (s) | Top and bottom |
| Dimensions of manholes | dia. 600mm / dia. 400mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. vlinderkraan |
| Diameter of outlet (mm) | DN80 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | Spray tube (top) |
| Weight (kg) | 6500 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | GROSS |
| Year Built | 2002 |

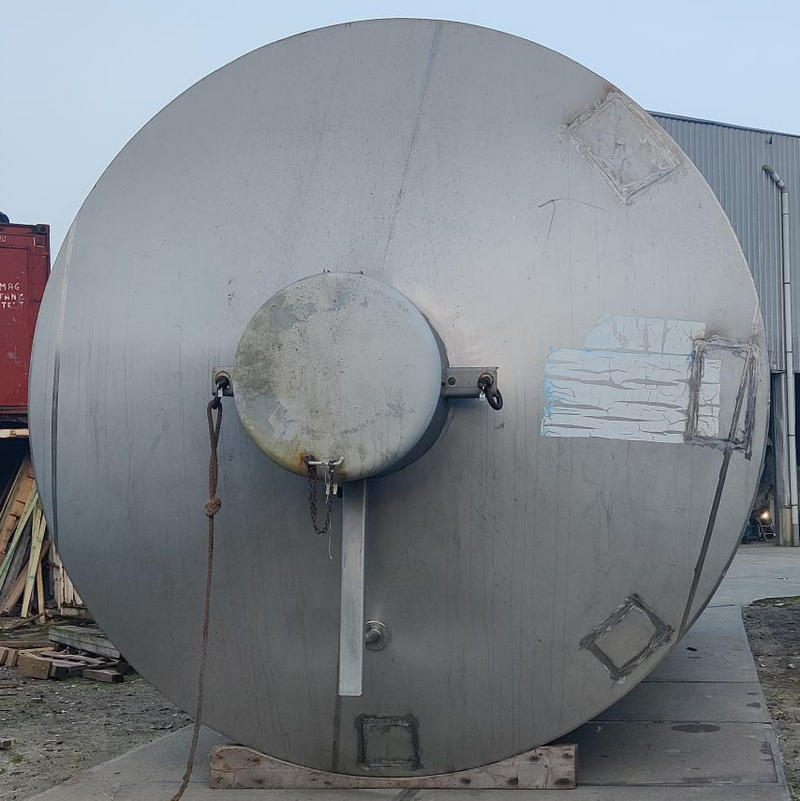

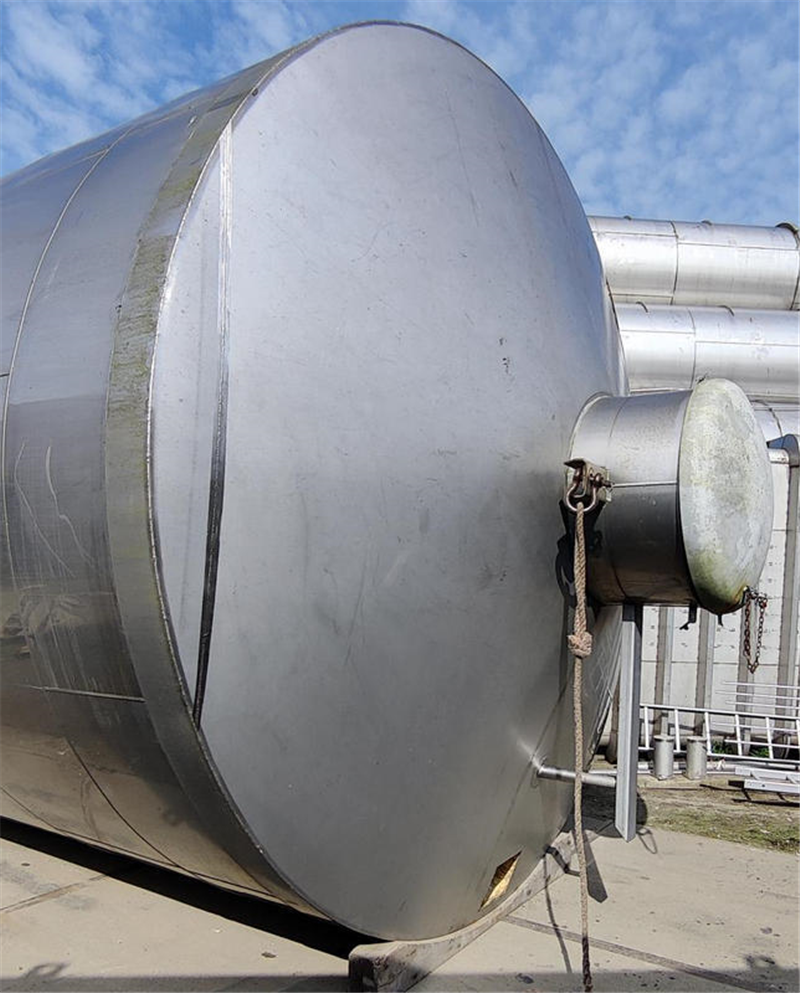

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 4,9 |
| Periphery (mm) | 13100 |
| Cylindrical length (mm) | 6000 |
| Height bottom (mm) | 2800 |
| Outside diameter tank (mm) | 4170 |
| Total height (mm) | 12000 |
| Length (mm) | 4170 |
| Diameter tank (mm) | 3760 |
| Width (mm) | 4170 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | PUR Foam |
| Thickness (mm) | 200 |
| Finishing insulation | Rivited sheet cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |

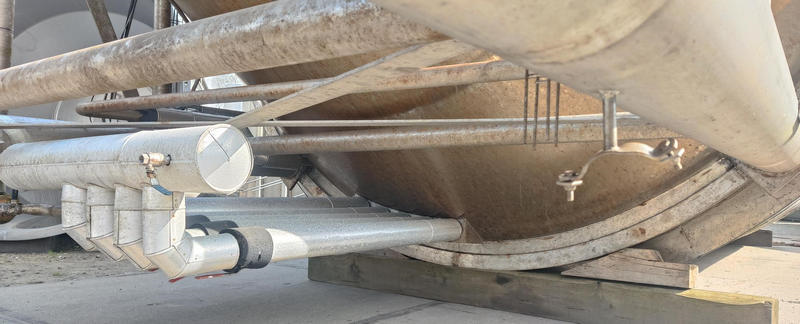

| Heating 1: Type | Halfpipe |
| Remarks | |
|---|---|
| Description (EN) | Max. pressure 2 bar --- Min/max temp -10°C/+50°C --- Test pressure 2.86 bar |
