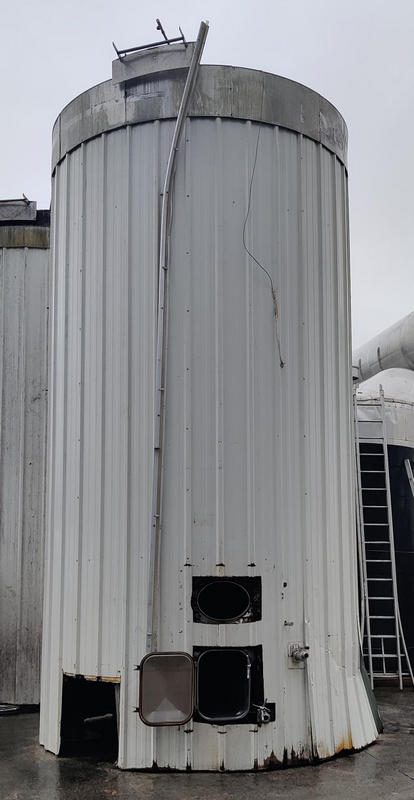

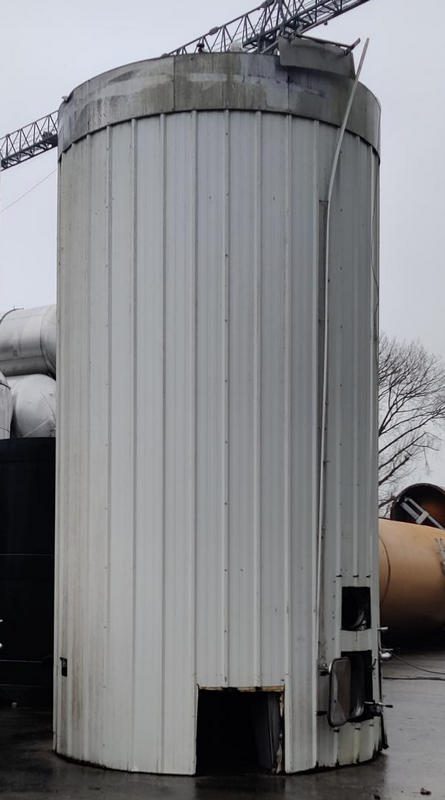

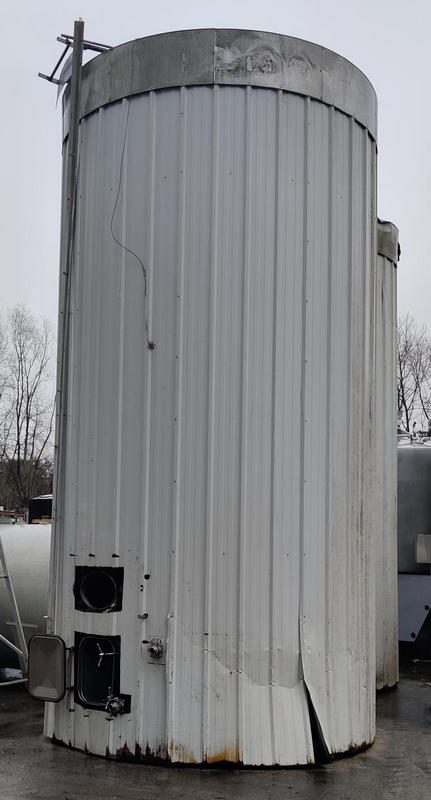

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 33000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.LB.06 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 33000 |
| Type tank | Storage tank |

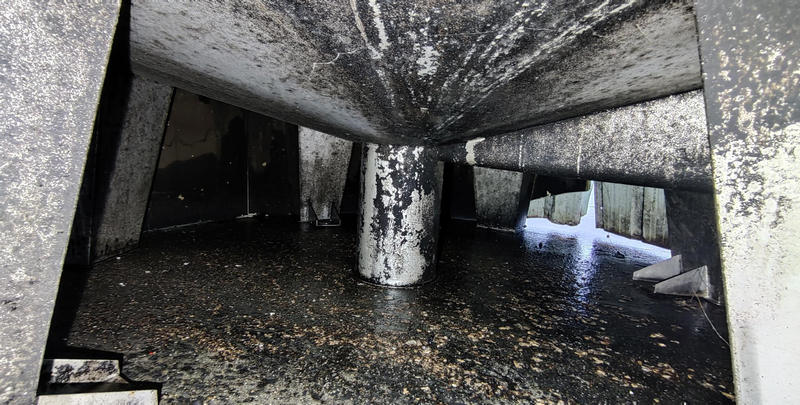

| Fixation | 7 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

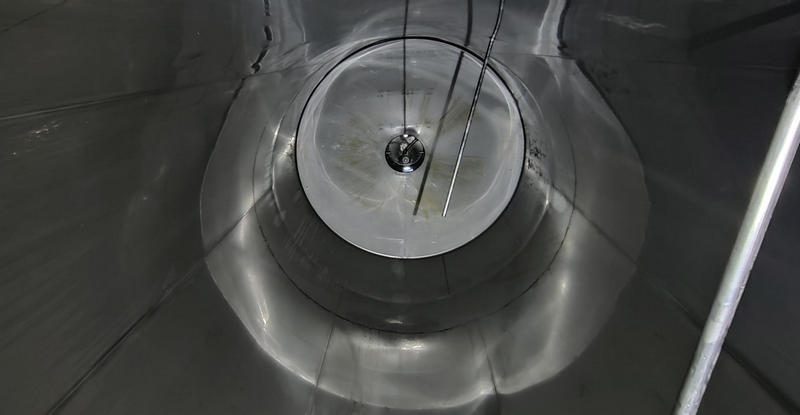

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

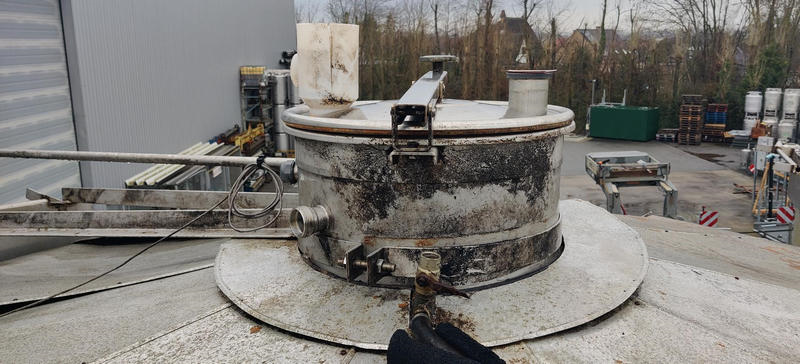

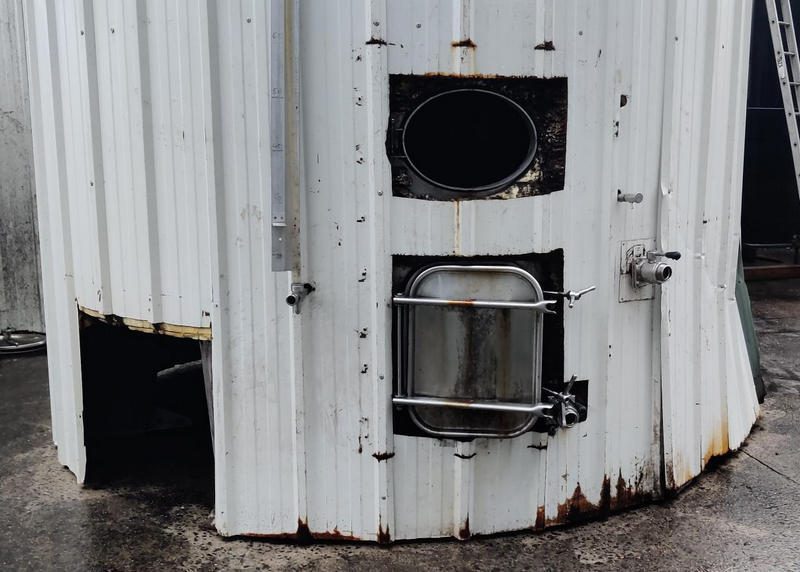

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia. 500mm / 305x430mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | rechthoekig mangat |
| Diameter of outlet (mm) | 400x540 |
| locality | B-7711 Belgium |
| Last application | Food |

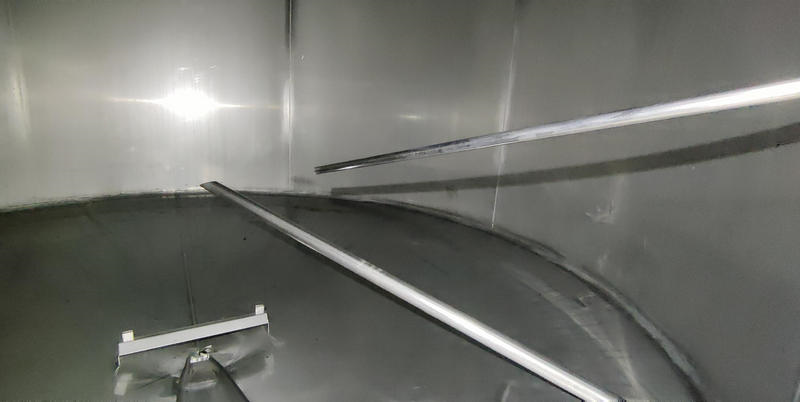

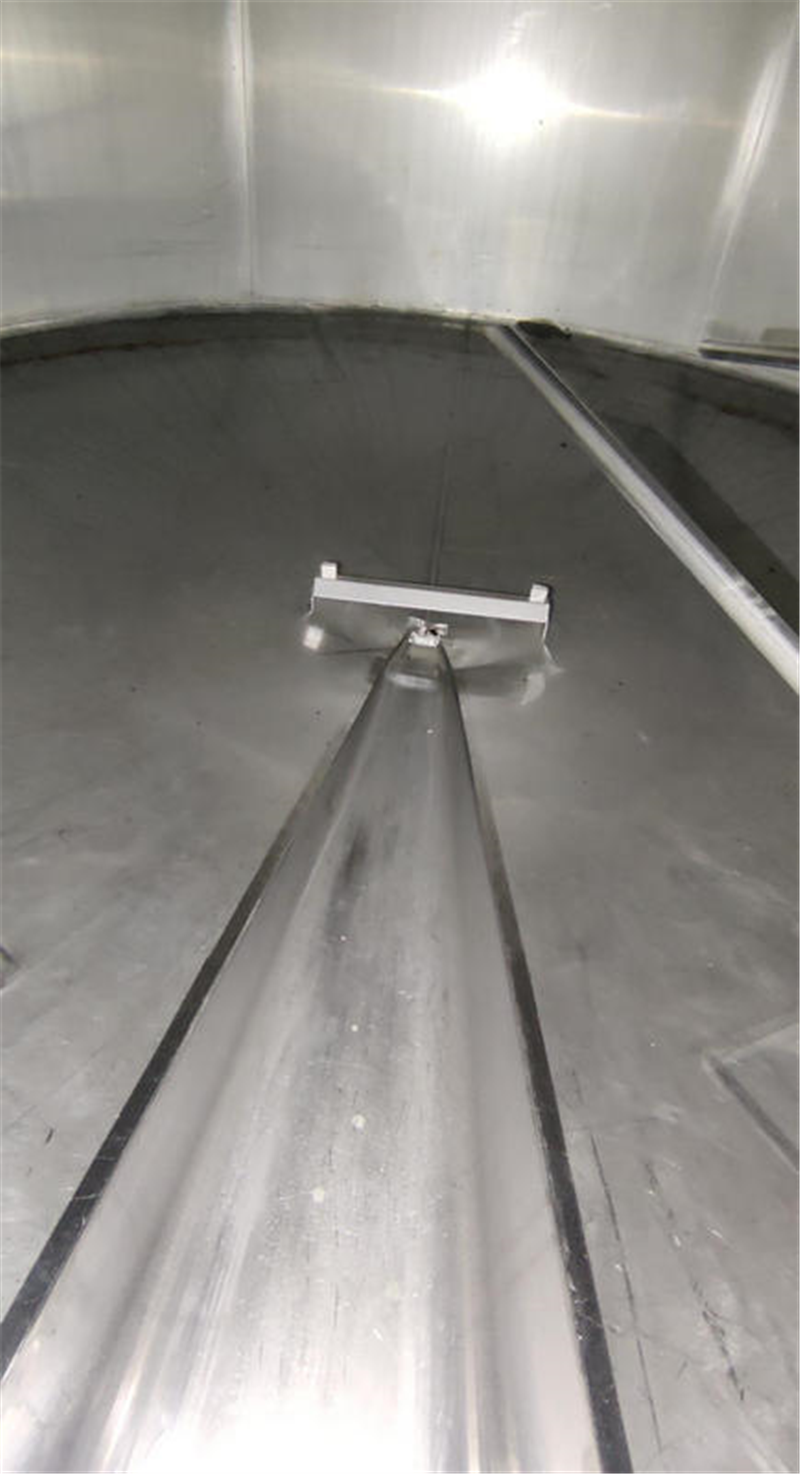

| Provision tank cleaning | CIP ball |
| Weight (kg) | 3000 |
| Condition | Used |
| Type plate manufacturer | No |

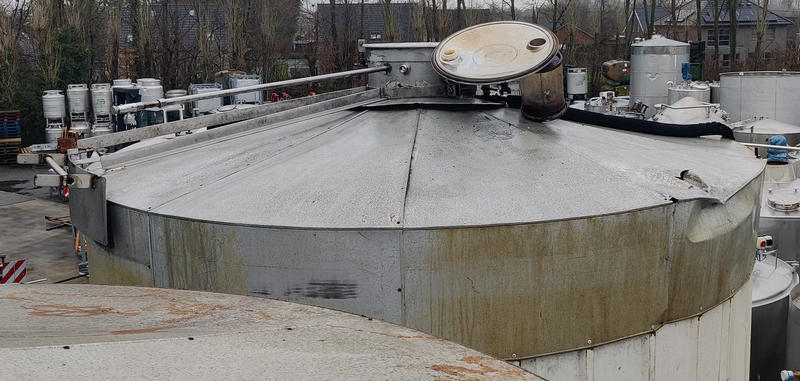

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,1 |
| Bottom thickness (mm) | 2 |
| Periphery (mm) | 9570 |
| Cylindrical length (mm) | 5000 |
| Height bottom (mm) | 400 |
| Outside diameter tank (mm) | 3050 |
| Total height (mm) | 6700 |
| Length (mm) | 3300 |
| Diameter tank (mm) | 2840 |
| Width (mm) | 3070 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | PUR Foam |
| Thickness (mm) | 60 |
| Finishing insulation | Profile Cladding |
