Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 15900 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.LB.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 15900 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |
| Tank with total drain? | Yes |

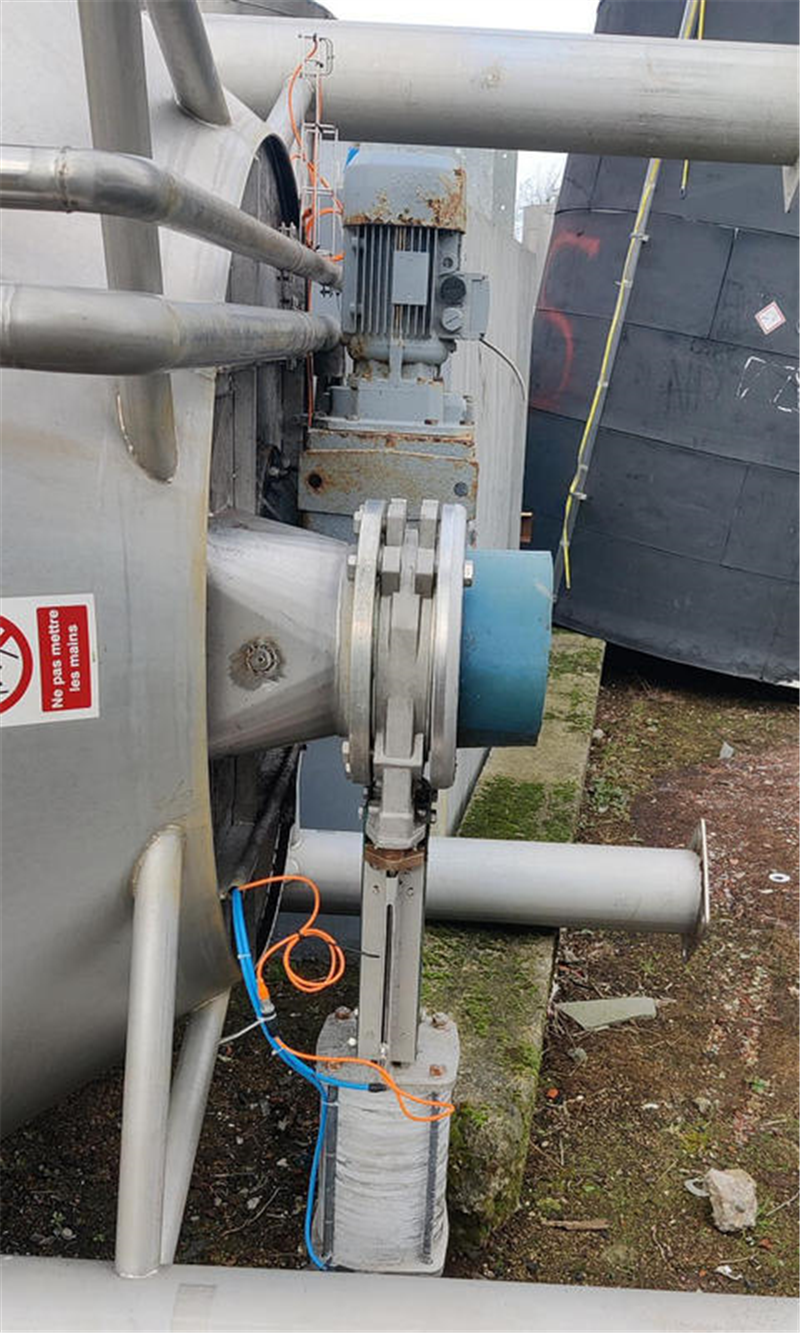

| Type of outlet (s) | pneum. schuifkraan |
| Diameter of outlet (mm) | DN250 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 1200 |
| Condition | Used |

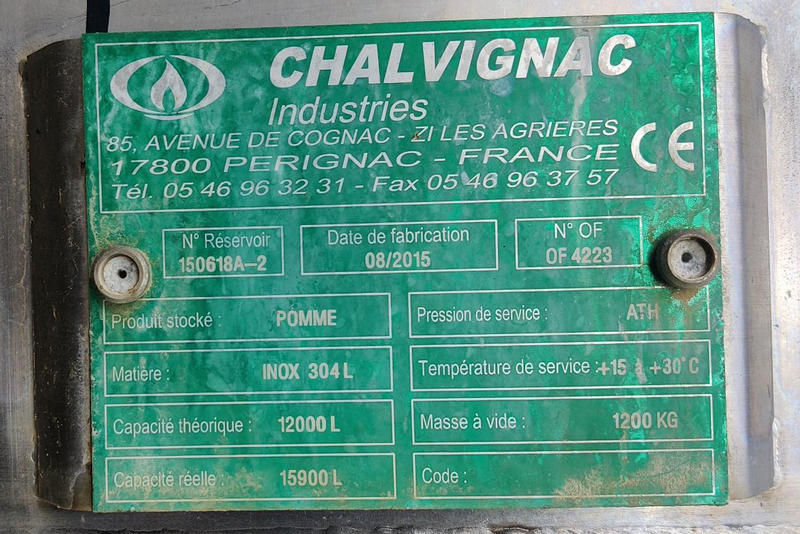

| Type plate manufacturer | Yes |
| Manufacturer | CHALVIGNAC |
| Year Built | 2015 |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Bottom thickness (mm) | 4 |
| Periphery (mm) | 8200 |
| Cylindrical length (mm) | 2500 |
| Height bottom (mm) | 800 |
| Total height (mm) | 4350 |
| Length (mm) | 2780 |
| Diameter tank (mm) | 2600 |
| Width (mm) | 2780 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |

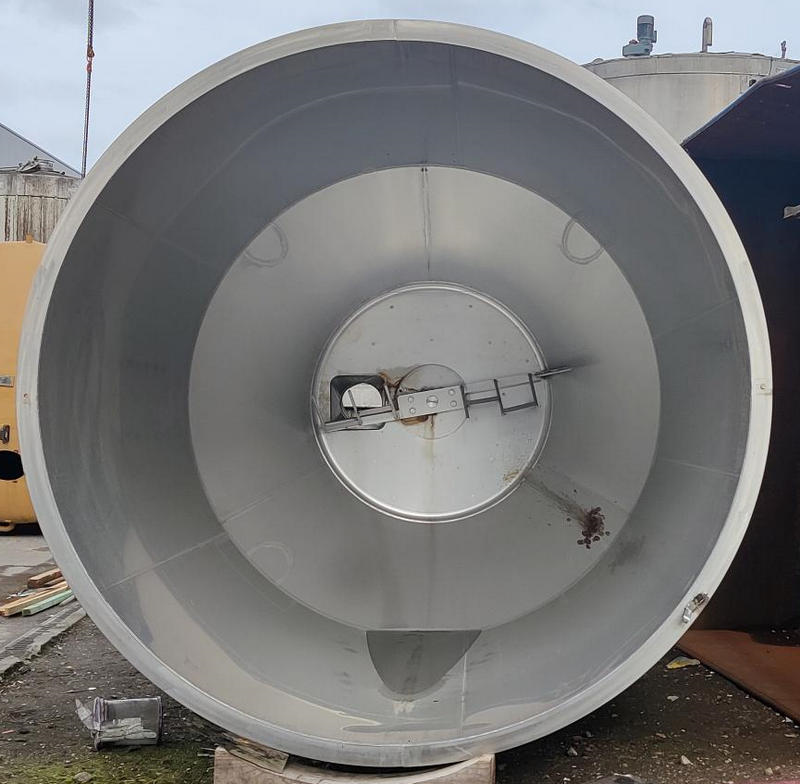

| Agitator 1: Type | anchor with scrapers |
| Agitator 1: Position | Centrally in the bottom |
| Agitator 1: stirring element type | Anchor |

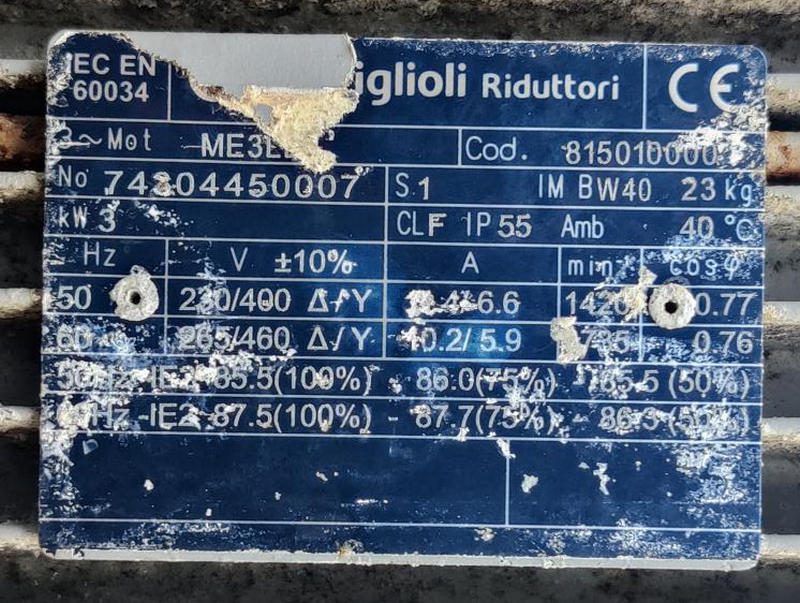

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 230/400 |
| Agitator 1: Power (kw) | 3 |

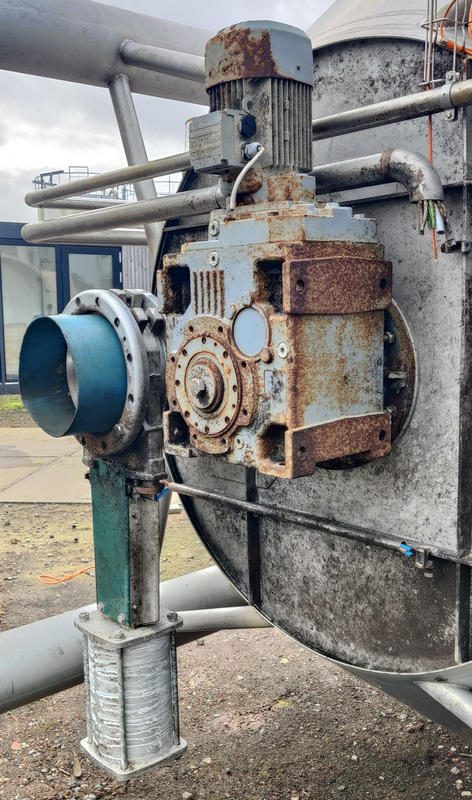

| Agitator 1: Drive Type | Reductor |
| Remarks | |
|---|---|
| Description (EN) | Working pressure ATM --- Working temp +15°C/+30°C |
