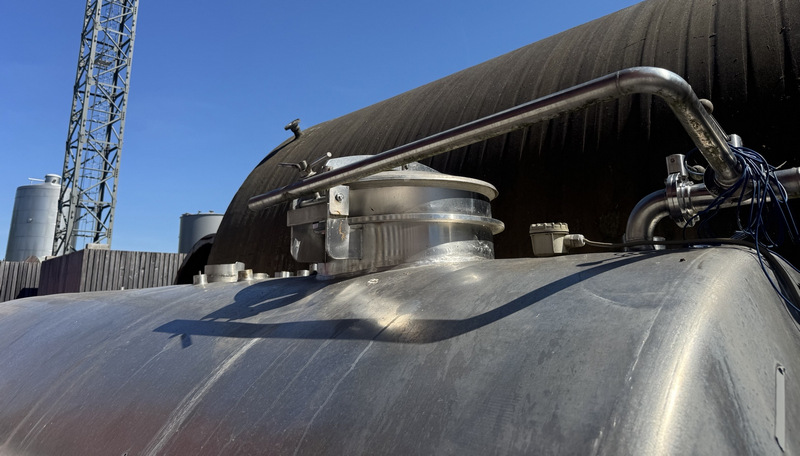

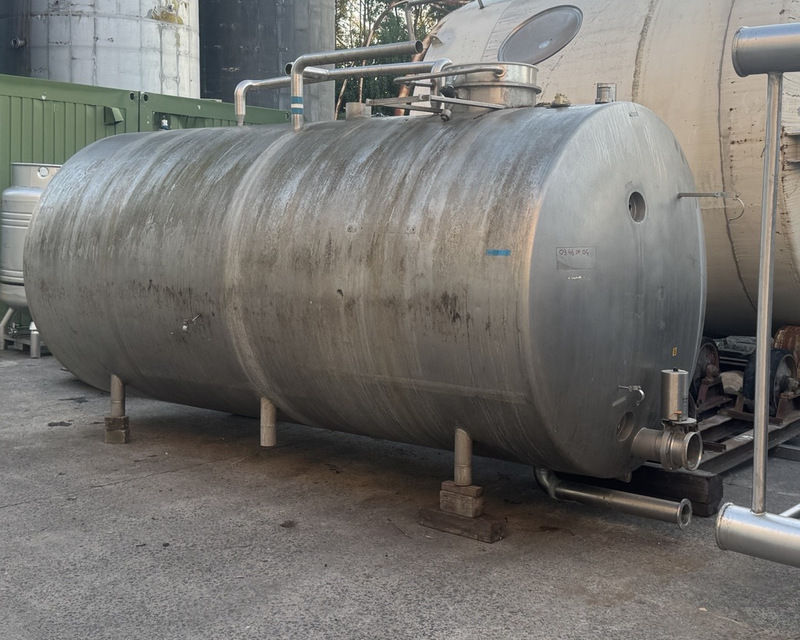

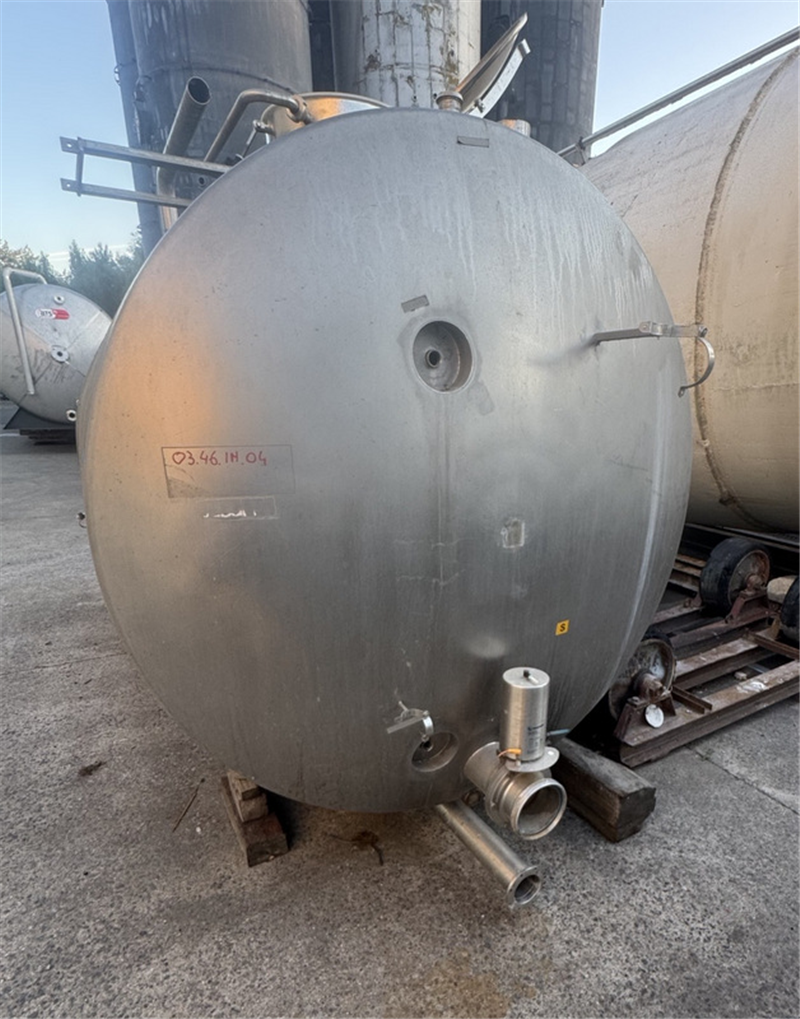

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 10800 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 304 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |
| Show Online? | Yes |
| Tank | |
|---|---|
| Finishing weldings inside | Raw brushed |
| Finishing weldings inside | Raw brushed |
| Finishing weldings inside | Raw brushed |
| Finishing weldings inside | Raw brushed |
| Capacity (Liters) | 10800 |
| Type tank | Storage tank |
| Fixation | 6 legs |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (leak detection) |

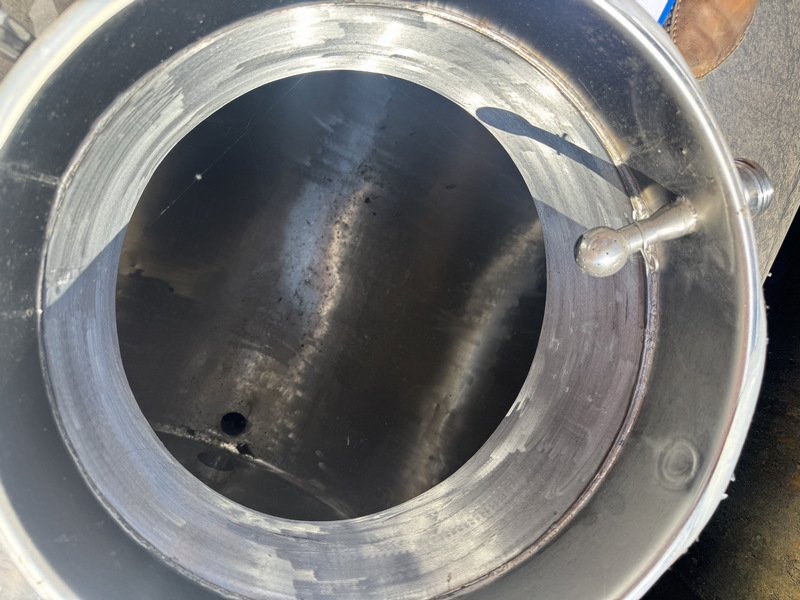

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Dia. 500mm |
| Tank with total drain? | Yes |

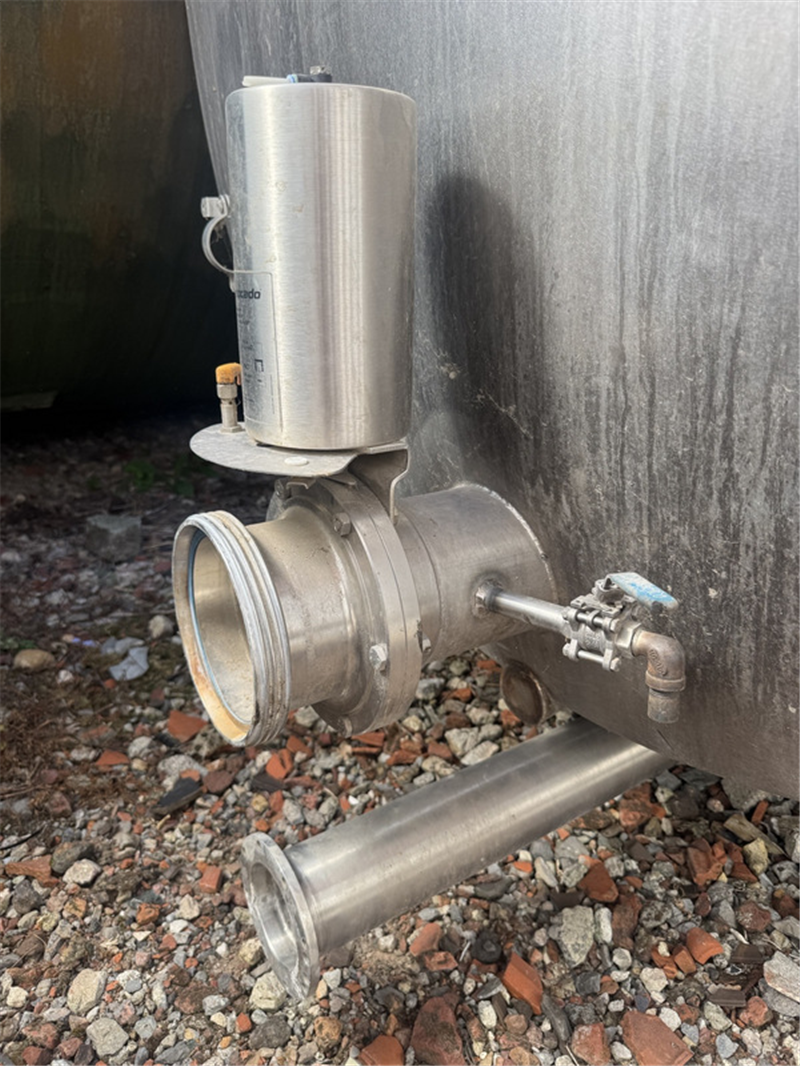

| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 100mm |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | CIP ball |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Periphery (mm) | 6040 |
| Cylindrical length (mm) | 3920 |
| height bottom (mm) | 200 |
| height bottom (mm) | 200 |
| height bottom (mm) | 200 |
| Outer wall thickness (mm) | 2 |
| Outer wall thickness (mm) | 2 |
| Thickness (mm) | 50 |
| Outside diameter tank (mm) | 1950 |
| Total height (mm) | 2660 |
| Length (mm) | 4620 |
| Diameter tank (mm) | 1950 |
| Width (mm) | 1990 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | PUR Foam |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |
