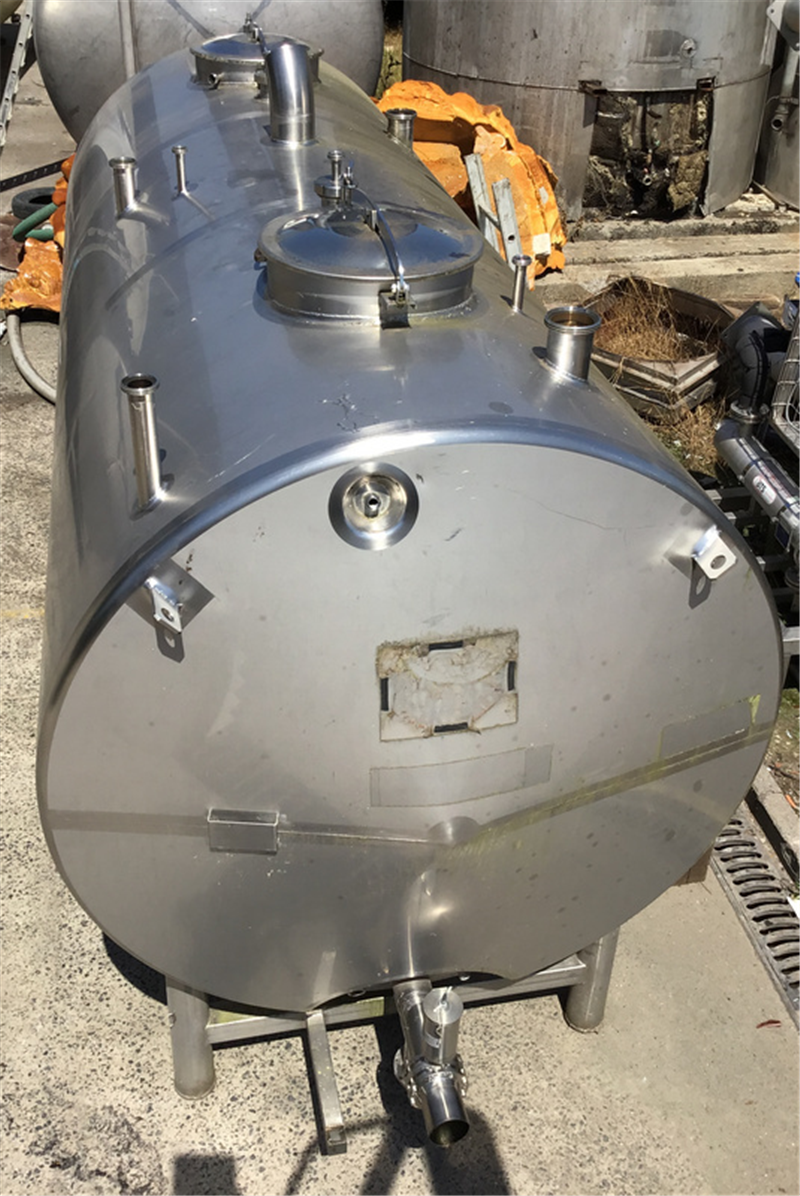

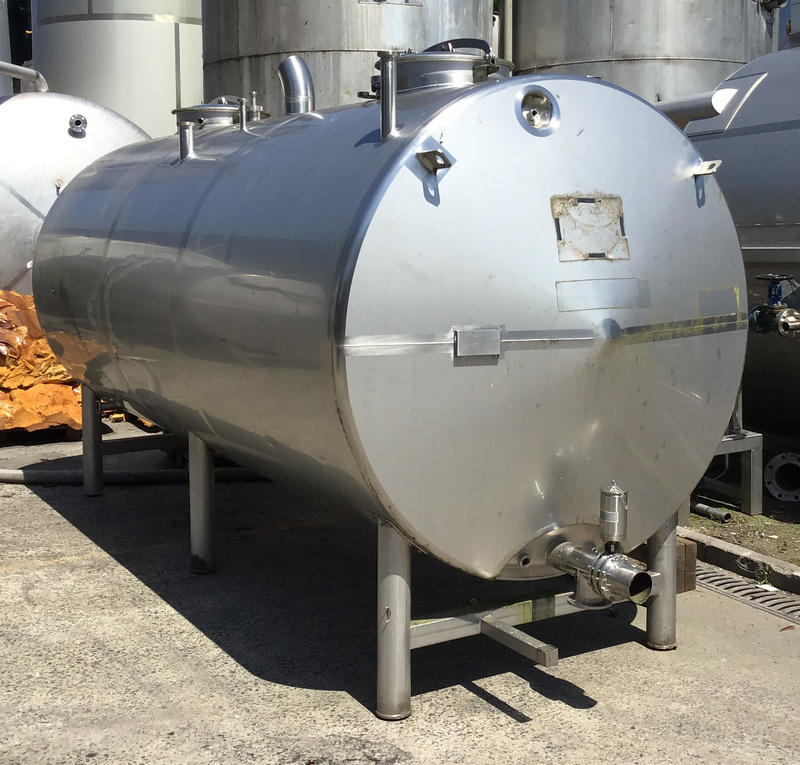

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 9200 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.IN.01 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 9200 |
| Type tank | Storage tank |
| Fixation | 6 legs |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |

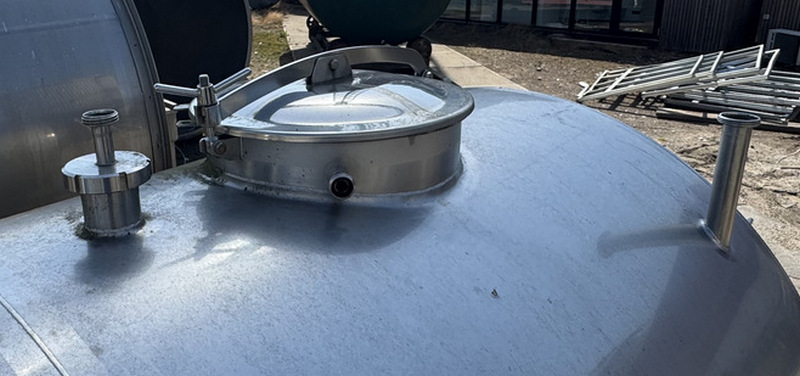

| Number of manhole | 2 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Dia. 500 |
| Tank with total drain? | Yes |

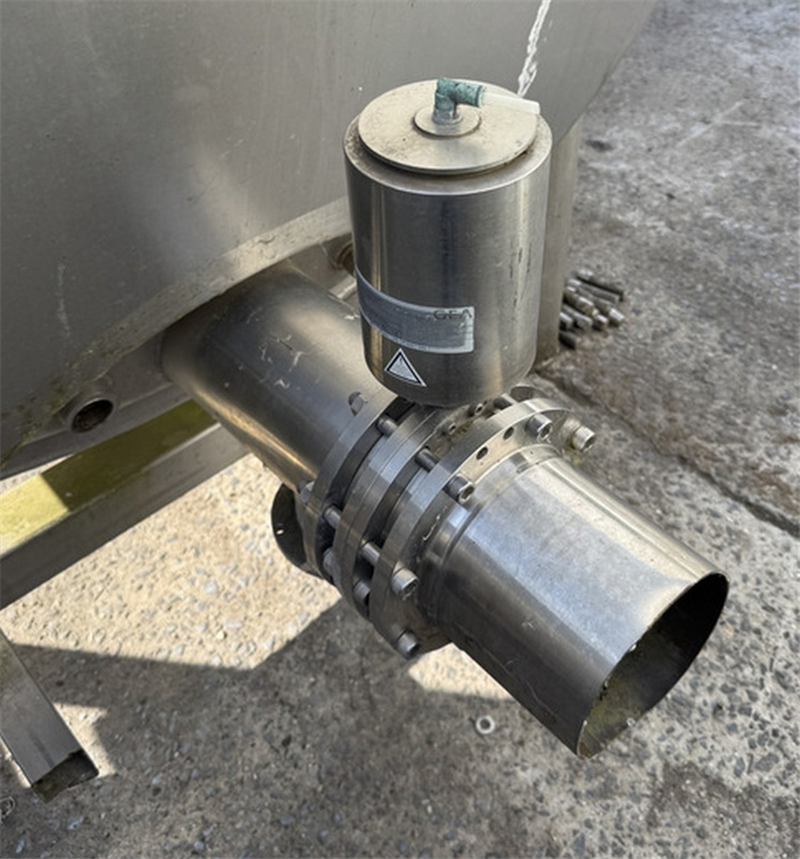

| Type of outlet (s) | vlinderklep |
| Diameter of outlet (mm) | Dia. 148mm |
| locality | B-7711 Belgium |
| Last application | chemical industry |

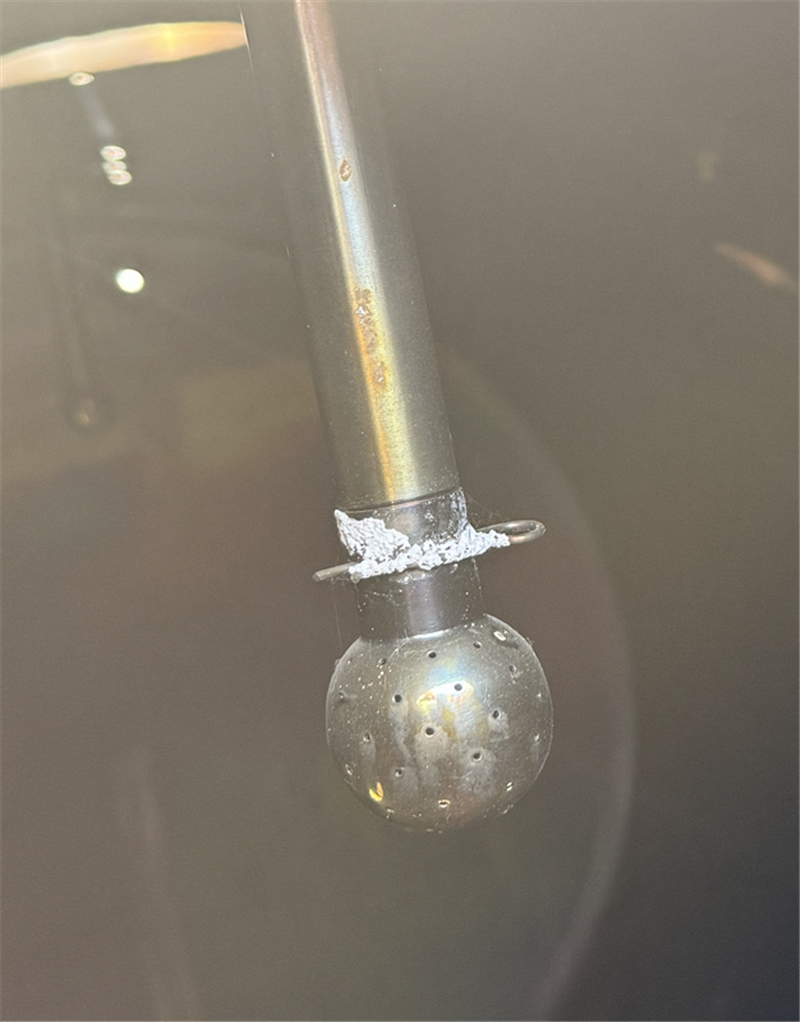

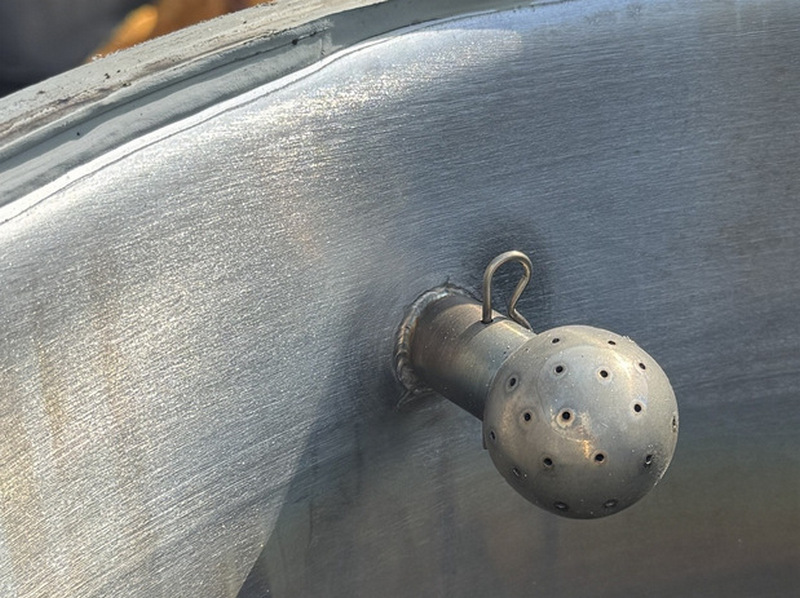

| Provision tank cleaning | CIP ball |
| Weight (kg) | 1400 |
| Condition | Used |

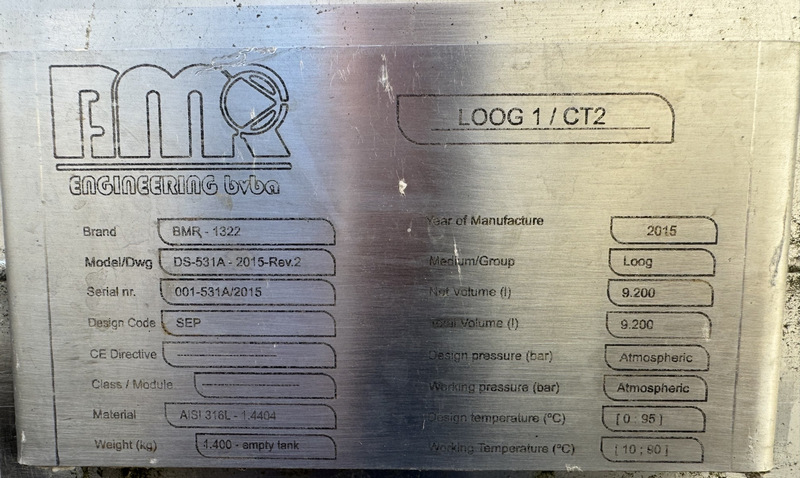

| Manufacturer | BMR |
| Year Built | 2015 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3,2 |
| Periphery (mm) | 5690 |
| Cylindrical length (mm) | 4350 |
| Total height (mm) | 2460 |
| Length (mm) | 4620 |
| Diameter tank (mm) | 1770 |
| Width (mm) | 1870 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Thickness (mm) | 50 |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |
| Remarks | |
|---|---|

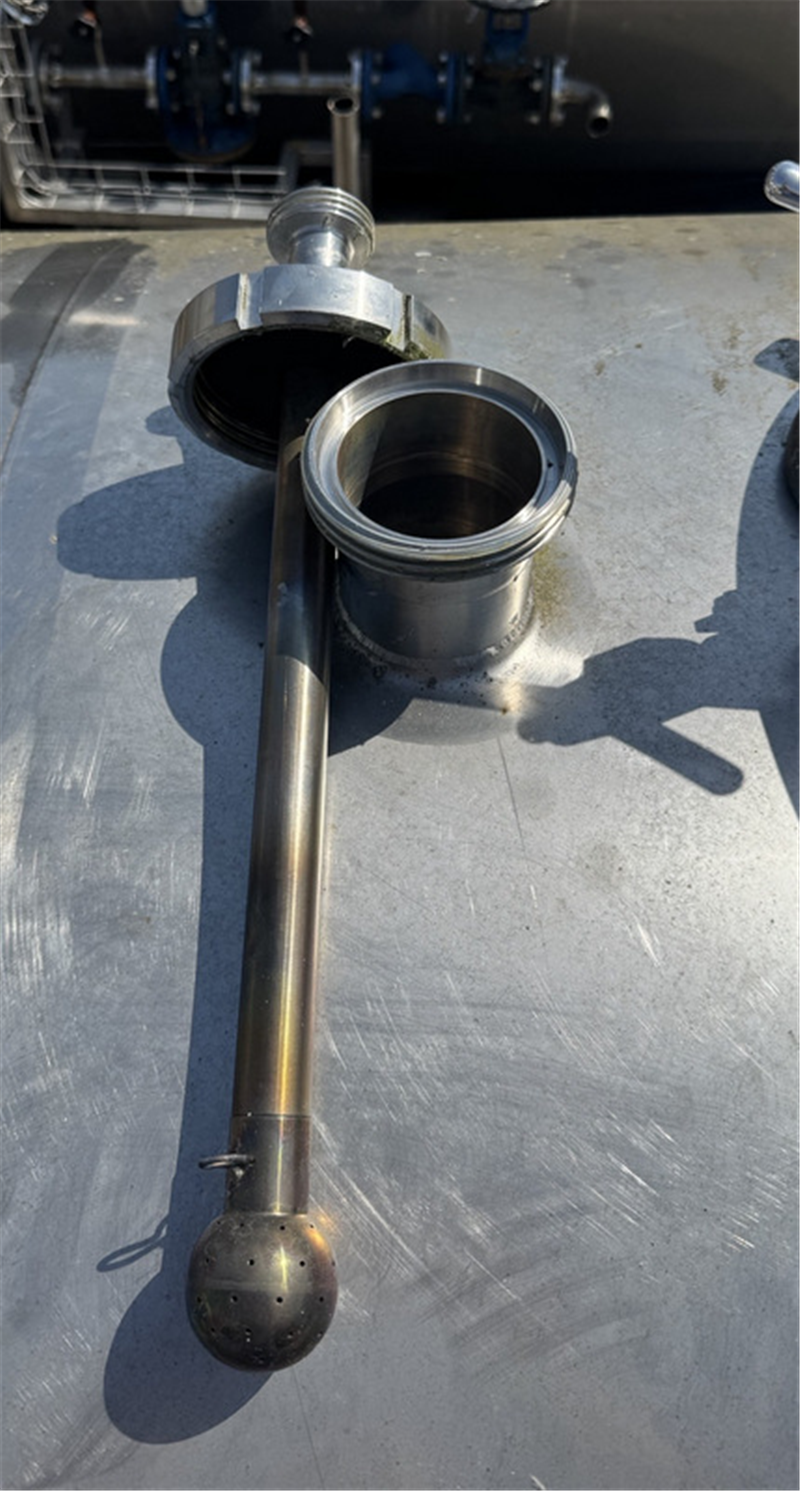

| Description (EN) | Top of tank fitted with Din11851 couplings: 2x DN100 - 1x DN 65 - 1x DN 50 - 2x DN 25 - 2x DN80 with reducer to DN25 with CIP Head - Ball - 2x in manhole collar with CIP Head - Ball - Cylinder at the bottom 1x DN 50 --- at the bottom next to outlet weld sleeve 1" & 1/4" at the top 1/4" --- outlet fitted with 2 flanges. |
