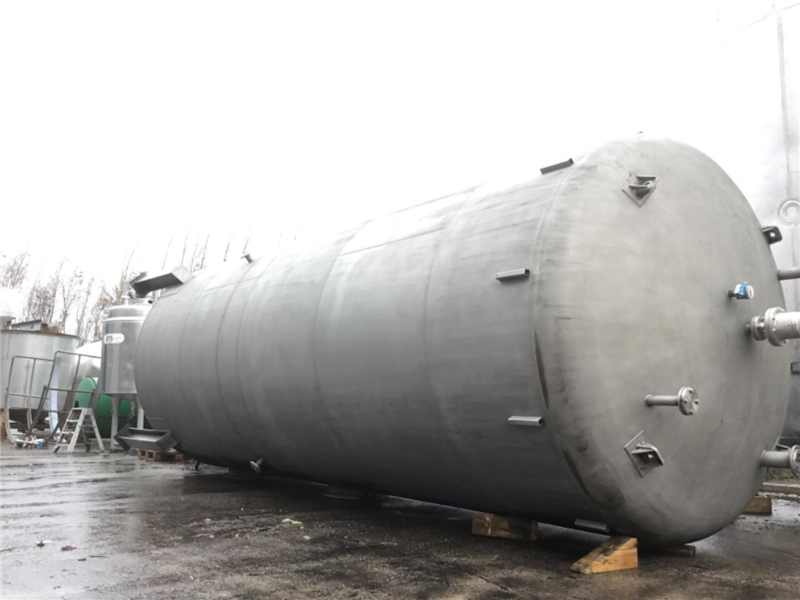

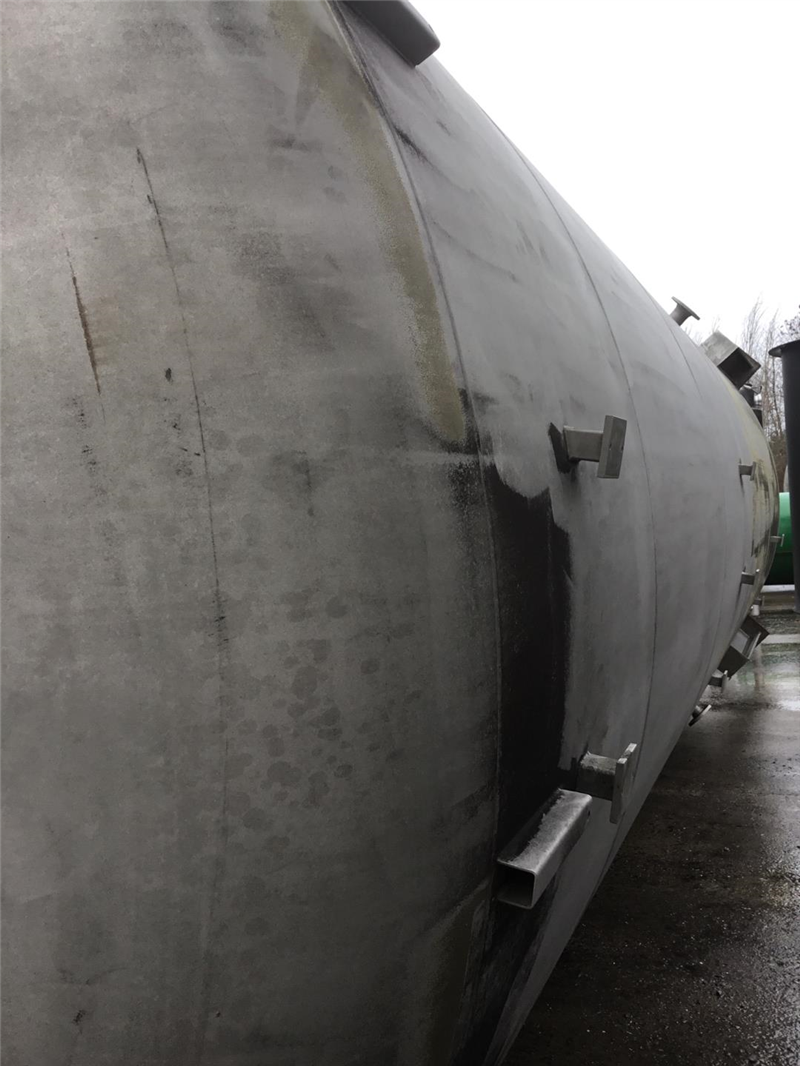

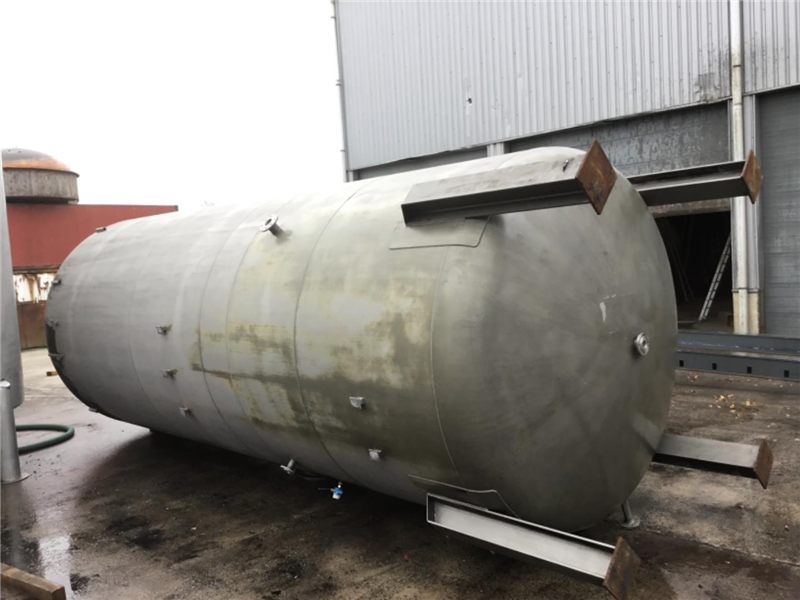

Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 52000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.FS.02 |
| Material | Stainless steel 304 |

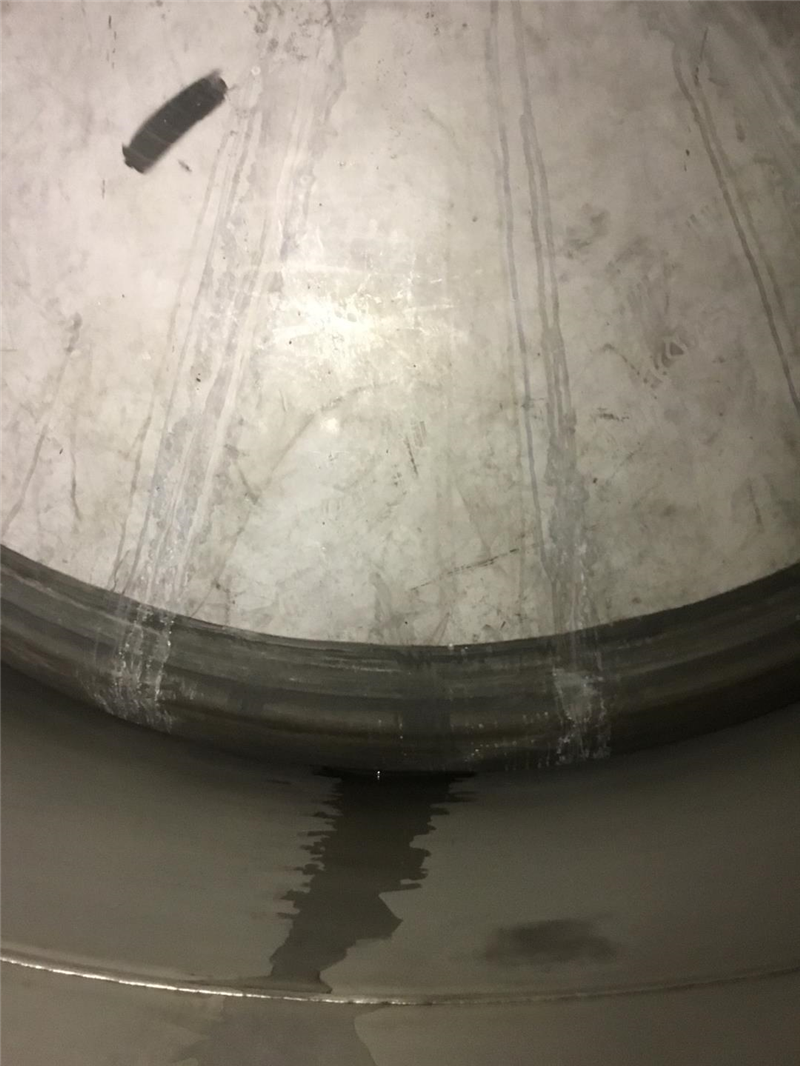

| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 52000 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 4 |
| Test pressure tank (Barg) | 5,2 |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

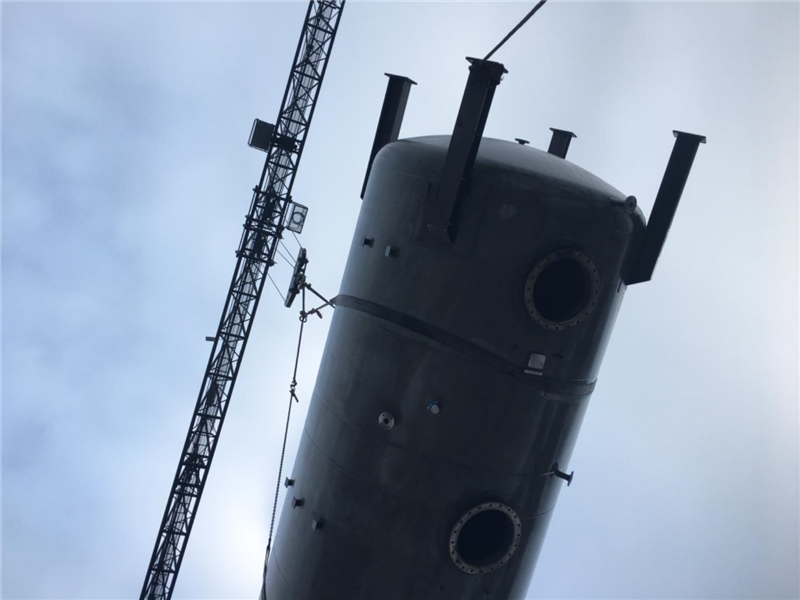

| Number lifting lugs | 4 |

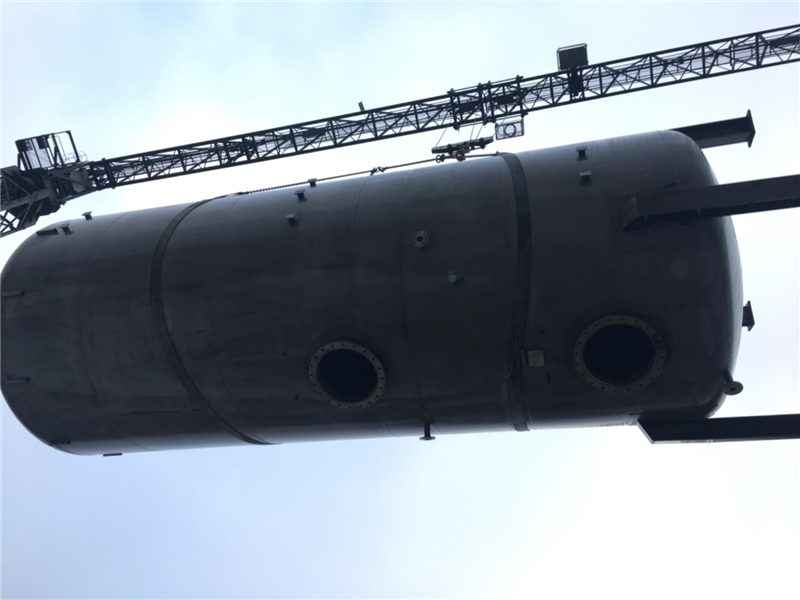

| Number of manhole | 2 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 600mm |

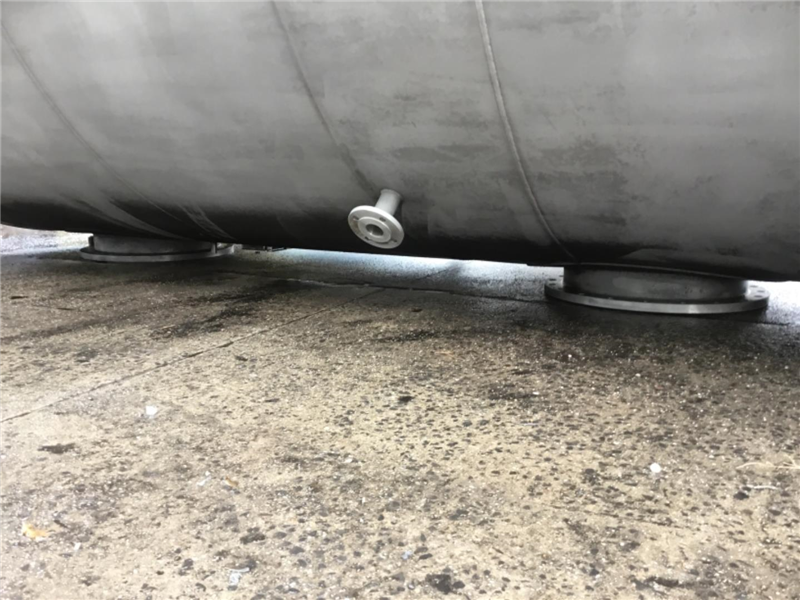

| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 6500 |
| Condition | Used |

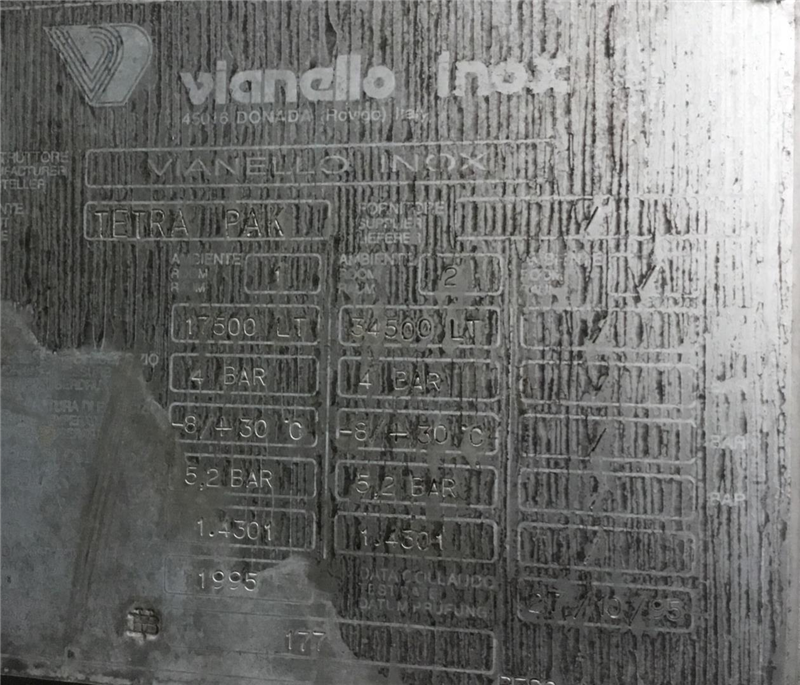

| Type plate manufacturer | Yes |
| Manufacturer | Vianello Inox |
| Year Built | 1995 |
| Construction data available | Yes |
| Top side | |
|---|---|
| Configuration top-side | Closed |

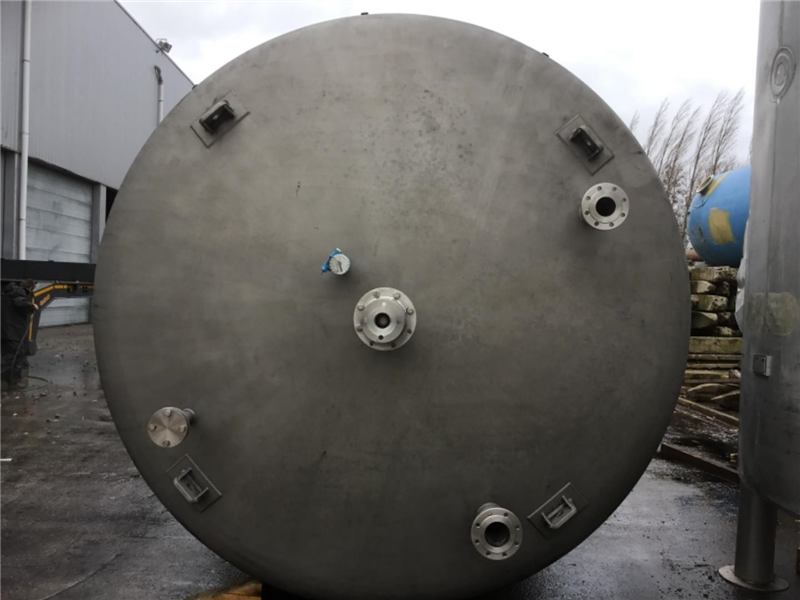

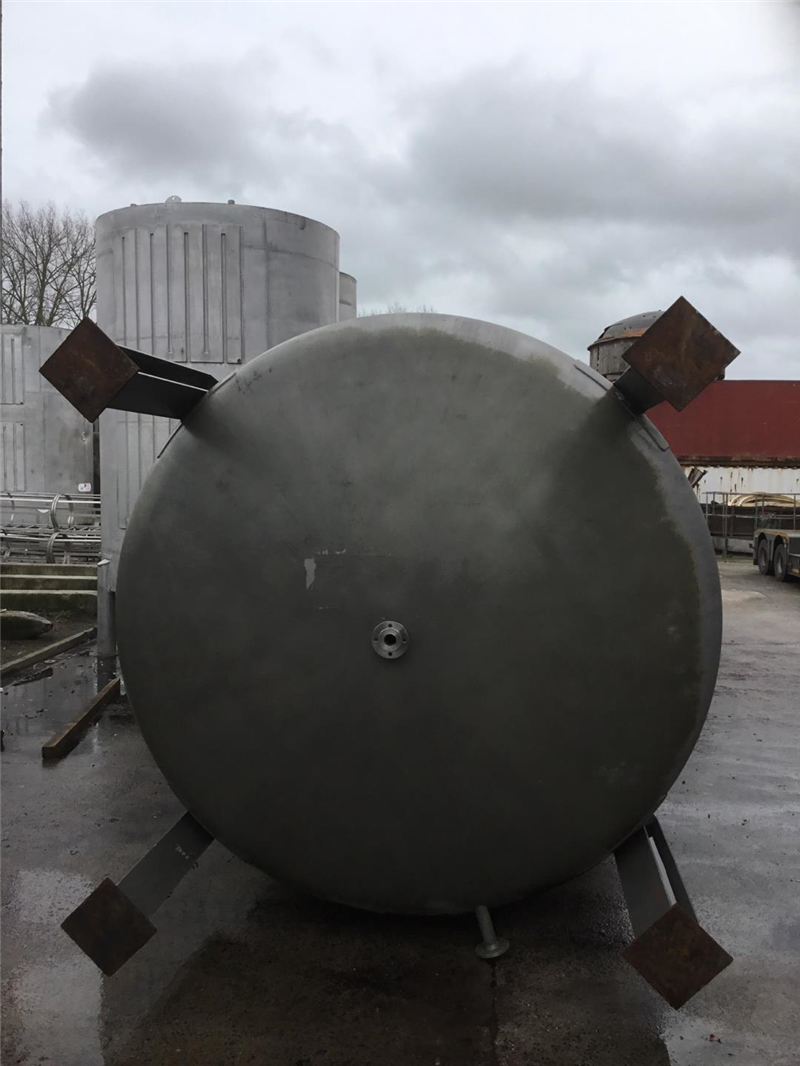

| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 11 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 7 |
| Bottom thickness (mm) | 11 |
| Cylindrical length (mm) | 7000 |
| Height bottom (mm) | 618 |
| Total height (mm) | 8780 |
| Diameter tank (mm) | 3000 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | 2 Compartments = comp1: 17,500 Liters / comp 2: 34,500 Liters --- last used for Ethanol |
