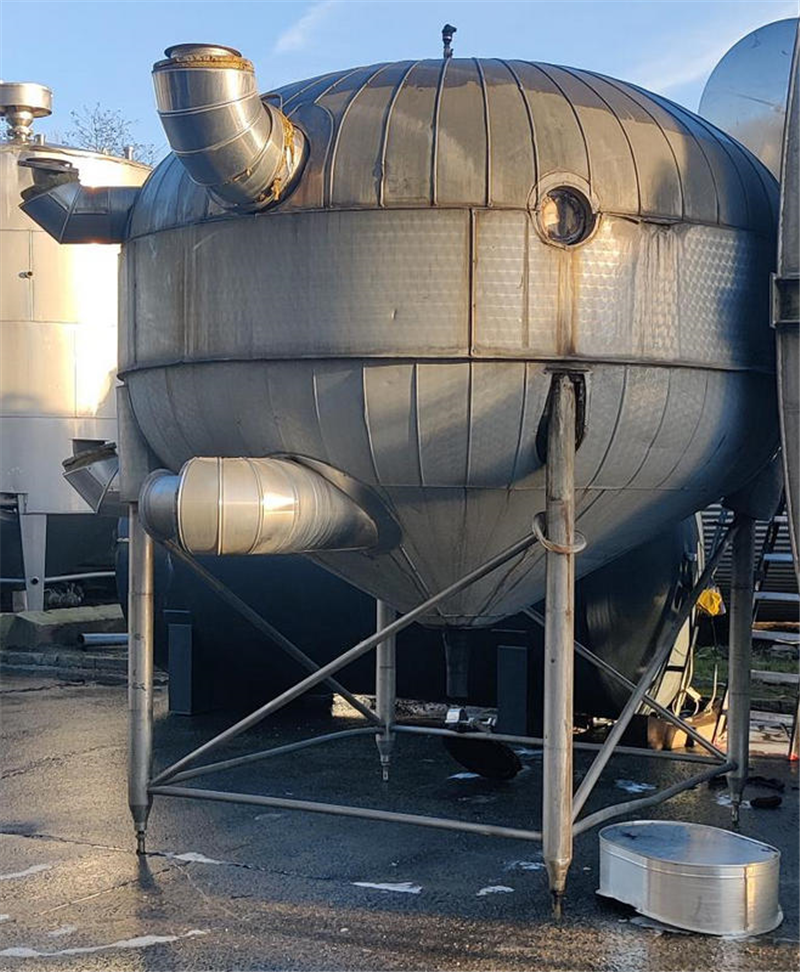

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 7800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.46.EE.24 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 7800 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |

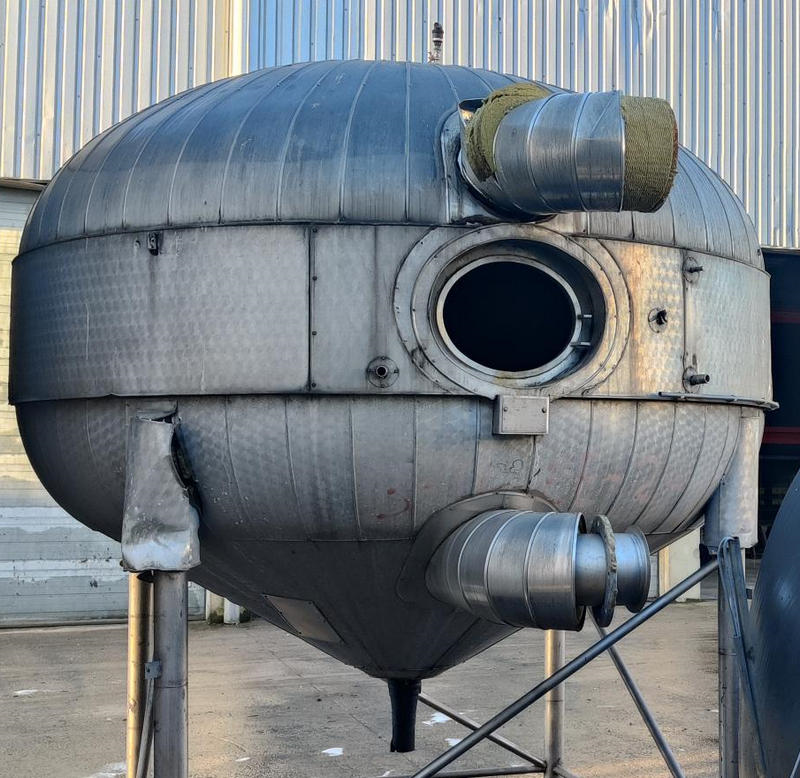

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 445 x 345mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | buiseind |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 1200 |
| Condition | Used |

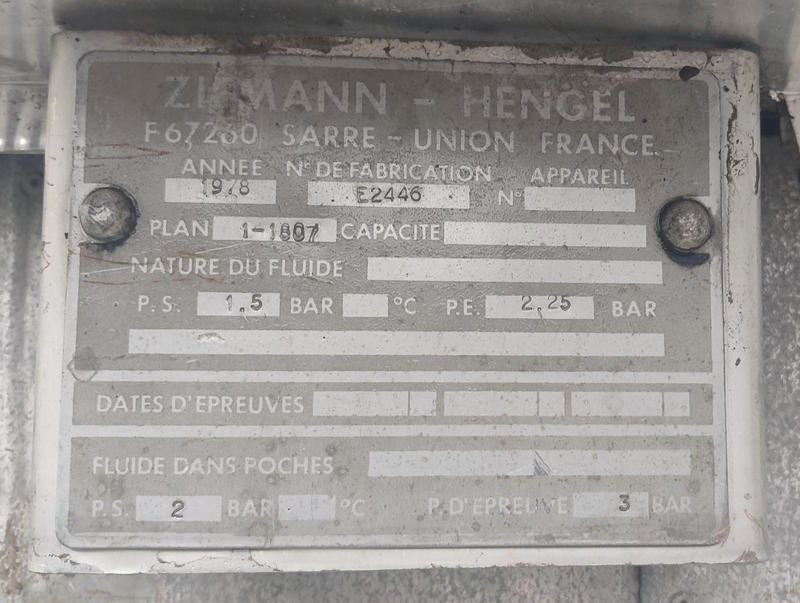

| Type plate manufacturer | Yes |
| Manufacturer | Ziemann-Hengel |
| Year Built | 1978 |

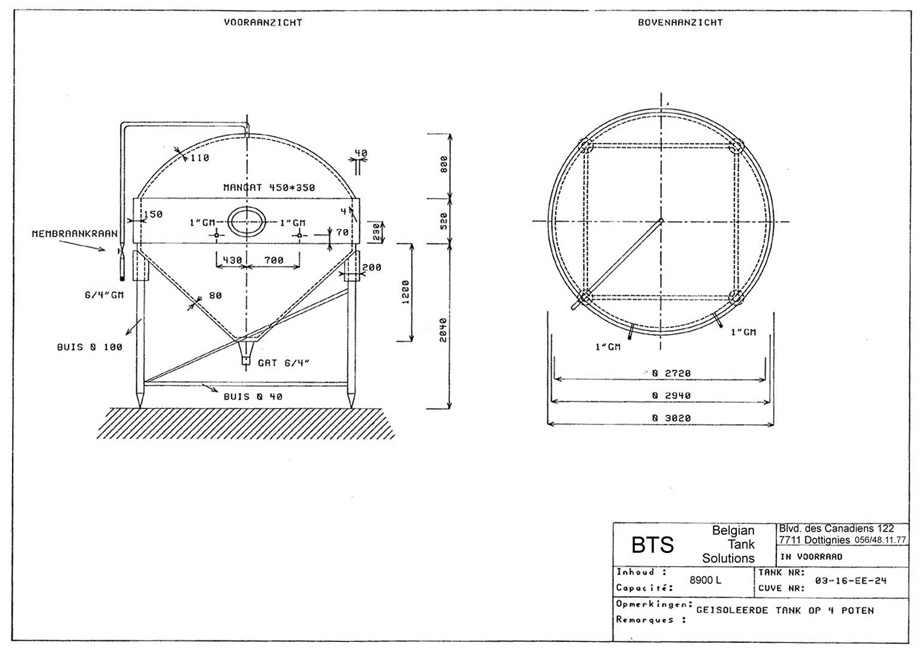

| Appendix 1 | t0316EE24.jpg |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,9 |
| Periphery (mm) | 9450 |
| Cylindrical length (mm) | 500 |
| Height bottom (mm) | 1100 |
| Outside diameter tank (mm) | 3010 |
| Total height (mm) | 3700 |
| Length (mm) | 3800 |
| Diameter tank (mm) | 2760 |
| Width (mm) | 3010 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | PUR Foam |
| Thickness (mm) | 120 |
| Finishing insulation | Rivited sheet cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Remarks | |
|---|---|
| Description (EN) | Working pressure 1.5 bar --- Test pressure 2.25 bar |
