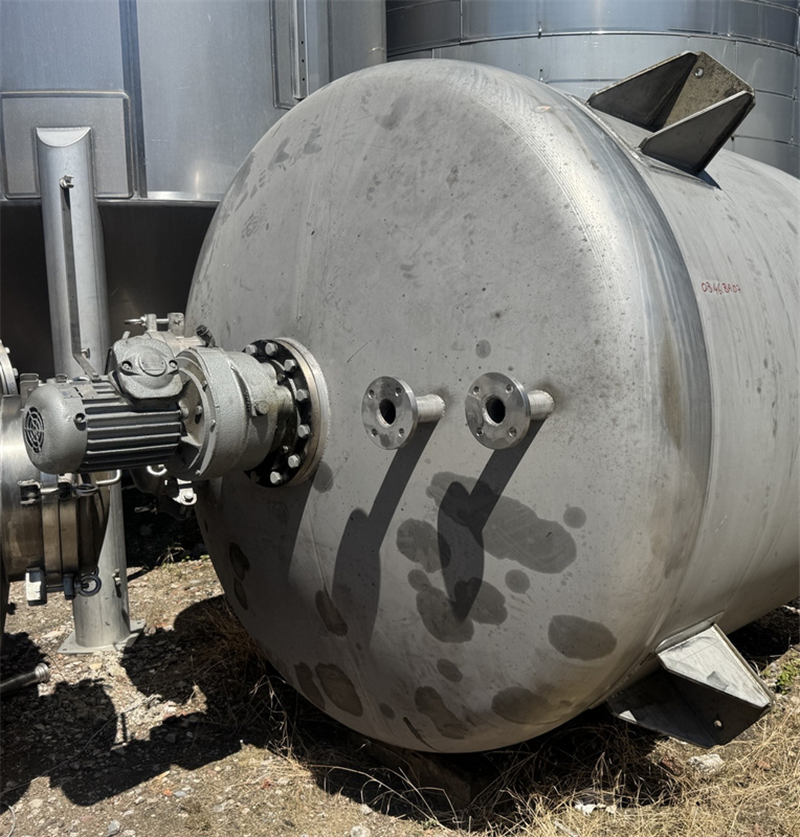

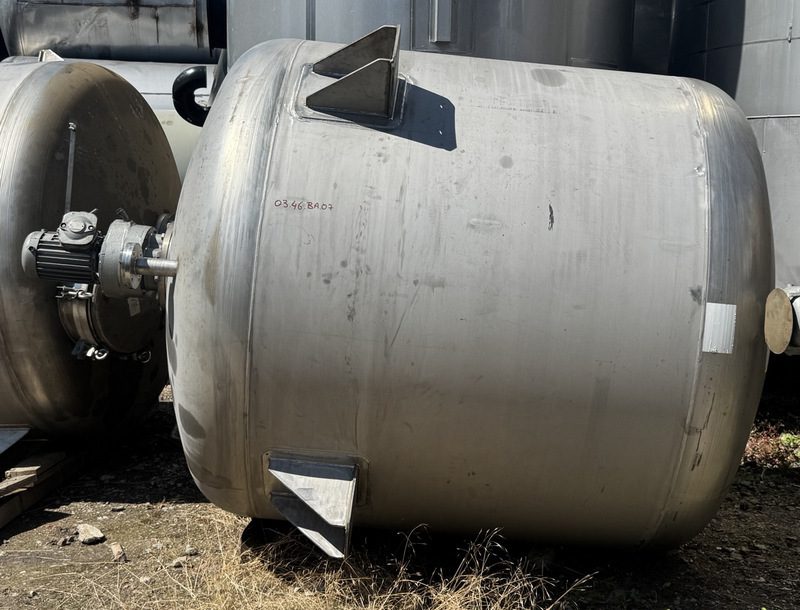

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 6200 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 316 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |
| Show Online? | Yes |
| Drawing 1 | Plan constructie 0346BA06.pdf |
| Tank | |
|---|---|
| Finishing weldings inside | Raw brushed |
| Finishing weldings inside | Raw brushed |
| Finishing weldings inside | Raw brushed |
| Finishing weldings inside | Raw brushed |
| Capacity (Liters) | 6200 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

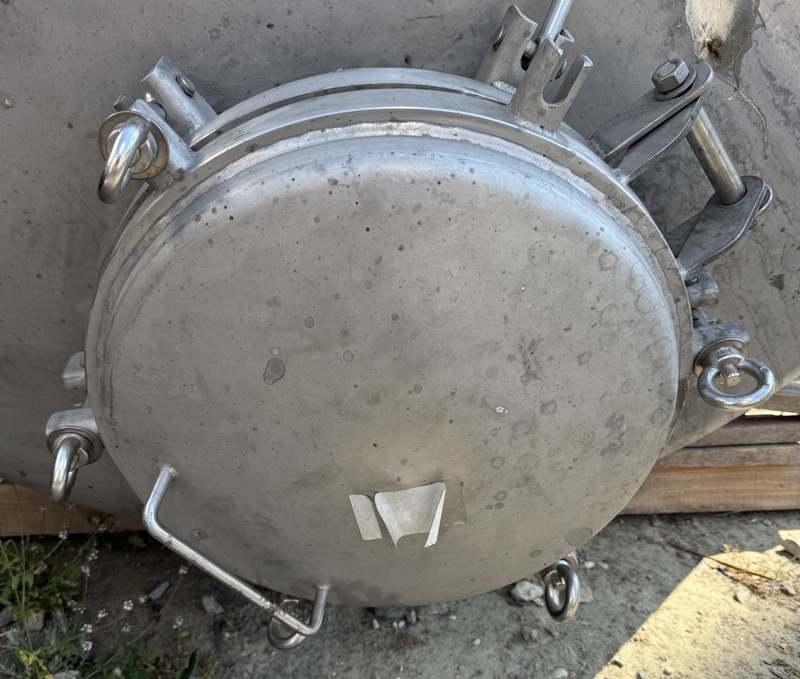

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Dia. 400mm |
| Tank with total drain? | Yes |

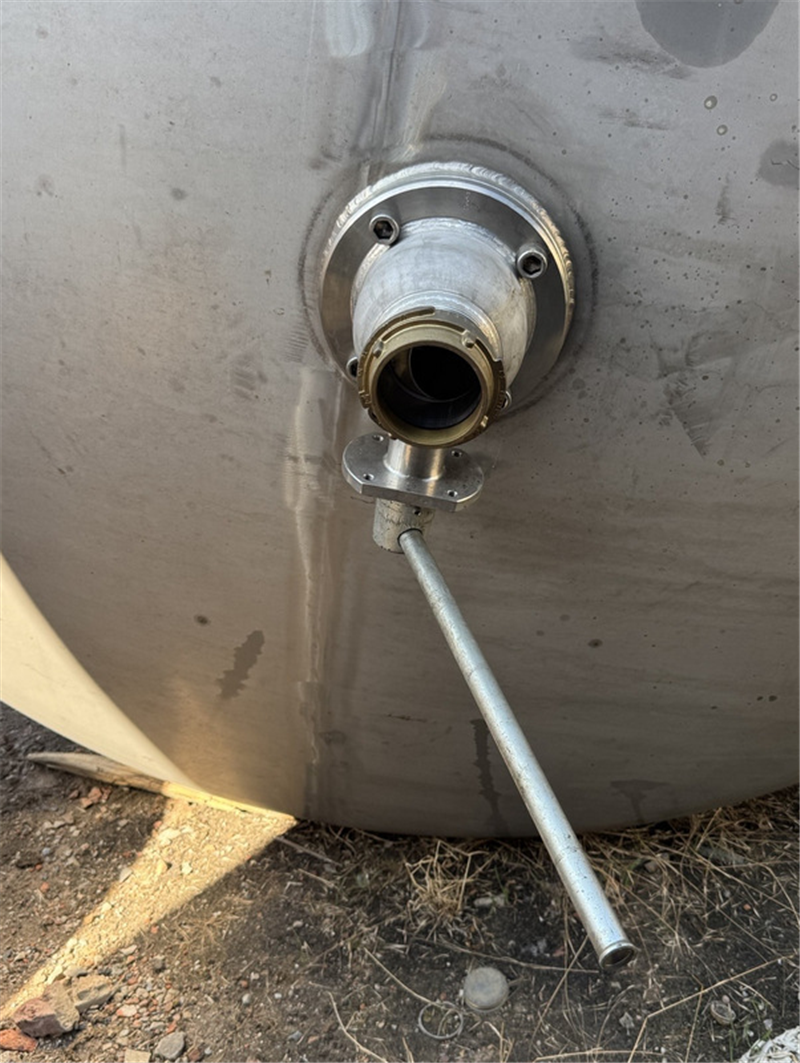

| Type of outlet (s) | DN80 Manuele bolkraan |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 5.2 |
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 5.2 |
| Periphery (mm) | 6310 |
| Cylindrical length (mm) | 1500 |
| height bottom (mm) | 450 |
| height bottom (mm) | 450 |
| height bottom (mm) | 450 |
| Total height (mm) | 3300 |
| Length (mm) | 2200 |
| Diameter tank (mm) | 2000 |
| Width (mm) | 2300 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished head |
| Agitators | |
|---|---|
| Number of agitators | 1 |

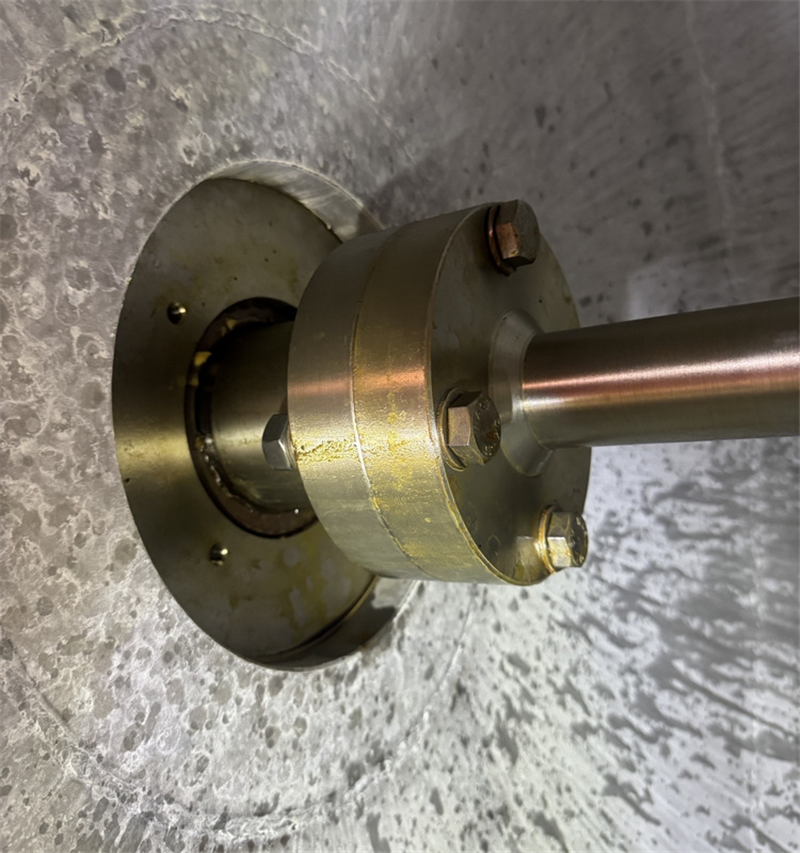

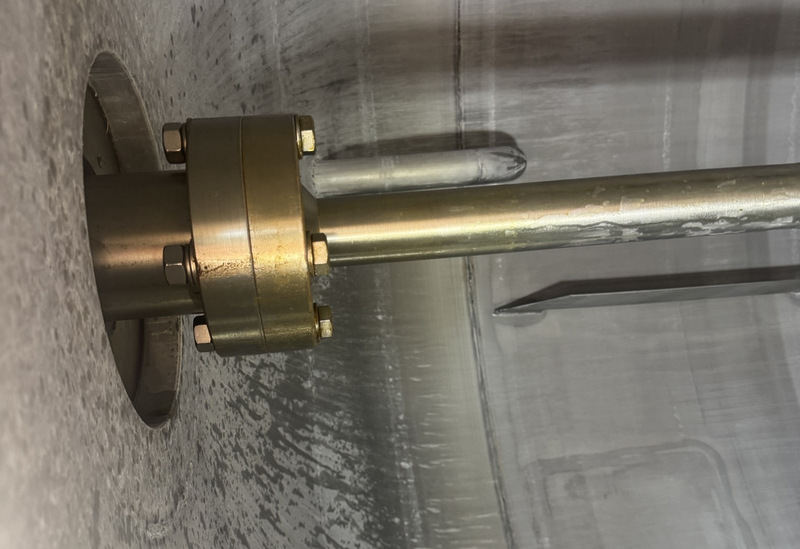

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 304 |

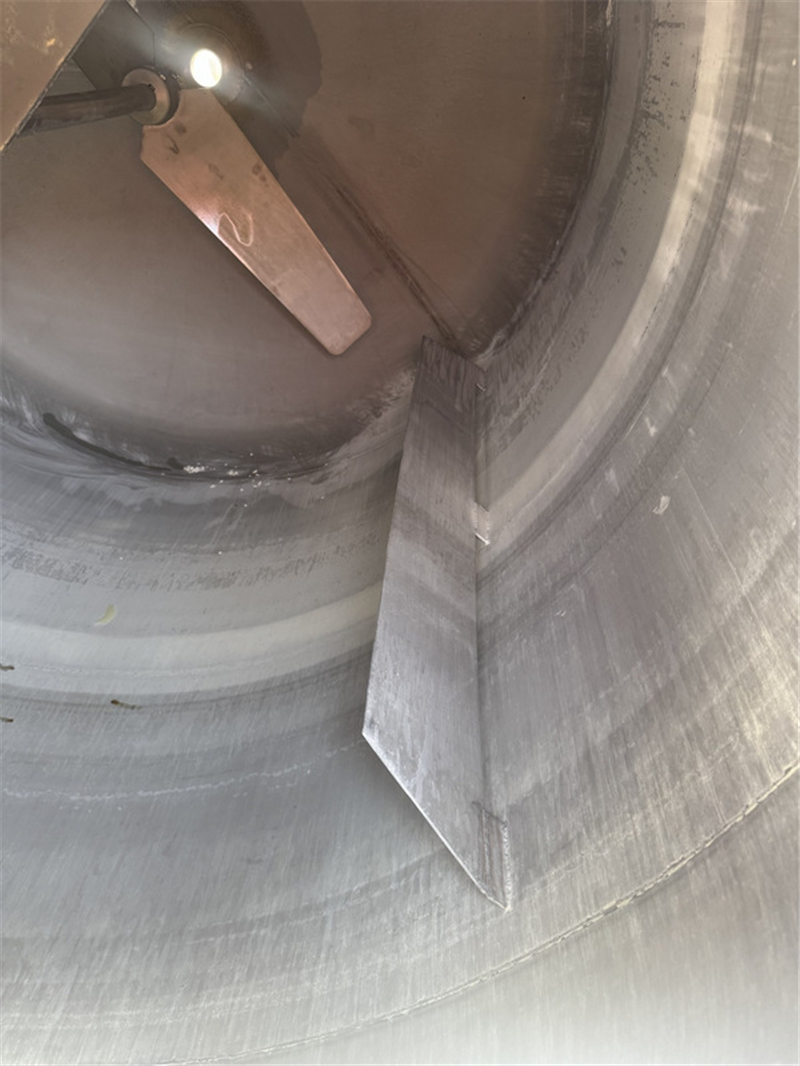

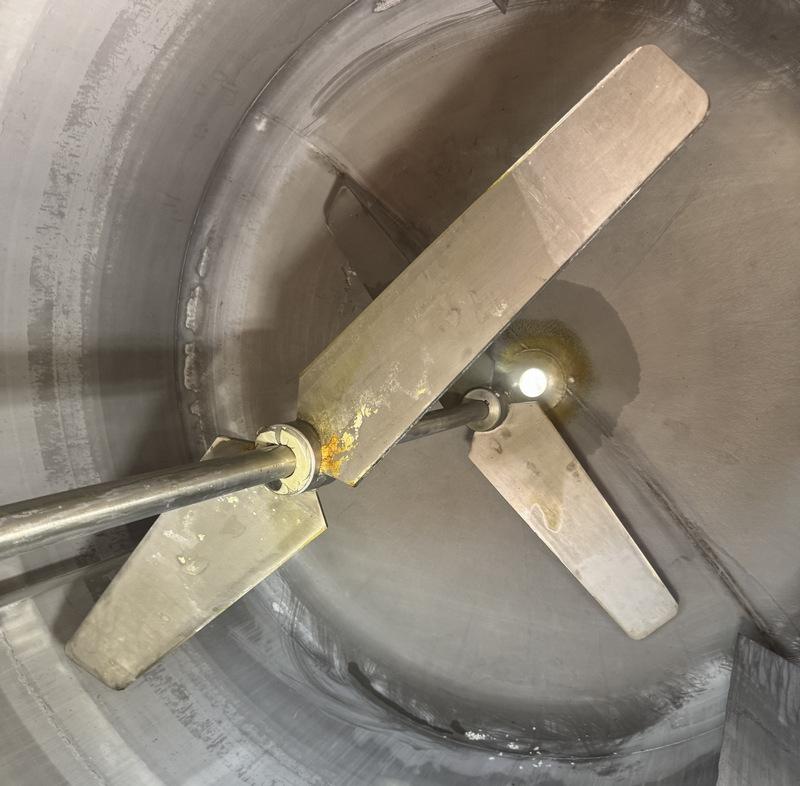

| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Length (mm) | 2000 |

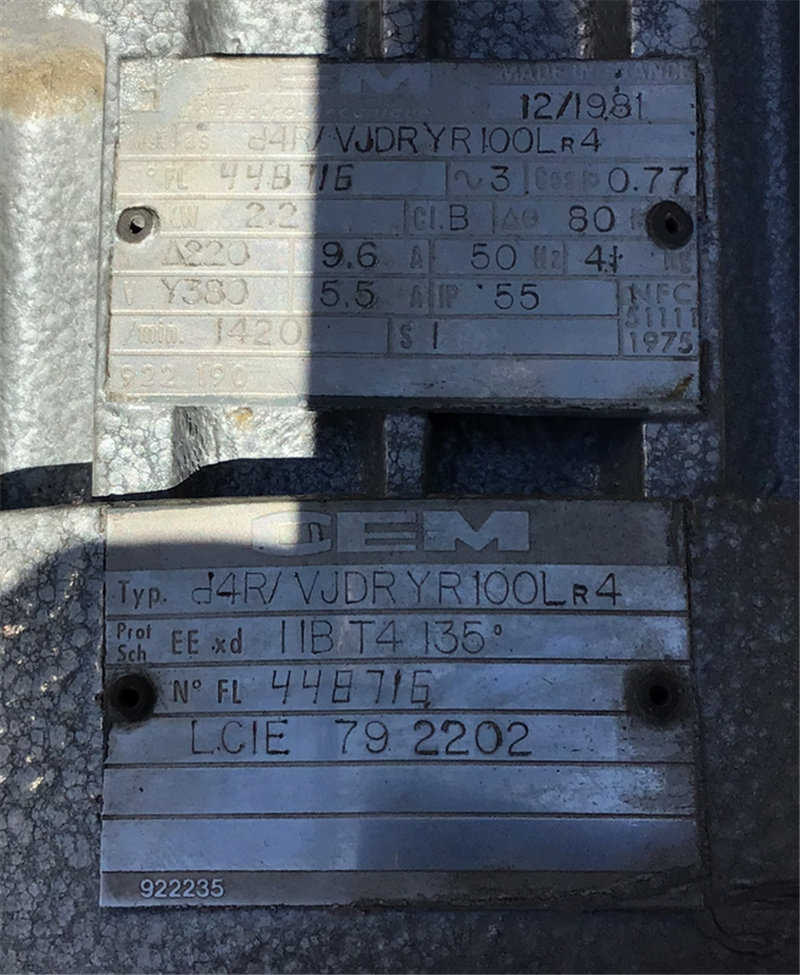

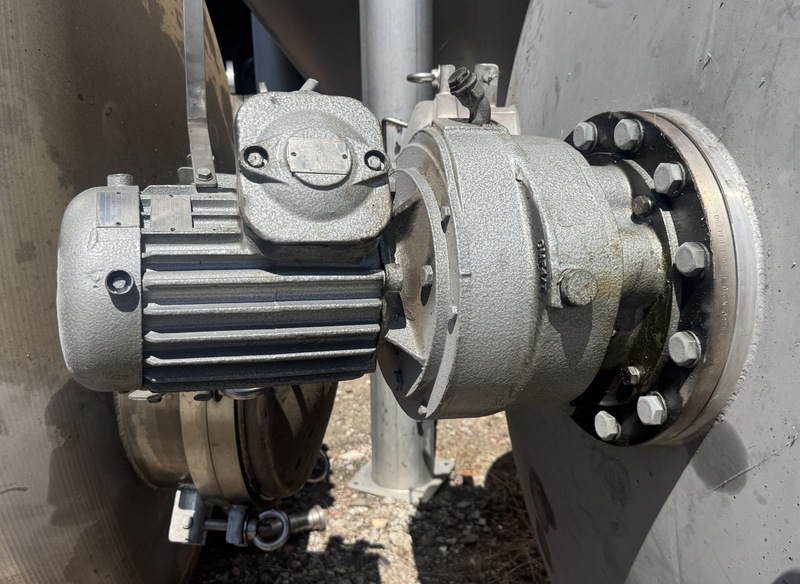

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380V -- 220V |

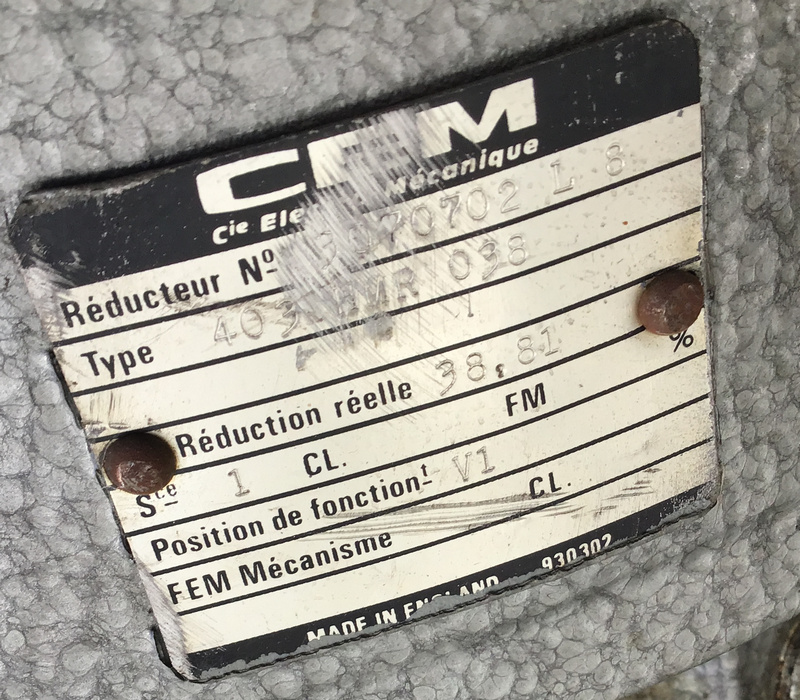

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 36.07tr/min |
