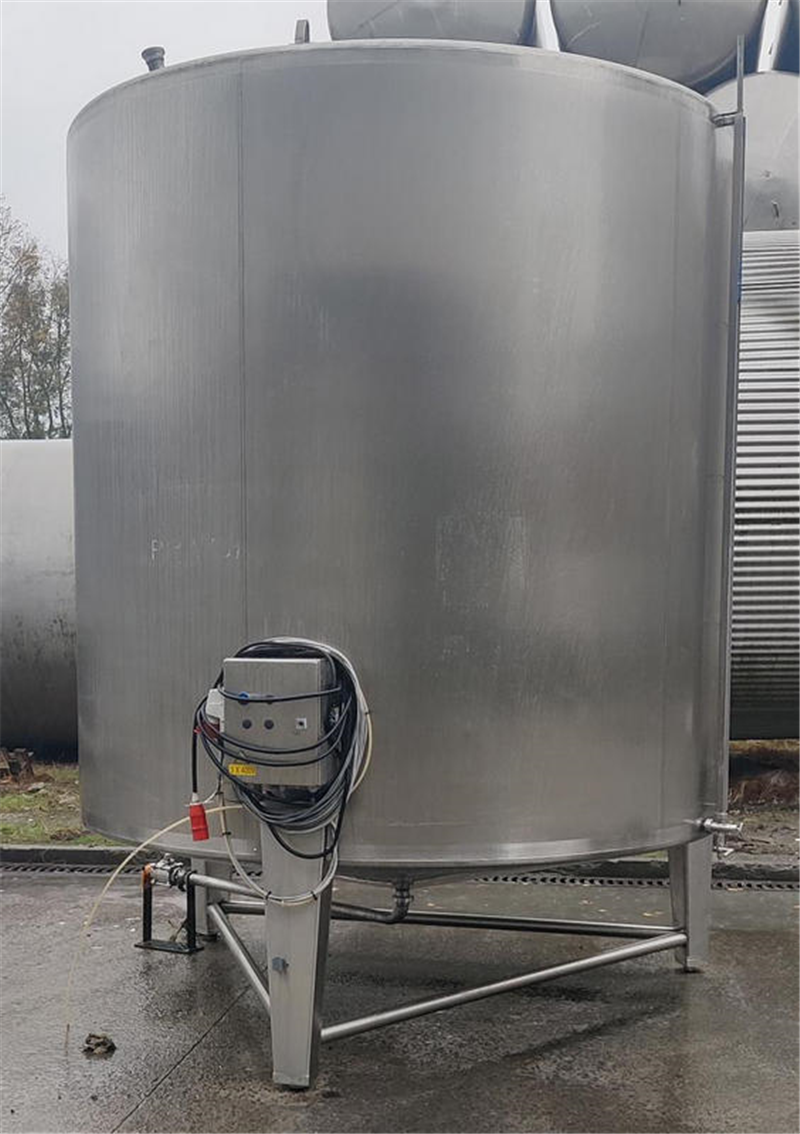

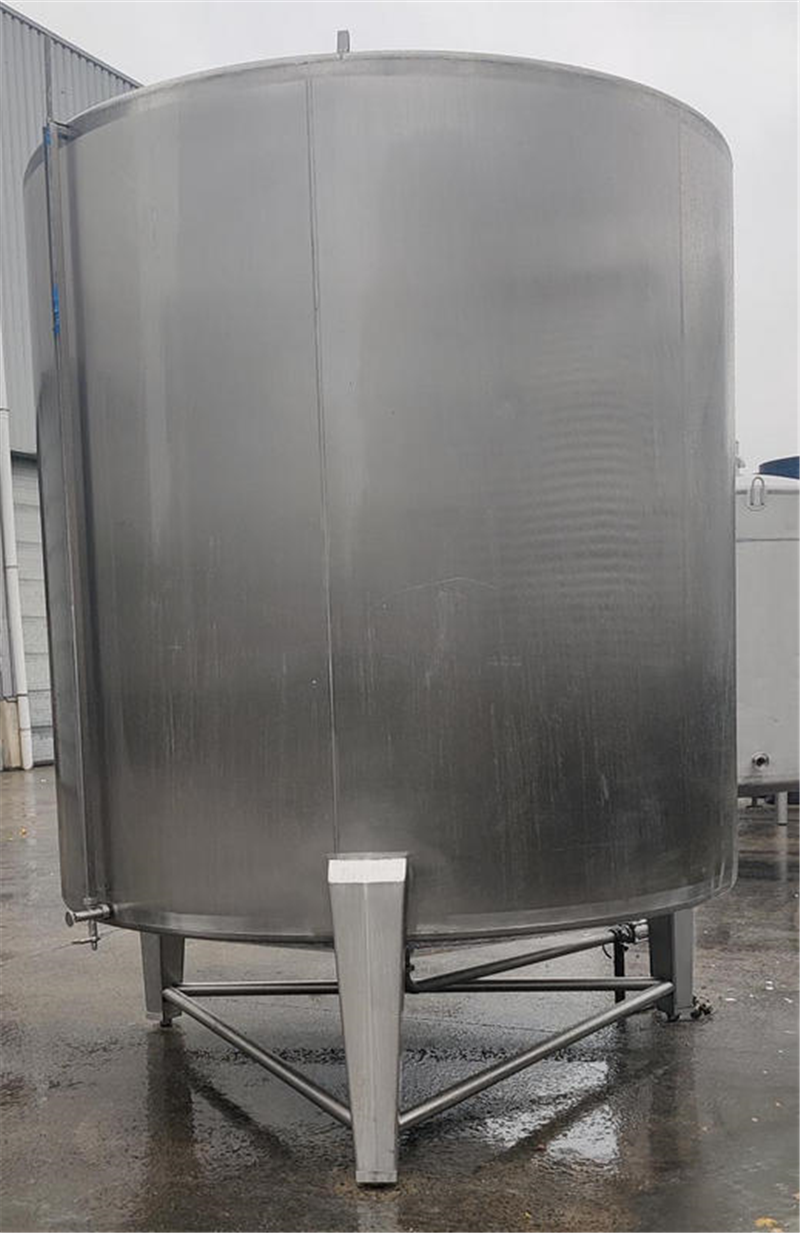

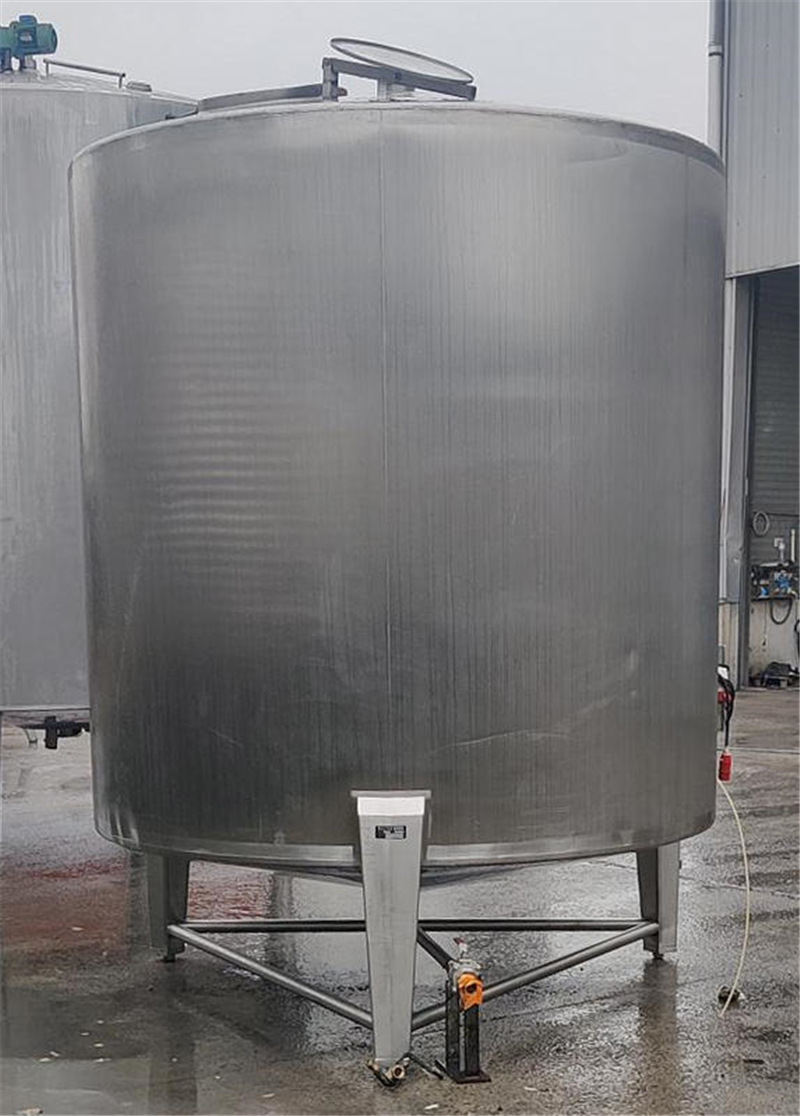

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 12800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.XY.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 12800 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

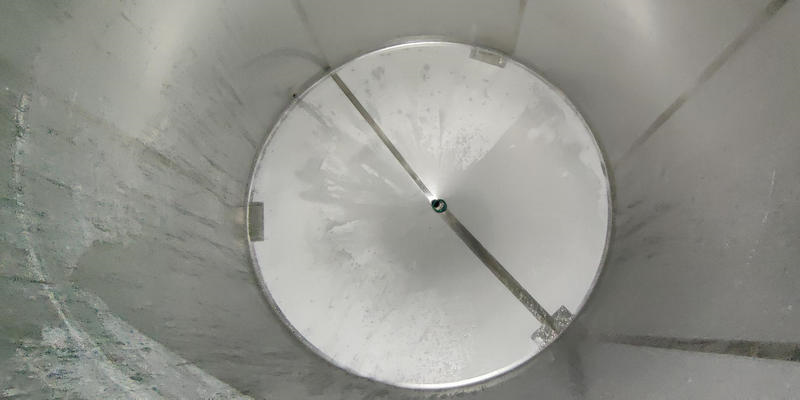

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |

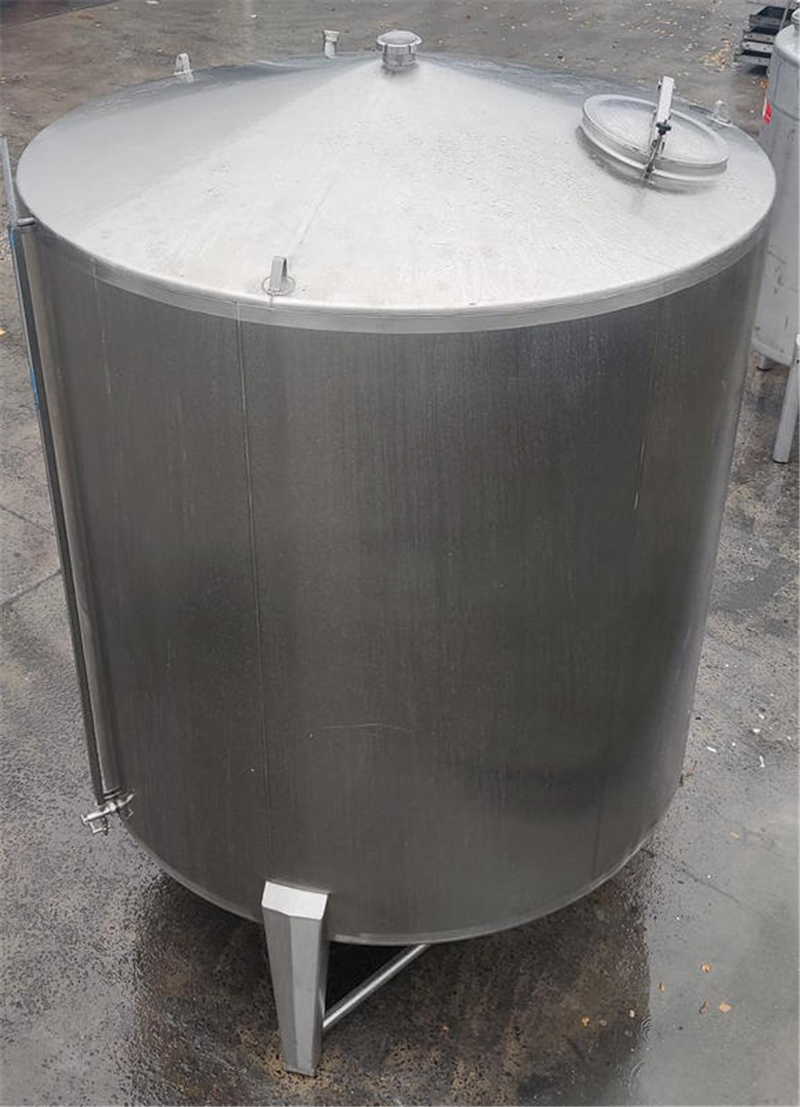

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia. 450mm |

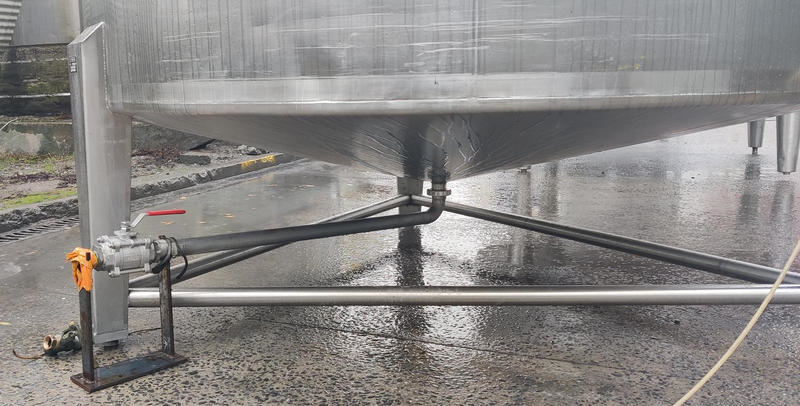

| Tank with total drain? | Yes |
| Type of outlet (s) | man. bolkraan |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | Oil / grease |
| Provision tank cleaning | None |
| Weight (kg) | 1000 |
| Condition | Used |

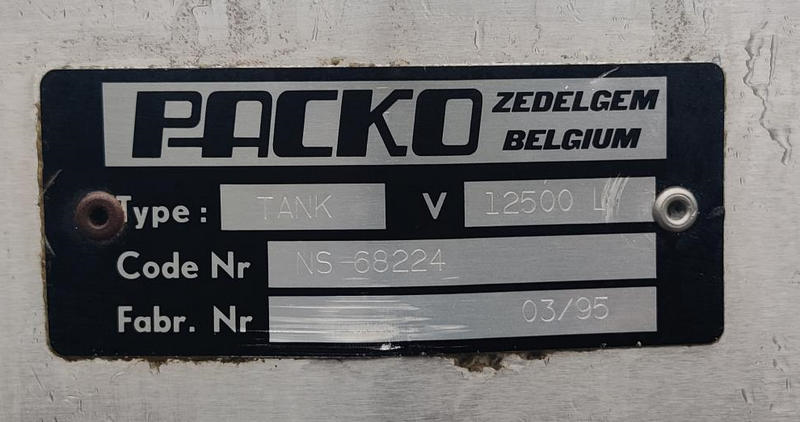

| Type plate manufacturer | Yes |
| Manufacturer | PACKO |
| Year Built | 1995 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,2 |
| Bottom thickness (mm) | 3,3 |
| Periphery (mm) | 7870 |
| Cylindrical length (mm) | 2450 |
| Height bottom (mm) | 250 |
| Total height (mm) | 3600 |
| Length (mm) | 2810 |
| Diameter tank (mm) | 2500 |
| Width (mm) | 2710 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | level tube present |
