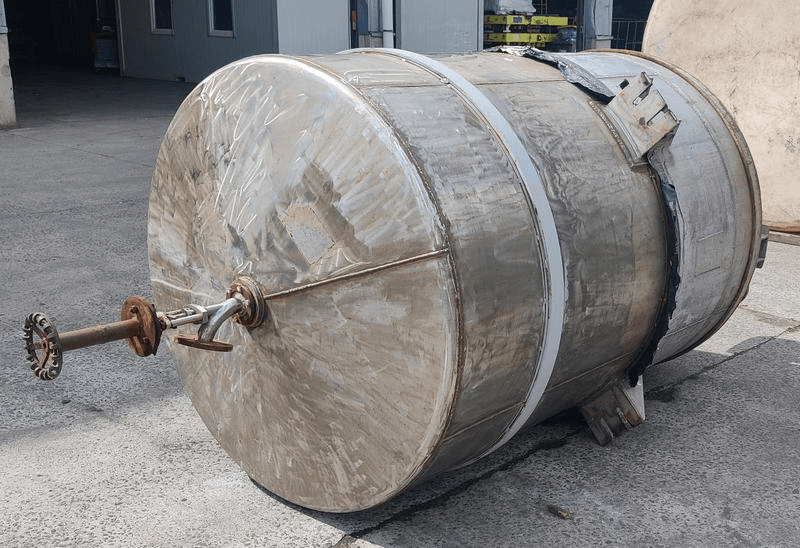

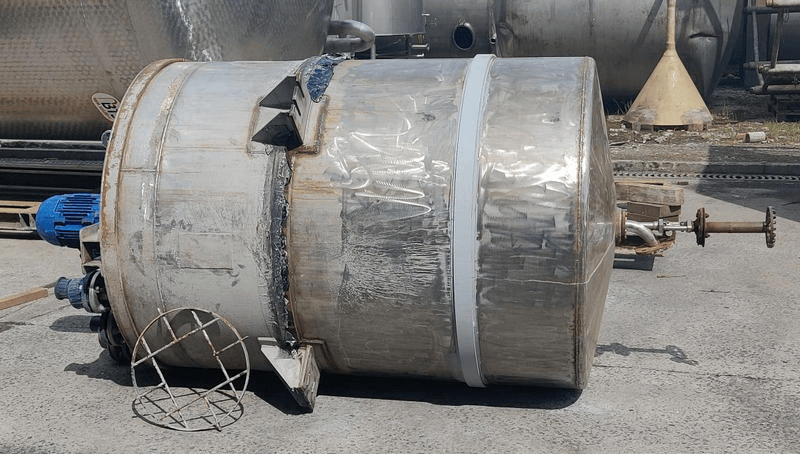

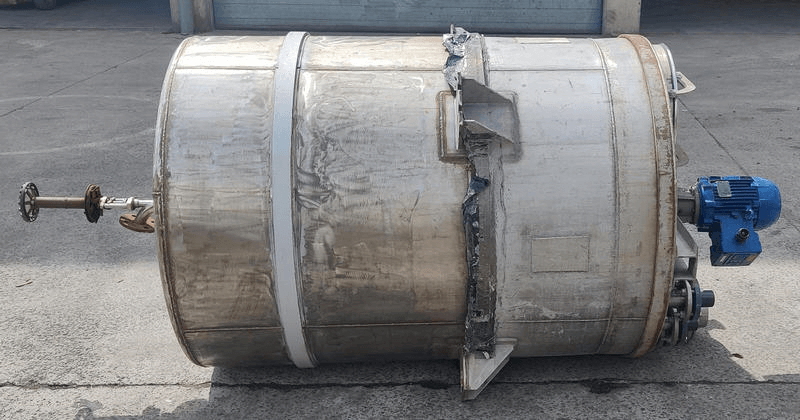

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 2200 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.XY.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Untreated |
| Number | 1 |
| Capacity (Liters) | 2200 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |

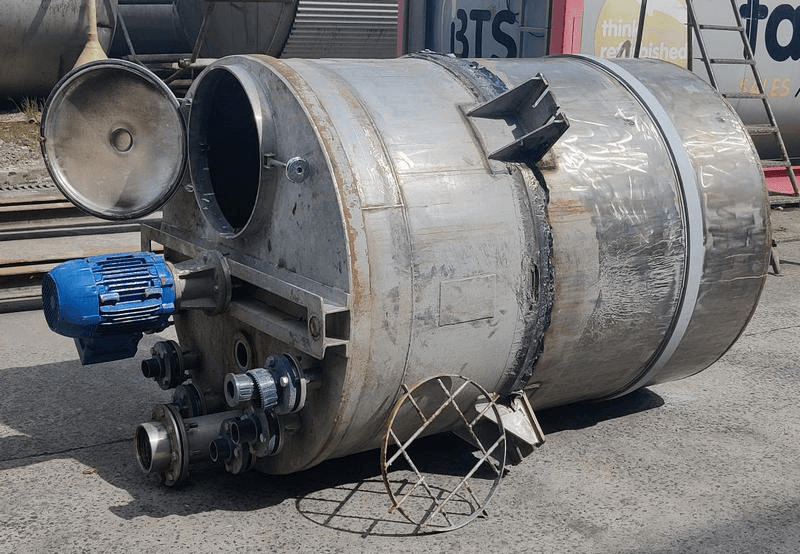

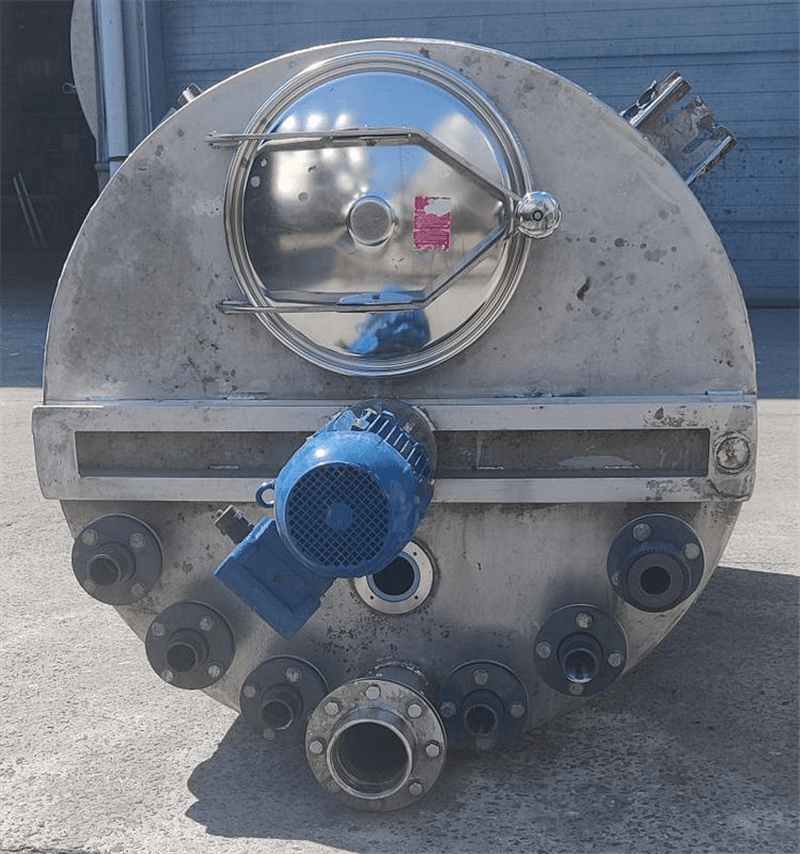

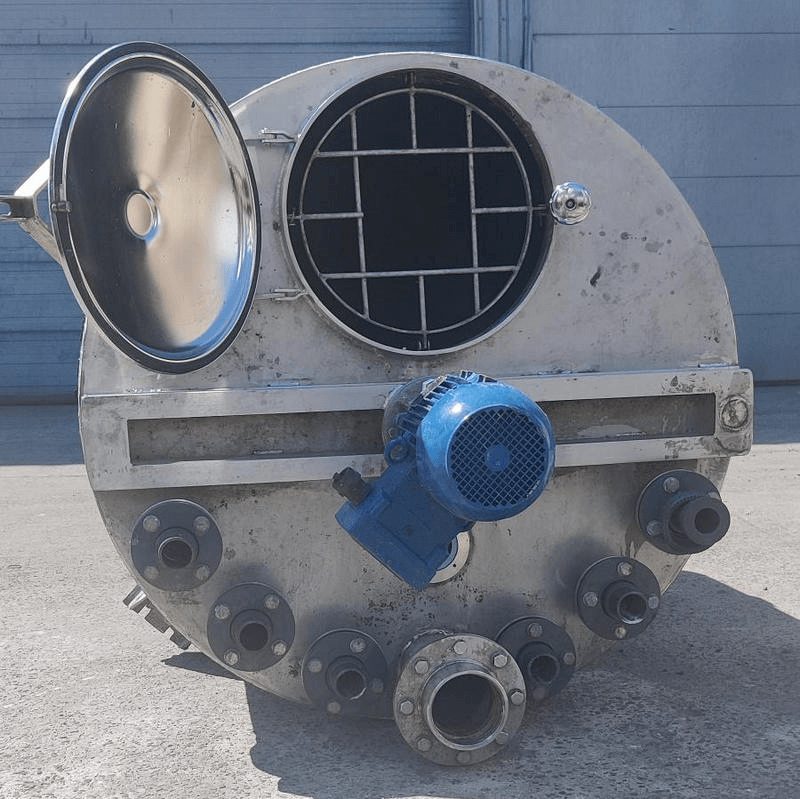

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia. 500mm |

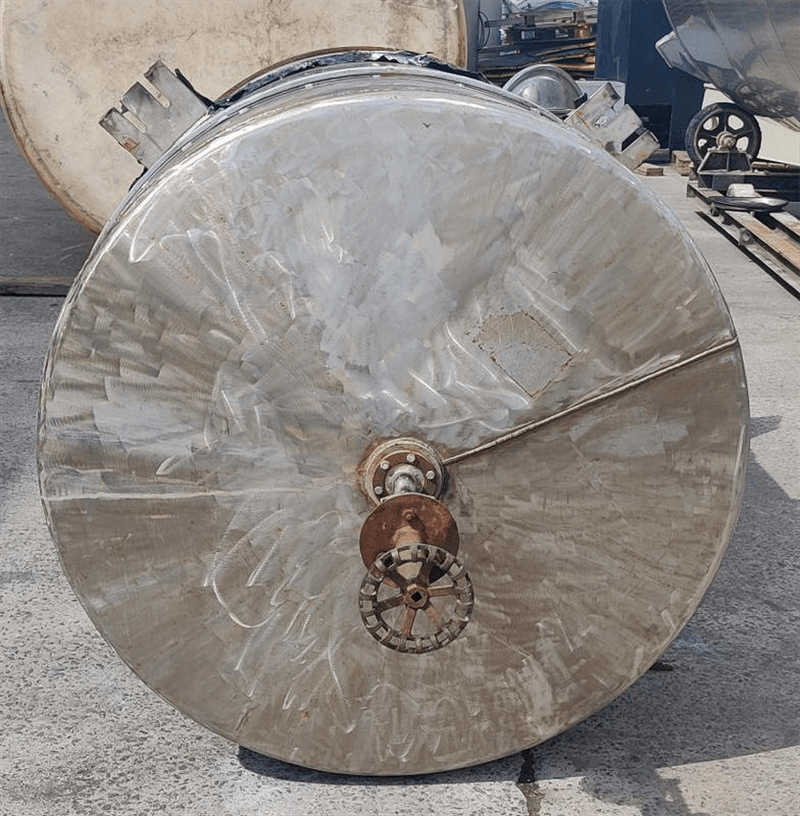

| Tank with total drain? | Yes |
| Type of outlet (s) | flens + man. afsluiter |
| Diameter of outlet (mm) | 40 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 400 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 6,3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,4 |
| Bottom thickness (mm) | 2,5 |
| Periphery (mm) | 4010 |
| Cylindrical length (mm) | 1700 |
| Height bottom (mm) | 100 |
| Total height (mm) | 3000 |
| Length (mm) | 1625 |
| Diameter tank (mm) | 1270 |
| Width (mm) | 1305 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |

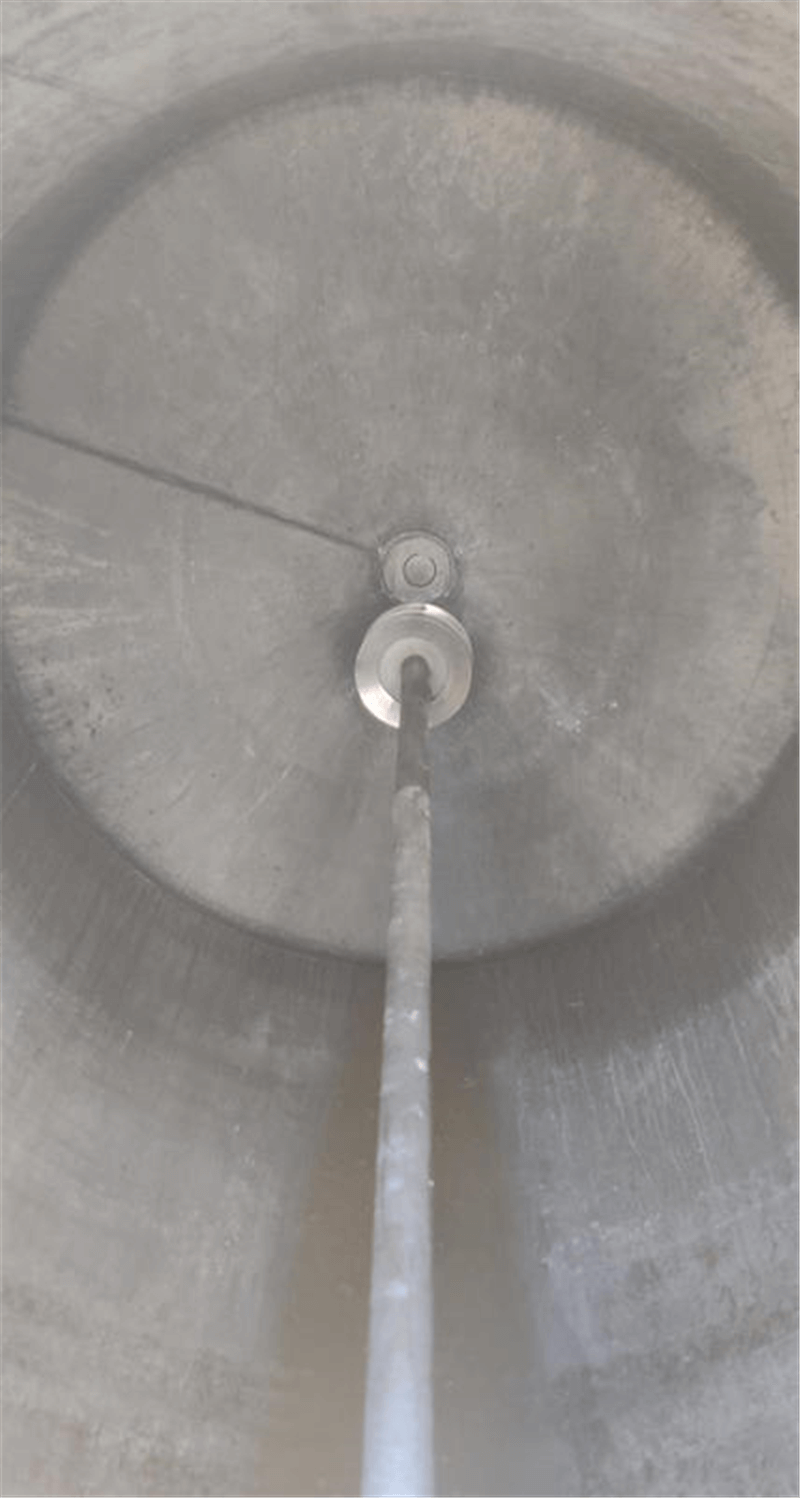

| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: stirring element type | Dissolver/Disc stirrer |
| Agitator 1: Length (mm) | 1500 |

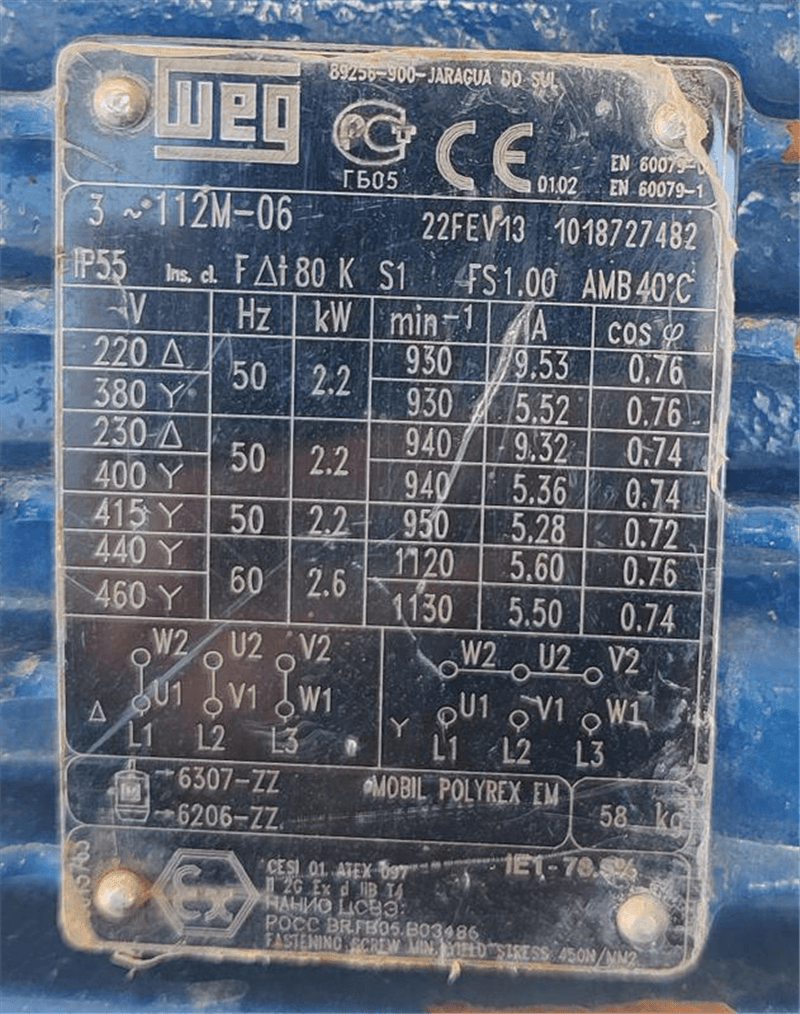

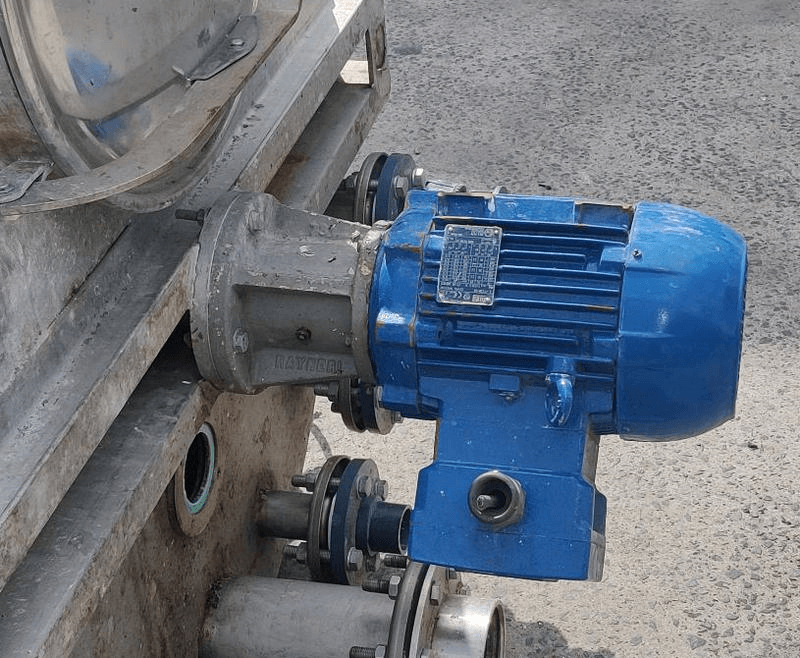

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380/400 |
| Agitator 1: Power (kw) | 2,2 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 930 |
