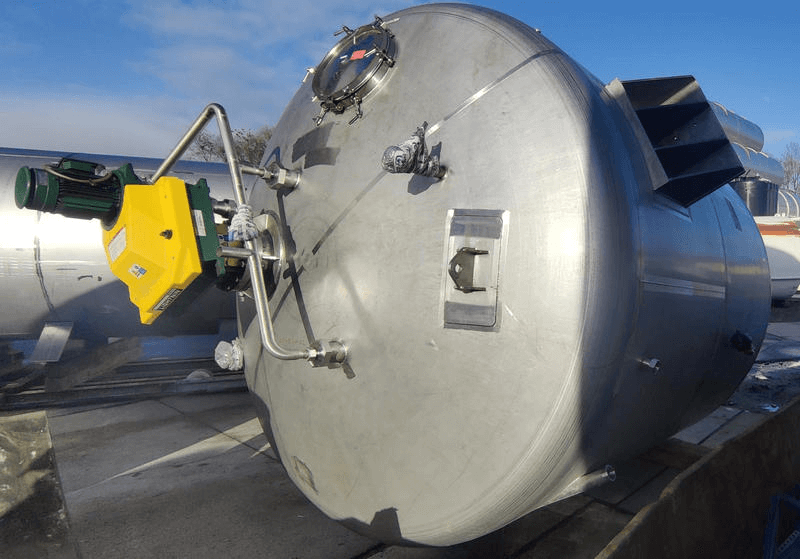

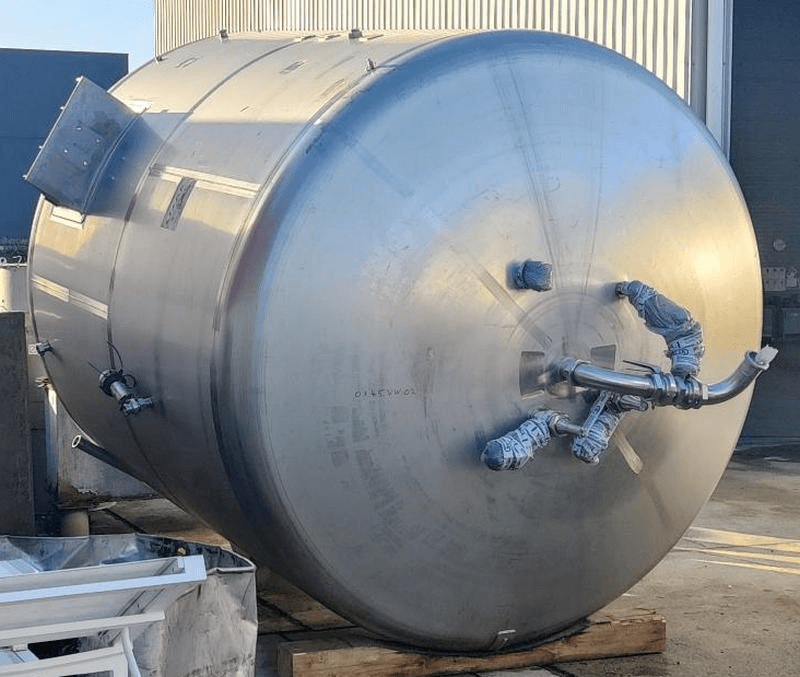

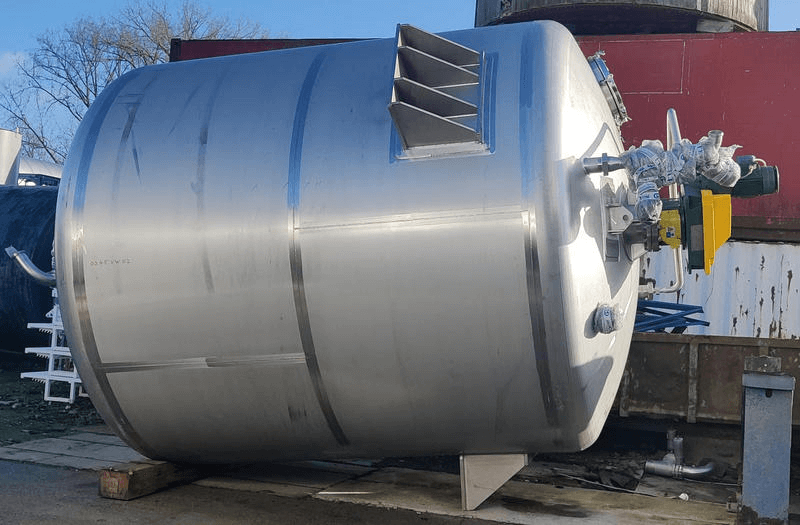

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 31000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.VW.02 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 31000 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

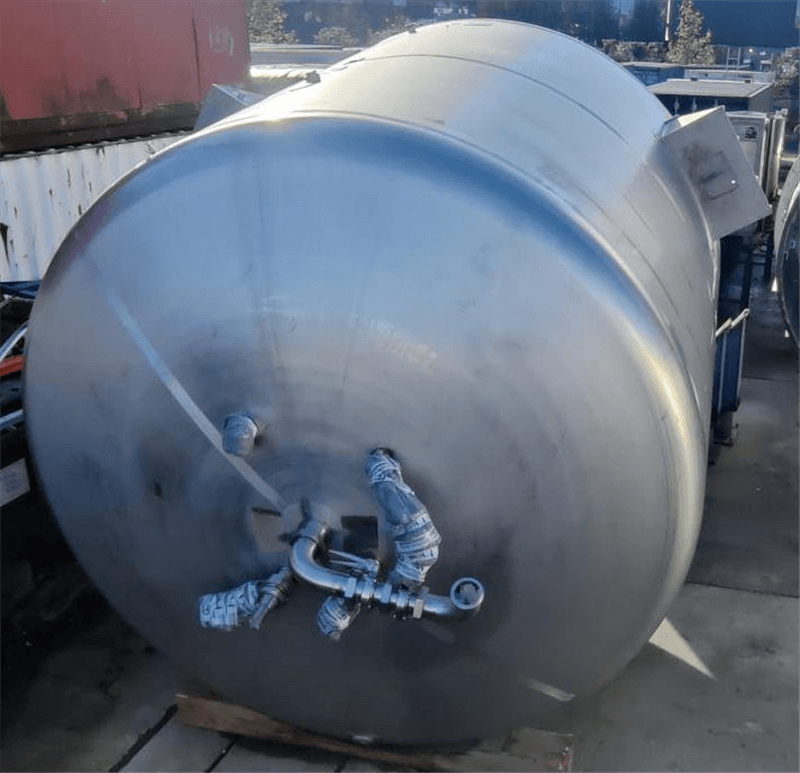

| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

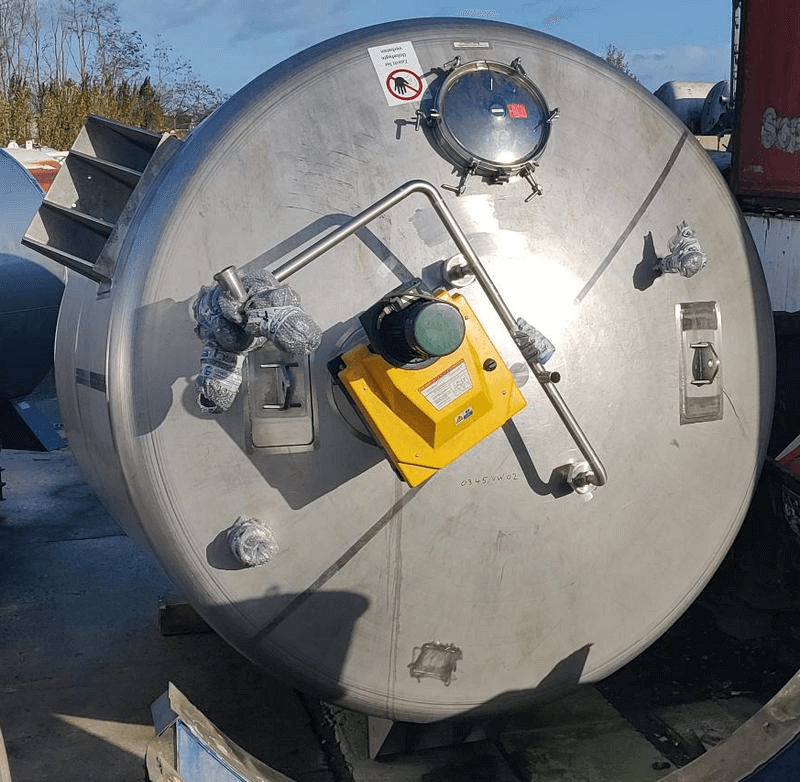

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 500mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. vlinderklep |
| Diameter of outlet (mm) | DN100 |
| locality | B-7711 Belgium |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 3800 |
| Condition | Used |

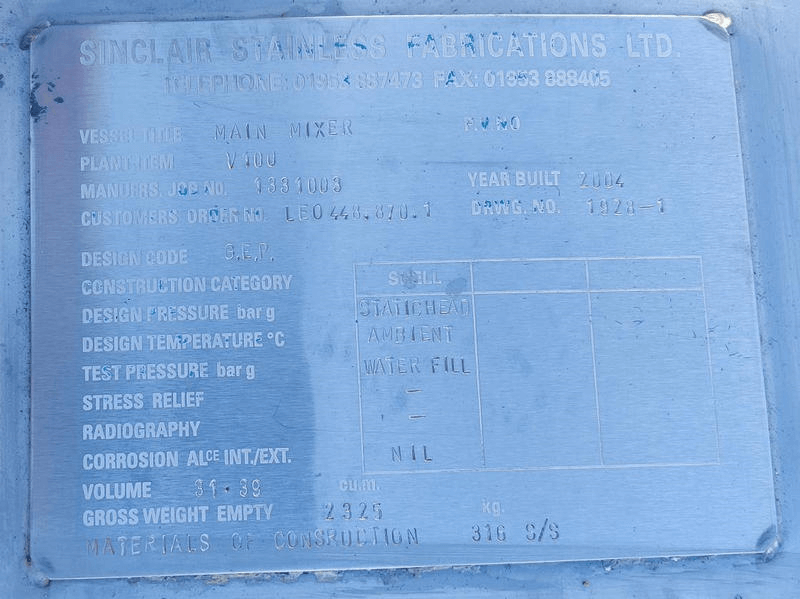

| Type plate manufacturer | Yes |
| Manufacturer | Sinclair Stainless Fabrications LTD |
| Year Built | 2004 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 6,2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6,1 |
| Bottom thickness (mm) | 6,2 |
| Periphery (mm) | 10250 |
| Cylindrical length (mm) | 3000 |
| Height bottom (mm) | 600 |
| Total height (mm) | 5500 |
| Length (mm) | 3665 |
| Diameter tank (mm) | 3250 |
| Width (mm) | 3765 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

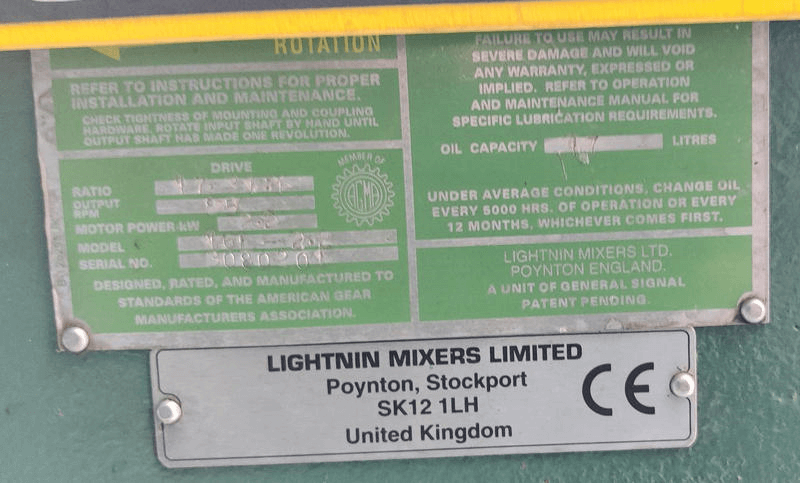

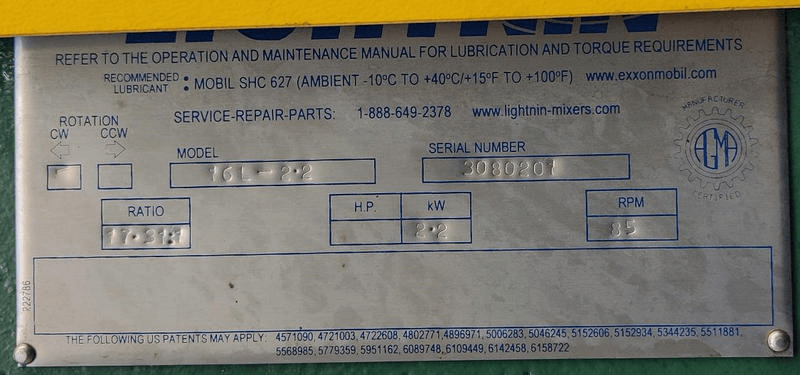

| Agitator 1: Constructor | Lightnin |

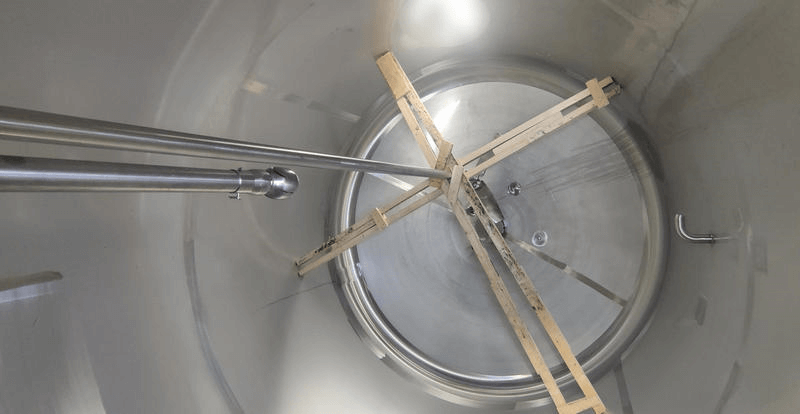

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 3500 |

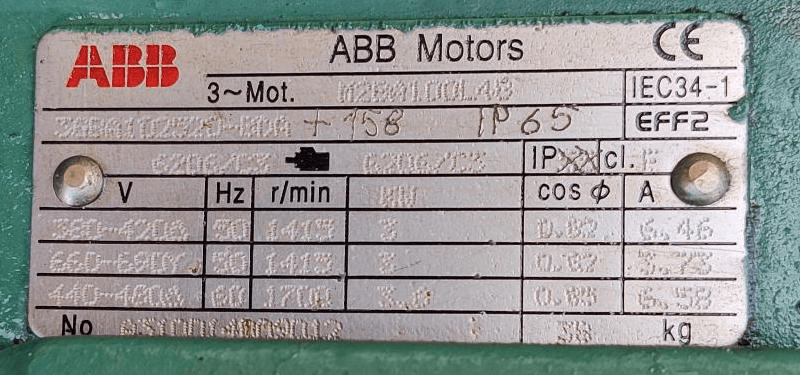

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 400 |

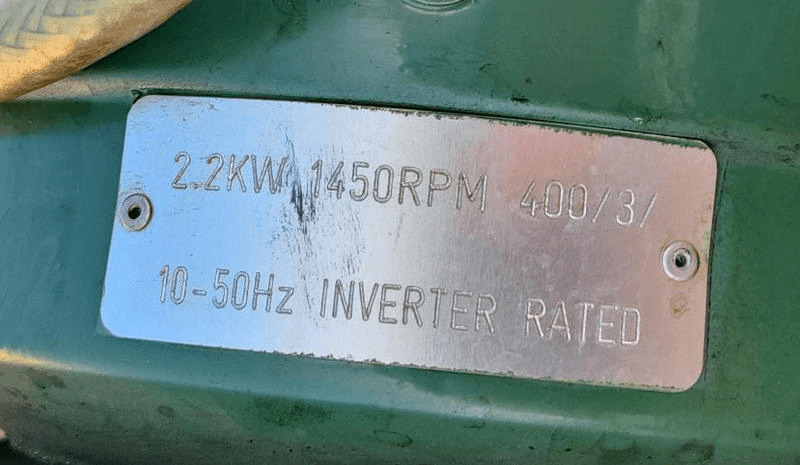

| Agitator 1: Power (kw) | 2,2 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 85 |
