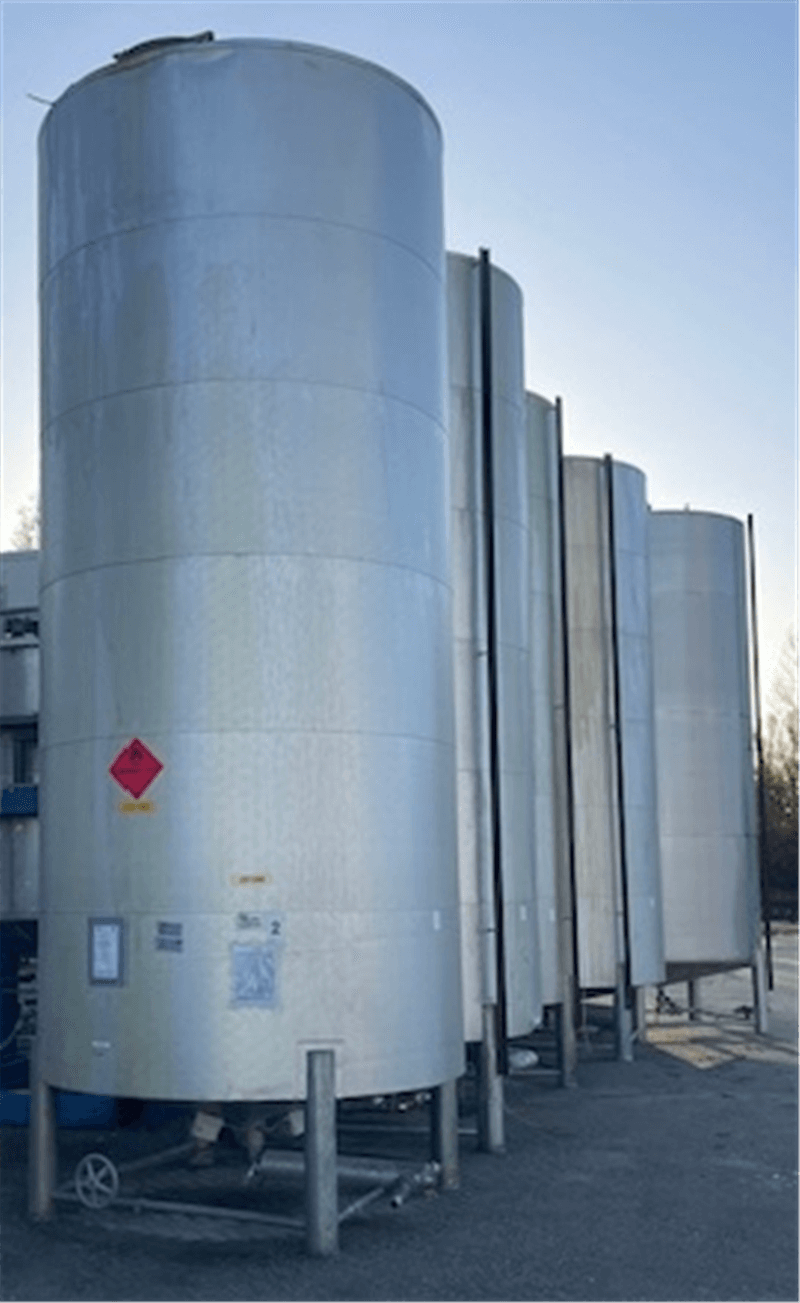

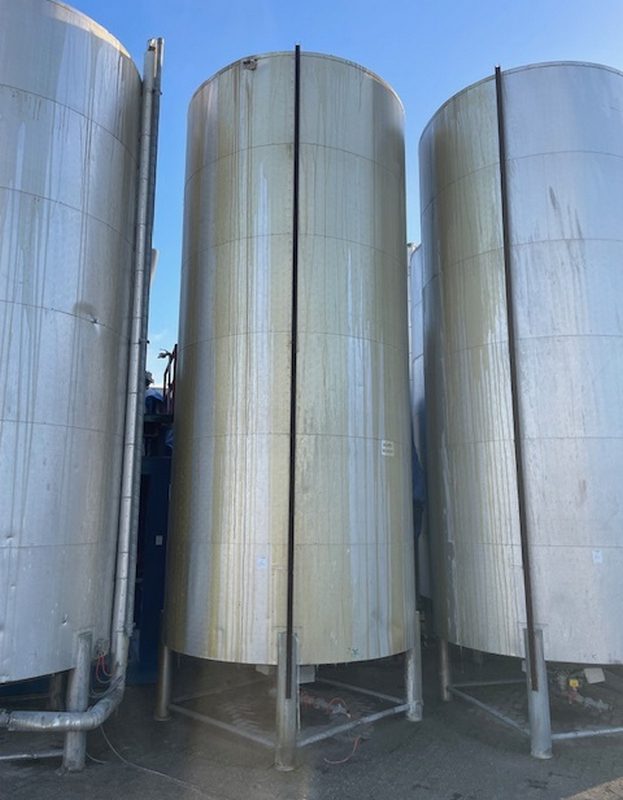

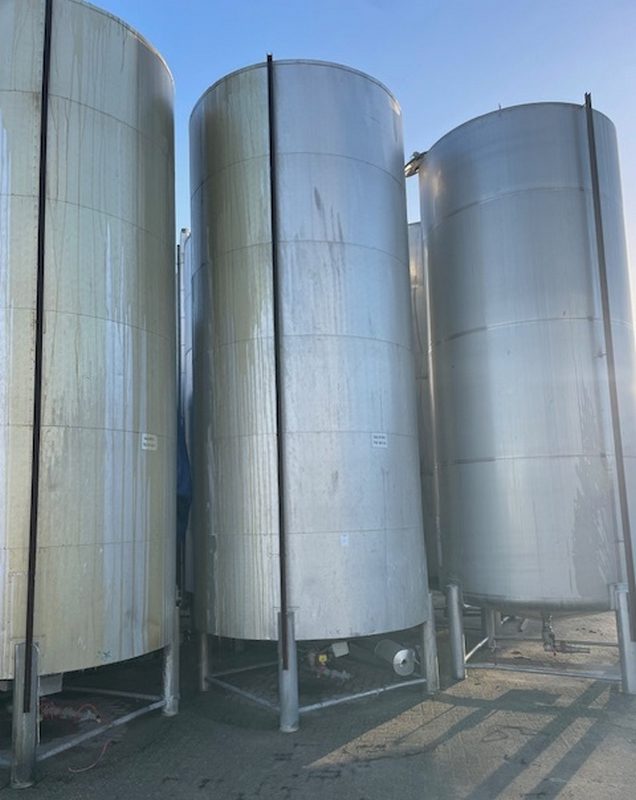

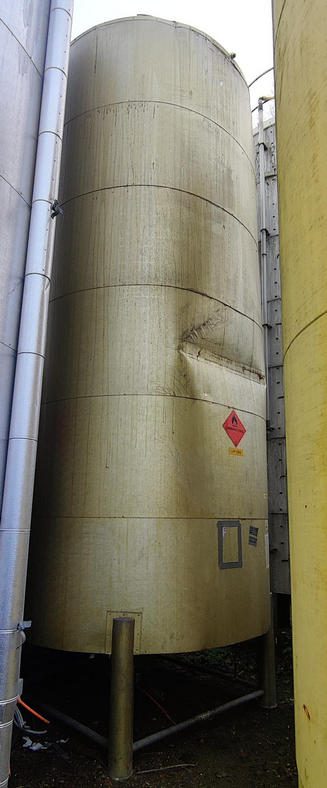

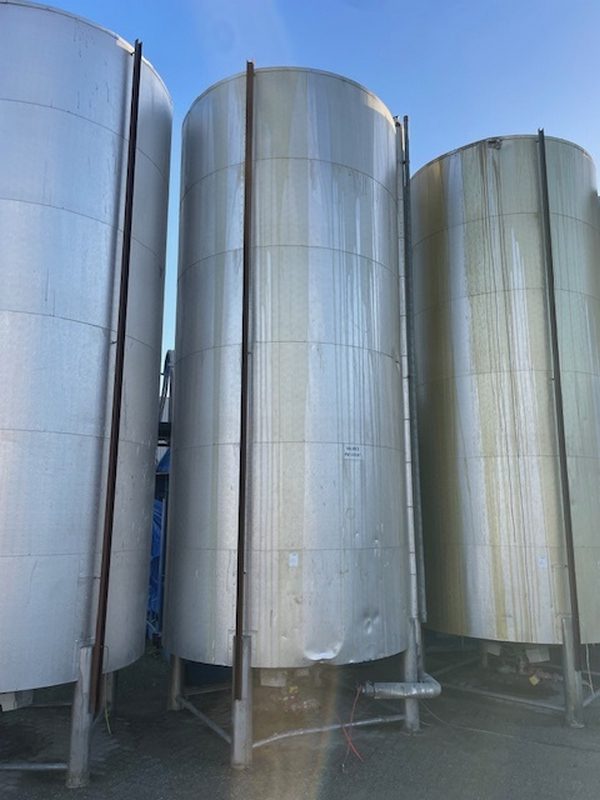

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 28000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.TB.85 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 28000 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 510mm |

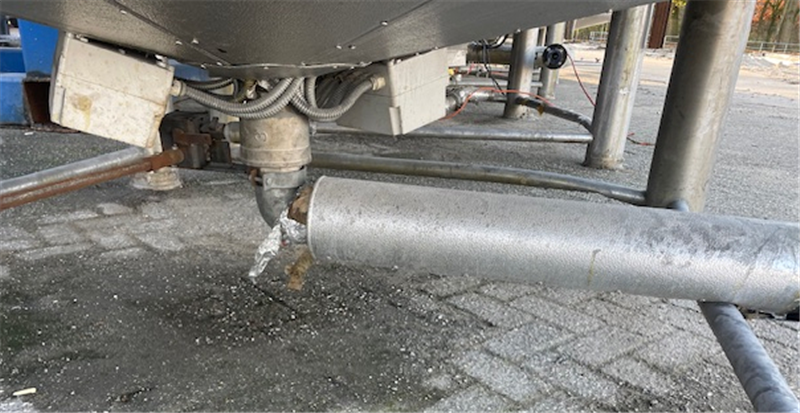

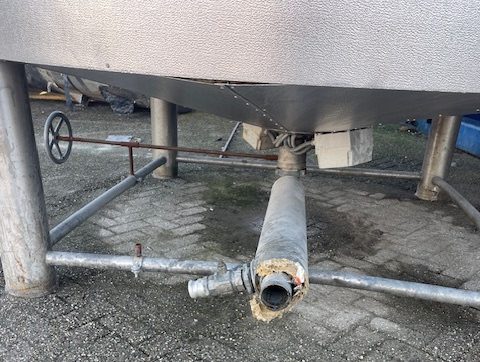

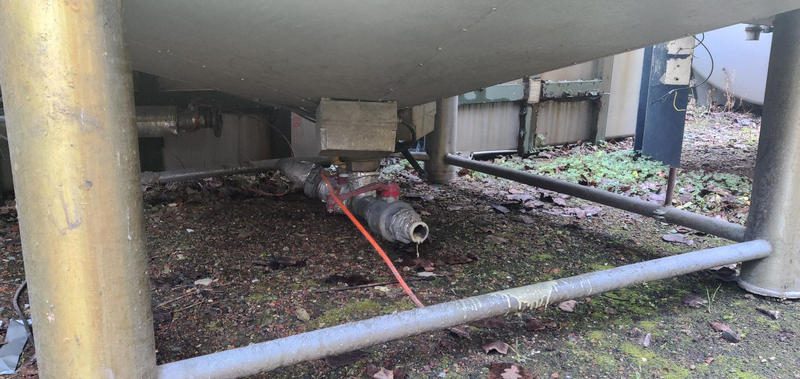

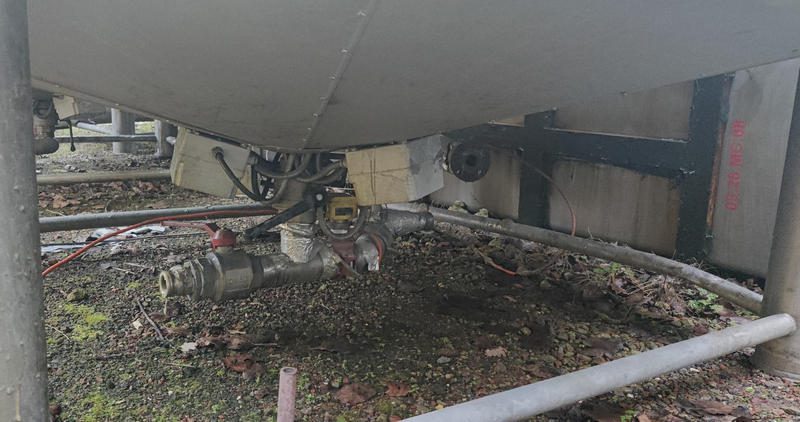

| Tank with total drain? | Yes |
| Type of outlet (s) | man. bolkraan |
| Diameter of outlet (mm) | DN80 |
| locality | B-7711 Belgium |
| Last application | Paint industry |
| Provision tank cleaning | None |
| Weight (kg) | 2500 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|

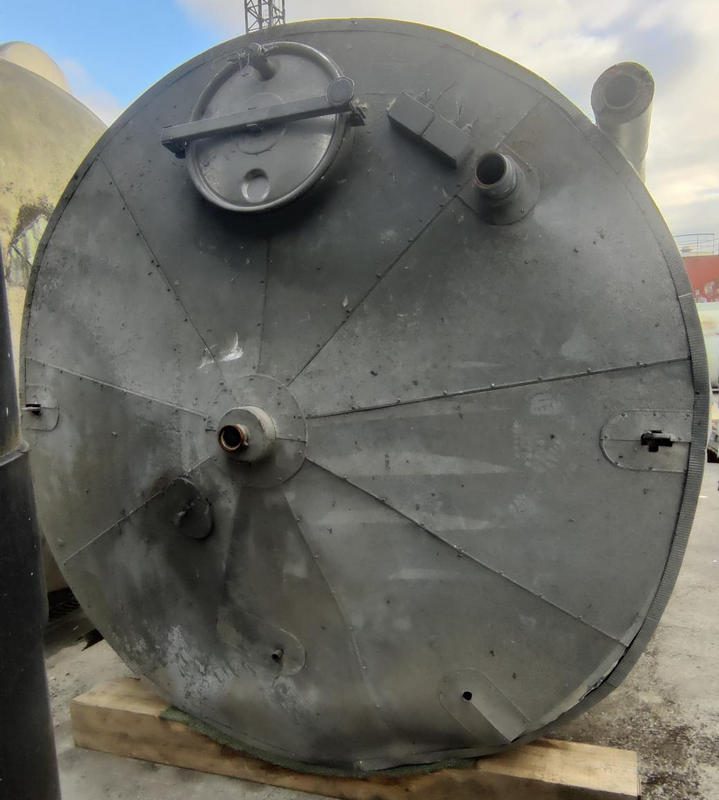

| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Periphery (mm) | 8060 |
| Cylindrical length (mm) | 5600 |
| Height bottom (mm) | 300 |
| Outside diameter tank (mm) | 2570 |
| Total height (mm) | 7000 |
| Length (mm) | 2570 |
| Diameter tank (mm) | 2500 |
| Width (mm) | 2570 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 30 |
| Finishing insulation | Rivited sheet cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | electrical tracing |
| Remarks | |
|---|---|
| Description (EN) | no information known about the 6 tracing circuits |
