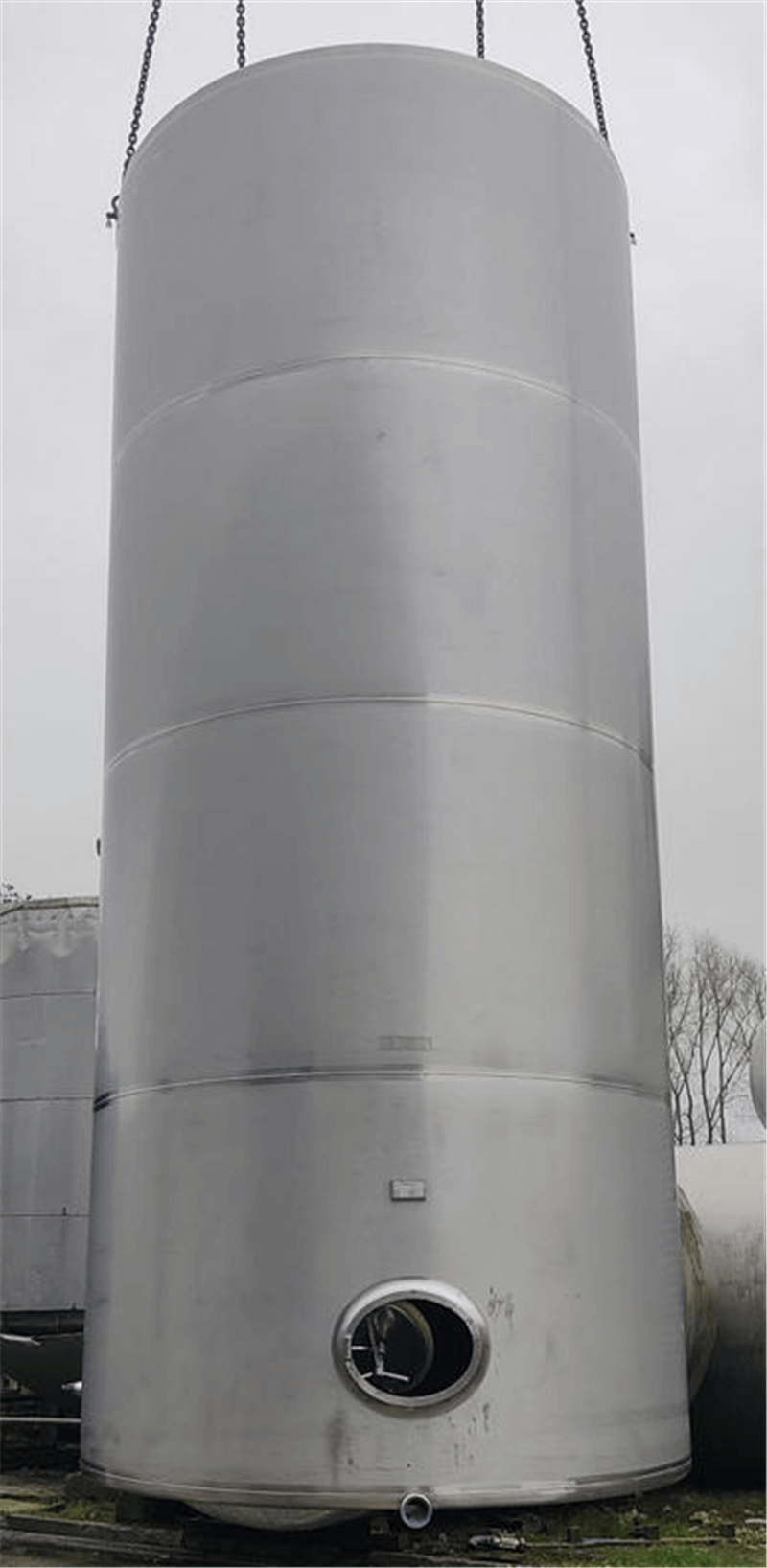

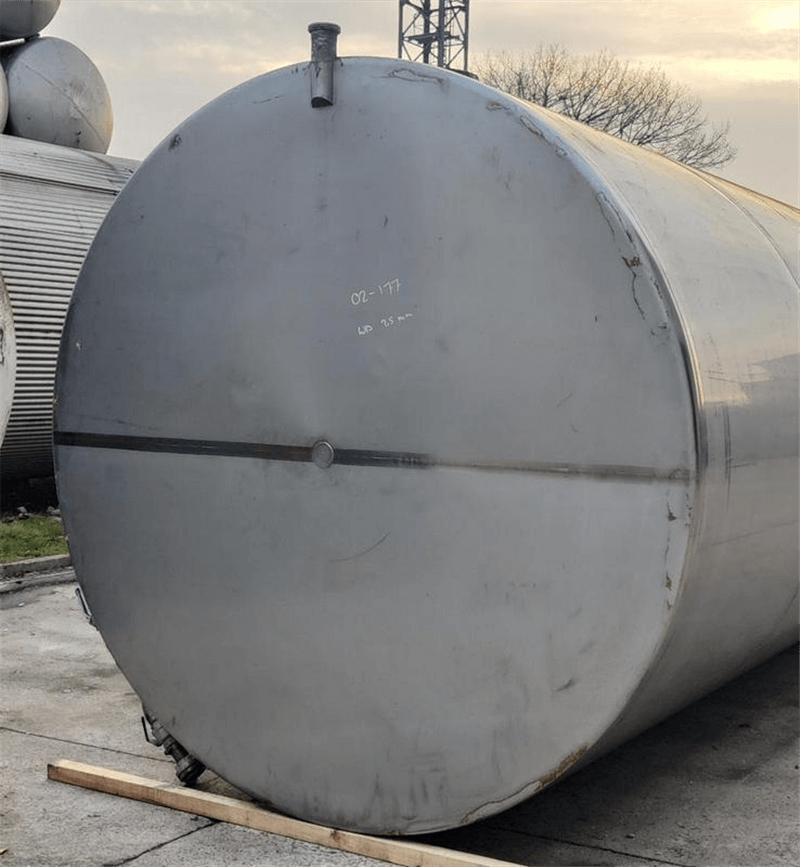

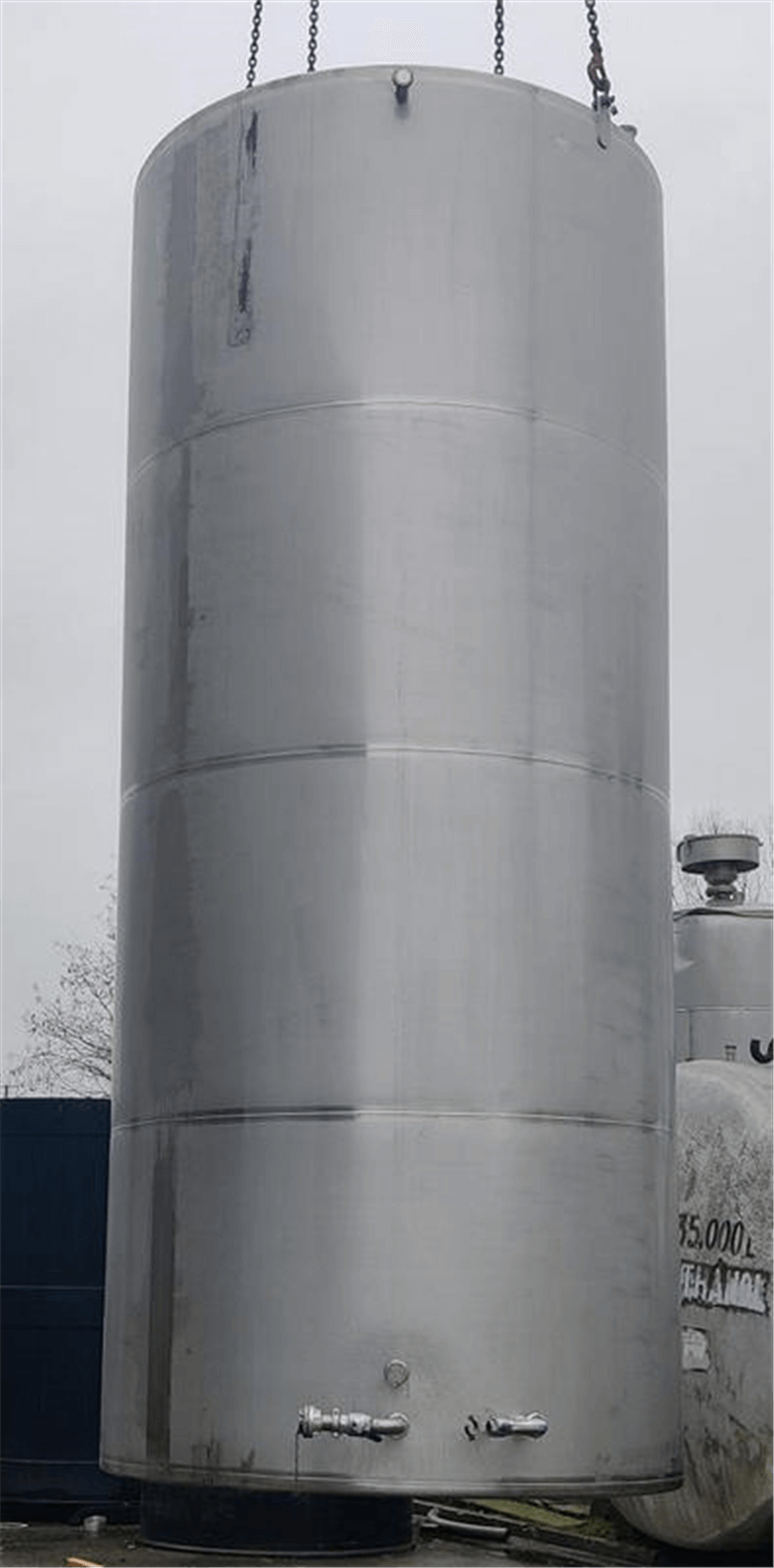

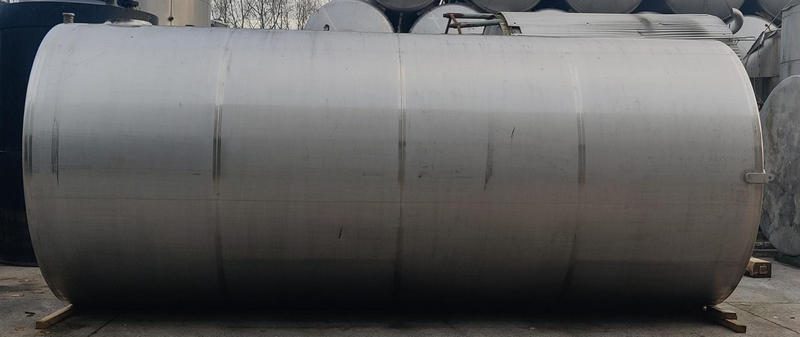

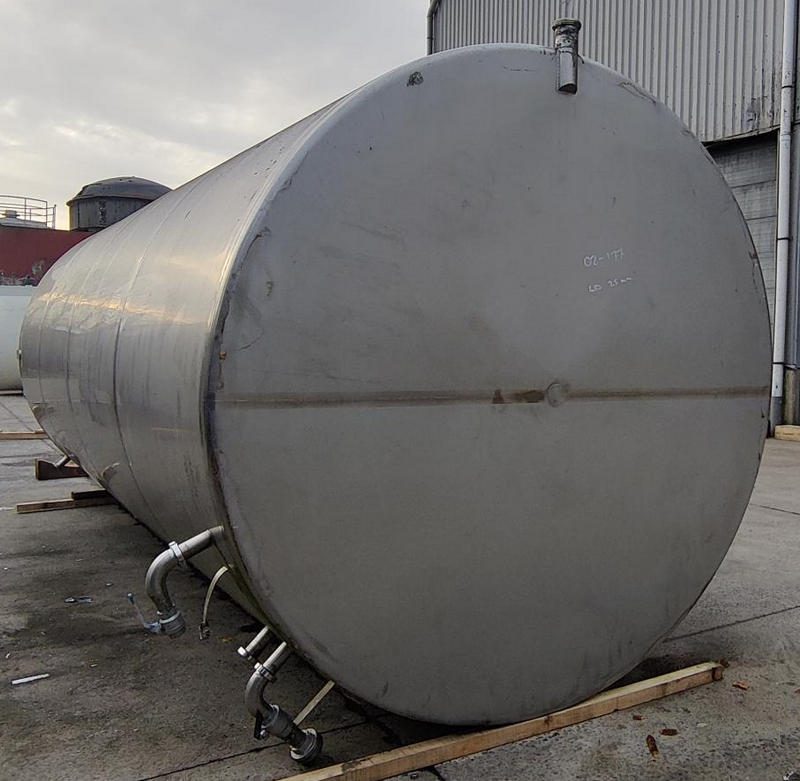

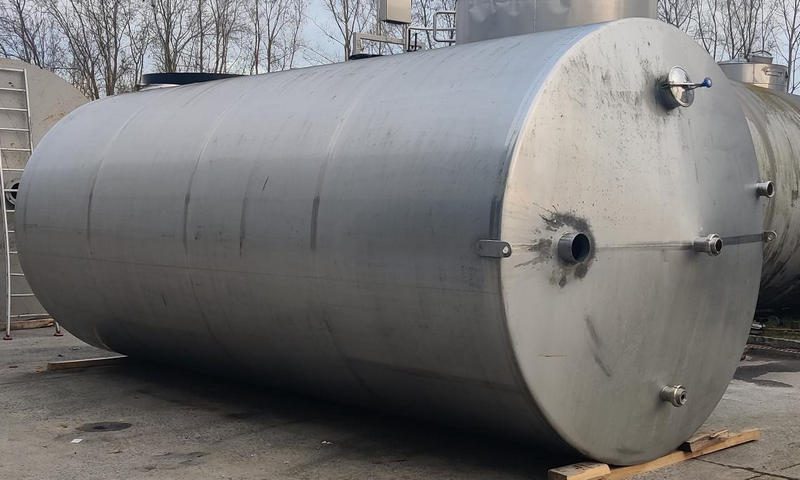

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 32000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.TB.69 |
| Material | Stainless steel 304 |

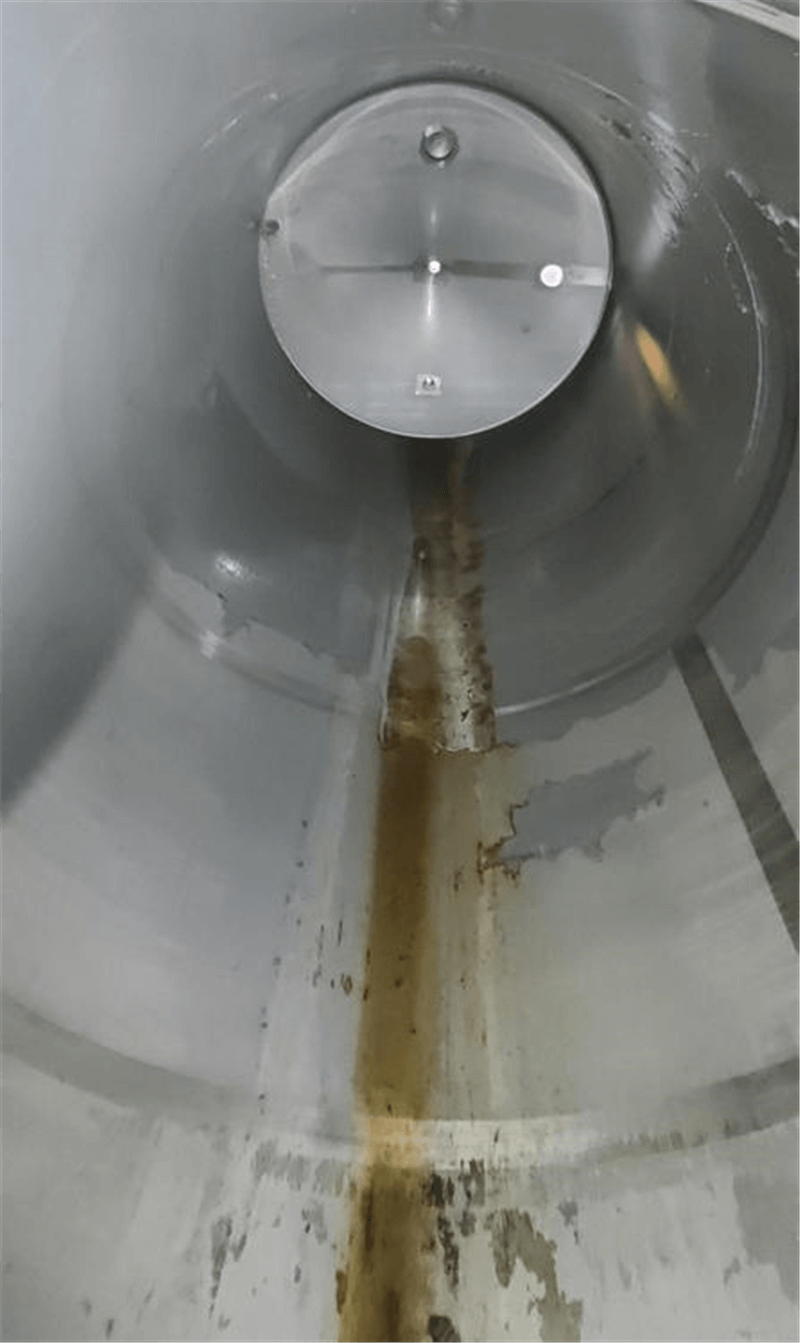

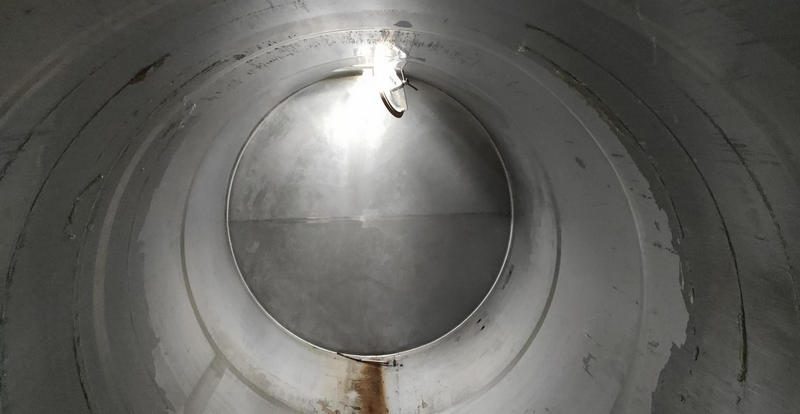

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 32000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

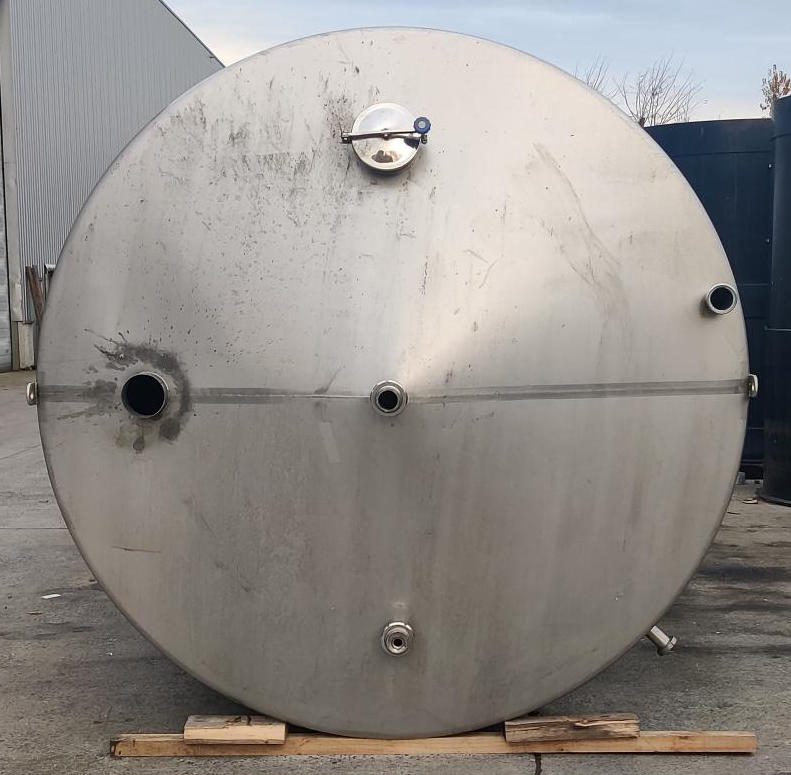

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 440x345mm |
| Tank with total drain? | Yes |

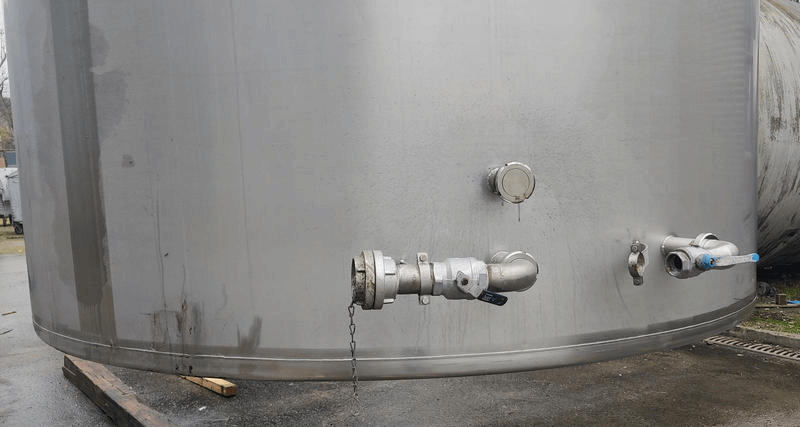

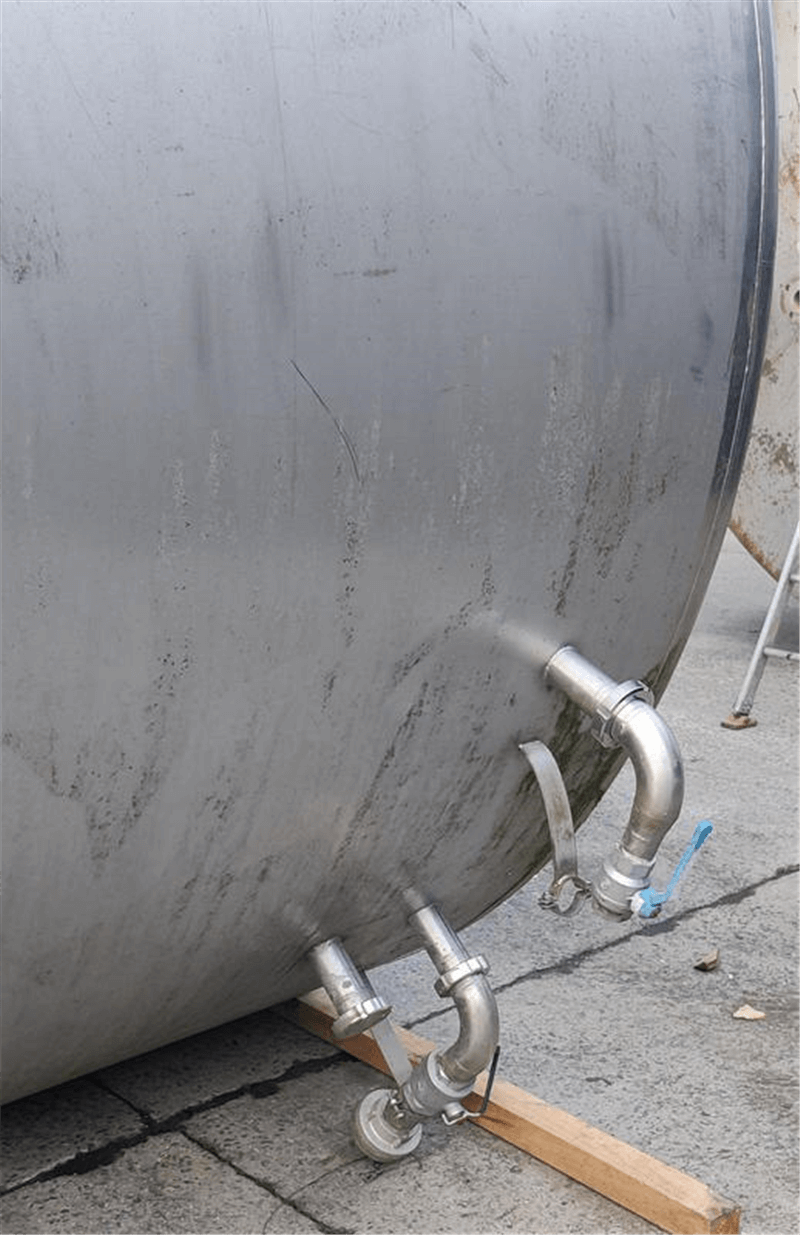

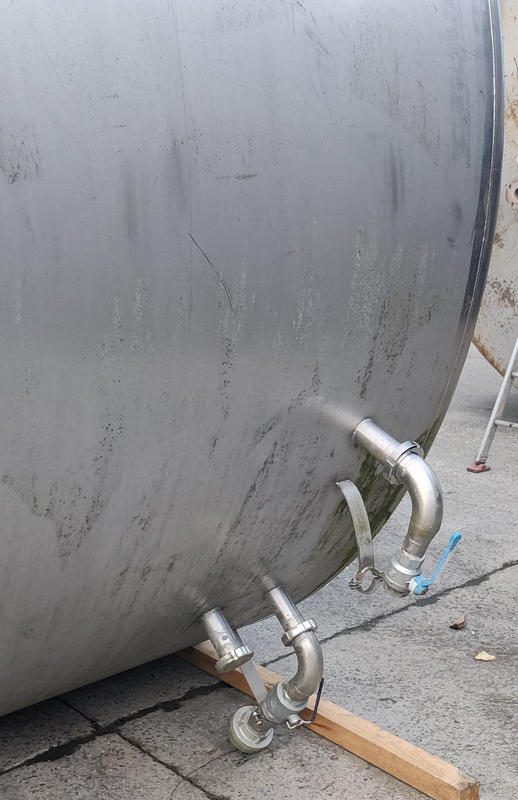

| Type of outlet (s) | Voedingskoppeling |
| Diameter of outlet (mm) | DN80 |
| locality | B-7711 Belgium |
| Last application | Paint industry |
| Provision tank cleaning | None |
| Weight (kg) | 1500 |
| Condition | Used |

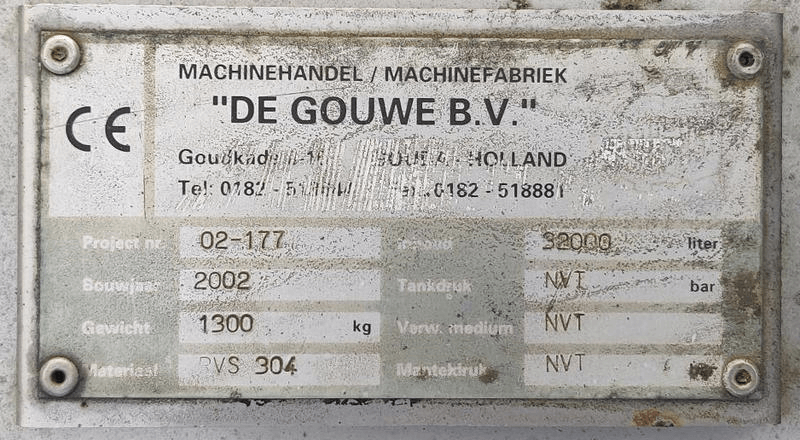

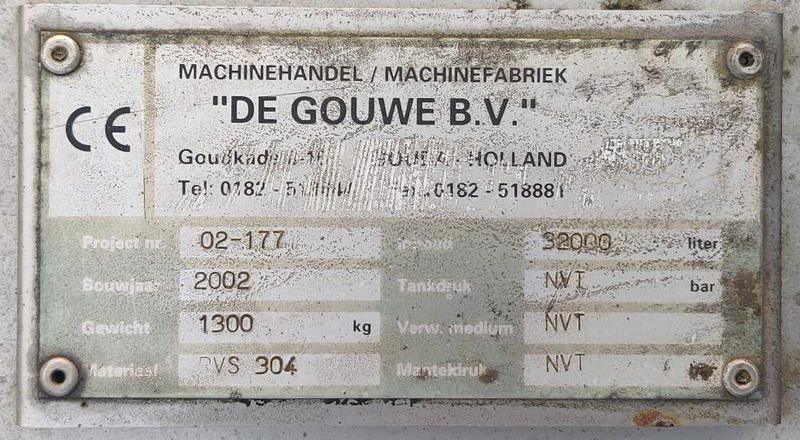

| Type plate manufacturer | Yes |
| Manufacturer | De Gouwe B.V. |
| Year Built | 2002 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Bottom thickness (mm) | 2,5 |
| Periphery (mm) | 8170 |
| Cylindrical length (mm) | 6000 |
| Slope bottom (°) | 4 |
| Total height (mm) | 6600 |
| Length (mm) | 2700 |
| Diameter tank (mm) | 2595 |
| Width (mm) | 2760 |
| Insulation | |
|---|---|
| Insulation | No |
