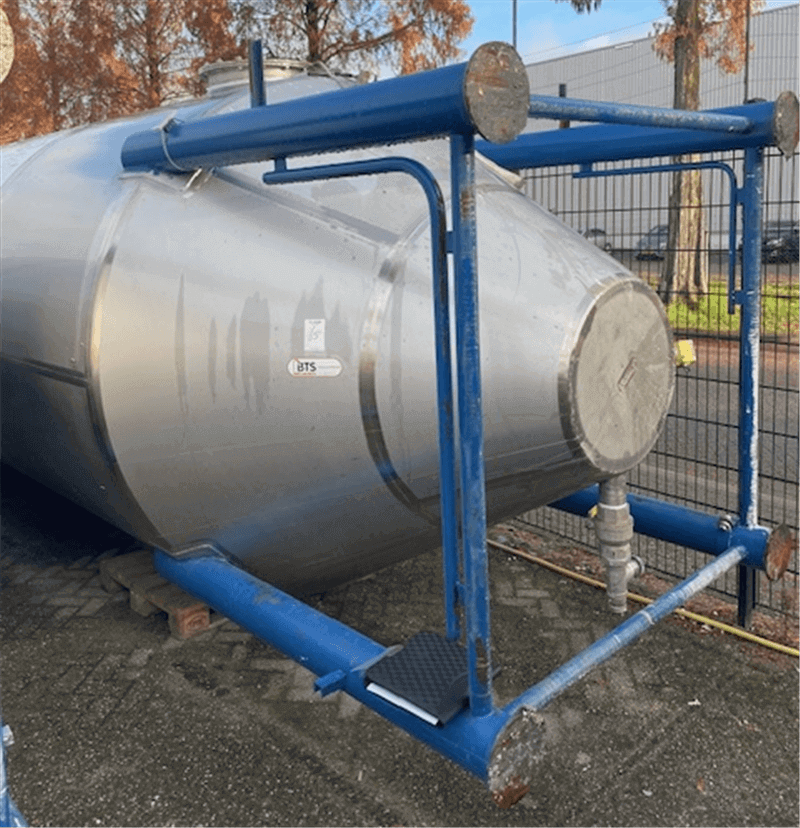

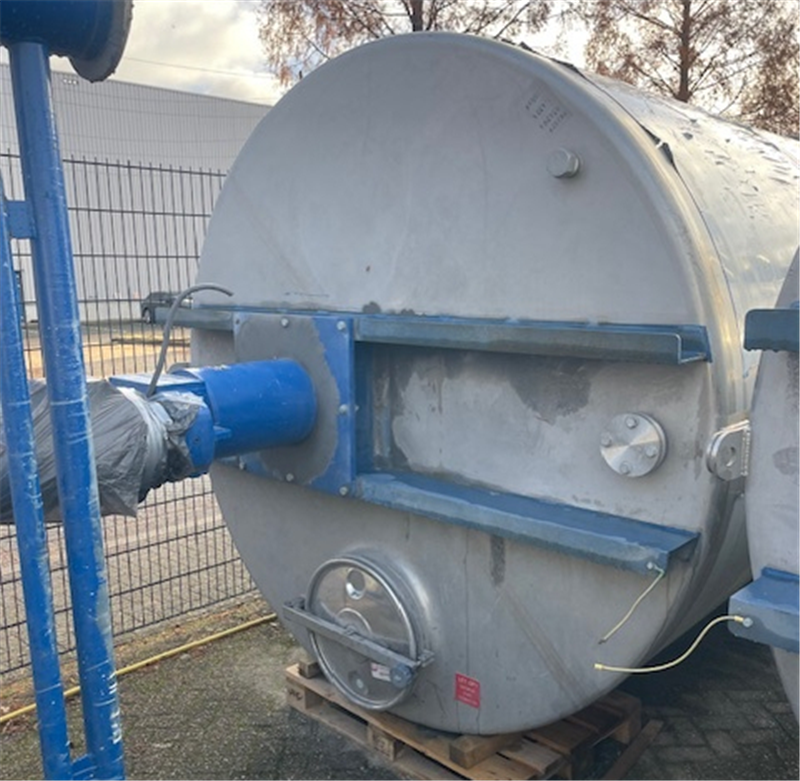

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 22800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.TB.59 |

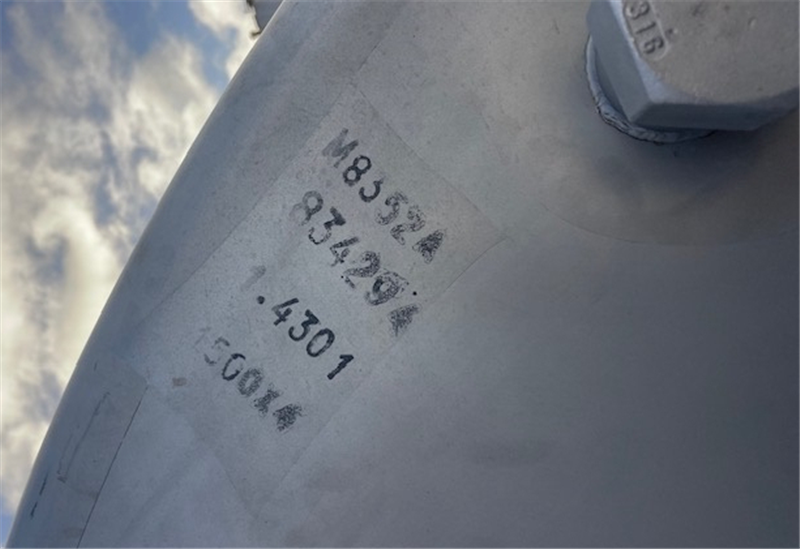

| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 22800 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

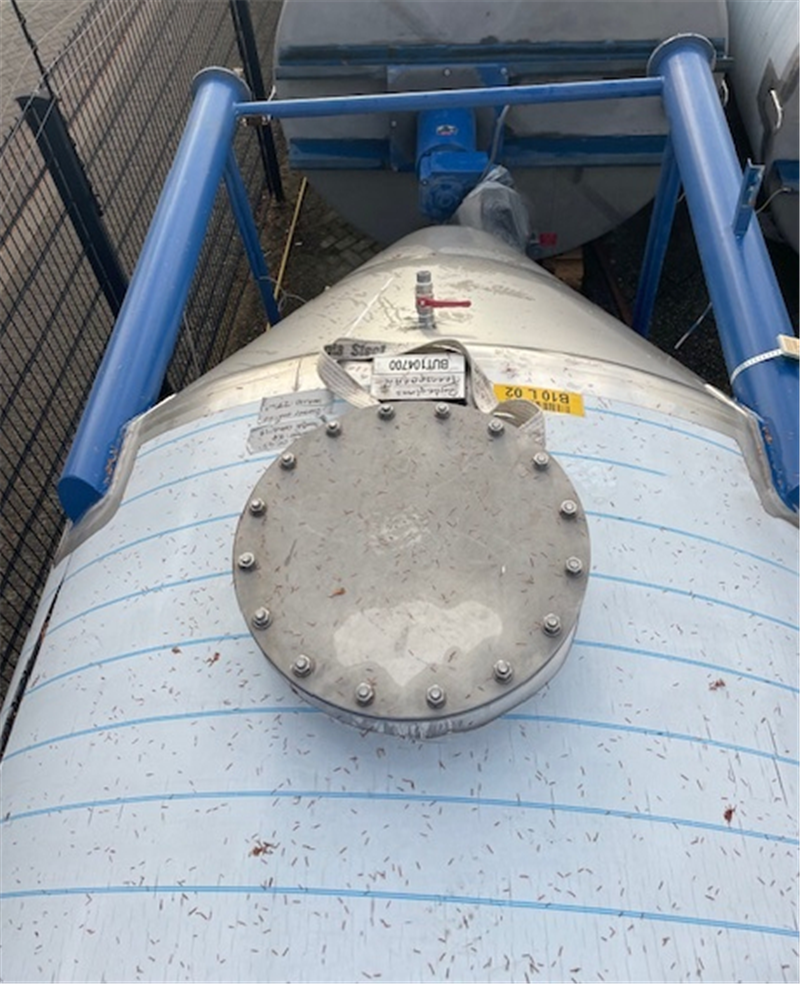

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 510mm / dia 500mm |

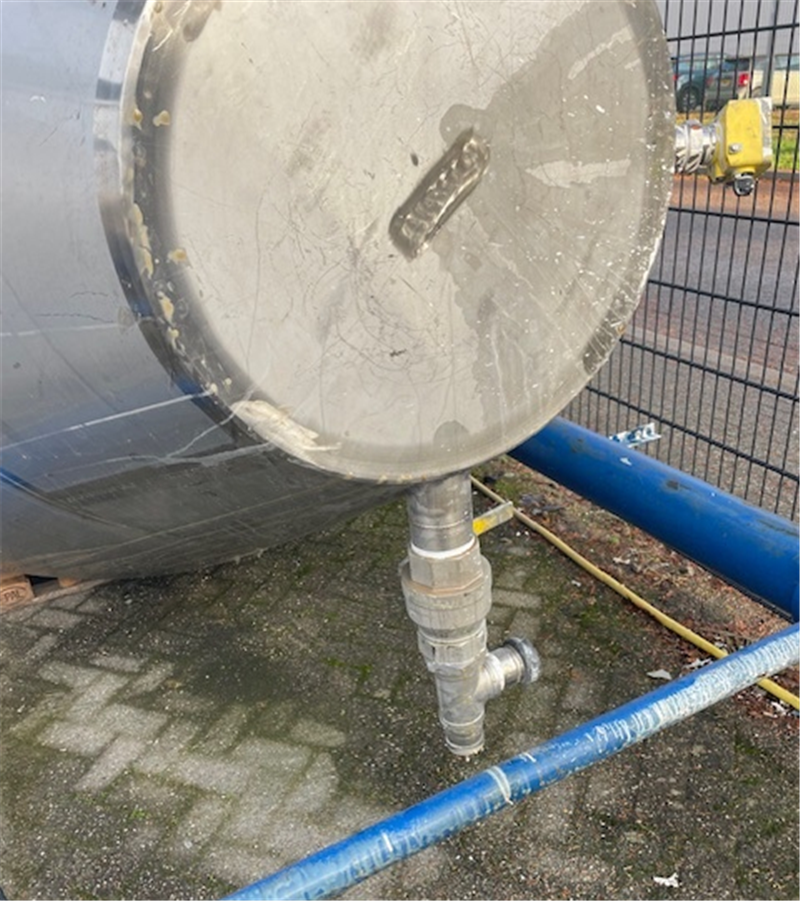

| Tank with total drain? | Yes |
| Type of outlet (s) | man. bolkraan |
| Diameter of outlet (mm) | DN80 |
| locality | B-7711 Belgium |
| Last application | Paint industry |
| Provision tank cleaning | None |
| Weight (kg) | 2100 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,9 |
| Bottom thickness (mm) | 3,9 |
| Periphery (mm) | 7430 |
| Cylindrical length (mm) | 4500 |
| Height bottom (mm) | 1600 |
| Total height (mm) | 7750 |
| Length (mm) | 2515 |
| Diameter tank (mm) | 2360 |
| Width (mm) | 2385 |

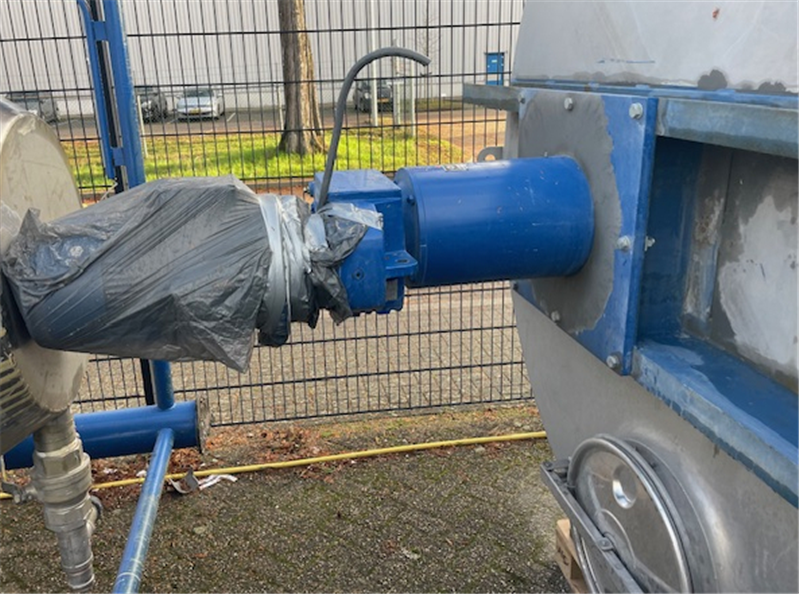

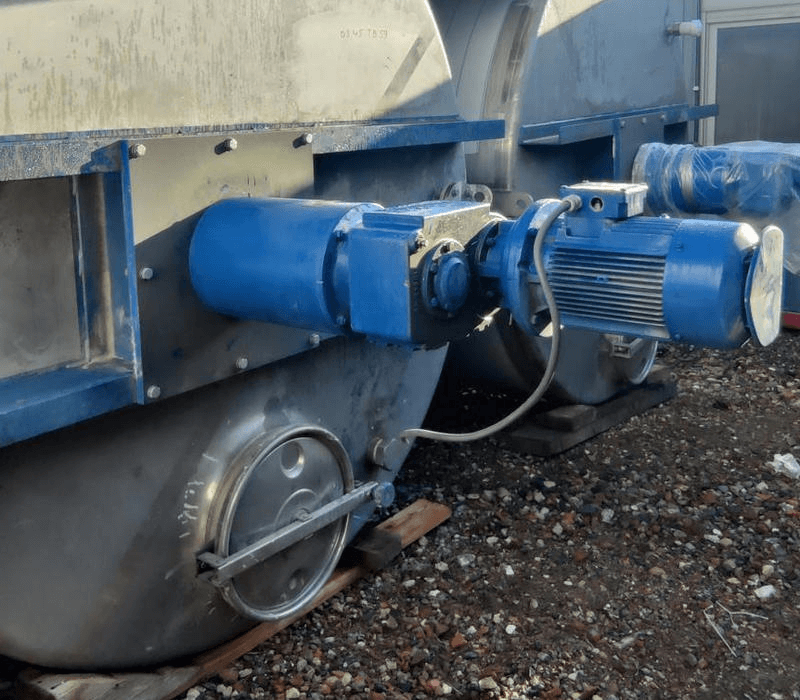

| Agitators | |
|---|---|
| Number of agitators | 1 |

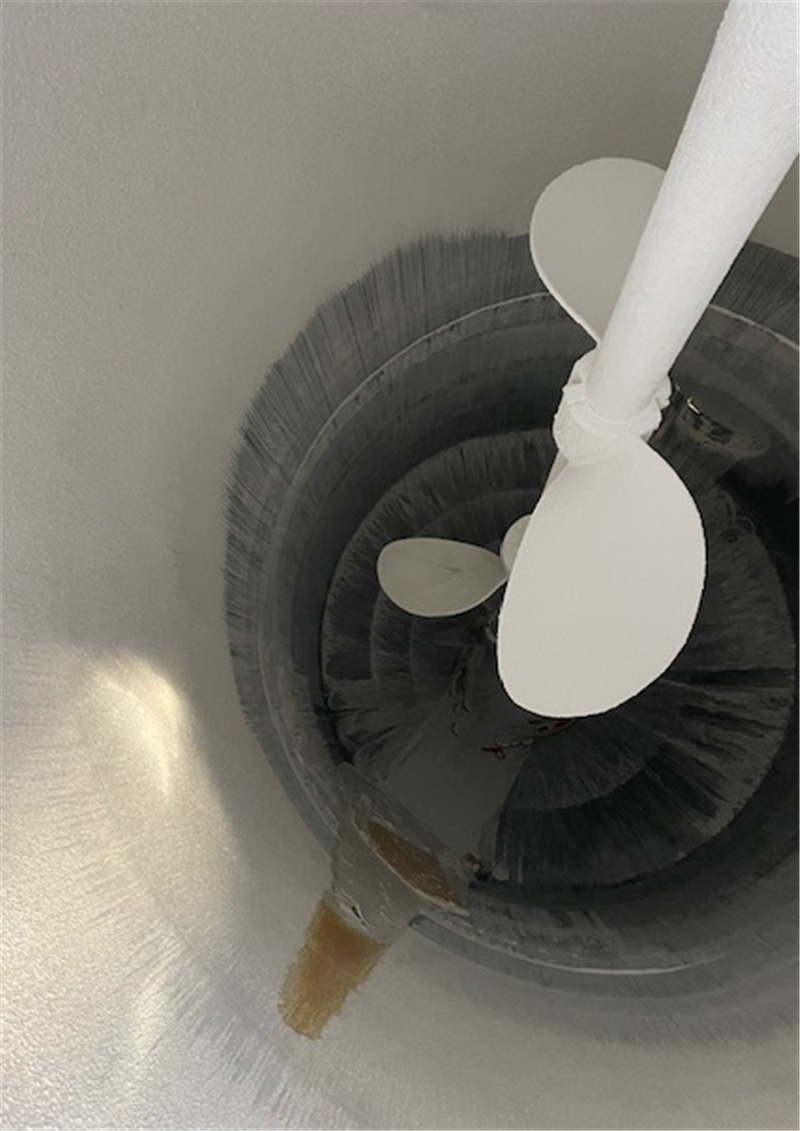

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 5000 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 6,8 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 71 |
| Remarks | |
|---|---|
| Description (EN) | Paint residue on the tank wall |
