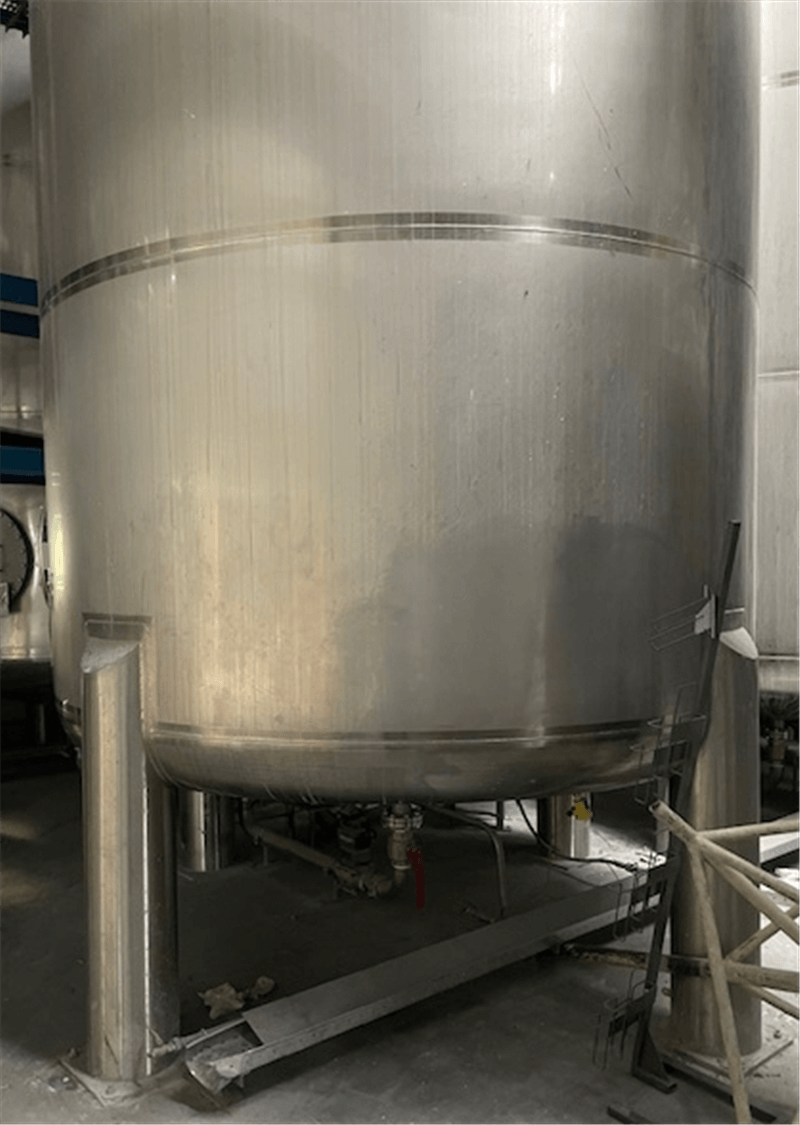

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 33900 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.TB.08 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 33900 |
| Type tank | Storage tank |

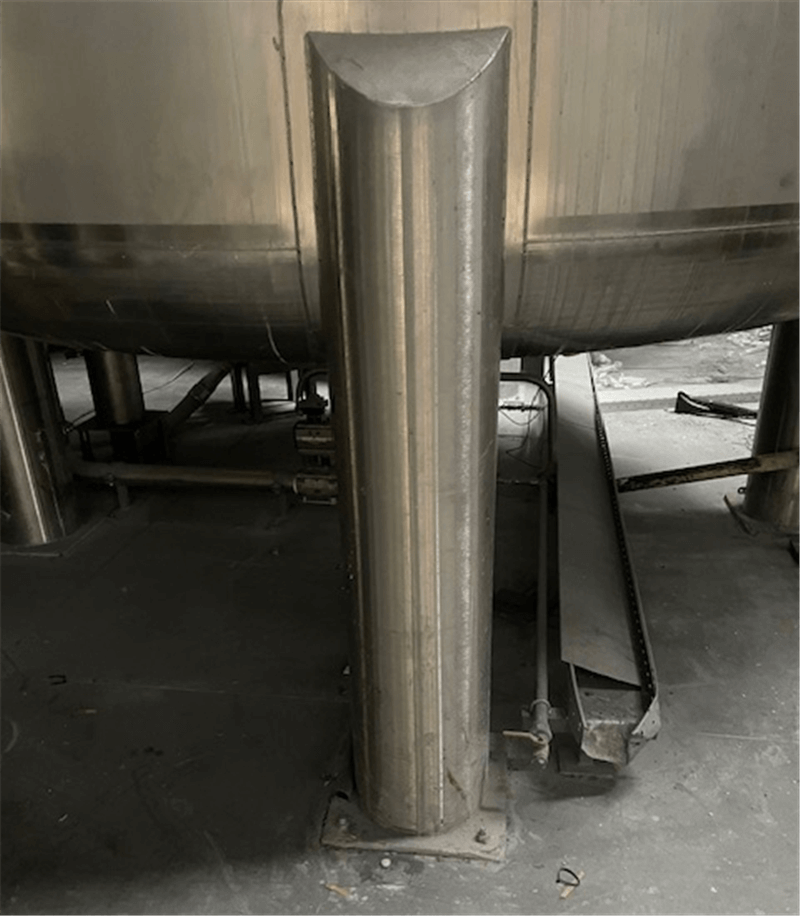

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Density (kg/dm³) | 1,5 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 510mm / dia 600mm |
| Tank with total drain? | Yes |

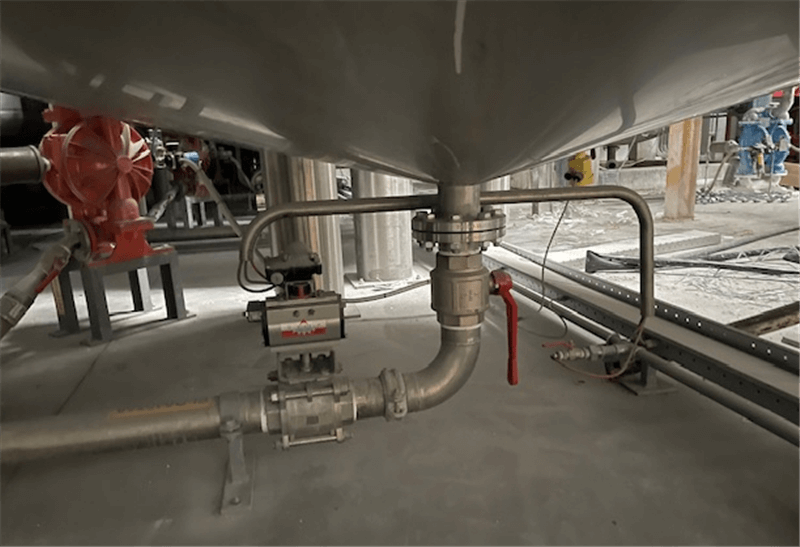

| Type of outlet (s) | man. bolkraan |
| Diameter of outlet (mm) | DN80 |
| locality | B-7711 Belgium |
| Last application | Paint industry |
| Provision tank cleaning | None |
| Weight (kg) | 1740 |
| Condition | Used |

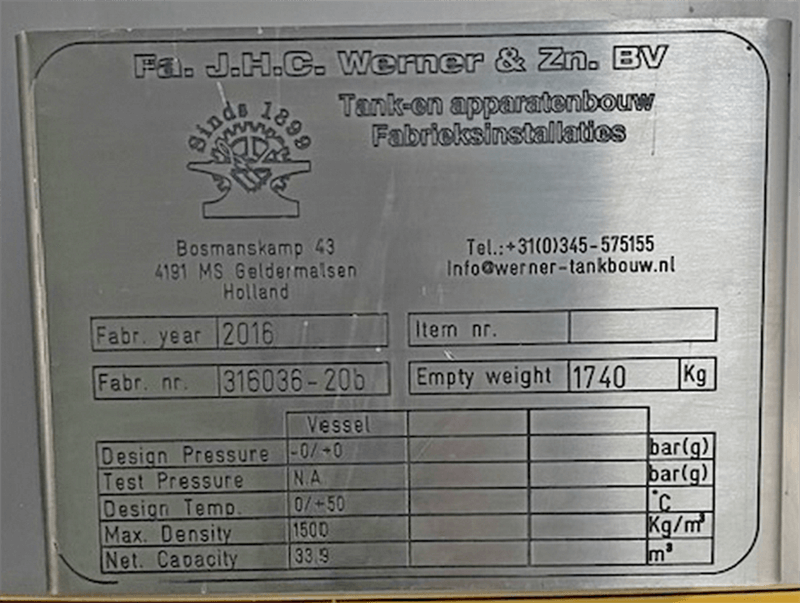

| Type plate manufacturer | Yes |
| Manufacturer | JHC Werner & Zn |
| Year Built | 2016 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,9 |
| Bottom thickness (mm) | 3,8 |
| Periphery (mm) | 9420 |
| Cylindrical length (mm) | 4500 |
| Height bottom (mm) | 600 |
| Total height (mm) | 6400 |
| Length (mm) | 3150 |
| Diameter tank (mm) | 2995 |
| Width (mm) | 3000 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | Design pressure -0/+0 bar(g) --- Design temp 0°C/+50°C |
